Description
Epiroc FlexiROC T35 Tier 3 Spare Parts Catalog 8992011591-001 PDF
The Epiroc FlexiROC T35 Tier 3 Spare Parts Catalog 8992011591-001 PDF is a comprehensive DocMine-generated parts reference for the FlexiROC T35. Spanning 1,535 PDF pages, it organizes the rig into major assemblies and then breaks those assemblies down into illustrated parts groups with item numbers, part numbers, quantities, names and remarks. This catalog is especially useful when identifying components before ordering parts, comparing assemblies, tracing how a component fits into a larger system, or checking which service kit, seal kit, filter, hydraulic component, electrical item or optional attachment is listed for the machine.
The document is headed around FlexiROC T35 Tier 3 coverage, while a number of shared assemblies inside the catalog are explicitly titled T35/T40 or T40 Tier 3. That distinction matters when using the catalog: match the exact assembly heading, illustration and listed part number to the machine configuration being serviced. The catalog also states that printed information may be outdated and directs users to the DocMine web page for the most up-to-date information.
File Details
- Manual type: Spare parts catalog
- Brand: Epiroc
- Model: FlexiROC T35 / FlexiROC T35 Tier 3
- Document number: 8992011591-001
- Language: English
- Page count: 1,535 PDF pages
- File format: PDF
What This Parts Catalog Contains
This is not a short component list. The catalog works through the rig assembly by assembly, frequently pairing an exploded illustration with a corresponding parts table. Those tables identify the illustrated position, part number, part name, quantity and remarks where supplied. Many component groups also point to dedicated subassemblies, service kits or seal kits, allowing the user to move from a complete assembly down to individual replaceable items.

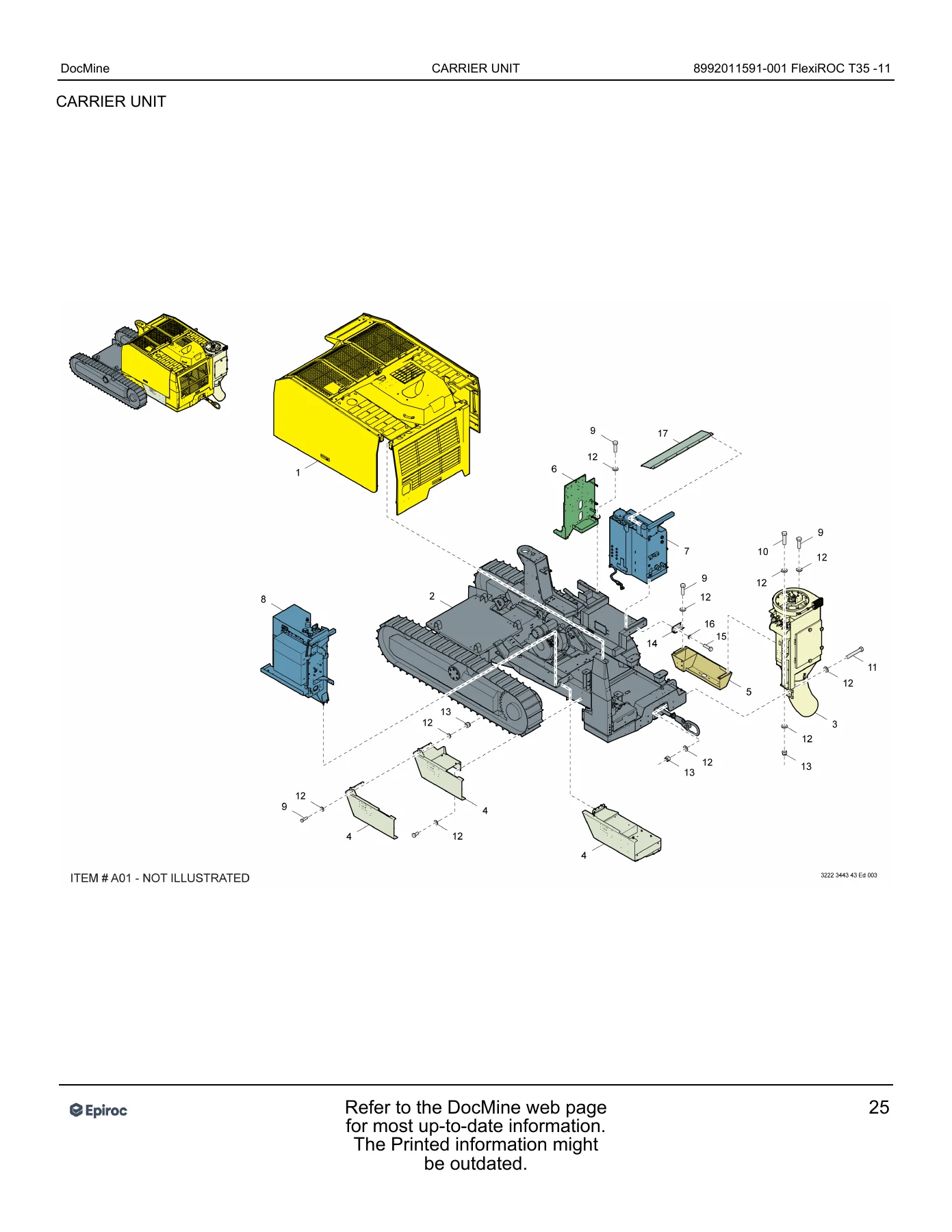

Examples visible throughout the catalog include carrier and track assemblies, hydraulic cylinders, pumps, drive components, electrical cabinets and circuit boards, boom and feed components, rod-handling hardware, cabin parts, dust-collector components, hose and cable sets, air and hydraulic systems, and optional equipment. The drive-unit section specifically includes a CAT C7.1 168KW diesel engine listing, pump and compressor assemblies, cooling and fuel-system components. Maintenance-related parts are also organized into service kits for several hour intervals, including 250HR, 500HR, 1000HR, 1500HR, 2000HR, 3000HR and 6000HR.
Chapters Covered
- PARTS & SERVICE
- PARTS & SERVICE – FLEXIROC T35 TIER 3
- PM-KITS – SERVICE KIT 250 HOURS – 6000 HOURS
- Service kits and primary + safety air filter sets
- CARRIER
- Carrier unit, canopy, doors, hatches, roofs and roof plates
- Wagon frame with and without support leg
- Track oscillation and hydraulic cylinders
- Winch, drum brake, gear, press roller and hydraulic release
- Fuel assembly, fuel tank, suspension and electrical cabinet
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “Epiroc FlexiROC T35 Tier 3 Spare Parts Catalog 8992011591-001 PDF” are as follows:
+PARTS & SERVICEp. 21
+PARTS & SERVICE – FLEXIROC T35 TIER 3p. 21
PARTS & SERVICE – FLEXIROC T35 TIER 3p. 21
PM-KITS – SERVICE KIT 250 HOURS – 6000 HOURSp. 23
SERVICE KIT – SERVICE KIT 250HRp. 25
SERVICE KIT – SERVICE KIT 500HRp. 27
SERVICE KIT – SERVICE KIT 1000HRp. 29
SERVICE KIT – SERVICE KIT 1500HRp. 31
FILTER SET – PRIMARY + SAFETY AIR FILTERp. 33
SERVICE KIT – SERVICE KIT 2000HRp. 35
SERVICE KITp. 37
FILTER SET – PRIMARY + SAFETY AIR FILTERp. 39
SERVICE KIT – SERVICE KIT 6000HRp. 41
FILTER SET – PRIMARY + SAFETY AIR FILTERp. 43
+CARRIERp. 45
+CARRIER UNITp. 45
CARRIER UNITp. 45
CANOPY KITp. 47
DOORp. 49
LOCK DEVICEp. 51
HOODp. 53
FRAME BEAMp. 55
HATCHp. 57
LOCK DEVICEp. 59
HATCHp. 61
LOCK DEVICEp. 63
ROOFp. 65
ROOFp. 67
ROOFp. 69
ROOF PLATEp. 71
ROOF PLATEp. 73
CARRIERp. 75
WAGON FRAME – NO SUPPORT LEGp. 78
WAGON FRAME – SUPPORT LEGp. 81
CYLINDER – TRACK OSCILLATIONp. 83
HYDR. CYLINDERp. 85
HYDR. CYLINDER – SUPPORT LEG 140/70X255p. 87
BATTERY SUPPORTp. 89
FLOOR PANEL KITp. 91
ASSEMBLY SET – RUBBER CLOTHp. 93
WINCH – COMPLETE WITH WIREp. 95
WINCHp. 97
BRAKE – WINCH DRUM BRAKEp. 99
GEAR – INCL. WINCH DRUM AND SUPPORTp. 101
PRESS ROLLERp. 104
DISCONNECTION – HYDRAULIC RELEASEp. 107
DRIVE DEVICE – M BROMSp. 109
HYDRAULIC MOTOR – MSQ 315 SHp. 111
ROPE GUARDp. 113
WIRE – COMPLETEp. 115
TOOL BOXp. 117
PROTECTION BEAM – DEF TANKp. 119
PROTECTION BEAM – NO DEF TANKp. 121
FUEL ASSYp. 123
FUEL TANK – D HCS C7p. 125
SUSPENSION – SUSPENSION; D, L AND D65Sp. 128
ELECTR.CABINET – A1p. 131
RAD. BAFFLEp. 136
+TRACK FRAME – 1-GROUSERp. 139

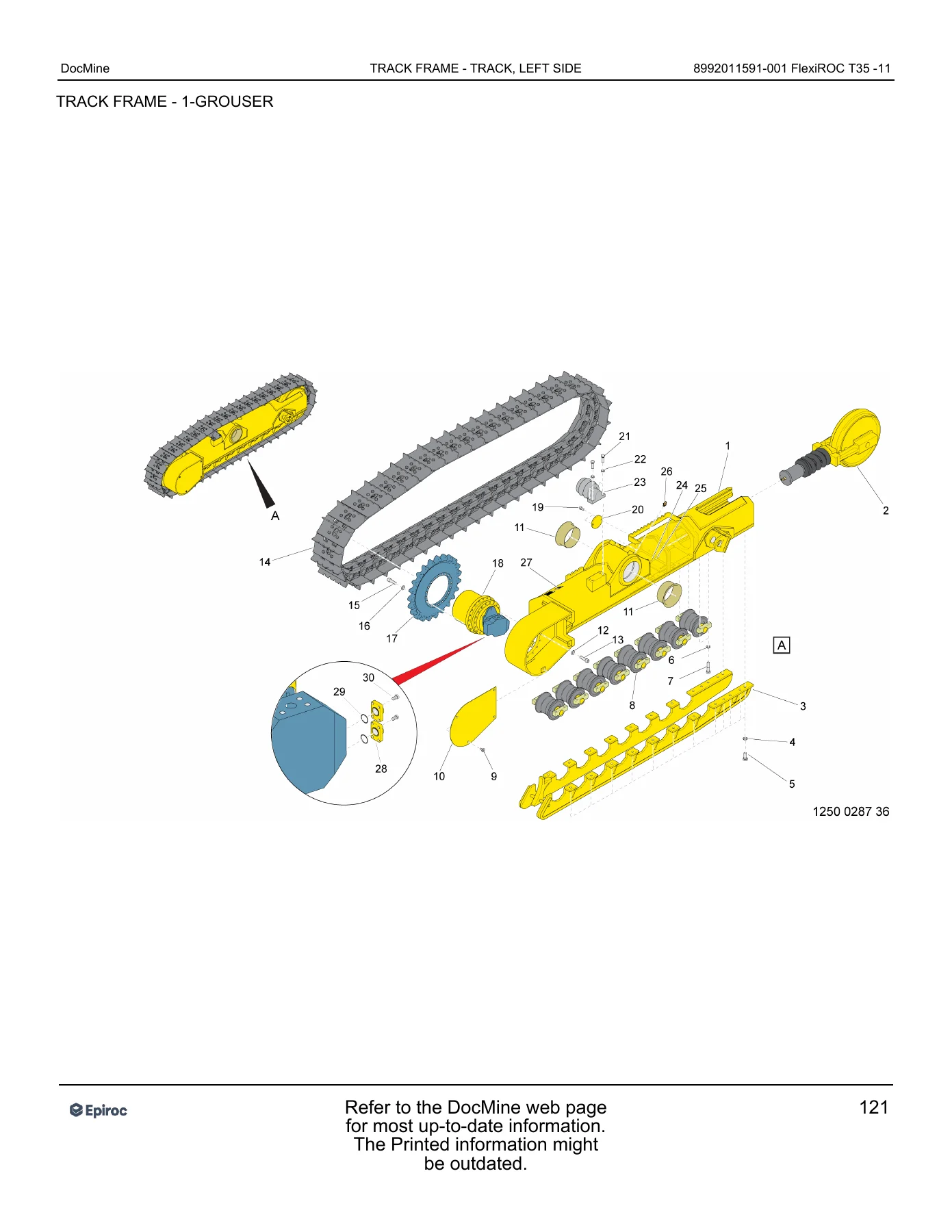

TRACK FRAME – COMPLETE PAIR, 1 GROUSERp. 139
TRACK FRAME – TRACK, LEFT SIDEp. 141
FRONT WHEELp. 143
TENSIONING UNITp. 145
CHAIN GUARD – CHAIN GUARD COMPLETEp. 147
TRACK CHAIN – SINGLE GROUSERp. 149
MOTOR RED. ASSYp. 151
DRIVE UNIT – 45/20CC, I=137p. 153
GEAR BOX – I=137p. 155
HYDRAULIC MOTORp. 158
CONNECTION SET – TRACK MOTOR A6VEp. 161
HOSE SET – TRACK MOTOR A6VEp. 163
TRACK FRAME – TRACK, RIGHT SIDE, GFT8140-40p. 165
+TRACK FRAME – 3-GROUSERp. 167
TRACK FRAME – COMPLETE PAIR, 3 GROUSERp. 167
TRACK FRAME – TRACK, LEFT SIDE, GFT8140-40p. 169
FRONT WHEELp. 143
TENSIONING UNITp. 145
CHAIN GUARD – CHAIN GUARD COMPLETEp. 147
TRACK CHAIN – TRIPLE GROUSERp. 171
MOTOR RED. ASSYp. 151
DRIVE UNIT – 45/20CC, I=137p. 153
GEAR BOX – I=137p. 155
HYDRAULIC MOTORp. 158
CONNECTION SET – TRACK MOTOR A6VEp. 161
HOSE SET – TRACK MOTOR A6VEp. 163
TRACK FRAME – TRACK, RIGHT SIDE, GFT8140-40p. 173
+OPTION KIT – WITHOUT SUPPORT LEGp. 176
OPTION KIT – WITHOUT SUPPORT LEGp. 176
+OPTION KIT – WITH SUPPORT LEGp. 179
OPTION KIT – WITH SUPPORT LEGp. 179
HYDR. SYSTEM – B23 SUPPORT LEGp. 181
DIRECTION VALVEp. 183
HYDR. CYLINDERp. 185
FLOOR PANEL KITp. 187
ASSEMBLY SET – RUBBER CLOTHp. 189
+TOOL BOXp. 191
+PROTECTION BEAM – NO DEF TANKp. 192
PROTECTION BEAM – NO DEF TANKp. 121
+DRIVE UNITp. 193
+DRIVE UNITp. 193
DRIVE UNITp. 193
POWER PACK – FLEXIROC TIERIII T35/T40p. 195
BELT PROTECTIONp. 198
COMPRESSOR – TM-16 K-MEDIUM:R134Ap. 201
PUMP UNIT – FLEXIROC T35/T40 TIER3p. 203
AX.PISTON PUMP – 71CC,LEFTp. 206
PUMP – A10V 0 71 0V/31Lp. 209
PUMP UNITp. 211
GEAR PUMP – 38CCp. 213
COUPLING – PUMP COUPLINGp. 215
GEAR PUMP – 19CC+19CCp. 217
ATTACHM.COMPLETp. 219
ELECTR.CABINET – RELAY AND FUSE BOXp. 221
CIRCUIT BOARDp. 223
AIR FILTERp. 225
CONTROL VALVE – Y193p. 227
EXHAUST ASSYp. 229
ATTACHMENT – EXHAUST ATTACHMENT C7.1p. 231
EXHAUST SYSTEM – FLEXI/SMART T35/T40 TIER3 C7.1p. 233
COMPRESSOR UNIT – TIERIV FINAL AND UNITYp. 235
CONNECTION SET – TRYCKTANK KPLp. 237
CONTROL VALVEp. 239
COUPLING – CAT C7.1p. 241
COMPRESSOR SET – COMPRESSOR D7 C111 127Lp. 243
COMPR. ELEMENTp. 245
UNLOADING VALVEp. 248
HYDR. SYSTEM – PUMPSYSTEM C7.1p. 251
AX.PISTON PUMP – 71CC,LEFTp. 253
PUMP – A10V 0 71 0V/31Lp. 255
PUMP UNITp. 257
GEAR PUMP – 38CCp. 259
GEAR PUMP – 19CC+19CCp. 261
GEAR PUMP – 19CC+19CCp. 263
COOLER ASSY – T35/T40 C7.1p. 265
COOLING UNITp. 267
EXPANSION TANK – T35/T40 C7.1p. 272
ELECTR. SYSTEM – COOLER, DRIVE UNIT T35/T40p. 275
ELECTR. SYSTEM – COOLER, DRIVE UNIT T35/T40p. 277
AIR FILTER SETp. 279
AIR FILTER – BLUE AEROp. 281
FILTER SET – PRIMARY + SAFETY AIR FILTERp. 283
AIR FILTER SET – T35/T40 T4F UNITY TIER3p. 285
AIR FILTER – BLUE AEROp. 287
PIPE SET – FLEXI/SMART T35/T40 TIER3p. 289
DIESEL ENGINE – CAT C7.1 168KWp. 291
FUEL SYSTEM – FLEXI/SMART TIER3 T35 T40p. 293
FUEL SYSTEM – WAGONFRAMEp. 295
FUEL SYSTEMp. 297
HOSE SET – FUELSYST. C7.1 TIER3p. 299
GEAR MOTORp. 301
GEAR MOTOR – 19CCp. 303
HOLDER SETp. 306
+PREFILTER – SET WITH TWO 5"p. 309
PREFILTER – SET WITH TWO 5"p. 309
+RAIN PROTECTION – SET WITH TWO 5"p. 311
RAIN PROTECTION – SET WITH TWO 5"p. 311
+PRESSURE VESSEL – 42L, MAX 14 BARp. 313
PRESSURE VESSEL – 42L, MAX 14 BARp. 313
PRESSURE VESSEL – OIL SEPARATORp. 315
CONTROL VALVEp. 317
+PRESSURE VESSEL – 42L, MAX 14 BARp. 319
PRESSURE VESSEL – 42L, MAX 14 BARp. 319
+PRESSURE VESSEL – 42 L, MAX 16 BARp. 321
PRESSURE VESSEL – 42 L, MAX 16 BARp. 321
+BOOM SYSTEM FlexiROC T35 Tier 3p. 323
+BOOM SYSTEM – B12 MK2, B.LINK, CABp. 323
BOOM SYSTEM – B12 MK2, B.LINK, CABp. 323
BOOM SYSTEM – SIDEMOUNTED B.LINKp. 325
BOOM COMPL. – B12 MKIIp. 328
BOOM COMPL. – INNREp. 331
BOOM HEAD COMPLp. 333
BOOM ATTACHMENT – KOMPLETT 160-CYLp. 335
EXPANDING SHAFTp. 337
EXPANDING SHAFTp. 339
EXPANDING SHAFTp. 341
EXPANDING SHAFT – KOMPLp. 343
FEED HOLDER – COMPLETEp. 345
HYDR. CYLINDER – FEED EXTENSIONp. 347
HYDR. CYLINDERp. 349
HYDR. CYLINDER – BOOM SWING CYLINDERp. 351
HYDR. CYLINDERp. 353
HYDR. CYLINDER – FEEDSWINGp. 355
BANANA LINK – KOMPLETTp. 357
CYLINDER – BOOMLIFTp. 359
CYLINDER – BOOMEXTENSIONp. 361
CYLINDER – FEEDDUMPp. 363
HOLDERp. 365
HOLDERp. 367
EXPANDING SHAFTp. 369
EXPANDING SHAFTp. 371
+BOOM SYSTEM – OMPINN, CABp. 373
BOOM SYSTEM – OMPINN, CABp. 373
BOOM SYSTEM – SIDE MOUNTED RE-PIN.p. 375
BOOM COMPL. – B12 MKIIp. 328
BOOM COMPL. – INNREp. 331
BOOM ATTACHMENT – KOMPLETT 160-CYLp. 335
EXPANDING SHAFTp. 337
EXPANDING SHAFTp. 337
EXPANDING SHAFT – KOMPLp. 343
FEED HOLDER – COMPLETEp. 345
HYDR. CYLINDER – FEED EXTENSIONp. 347
HYDR. CYLINDERp. 85
HYDR. CYLINDER – BOOM SWING CYLINDERp. 351
HYDR. CYLINDERp. 85
CYLINDER – FEEDSWINGp. 378
CYLINDER – BOOMLIFTp. 359
CYLINDER – BOOMEXTENSIONp. 361
CYLINDER – FEEDDUMPp. 363
HOLDERp. 365
HOLDERp. 365
EXPANDING SHAFTp. 337
EXPANDING SHAFTp. 337
+HOSE SUSPENSION – FOLDING BOOMp. 382
HOSE SUSPENSION – FOLDING BOOMp. 382
HOSE SUSPENSIONp. 385
YOKE – COMPLETEp. 387
HOSE HOLDERp. 389
+FEEDp. 391
+FEED – COMPLETE RHS BMH 6000p. 391
FEED – COMPLETE RHS BMH 6000p. 391
FEED – COMPLETE DUAL DRILL STEEL SUPPORTp. 393
FEEDp. 396
HOSE DRUM – KPL M KRÄNGSKYDDp. 400
HOLDER SETp. 403
HOLDER SETp. 405
HOSE DRUMp. 407
PULLEY WHEELp. 409
DRILL CARRIAGEp. 411
HOLDER SETp. 413
HOLDER SETp. 415
CRADLE COMPL – DRILL STEEL SUPPORTp. 417
HOLDER SETp. 419
HOLDER SETp. 421
HYDR. CYLINDER – SUCTION HOODp. 423
FEEDp. 425
DOWELp. 427
DOWEL – OPTIONAL DOWELp. 429
HOSE ATTACHMENTp. 431
RHS KIT – RHS 51p. 433
ARM – RHS 51p. 435
HYDR. CYLINDER – C-C:219p. 438
HYDR. CYLINDER – ROD GRIPPERp. 441
END PIECE – LOWERp. 443
END PIECE – UPPERp. 445
TURNING CYLIND. – SVART FÄRGp. 447
SHAFTp. 449
DAMPERp. 451
DRILL STEEL SUP – COMPL.p. 453
DRILL STEEL SUP – LOWERp. 455
HYDR. CYLINDERp. 458
INTERM.SUPPORTp. 461
HOLDER SETp. 463
HOLDER SETp. 465
DRILL STEEL SUP – UPPERp. 467
HOSE ATTACHMENT – BULKHEADp. 469
BULKHEAD CONN.p. 471
HOSE HOLDERp. 473
HOLDER SETp. 475
CYLINDER SET – BMH 6000 RHSp. 477
HYDR. CYLINDERp. 479
SUPPORT COMPL – ALLTID VID VIKBOMp. 481
ASSEMBLY SET – B122p. 483
HYDR. SYSTEM – B30 ROD HANDLING DUAL DRILL STEEL SUPPORTSp. 485
VALVE BLOCK – ROD GRIPPERSp. 487
DIRECTION VALVEp. 489
VALVE BLOCK – RHS 51 WITH 2 DRILLSTEELSUPPORTSp. 491
DOUBLE CH.VALVEp. 493
DOUBLE CH.VALVEp. 495
DIRECTION VALVE – TRACKOSCILLATIONp. 497
PRESS.RED.VALVEp. 499
PRESS.RED.VALVEp. 501
PRESS.RED.VALVE – REG 5-340 BARp. 503
HOSE SET – RHS 51 DUAL DRILL STEEL SUPPORTp. 505
+PROTECTIONp. 507
PROTECTIONp. 507
PROTECTIONp. 509
PROTECTIONp. 511
PROTECTIONp. 513
PROTECTIONp. 515
PROTECTIONp. 517
SKIRTp. 519
SAFETY ELEMENT – SAFETY EDGEp. 521
ASSEMBLY SETp. 523
+FEED COMPONENTS – "NO POMP"p. 525
FEED COMPONENTS – "NO POMP"p. 525
+DOWELp. 527
+DOWEL – OPTIONAL DOWELp. 528
DOWEL – OPTIONAL DOWELp. 429
+DR.ST.SUPP.SET – DUBBLA BORRST.p. 529
DR.ST.SUPP.SET – DUBBLA BORRST.p. 529
+DR.ST.SUPP.SET – DUBBLA BORRST.p. 531
DR.ST.SUPP.SET – DUBBLA BORRST.p. 531
+DR.ST.SUPP.SET – DUBBLA BORRST.p. 533
DR.ST.SUPP.SET – DUBBLA BORRST.p. 533
+DR.ST.SUPP.SET – DUBBLA BORRST.p. 535
DR.ST.SUPP.SET – DUBBLA BORRST.p. 535
+HOLDER SET – 7 X T51p. 537
HOLDER SET – 7 X T51p. 537
+HOLDER SET – 7 X R32p. 539
HOLDER SET – 7 X R32p. 539
+HOLDER SET – 7 X T38p. 541
HOLDER SET – 7 X T38p. 541
+HOLDER SET – 7 X T45p. 543
HOLDER SET – 7 X T45p. 543
+CABINp. 545
+KEY – DOORp. 545
+KEY – IGNITION LOCKp. 547
KEY – IGNITION LOCKp. 547
+CAB MODULE – COMPLETE CABp. 549
CAB MODULE – COMPLETE CABp. 549
CAB KIT – BASE CAB 19Tp. 551
CAB KIT – COMMON MOUNTING PARTp. 553
AIR HOSE – AIR HOSE, STONE PLATEp. 561
DAMPER – VIBRATION DAMPERp. 563
SOUND SUPPRESS. – FOAM AND BARRIERp. 565
AIR CHANNEL – AIR CHANNEL, EMERGENCY STOPp. 567
AIR COND.UNIT – A/C UNITp. 569
AIR COND.UNIT – ROOFp. 571
AIR COND.UNIT – HEAT UNIT, SEAT MOUNTINGp. 573
AIR COND.UNIT – HEATER-UNIT (GOLV)p. 575
ROOF – INNER LINERp. 577
ROOF ASSEMBLY – INNER LINER CPL.p. 579
COVER – COVER C LH. CPL.p. 581
COVER – COVER C RH CPL.p. 583
BULKHEADp. 585
ANGLE SENSOR – ANGLE GAUGEp. 587
BOX – STORAGE TRAYp. 589
HANDLE – GLIDING PROFILE, HANDLEp. 591
FLUSHING SYSTEMp. 593
LOCK PIN – PIN, COVER ASSEMBLEp. 595
FIRE EXTINGUIS. – FIRE EXTUNGISHER COVER PLATEp. 597
CARPET – FLOOR MATp. 599
ROOF ASSEMBLAGE – OUTER ROOFp. 601
WIPER COMPL. – WIPER SYSTEM, FRONT AND ROOFp. 603
TOOL BOX – TOOL BOXp. 605
DOOR – DOORp. 607
DOOR MODULE – DOOR CPL WITHOUT TRIM & GLASSp. 609
FOPS-PROTECTION – FOPS GRIDp. 612
ELECTRONIC UNIT – COMPLETE POWER BOARD BOXp. 615
ELECTRONIC CARD – POWER BOARD G2p. 617
TOUCHPANELp. 619
LAMP ASSEMBLY – WORKING LAMPS, HALOGENp. 621
LAMP ASSEMBLY – WORKING LAMPS, XENONp. 623
DOOR – DOOR CPL (CLEAR WINDOW)p. 625
DOOR MODULE – DOOR CPL WITHOUT TRIM & GLASSp. 627
DOOR – DOOR CPL (TINTED WINDOW)p. 630
DOOR MODULE – DOOR CPL WITHOUT TRIM & GLASSp. 633
DOOR – DOOR CPL (CLEAR/SAFETY WINDOW)p. 636
DOOR MODULE – DOOR CPL WITHOUT TRIM & GLASSp. 639
DOOR – DOOR CPL (TINTED/SAFETY WINDOWp. 642
DOOR MODULE – DOOR CPL WITHOUT TRIM & GLASSp. 645
HOSE SET – HOSE SET AC RED DOT ROC Dp. 648
HYDR. SYSTEM – B02 CABINp. 651
DIRECTION VALVE – POSITIONING CABp. 653
INLET SECTIONp. 655
VALVE SECTION – SPOLSEKTIONp. 657
OUTLET SECTIONp. 659
PR.CONTR.VALVEp. 661
PR.CONTR.VALVE – DRILL LEVERp. 663
VALVE BLOCKp. 665
CONNECTION SET – GAUGES TH/CRp. 667
CONNECTION SET – POSITIONING VALVEp. 669
DIRECTION VALVE – POSITIONING CABp. 671
INLET SECTIONp. 673
VALVE SECTION – SPOLSEKTIONp. 675
OUTLET SECTIONp. 677
CONNECTION SET – TRAMMING LEVERp. 679
PR.CONTR.VALVEp. 681
CONNECTION SET – DRILL LEVERp. 683
PR.CONTR.VALVE – DRILL LEAVERp. 685
CONNECTION SET – CABIN BLOCK D HCSp. 687
VALVE BLOCKp. 689
ELECTR. SYSTEM – CABINp. 691
CONTROL PANEL – CONTROL UNIT LH A51p. 693
CONTROL PANEL – CONTROL UNIT RH A52(HCS)p. 695
MOUNTING PLATE – CONTROL BOARD,A53p. 697
DISPLAY KIT – VDO TIER IV METRICp. 699
DISPLAY KIT – VDO TIER IV IMPERIALp. 701
DISPLAY KIT – VDO TIER III C7.1 METRICp. 703
DISPLAY KIT – VDO TIER III C7.1 IMPERIALp. 705
CABLE SET – CABLE SET CABINp. 707
HOSE SET – HYD.HOSE SET "AT LEAST" (DTH)p. 709
HOSE SET – HYD. HOSE SET GAUGES (TH/CR)p. 711
HOSE SET – HOSE SET TRAMMING LEVERS (HCS)p. 713
CAB KIT – INTERIOR TRIM HCSp. 715
WINDOW – STD (8MM)p. 717
WINDOW – TINTEDp. 719
WINDOW – ACOUST. LAM. CLEAR, 24MM FRONTp. 721
WINDOW – ACOUST. LAM. TINT., 24MM FRONTp. 723
CHAIR – 524P HCSp. 725
SEAT – WITHOUT HEATINGp. 727
CHAIR – WITH HEATINGp. 729
SEAT – SEAT WITH HEATERp. 731
CAB KIT – BACKPACK D HCSp. 733
HATCH – HATCHp. 735
PLATE SET – BACKPACK PLATES D HCSp. 737
SOUND ABSOR.MTR – SOUND ISOLATION BACKPACK HCSp. 739
CAB KIT – MIRROR, SIDE PL.,INLET HCSp. 741
SIDE HATCH – SIDEPLATE LH. RCSp. 743
+CAB KIT – ANTENNA MOUNTING PLATEp. 745
CAB KIT – ANTENNA MOUNTING PLATEp. 745
+CHAIR – 524P HCSp. 747
CHAIR – 524P HCSp. 725
SEAT – WITHOUT HEATINGp. 727
+CHAIR – WITH HEATINGp. 748
CHAIR – WITH HEATINGp. 729
SEAT – SEAT WITH HEATERp. 731
+WINDOW – ROOF WINDOW,CLEAR,ACOUSTICp. 749
WINDOW – ROOF WINDOW,CLEAR,ACOUSTICp. 749
+WINDOW – ROOF WINDOW,GREEN,ACOUSTICp. 751
WINDOW – ROOF WINDOW,GREEN,ACOUSTICp. 751
+ASSEMBLY SET – LADDER,MIRROR,MANOMETER PLATEp. 753
ASSEMBLY SET – LADDER,MIRROR,MANOMETER PLATEp. 753
DRIVING MIRRORp. 755
+GLARE SHIELD – KITp. 757
+LADDERp. 759
+WIPER COMPL. – RIGHT WINDOWp. 761
WIPER COMPL. – RIGHT WINDOWp. 761
+DISPLAY KIT – METRICp. 763
DISPLAY KIT – METRICp. 763
+DISPLAY KIT – VDO TIER III C7.1 IMPERIALp. 765
DISPLAY KIT – VDO TIER III C7.1 IMPERIALp. 765
+LIGHT SET – HALOGENp. 767
LIGHT SET – HALOGENp. 767
LAMP ASSEMBLY – WORKING LAMPS, HALOGENp. 769
+LIGHT SET – XENONp. 771
LIGHT SET – XENONp. 771
LAMP ASSEMBLY – WORKING LAMPS, XENONp. 773
+AIR COND.DET. FlexiROC T40 Tier 3p. 775
+AIR CONDITIONER – AIR CONDITIONERp. 775
AIR CONDITIONER – AIR CONDITIONERp. 775
AIR COND.DET. – ROC D MK2 – BOSALp. 777
AIR CONDITIONER – ROC D/F/L HYTTDETALJERp. 779
AIR COND.UNIT – ROOFp. 571
AIR COND.UNIT – HEATER-UNIT (GOLV)p. 781
AIR CONDITIONER – AIR CONDITIONERp. 783
COMPRESSOR – C-MEDIUM:R134Ap. 785
CONDENSER SET – GRILL CONDENSERp. 787
CONDENSER – CONDENSERp. 789
HEATING SET – CABINp. 791
HOSE KITp. 793
+HEATING SET – T35/T40 C7.1 CABINp. 796
HEATING SET – T35/T40 C7.1 CABINp. 796
HOSE SET – VCC VCH T35/T40p. 799
+DUST COLLECTOR FlexiROC T35 Tier 3p. 801
+DUST COLLECTORp. 801
DUST COLLECTORp. 801
DUST COLLECTOR – DCT 110p. 803
FAN W. MOTOR – DCT110p. 805
HYDRAULIC MOTOR – F11-005-MB-CV-K-396-000-0p. 807
HOLDERp. 809
HATCH – COMPLETEp. 811
SOLENOID VALVEp. 813
BELTp. 815
+HOSE CONNECTION – DCT WITHOUT DPSp. 817
HOSE CONNECTION – DCT WITHOUT DPSp. 817
+HOSE CONNECTION – DCT WITH DPS 5p. 819
HOSE CONNECTION – DCT WITH DPS 5p. 819
+HOSE CONNECTION – DCT WITH DPS 12p. 821
HOSE CONNECTION – DCT WITH DPS 12p. 821
+PRESEPARATOR – CPL /RHSp. 823
PRESEPARATOR – CPL /RHSp. 823
+PRESEPARATORp. 825
PRESEPARATORp. 825
PRESEPARATOR – WITHOUT ATTACHMENTp. 827
HOSE HOLDERp. 829
+SKIRTp. 831
+RUBBER HOODp. 833
+PLASTIC BAG – SATS 25STp. 835
PLASTIC BAG – SATS 25STp. 835
+SIGN SETp. 837
+SIGN SET – CEp. 837
+SIGN SET – C7.1 TIER 3, ENGLISHp. 841
SIGN SET – C7.1 TIER 3, ENGLISHp. 841
+HYDR. RESERVOIR FlexiROC T40 Tier 3p. 845
+HYDR. RESERVOIR – COMPLETEp. 845
HYDR. RESERVOIR – COMPLETEp. 845
HYDR. RESERVOIRp. 847
RETURN FILTER – 2,5BAR BY-PASSp. 849
+HYDR. SYSTEM FlexiROC T40 Tier 3p. 851
+HYDR. SYSTEM – MAINp. 851
HYDR. SYSTEM – MAINp. 851
HYDR. SYSTEM – B01 WAGON FRAMEp. 853
VALVE BLOCKp. 861
VALVE BLOCKp. 863
VALVE BLOCKp. 865
VALVE BLOCK – MAIN VALVE BLOCK, DRILLINGp. 867
INLET SECTIONp. 869
CONTROL UNIT – DRILL FEED SECTION 1p. 871
CONTROL UNITp. 873
CONTROL UNITp. 875
VALVE SECTION – PREHEATINGp. 877
CONTROL UNIT – ROTATIONp. 879
END PIECEp. 881
VALVE BLOCK – BANDPENDLINGp. 883
DIRECTION VALVE – ERSÄTTER 3177 3092 43p. 885
DOUBLE CH.VALVE – NG6p. 887
VALVE BLOCK – TRACK OSCILLATIONp. 889
VALVE BLOCK – VINSCH/DCTp. 891
VALVE BLOCK – 4 X 4/2-VALVESp. 893
CONNECTION SET – TRACK MOTOR A6VEp. 161
DRIVE UNITp. 895
GEAR BOX – I=137p. 155
HYDRAULIC MOTOR – 45/20CCp. 897
HYDR. SYSTEM – B02 CABINp. 651
DIRECTION VALVE – POSITIONING CABp. 653
INLET SECTIONp. 655
VALVE SECTION – SPOLSEKTIONp. 657
OUTLET SECTIONp. 659
PR.CONTR.VALVEp. 661
PR.CONTR.VALVE – DRILL LEVERp. 663
VALVE BLOCKp. 665
CONNECTION SET – GAUGES TH/CRp. 667
CONNECTION SET – POSITIONING VALVEp. 669
DIRECTION VALVE – POSITIONING CABp. 653
INLET SECTIONp. 655
VALVE SECTION – SPOLSEKTIONp. 657
OUTLET SECTIONp. 659
CONNECTION SET – TRAMMING LEVERp. 679
PR.CONTR.VALVEp. 661
CONNECTION SET – DRILL LEVERp. 683
PR.CONTR.VALVE – DRILL LEAVERp. 685
CONNECTION SET – CABIN BLOCK D HCSp. 687
VALVE BLOCKp. 665
HYDR. SYSTEM – B04 RETURN SYSTEMp. 899
RETURN FILTER – 2,5BAR BY-PASSp. 849
PUMP – COMPL. INCL. HANDLE 3222328696p. 901
HYDR. SYSTEM – B05 COOLING SYSTEMp. 903
GEAR MOTOR – 19CCp. 905
HYDR. SYSTEM – B0X POS.CYLINDRARp. 908
RESTRICTION SET – D=1,6 MMp. 911
HYDR. SYSTEM – B20 WINCHp. 913
DIRECTION VALVE – WINCH BLOCK L90p. 915
ASSEMBLY SETp. 917
VALVE SECTIONp. 919
VALVE SECTIONp. 921
OUTLET SECTIONp. 923
VALVE SETp. 925
DIRECTION VALVE – REPLACES 3177 3092 40p. 927
DIRECTION VALVE – REPLACES 3177 3092 43p. 929
VALVE BLOCK – EL-CONTROLLED TRAMMINGp. 931
VALVE BLOCK – OUTRIGGERS / WINCHp. 933
HYDR. SYSTEM – B21 HYLSHÅLLAREp. 935
DOUBLE CH.VALVE – NG6p. 937
DIRECTION VALVE – ERSÄTTER 3177 3092 48p. 939
HYDR. SYSTEM – B22 UPPSLAGAREp. 941
HYDR. SYSTEM – B23 STÖDBENp. 943
DIRECTION VALVE – ERSÄTTER 3177 3092 43p. 945
HYDR. SYSTEM – B24 AUTO PAUSE DRILLRECORDERp. 947
HYDR. SYSTEM – B25 DCTp. 949
HYDRAULIC MOTOR – 4,88 CC/REV, SVARTMÅLADp. 951
VALVE BLOCK – DCT VALVE, MAX 90 L/MINp. 953
HYDR. SYSTEM – B29 COP 1838/2150/2550p. 955
OVERCENT.VALVEp. 957
HYDR. SYSTEM – B30 ROD HANDLING DUAL DRILL STEEL SUPPORTSp. 485
VALVE BLOCK – ROD GRIPPERSp. 487
DIRECTION VALVEp. 183
VALVE BLOCK – RHS 51 WITH 2 DRILLSTEELSUPPORTSp. 491
DOUBLE CH.VALVEp. 493
DOUBLE CH.VALVEp. 493
DIRECTION VALVE – TRACKOSCILLATIONp. 497
PRESS.RED.VALVEp. 499
PRESS.RED.VALVEp. 499
PRESS.RED.VALVE – REG 5-340 BARp. 503
HYDR. SYSTEM – B31 RHS 51p. 959
VALVE BLOCK – RHS 51 WITH 1 DRILL SUPPORTp. 961
HYDR. SYSTEM – B33 RAS 51 WITH ONE DRILL SUPPp. 963
VALVE BLOCK – RAS 51p. 965
HYDR. SYSTEM – B39 SCREW SAMPLERp. 967
DIRECTION VALVEp. 969
HYDRAULIC MOTOR – MSQ 100 SHp. 971
FLOW CONT.VALVE – DUBBELp. 973
PRESS.RED.VALVE – REXROTHp. 975
HYDR. SYSTEM – PUMPSYSTEM C7.1p. 251
AX.PISTON PUMP – 71CC,LEFTp. 206
PUMP – A10V 0 71 0V/31Lp. 209
PUMP UNITp. 211
GEAR PUMP – 38CCp. 213
GEAR PUMP – 19CC+19CCp. 217
GEAR PUMP – 19CC+19CCp. 217
HYDR SYSTEMp. 977
CONNECTION SETp. 979
+AIR SYSTEM FlexiROC T40 Tier 3p. 982
+AIR SYSTEM – STDp. 982
AIR SYSTEM – STDp. 982
AIR SYSTEM – COMPRESSORp. 985
COMPRESSOR SET – COMPRESSOR FR T40 149 L C111p. 987
COMPRESSOR UNITp. 989
UNLOADING VALVEp. 992
COMPRESSOR SET – COMPRESSOR D7 C111 105Lp. 995
COMPR. ELEMENTp. 997
UNLOADING VALVEp. 1000
COMPRESSOR SET – COMPRESSOR D7 C111 127Lp. 243
COMPR. ELEMENTp. 245
UNLOADING VALVEp. 248
PRESSURE VESSEL – 42L, MAX 14 BARp. 313
PRESSURE VESSEL – OIL SEPARATORp. 315
CONTROL VALVEp. 239
PRESSURE VESSEL – 42L, MAX 14 BARp. 313
PRESSURE VESSEL – 42 L, MAX 16 BARp. 321
CONTROL VALVEp. 1003
AIR FILTER – BLUE AEROp. 1005
BALL VALVE – COMPLETEp. 1007
AIR SYSTEM – FLUSH AIR,ECLp. 1009
AIR VALVEp. 1011
LUBRICAT.PUMP – ECL-PUMPp. 1013
AIR OUTLET – EXTRA OUTLET FRONTp. 1015
AIR SYSTEM – B10 EXTRA OUTLETp. 1017
AIR OUTLET – EXTRA OUTLET COMPLETEp. 1019
AIR SYSTEM – ECGp. 1021
LUBRICAT.PUMP – ECL-PUMPp. 1023
WATER SYSTEM – WATERM.COMPLEMENTARY ART.p. 1025
AIR SYSTEM – THREAD GREASEp. 1027
GREASE PUMPp. 1029
AIR SYSTEM – DCTp. 1035
AIR VALVE – 5/2 INCLUDING BRASS FILTERp. 1037
SOLENOID VALVE – MECAIR VEP17 3/4''p. 1039
PRESS.RED.VALVE – COMPLETEp. 1041
SAFETY VALVE – COMPLETEp. 1043
CONNECTION SET – ELVENT.CYL.DIV.p. 1045
CONNECTION SETp. 1047
WATER SYSTEM – WATERM. PRE PLUMBEDp. 1049
DIRECTION VALVE – 2/2, G3/8", 16 BAR, 24V DCp. 1051
AIR SYSTEM – ECL COLLECTIONp. 1053
OIL RESERVOIR – ECL COLLECTIONp. 1055
CHECK VLV ASSY – CHECK VAVLE COMPLETEp. 1057
AIR SYSTEM – FLOW SWITCHp. 1059
+PRESSURE VESSEL – JIS APPROVEDp. 1062
PRESSURE VESSEL – JIS APPROVEDp. 1062
CONTROL VALVEp. 1065
+HOSE SET COMPL. FlexiROC T35 Tier 3p. 1067
+HOSE SET COMPL.p. 1067
HOSE SET COMPL.p. 1067
HOSE SET – ENGINE HOSEp. 1069
HOSE SET – VALVE PLATEp. 1071
HOSE SETp. 1076
HOSE SETp. 1080
HOSE SET – BOSALp. 1083
HOSE SETp. 1085
HOSE SET – TANK MONT.p. 1088
HOSE SETp. 1091
HOSE SET – SLEEVE HOLDERp. 1093
HOSE SET – RHS 51 DUAL DRILL STEEL SUPPORTp. 505
HOSE SET – FOLDING BOOMp. 1095
HOSE SET – WATERM.COMPLEMENTARY ART.p. 1097
HOSE SET – WATERM.PRE PLUMBEDp. 1099
HOSE SET COMPL. – THREAD GREASE COMPLETEp. 1101
HOSE SET COMPL. – ECL COLLECTIONp. 1103
HOSE SET – COP 18XXp. 1105
HOSE SET – COP TUBINGp. 1107
AIR HOSE – HOSE 25X1100MMp. 1109
HOSE SET – COP 2150/2160p. 1111
HOSE SET – EXTRACTORp. 1113
HOSE SETp. 1115
HOSE SETp. 1117
HOSE SETp. 1119
HOSE SET – BACKHAMMERp. 1121
+HOSE CONNECTIONp. 1124
+ELECTR. SYSTEM FlexiROC T35 Tier 3p. 1144
+ELECTR. SYSTEM – MAINp. 1144
ELECTR. SYSTEM – MAINp. 1144
ELECTR. SYSTEM – A1p. 1149
ELECTR.CABINET – A1p. 1151
SUSPENSIONp. 1156
CABLE COMPLETEp. 1159
ELECTR. SYSTEM – POWER PACKp. 1161
ELECTR. SYSTEM – ENGINE COMPONENTSp. 1163
JUNCTION BOX – A20p. 1165
ELECTR.CABINET – COMPLETE RELAY AND FUSE BOXp. 1168
CIRCUIT BOARD – PPFB CIRCUIT BOARDp. 1171
ELECTR. SYSTEM – WAGON FRAMEp. 1173
JUNCTION BOX – A31p. 1175
JUNCTION BOX – A33p. 1178
WARNING SIGNAL – H186p. 1182
RESISTORp. 1185
LAMP ASSEMBLYp. 1187
ASSEMBLY SET – BATTERIp. 1189
ASSEMBLY SET – H314p. 1191
ASSEMBLY SET – H315p. 1193
ASSEMBLY SET – 30B+30I+30E+32+34p. 1195
ELECTR. SYSTEM – E04 FEED RASp. 1197
JUNCTION BOX – A40p. 1199
ASSEMBLY SET – B122p. 483
ASSEMBLY SET – B126p. 1202
ASSEMBLY SET – B127p. 1205
ASSEMBLY SET – WIRE E.M. STOPp. 1207
ELECTR. SYSTEM – FEED RHSp. 1209
JUNCTION BOX – A40p. 1211
ELECTR. SYSTEM – CABINp. 691
CONTROL PANEL – CONTROL UNIT LH A51p. 693
CONTROL PANEL – CONTROL UNIT RH A52(HCS)p. 695
MOUNTING PLATE – CONTROL BOARD,A53p. 697
DISPLAY KIT – VDO TIER IV METRICp. 699
DISPLAY KIT – VDO TIER IV IMPERIALp. 701
DISPLAY KIT – VDO TIER III C7.1 METRICp. 703
DISPLAY KIT – VDO TIER III C7.1 IMPERIALp. 705
CABLE SET – CABLE SET CABINp. 707
ELECTR. SYSTEM – WINCHp. 1214
REMOTE CONTROL – A60p. 1218
JOYSTICK – S30JLK-5542p. 1221
JUNCTION BOX – A61p. 1223
CONTROL BOXp. 1225
ATTACHM.COMPLETp. 1227
ELECTR. SYSTEM – FILLER PUMPp. 1229
FILLER PUMP – JABSCO VR050-2110 24Vp. 1231
CONTROL BOX – S18p. 1233
ELECTR. SYSTEM – DIESEL ENGINE HEATER M-II 10p. 1235
CABLE SETp. 1237
CABLE – 30L H01N2-D 16p. 1239
ANGLE IND.COMPL – HQS 11 MK II V2p. 1241
ANGLE IND.COMPLp. 1243
CENTRAL UNIT – HQS MK IIp. 1245
CABLE SET – ROC D HCSp. 1247
ASSEMBLY SET – D169p. 1249
ASSEMBLY SET – D171p. 1251
ASSEMBLY SET – D172p. 1253
ANGLE IND.COMPL – HQS 12 MK II V2p. 1255
ANGLE IND.COMPLp. 1257
CENTRAL UNIT – TRANSTRONIC 074011p. 1259
CABLE SET – ROC D HCSp. 1261
ASSEMBLY SET – B316p. 1263
ASSEMBLY SET – D169p. 1265
ASSEMBLY SET – D171 HQS MK II V2p. 1267
ASSEMBLY SET – D172p. 1269
ELECTR. SYSTEM – DCT MODULp. 1271
JUNCTION BOX – A34p. 1273
WARNING SIGNAL – VARNINGSSIGNALp. 1275
HOLDER – KOMPL.p. 1277
ELECTR. SYSTEM – OPTION FLOW SWITCHp. 1279
CABLE COMPLETE – CABLE B142p. 1281
CABLE SET – MTUp. 1283
FIELD KIT – MTU FUSE PARTS TO OLDER RIGSp. 1285
GPS-COMPASS – HQS MK IIp. 1287
SYSTEM KIT – GPS KITp. 1289
ASSEMBLY SET – FOR GPS AND PROCOMp. 1291
ELECTR. SYSTEM – HYD. SCR. SAMPLERp. 1293
+CABLE SET FlexiROC T35 Tier 3p. 1296
+CABLE SETp. 1296
CABLE SETp. 1296
CABLE SET – CABINp. 1302
CABLE SET – FEED RASp. 1305
CABLE SET – FEED RHSp. 1307
+OPTION FlexiROC T35 Tier 3p. 1309
+RADIO/DVDp. 1309
+FLOW SWITCH – OPTION FLOW SWITCHp. 1311
FLOW SWITCH – OPTION FLOW SWITCHp. 1311
AIR SYSTEM – FLOW SWITCHp. 1313
CONNECTION SETp. 1315
ELECTR. SYSTEM – OPTION FLOW SWITCHp. 1317
CABLE COMPLETE – CABLE B142p. 1319
+ENGINE HEATER – ROC D CAT 6.6p. 1321
ENGINE HEATER – ROC D CAT 6.6p. 1321
ENGINE HEATER – CPL SET FOR CABINEp. 1324
ELECTR. SYSTEM – DIESEL ENGINE HEATER M-II 10p. 1235
CABLE SET – DIESEL ENGINE HEATERp. 1327
ENGINE HEATER – 10 KWp. 1329
+FILLER PUMP – E07 OPTION COMPLETEp. 1332
FILLER PUMP – E07 OPTION COMPLETEp. 1332
FILLER PUMP – FUEL FILLER PUMPp. 1335
FILLER PUMPp. 1337
FILLER PUMPp. 1339
CONNECTION SET – FOR FUEL REFILLp. 1341
ELECTR. SYSTEM – FILLER PUMPp. 1343
+GUIDE SET – TAC56p. 1345
+GUIDE SET – TAC64p. 1347
+GUIDE SET – TAC76p. 1349
+GUIDE SET – TAC87p. 1351
+GUIDE SET – TAC45-R32p. 1353
GUIDE SET – TAC45-R32p. 1353
+GREASING DEVICE – ECG KOMPL.p. 1355
GREASING DEVICE – ECG KOMPL.p. 1355
+GREASING DEVICE – ECG KOMPL.p. 1357
GREASING DEVICE – ECG KOMPL.p. 1357
+GREASING DEVICE – THREAD GREASE COMPLETEp. 1359
GREASING DEVICE – THREAD GREASE COMPLETEp. 1359
AIR SYSTEM – THREAD GREASEp. 1361
GREASE PUMPp. 1029
HOSE SET COMPL. – THREAD GREASE COMPLETEp. 1101
LUBRICATION SET – LUBRICATION SETp. 1363
PUMP UNIT – COMPL.p. 1365
+GREASING DEVICE – TREAD GREASE COMPLETEp. 1368
GREASING DEVICE – TREAD GREASE COMPLETEp. 1368
AIR SYSTEM – THREAD GREASEp. 1027
GREASE PUMPp. 1029
HOSE SET – THREAD GREASEp. 1371
LUBRICATION SET – LUBRICATION SETp. 1363
PUMP UNIT – COMPL.p. 1365
+ATTACHMENT – WITHOUT TANKp. 1374
ATTACHMENT – WITHOUT TANKp. 1374
+WATER MIST SYST – PRE PLUMBEDp. 1377
WATER MIST SYST – PRE PLUMBEDp. 1377
WATER SYSTEM – WATERM. PRE PLUMBEDp. 1379
DIRECTION VALVE – 2/2, G3/8", 16 BAR, 24V DCp. 1381
+WATER MIST SYST – COMPLETE WITH TANKp. 1383
WATER MIST SYST – COMPLETE WITH TANKp. 1383
WATER SYSTEM – WATERM. PRE PLUMBEDp. 1049
DIRECTION VALVE – 2/2, G3/8", 16 BAR, 24V DCp. 1051
HOSE SET – WATERM.PRE PLUMBEDp. 1099
WATER TANK – INCL.ATTACHMENTS AND HOSESp. 1385
WATER TANK – INCL.CONNECT,EXCL.ATTACHMENTSp. 1387
ATTACHMENT – WITHOUT TANKp. 1389
+WINCH – OPTION WINCH, COMPLETEp. 1392
WINCH – OPTION WINCH, COMPLETEp. 1392
HYDR. SYSTEM – B20 WINCHp. 913
DIRECTION VALVE – WINCH BLOCK L90p. 915
ASSEMBLY SETp. 523
VALVE SECTIONp. 919
VALVE SECTIONp. 919
OUTLET SECTIONp. 659
VALVE SETp. 925
DIRECTION VALVE – REPLACES 3177 3092 40p. 927
DIRECTION VALVE – REPLACES 3177 3092 43p. 929
VALVE BLOCK – EL-CONTROLLED TRAMMINGp. 931
VALVE BLOCK – OUTRIGGERS / WINCHp. 933
HOSE SETp. 1076
ELECTR. SYSTEM – WINCHp. 1214
REMOTE CONTROL – A60p. 1218
JOYSTICK – S30JLK-5542p. 1221
JUNCTION BOX – A61p. 1223
CONTROL BOXp. 1225
ATTACHM.COMPLETp. 219
WINCH – COMPLETE WITH WIREp. 95
WINCHp. 97
BRAKE – WINCH DRUM BRAKEp. 99
GEAR – INCL. WINCH DRUM AND SUPPORTp. 101
PRESS ROLLERp. 104
DISCONNECTION – HYDRAULIC RELEASEp. 107
DRIVE DEVICE – M BROMSp. 109
HYDRAULIC MOTOR – MSQ 315 SHp. 111
ROPE GUARDp. 113
WIRE – COMPLETEp. 115
HOOK COMPL. – WINCH WIRE RINGp. 1395
+SLEEVE HOLDER – COMPL.p. 1398
SLEEVE HOLDER – COMPL.p. 1398
SLEEVE HOLDER – ROC D5/D7p. 1401
HYDR. CYLINDER – SLEEVE HOLDERp. 1403
HOSE SET – SLEEVE HOLDERp. 1405
HYDR. SYSTEM – B21 SLEEVE HOLDERp. 1407
DOUBLE CH.VALVE – NG6p. 1409
DIRECTION VALVEp. 1411
HOSE SET – CLS HOSES FOR SLEEVE HOLDERp. 1413
+TOOL SET – SLEEVE RETAINER D-SERIENp. 1415
TOOL SET – SLEEVE RETAINER D-SERIENp. 1415
+TOOL SET – SLEEVE RETAINER D-SERIENp. 1417
TOOL SET – SLEEVE RETAINER D-SERIENp. 1417
+CHARGIN DEVICEp. 1419
+ANGLE IND.COMPLp. 1421
ANGLE IND.COMPLp. 1421
ASSEMBLY SETp. 1423
ASSEMBLY SETp. 1425
+AUT.GREASE SYST – LINCOLN COMPLETEp. 1427
AUT.GREASE SYST – LINCOLN COMPLETEp. 1427
PUMP SET – PUMP AND GREASEp. 1429
LUBRICAT.PUMP – P203-2XN-1K6-24-1A1.10-V10p. 1431
CONNECTION SET – CLS WAGON FRAMEp. 1433
CONNECTION SET – CLS BOOMp. 1435
CONNECTION SET – CLS FEEDp. 1437
BLOCK – CLS BLOCK A AND Bp. 1439
BLOCK – CLS BLOCK C, D AND Ep. 1441
BLOCK – BLOCK Cp. 1443
BLOCK – BLOCK Dp. 1445
BLOCK – BLOCK Ep. 1447
BLOCK – BLOCK F, G AND Hp. 1449
+ANGLE IND.COMPL – HQS 11p. 1452
ANGLE IND.COMPL – HQS 11p. 1452
ANGLE IND.COMPL – HQS11p. 1455
CENTRAL UNIT – HQS MK IIp. 1457
CABLE SETp. 1459
ASSEMBLY SET – D169p. 1461
ASSEMBLY SETp. 1463
CABLE SETp. 1465
ASSEMBLY SET – D171p. 1467
+ANGLE IND.COMPL – HQS 12 MK II V2p. 1469
ANGLE IND.COMPL – HQS 12 MK II V2p. 1469
ANGLE IND.COMPL – HQS12p. 1471
CENTRAL UNIT – HQS MK IIp. 1473
CABLE SETp. 1475
ASSEMBLY SET – B316p. 1477
ASSEMBLY SET – D169p. 1479
ASSEMBLY SETp. 1481
CABLE SET – HQS 12 MK II V2p. 1483
ASSEMBLY SET – D171 HQS MK II V2p. 1485
+ASSEMBLY SET – UPPGRAD.-KIT, HQS 11 TO 12p. 1487
ASSEMBLY SET – UPPGRAD.-KIT, HQS 11 TO 12p. 1487
+TELEMATIC UNIT – MTU KITp. 1489
TELEMATIC UNIT – MTU KITp. 1489
CABLE SET – MTUp. 1283
FIELD KIT – MTU FUSE PARTS TO OLDER RIGSp. 1285
ANTENNA – MODEM KITp. 1491
+TELEMATIC UNIT – MTU KIT + SAT ANTENNAp. 1494
TELEMATIC UNIT – MTU KIT + SAT ANTENNAp. 1494
TELEMATIC UNIT – MTU KITp. 1489
CABLE SET – MTUp. 1283
FIELD KIT – MTU FUSE PARTS TO OLDER RIGSp. 1285
ANTENNA – MODEM KITp. 1491
+OIL COL. SYSTEM – COMPLETEp. 1498
OIL COL. SYSTEM – COMPLETEp. 1498
AIR SYSTEM – ECL COLLECTIONp. 1501
OIL RESERVOIR – ECL COLLECTIONp. 1503
CHECK VLV ASSY – CHECK VAVLE COMPLETEp. 1057
HOSE SET COMPL. – ECL RETUR DX-11p. 1505
+TOW HOOK INST – TOW HOOK KIT ROC Dp. 1508
TOW HOOK INST – TOW HOOK KIT ROC Dp. 1508
TOWING SYSTEM – 8 TONp. 1511
+AIR OUTLET – EXTRA OUTLET FRONTp. 1513
AIR OUTLET – EXTRA OUTLET FRONTp. 1015
AIR SYSTEM – B10 EXTRA OUTLETp. 1017
AIR OUTLET – EXTRA OUTLET COMPLETEp. 1019
+TURNBUCKLEp. 1514
+GPS-COMPASS – HQS MK IIp. 1517
GPS-COMPASS – HQS MK IIp. 1287
SYSTEM KIT – GPS KITp. 1289
ASSEMBLY SET – FOR GPS AND PROCOMp. 1291
+REVERSE CAMERA – COMPL.; 8M CABLEp. 1518
REVERSE CAMERA – COMPL.p. 1518
DISPLAY KIT – REVERSE CAMERA DISPLAYp. 1521
DISPLAY KIT – W CABLES & DVD OPTIONp. 1523
ATTACHM.COMPLET – DISPLAY ATTAHCMENTp. 1525
REVERSE CAMERA – 8M CABLE; RIG MOUNT. COMP.p. 1527
+CAMERA KIT – SUPPORT LEGp. 1529
CAMERA KIT – SUPPORT LEGp. 1529
+ASSEMBLY SET – SDA & IRIA KITp. 1531
ASSEMBLY SET – SDA & IRIA KITp. 1531
ASSEMBLY SET – SDA ASSY KITp. 1533
- TRACK FRAME – 1-GROUSER
- Complete pair and left/right track frames
- Front wheel, tensioning unit and chain guard
- Single-grouser track chain
- Motor reduction assembly, drive unit, gearbox and hydraulic motor
- Track-motor connection and hose sets
- TRACK FRAME – 3-GROUSER
- Complete pair and left/right track frames
- Triple-grouser track chain
- Shared front wheel, tensioning, drive and track-motor assemblies
- OPTION KIT
- Without support leg
- With support leg
- B23 support-leg hydraulic system, direction valve and cylinder
- DRIVE UNIT
- Power pack – FLEXIROC TIERIII T35/T40
- Pump unit – FLEXIROC T35/T40 TIER3
- Axial piston pump 71CC, gear pumps and pump coupling
- Exhaust system – FLEXI/SMART T35/T40 TIER3 C7.1
- Compressor units, compressor element and unloading valve
- Cooling unit, expansion tank and cooler electrical system
- Air filter sets and pipe sets
- Diesel engine – CAT C7.1 168KW
- Fuel systems and hose sets
- BOOM SYSTEM FlexiROC T35 Tier 3
- B12 MK2 boom-system groups
- Boom head, boom attachment and expanding shafts
- Feed holder and boom/feed hydraulic cylinders
- Folding-boom hose suspension
- FEED
- FEED – COMPLETE RHS BMH 6000
- Dual drill steel support and drill carriage
- RHS 51 kit and rod-gripper components
- B30 rod-handling hydraulic system and valve blocks
- Feed protection and drill-steel holder sets
- CABIN
- Complete cab and base-cab groups
- Air-conditioning, heating and roof units
- Doors, windows, FOPS protection and wiper systems
- Control panels, power board, touchpanel and displays
- Seats, lighting, mirrors and cabin hose/electrical systems
- AIR COND.DET. FlexiROC T40 Tier 3
- Air conditioner, compressor, condenser and heating sets
- DUST COLLECTOR FlexiROC T35 Tier 3
- DCT 110 dust collector, fan with motor and hydraulic motor
- Hose connections, preseparators, skirt and rubber hood
- SIGN SET
- CE sign set and C7.1 Tier 3 English sign set
- HYDR. RESERVOIR / HYDR. SYSTEM
- Hydraulic reservoir and return filter
- Main, wagon-frame, return, cooling, winch, DCT and rod-handling hydraulic groups
- Valve blocks, direction valves, control units and pump system
- AIR SYSTEM
- Standard and compressor air systems
- Flush air, extra outlet, ECG, thread grease and DCT circuits
- Water-system and ECL-collection related groups
- HOSE SET COMPL. FlexiROC T35 Tier 3
- Engine, valve-plate, tank, folding-boom, water, thread-grease and COP hose sets
- HOSE CONNECTION
- Hose connection assemblies
- ELECTR. SYSTEM FlexiROC T35 Tier 3
- Main, A1, power-pack, engine and wagon-frame electrical groups
- Feed, cabin, winch, filler-pump and engine-heater electrical groups
- Angle indication, DCT, flow switch, MTU and GPS-related electrical components
- CABLE SET FlexiROC T35 Tier 3
- Cabin, feed RAS and feed RHS cable sets
- OPTION FlexiROC T35 Tier 3
- Radio/DVD, flow switch, engine heater and filler pump
- TAC56, TAC64, TAC76, TAC87 and TAC45-R32 guide sets
- Greasing devices and automatic Lincoln grease system
- Water mist systems, winch and sleeve holder
- HQS 11 / HQS 12 angle-indicator equipment
- MTU telematics, oil collection, tow hook and extra air outlet
- GPS compass, reverse camera, support-leg camera and SDA/IRIA kit
Taken as a whole, the Epiroc FlexiROC T35 Tier 3 Spare Parts Catalog 8992011591-001 PDF gives a technician or parts buyer a structured way to identify the assemblies that make up the rig and then narrow an item down through the relevant illustration and parts list. Because the catalog preserves the manufacturer-style item references, quantities, remarks and component numbers shown in the document, it is useful for preparing parts enquiries, checking component relationships and distinguishing between alternate assemblies such as single- and triple-grouser track configurations or support-leg options.
Illustrated Component Identification
A major practical strength of this FlexiROC T35 parts catalog is its extensive use of exploded component drawings. The carrier unit is shown as an assembled rig broken into major groups, while later pages move into detailed subassemblies such as track frames, hydraulic cylinders, winch components, pumps, valves, cabin equipment and electrical cabinets. Numbered callouts in the drawings correspond with the parts tables, helping the user connect a physical component to the correct listed item.
For maintenance planning, the service-kit section provides kit groupings at multiple operating-hour intervals and lists filters and related consumables included in those groups. For repairs, dedicated sections identify seal kits and service kits for selected hydraulic, drive and pump components. The catalog also records configuration-specific remarks such as single-grouser versus triple-grouser track parts, with-support-leg versus without-support-leg groups, and shared T35/T40 assemblies.
Parts Reference for Major Rig Systems
The Epiroc FlexiROC T35 Tier 3 Spare Parts Catalog 8992011591-001 PDF reaches far beyond basic body panels. The carrier section covers structural panels, the wagon frame, track-oscillation hardware, winch equipment and fuel-related assemblies. The track chapters show complete track-frame pairs and then break the left and right tracks into front wheels, tensioning parts, chain guards, track chains, drive wheels, reduction assemblies and hydraulic-motor connections.
Within the drive-unit material, the catalog lists the CAT C7.1 168KW diesel engine together with engine filters, generator, starter and belt entries, and then links the surrounding power-pack equipment through pumps, compressor components, cooling, exhaust, fuel and air-filter groups. Boom and feed chapters identify the B12 MK2 boom structures, expanding shafts, multiple hydraulic cylinders, BMH 6000 feed components, drill carriage, rod gripping and drill-steel support hardware. Cabin and electrical chapters continue the same parts-oriented breakdown through controls, displays, windows, seats, lighting, wiring, junction boxes and optional electronic systems.
Use the Correct Configuration
The catalog contains several alternatives and shared assemblies, so component identification should be done against the exact heading and drawing rather than by model name alone. Examples include 1-grouser and 3-grouser track groups, option kits with and without a support leg, metric and imperial display kits, different lighting and window arrangements, and assemblies identified for T35/T40 or T40 Tier 3. This makes the part-number tables and exploded views particularly important when checking a specific configuration.
Get the Parts Information You Need
Use this Epiroc FlexiROC T35 Tier 3 Spare Parts Catalog 8992011591-001 PDF to identify complete assemblies, individual service parts, repair and seal kits, filters, hydraulic components, track and carrier parts, boom/feed components, cabin equipment, electrical items, hoses, cables and listed options. The illustrated breakdowns and matching item tables help reduce ambiguity when preparing a repair, confirming what belongs in an assembly or communicating the exact part number needed for a job.
Accurate part identification matters because visually similar components can belong to different configurations or subassemblies. Working from the catalog’s illustrated callouts, part numbers, quantities and remarks provides a much stronger basis for maintenance and parts ordering than relying on appearance alone. After purchase, the manual is delivered instantly as a PDF with no physical shipping required. You can open it on compatible phones, tablets and computers and print the pages you need for workshop or parts-counter use.
Reviews
There are no reviews yet.
