Epiroc ROC D7C-11 Spare Parts Catalog – Illustrated Parts Manual PDF

Description

The Epiroc ROC D7C-11 Spare Parts Catalog is the illustrated parts reference for the ROC D7C-11 surface drill rig, issued under document number 8992005164. It breaks the machine down assembly by assembly, listing every component with its item number, part number, description, quantity and the remarks that affect how the part is specified or fitted. Exploded drawings sit alongside the lists so each numbered callout on the illustration can be matched directly to a line in the parts table.

File Details

• Manual type: Spare parts catalog
• Brand: Epiroc
• Machine: ROC D7C-11
• Document number: 8992005164 ROC D7C-11
• Language: English
• Page count: 994
• File format: PDF

Chapters Covered

• Carrier Unit
• Body – Frame, Door, Lock Device, Roof
• Carrier and Wagon Frame
• Track Frame – Bandpulley, Limberoller, Front Wheel, Tensioning Unit, Drive Unit, Hydraulic Motor, Track Chain
• Cylinder and Hydr. Cylinder
• Battery Support, Battery Switch and Battery Box
• Floor Panel Kit
• Winch – Brake, Gear, Press Roller, Disconnection, Drive Device, Hydraulic Brake, Rope Guard, Wire
• Fuel Assy, Fuel Tank and Fuel System
• Air Filter Set and Air Filter
• Option Kit
• Hydr. System and Direction Valve

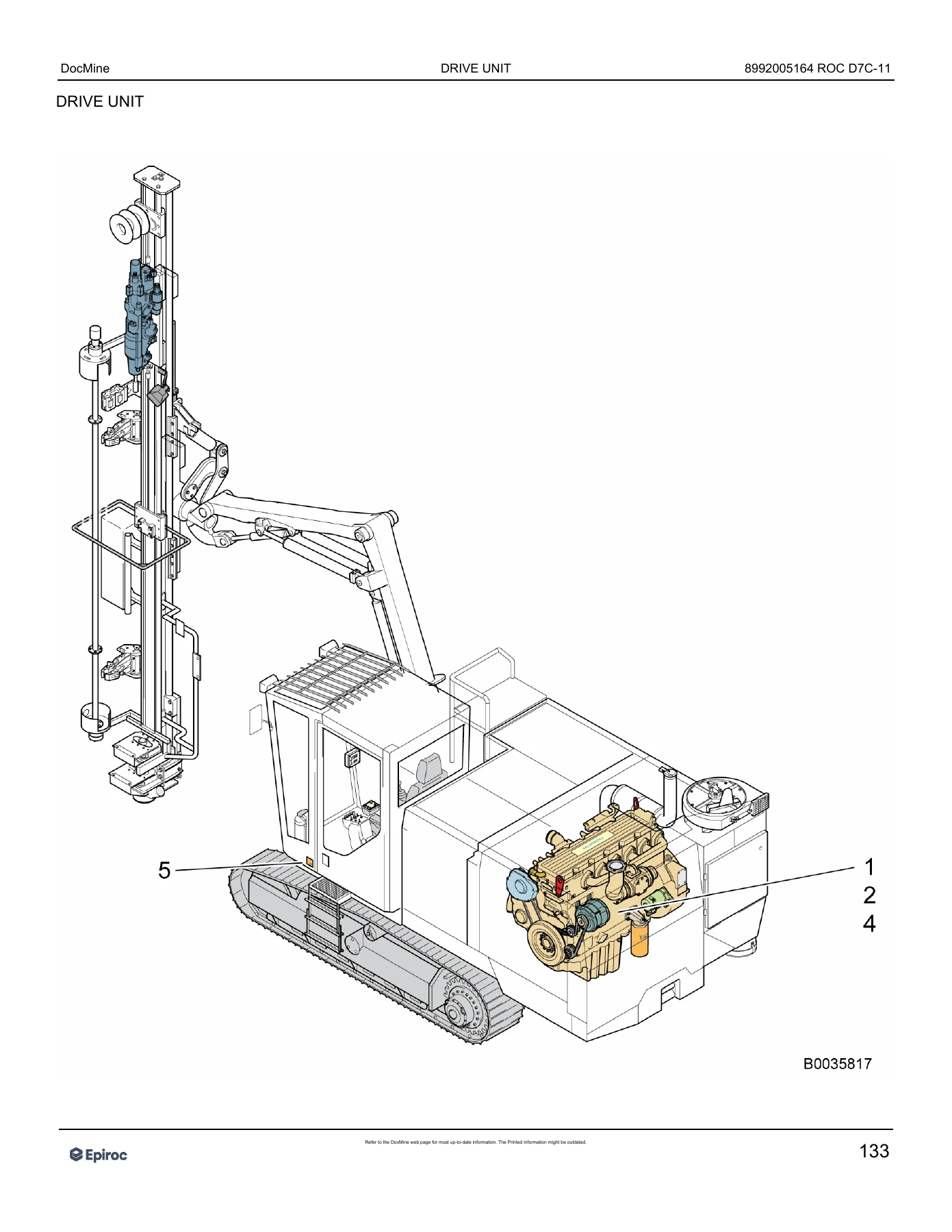

• Drive Unit
• Power Pack – Radiator, Gear Motor, Exhaust Set, Motor
• Compressor Unit – Control Valve, Pump Unit, Ax. Piston Pump, Pump, Pilot Valve, Gear Pump, Coupling Compl.
• CKD-Set and Compressor Set – Compr. Drive, Valve Set, Relief Valve, Gear
• Boom System – Boom Inst., Boom Head Compl., Boom Attachment, Expanding Shaft, Feed Holder, Hydr. Cylinder, Banana Link, Holder
• Hose Suspension – Attachment Compl., Bracket Compl.
• Feed and Feed Beam
• Hose Drum – Holder Set, Pulley Wheel
• Drill Carriage and Cradle Compl.
• Hose Attachment
• RHS Kit, Arm and End Piece – Turning Cylinder, Shaft
• Drill Steel Sup – Interm. Support, Dr. St. Supp. Set, Holder Set
• Cabin Complete – Cab Module, Cab Kit, Roof Assembly, Cover, Door, Hose Set, Window, Chair, Lamp Assembly, Ladder
• Air Conditioner – Air Cond. Det., Air Cond. Unit, Compressor
• Condenser Set and Mounting Plate
• Heating Set – Hose Kit
• DCT Equipment and Hose Connection
• Dust Collector – Fan w. Motor, Holder, Hatch, Solenoid Valve, Preseparator
• Sign Set and Label Set
• Hydr. Reservoir
• Valve Block – Assembly Set, Inlet Section, Valve Section, Outlet Section, Spool Valve, Direction Valve, Double Ch. Valve, Press. Rel. Valve, Press. Red. Valve
• Filter, Compl. and Restriction Set
• Flow Divider
• Air System and Pressure Vessel
• Radiator
• Lubricat. Pump and Oil Tank
• Water System and Water Tank
• Grease Pump and Reducing Valve
• Spare Parts Set
• Electr. System – Cabinet, Electronic Unit, Junction Box, Converter
• Linear Sensor, Sensor and Angle Sensor
• Remote Control – Joystick, Cable Set, Control Box
• Warning Signal
• GPS-Compass – System Kit, Cable Set, Attachment
• Program Package and Program CD
• Hose Set Compl. and Hose Connection
• Engine Heater
• Filler Pump
• Guide Set and Greasing Device – Lubrication Set, Pump Unit
• Water Mist Syst
• Aut. Grease Syst
• Gas Charg. Kit and Grinding Equipm
• Warning System, Gauge Tool and Bag
• Oil Col. System
• Procom and Elcabinet Set
• Silence Kit – Hatch, Door, Bulkhead Conn., Detail Set
• Hole Navigation – GPS, Sensor Set, Holder Set, Cable Set
• Service Kit

Read as a whole, this catalog is a complete map of the ROC D7C-11 from the ground up. It starts at the carrier unit and wagon frame, moves through the track frames with their bandpulleys, limberollers, front wheels, tensioning units, drive units and track chains, then climbs into the power pack, compressor unit and pump group. From there it follows the boom system, hose suspension, feed beam, hose drum, drill carriage and cradle through to the drill steel supports, the RHS kit and the arm and end piece assemblies. The cabin, air conditioning, dust collector, hydraulic valve blocks, air system, electrical system, remote control and navigation equipment each get their own dedicated sections, so the catalog covers the whole machine rather than one subsystem.

Exploded Views with Numbered Callouts

Each assembly is presented as a pictorial page followed by its parts list. The drawings carry circled callout numbers that correspond to the Item column in the table beneath, and the table then gives the part number, the name of the component, the quantity required and any remark that changes the specification. That structure is what makes the Epiroc ROC D7C-11 spare parts catalog genuinely useful in a workshop: you locate the assembly, identify the callout on the drawing, and read the exact part number and quantity from the list rather than measuring a failed component and hoping.

Several sections use a Seal Kit symbol on the illustration, marking the items that are supplied together as a kit rather than individually. Assemblies that are sold complete are flagged as such in the Remarks column, and items that do not appear on the drawing are listed with a Not Shown marker so nothing is missed when a full rebuild is being planned.

Hydraulics, Air and Electrical Sections

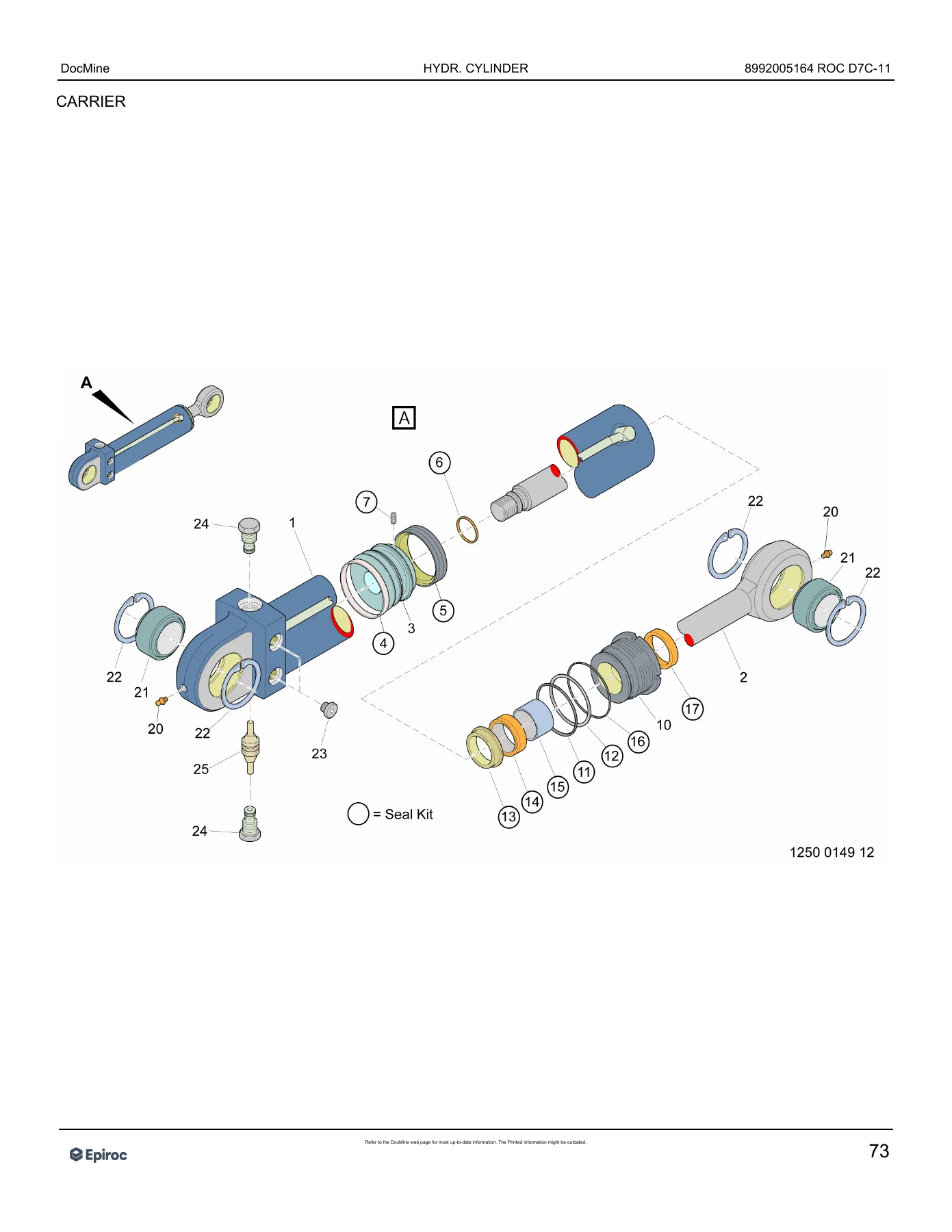

The hydraulic coverage in the ROC D7C-11 parts manual is extensive. Individual hydraulic cylinders are itemised down to piston, piston rod, cover, circlip, bearing, check valve, seal washer and grease nipple, alongside the seal kits that service them. Valve blocks are broken out into inlet sections, valve sections, spool valves, outlet sections, double check valves and pressure reducing valves, with solenoids, coils, spring sets, plugs and O-rings listed separately. Pump coverage includes the axial piston pump, gear pump, pilot valve and coupling assemblies, and the hydraulic motor sections list roller bearings, O-rings, lock rings and stop rings individually.

The air side of the catalog covers the compressor unit, control valve, valve set, relief valve, pressure vessel, safety valve, oil separator element, retainer and level meter, along with the air filter housings, cartridges and rain protection. The electrical sections list cabinet components, terminal blocks, relays, fuses, cable glands, contact housings, resistors and electronic units, plus sensors, angle sensors, linear sensors and converters, and the remote control with its joysticks, toggle switches, potentiometers and cable sets.

Boom, Feed and Drill Steel Support

For the drilling end of the machine, the catalog details the boom system across its folding and side-mounted variants, including the boom installation, boom head, boom attachment, expanding shafts in their several sizes, feed holder and the hydraulic cylinders that articulate them. The feed sections cover the feed beam, slide bars, thread inserts, hose attachment, hose drum, pulley wheel and the drill carriage with its cradle and holder sets. Drill steel support coverage runs across the intermediate support, the drill steel support halves in 32 mm, 38 mm, 45 mm and 51 mm sizes, and the gaskets, spacers and holder sets that go with each.

Get the Right Part the First Time

Ordering the wrong component on a drill rig is expensive in both money and downtime, and it usually happens when a part number is guessed from a similar assembly. This Epiroc ROC D7C-11 parts catalog removes that guesswork. Every entry is keyed to a drawing, every quantity is stated, and the remarks column tells you when a part is only valid for a particular variant, a particular drill steel size or a particular configuration such as support leg or no support leg, or DCT with or without DPS. Whether you are rebuilding a track frame, resealing a boom cylinder, replacing a valve section, tracking down a solenoid, refreshing the cabin fittings or stocking up on filters, the correct number is in the list.

IMAGES PREVIEW

The catalog is delivered as an instant PDF download with no shipping and no waiting. It opens on any computer, tablet or phone, the pages can be zoomed for the fine detail on the exploded views, and any page or section can be printed and taken straight to the machine or left at the parts counter.
