Epiroc Scooptram ST1030 Spare Parts Catalog PDF – Doc 8997401900

Description

Epiroc Scooptram ST1030 Spare Parts Catalog – Doc. 8997401900

This is the complete Epiroc Scooptram ST1030 spare parts catalog, generated from DocMine and identified by document number 8997401900. If you own, maintain, or supply parts for an ST1030 underground loader, this catalog gives you the exact part numbers, item numbers, and quantities needed to identify and order the correct components the first time, without guesswork or cross-referencing generic aftermarket listings.

File Details

• Manual type: Spare Parts Catalog
• Brand/Model: Epiroc Scooptram ST1030
• Document number: 8997401900
• Page count: 957 pages
• File format: PDF (digital download)
• Source: DocMine parts database export

Chapters Covered in This ST1030 Spare Parts Catalog

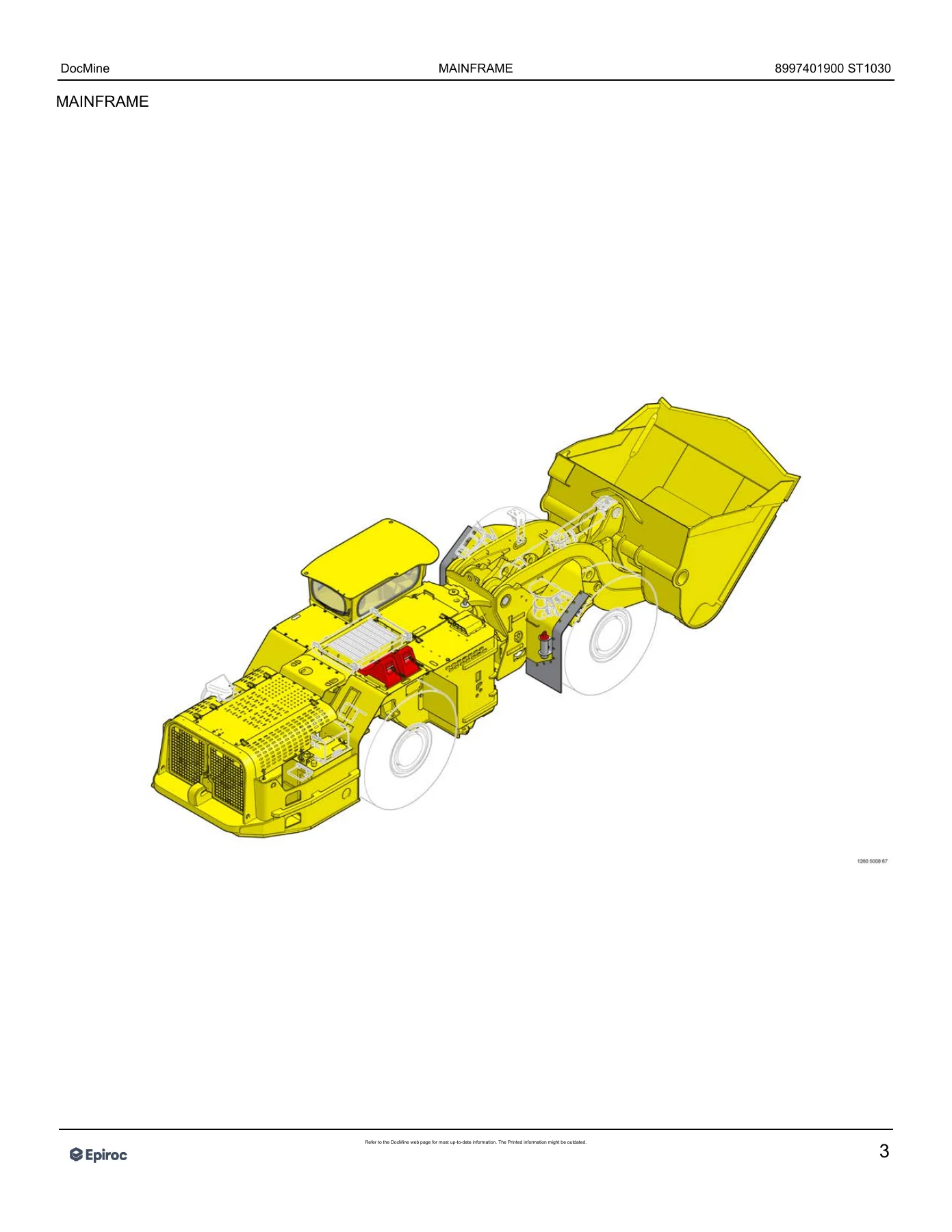

• Mainframe – Bucket, Pushplate, Cutting Edge, Wear Bar, Trunnion, Cylinder Inst., Hose Set, Pin Bucket
• Z-Bar, Complete – Dogbone, Boom Inst., Boom, Boom Attachment, Boom Lock
• Loadframe – Swivel
• Powerframe – Fuel Tank, Hydr. Oil Tank, Filter, Valve, Hood, Swivel Lock, Fender, Powerframe Parts, Attachment, Engine Hoods, Hand Railing
• Cabin Complete – Cabin, Sound Suppress., Drivers Chair, Step, Air Conditioner, Evaporator, Pressuriz.Syst
• Power Unit – Cooling System, Hose List, Radiator, Installtion Kit, Holder, Air Inlet, Air Filter, Exhaust System, Silencer, Engine Inst., Engine Assy, Diesel Engine, Fan Hub, Bearing Unit, Filter Group, Filter Compl.
• Powertrain – Upbox, Transmission, Filter, Wiring, Overhaul Kit, Bearing Kit, Seal and Gasket Kit, Cover, Mount, Converter, Gear, Shaft, Clutch Assy., Output Stage, Case, Valve, Yoke, Pump, Fitting
• Driveline – Cardan Shaft, Guard
• Axle Front – Hy.Front Axle, Front Axle, Bear and Seal Kit
• Axle Rear – Rear Axle, Bear and Seal Kit, Block
• Wheel Inst. – Wheel Compl.
• Hydr.Transmiss. – Fan W. Motor, Fan Plate, Gear Motor, Radiator Unit, Cooler, Hood
• Hydr. System – Control System, Valve Set, Valve, Control, Joystick, Steering System, Tandem Pump, Emergency Contr, Electric Set, Cable, Accumulator, Press.Sens Kit, Reducing Valve, Electr.Box, Solenoid Valve, Dump and Hoist Sys., Gear Pump, Junction Block, Panel Kit, Ride Contrl Sys, Relay Box, EOD System, Filler Pump, Cylinder Set, Cylinder Assy, Cylinder, Cylinder Inst.
• Brake System – Brake Valve, Aux.Valve, Filter, Towing System, Cylinder
• El.Equipment – Alternator, Battery Module, Battery Support, Latch, Electr. System, Electr.Box, Fuse Holder, Set, Accel. Pedal, Pedal, Mounting Plate, Fuse, Switch Panel, Harness, Gaugepanel, Reverse Alarm, Flash Light, Light Set, Headlight, Load Sens.Comp.
• Fire Suppr.Syst – Fire Exting.Set, Ansul System, Pressure Switch, Checkfire Cab, Control Module, Releasing Dev., Checkfire Frame
• Lubr. System – Nipple Set, Block, Grease Pump, Grease Block, Electric Set
• Service Parts – Service Kit, Trunnion Cap, Tools Set, Tool Sets, Socket Wr.Set, Hydraulic Tool, Kit, Drainage

IMAGES PREVIEW

Taken together, these sections give a parts counter or field mechanic a complete cross-section of the ST1030: every structural weldment, hydraulic circuit, electrical harness, and driveline component is broken down to item level with matching part numbers, so ordering and rebuilding go faster and with fewer mistakes.

What’s Inside Each Section

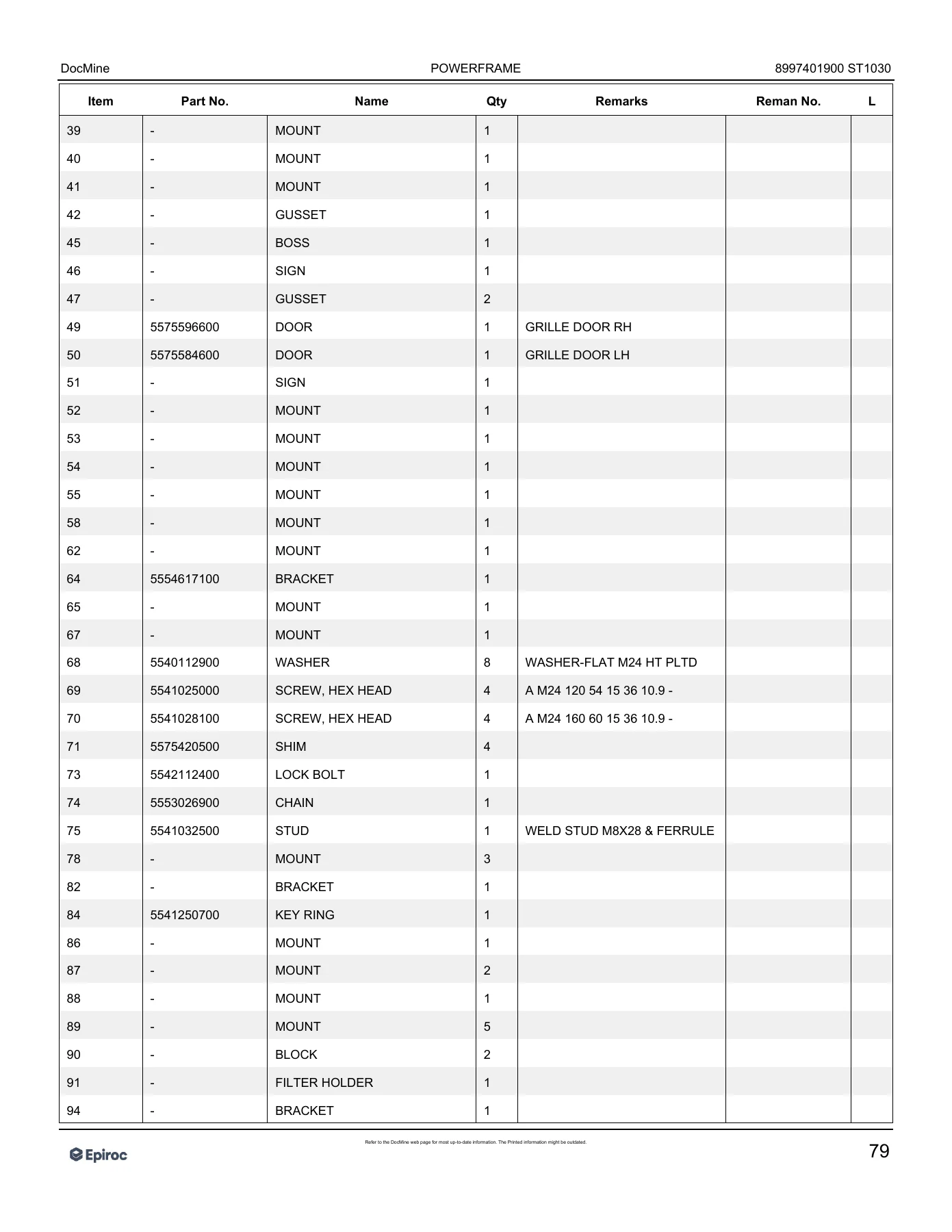

Every exploded assembly in this Scooptram ST1030 spare parts catalog lists an item number, part number, part name, quantity, and remarks column – remarks frequently include dimensional data, thread specs, or notes such as “reman no.” or “not sold separately,” which matters when you’re trying to work out whether a component ships as an assembly or a discrete piece. Hose assemblies throughout the catalog are documented with full hose specification codes (bore, length, fitting type at each end), which is invaluable when a hose has degraded past reading its own label.

The powertrain and transmission chapters are especially deep, covering the DF250 AAB transmission down to individual clutch plates, bearings, seals, and the overhaul, bearing, and seal and gasket kits that bundle those wear items together. The front and rear Kessler axles are similarly broken down through differential, brake, planetary, and oscillation kits – useful for anyone rebuilding an axle rather than swapping it outright.

The hydraulic system section spans steering, dump and hoist, ride control, emergency steering, and EOD (emergency operator device) circuits, each with its own valve sets, cylinder assemblies, and accumulator seal kits. The electrical chapter documents cable sets, harnesses, connector types (Deutsch DT-series, HDP-series), relay boxes, and lighting – handy when tracing a wiring fault back to a specific harness designation like W24 or W50.

Get Your Epiroc Scooptram ST1030 Spare Parts Catalog Instantly

With this ST1030 spare parts catalog on hand, you can accurately identify the correct part number for a bucket pin, a hydraulic cylinder seal kit, a transmission clutch pack, an axle bearing kit, or a cab wiring harness – and order with confidence instead of relying on a machine’s worn or missing tag. Having the right part number the first time avoids the wasted freight, downtime, and return hassle that comes from ordering blind.

This Epiroc Scooptram ST1030 spare parts catalog is delivered as an instant PDF download – no shipping, no waiting. Save it to your phone, tablet, laptop, or shop computer and access it anywhere in the shop or in the field, on any device that opens a PDF.
