Epiroc Scooptram ST14 Spare Parts Catalog – 8997659600-001 PDF

Description

Epiroc Scooptram ST14 Spare Parts Catalog – 8997659600-001

This Epiroc Scooptram ST14 Spare Parts Catalog – 8997659600-001 is the illustrated parts reference for the Scooptram ST14 underground loader. Every assembly is broken down into its individual components with Epiroc part numbers, item references and quantities, so a parts desk, workshop or maintenance planner can identify exactly what is fitted to a given machine and order against the right number the first time.

File Details

• Manual type: Spare Parts Catalog
• Brand: Epiroc
• Machine: Scooptram ST14
• Document number: 8997659600-001
• Language: English
• Format: PDF
• Page count: 799 pages

Chapters Covered

• Bucket – bucket inst 2.0T/M3-GA, bucket assembly 2.0T/M3 GIII, bucket weldment STD blade 2.0, bucket weldment 2.0T/M3, bucket attachment STD GIII
• Cab Module – cabin complete, plastic panel kit, plastic panel Stolpe, EL.cabin, lamp assembly, pedal electronic w/idle switch, display panel, key board
• Cable sets – CAN RCS, C12 new IO, control module climat control unit, wiper compl, control panel, box manual box assy, chair compl, seat base MSG 95A/722 Actimo XL, spring set, door module door latch assembly, handle assy doorhandle, arm rest
• CD Player – CD/MP3 and cable set
• Air Conditioner – hose set, PR module, condenser set, compressor
• Cab Heater – water valve heater
• Remote System – remote monitoring kit and RCS cable set
• Powerframe Module – EL.powerframe Cummins, I/O modul RCS NG M12, reverse alarm, flash light, apparatus panel A20 component box, wiring harness A20, cable set powerframe, power cable w. ring terminals, battery cable, cable set C21, cable set I/O module D510, cable set A20, battery support
• Wheel Chocks
• Exhaust System
• Radiator – radiator inst. epoxy coated, extra trans cooler
• Transmission Module
• Axle Rear – no spin differential, hose set powerframe, hydraulic rear axle, junction block brake J-block assy, Kessler D106PL341/528-NLB-FS
• Diff kit, brake kit, planet gear kit, pendulum set oscillation kit
• Axle Front – front limited slip, hose set, shaft compl front axle complete Kessler, hydraulic front axle, Kessler D106 PL341/528-NLB-FS
• Driveline Module RCS4 – driveline PF, cardan shaft, driveline 7C, 9C, midship 9C, LF
• Wheel Inst. – Kessler wheel compl. inst.
• Elequipment – lamp assembly LED light on boom, light set LED lights powerframe, headlight, light set loadframe and boom, light set LED lights cabin
• Emergency Set – emergency stop Gramko, EL for Gramko, cable set Gramko, cable set machine stop, cable complete machine stop
• Hydraulic System Std – dump/hoist/steer valve set, main valve, assembly set, outlet section, valve section
• Lubrication System – Lincoln lube powerframe, hose set, divider block assy, lube power unit, hose list, valve set, lubrication pump, lube divider valve, grease pump 4L w/ low level
• Fire Suppression System – fire suppression system, cab, PF, mounting part AnsuL cartridges, nipple set triple tee set, nozzle typ F, fire suppression LF
• Fire Extinguisher Set – extinguisher inst. PF, extinguisher inst. LF
• Label Set – marketing and warning labels, warnings signs

Read together, these chapters cover the whole machine: the bucket and its wear parts, the operator cab with its panels, seat, door hardware, air conditioning and heater, the Cummins powerframe with its harnesses and component box, the exhaust and radiator package, the transmission module, both Kessler axles with their brake, differential and planet gear kits, the driveline, the wheels, the LED lighting sets, the Gramko emergency stop circuit, the dump/hoist/steer valve stack, the Lincoln lubrication system and the fire suppression and extinguisher installations.

What This Catalog Gives You

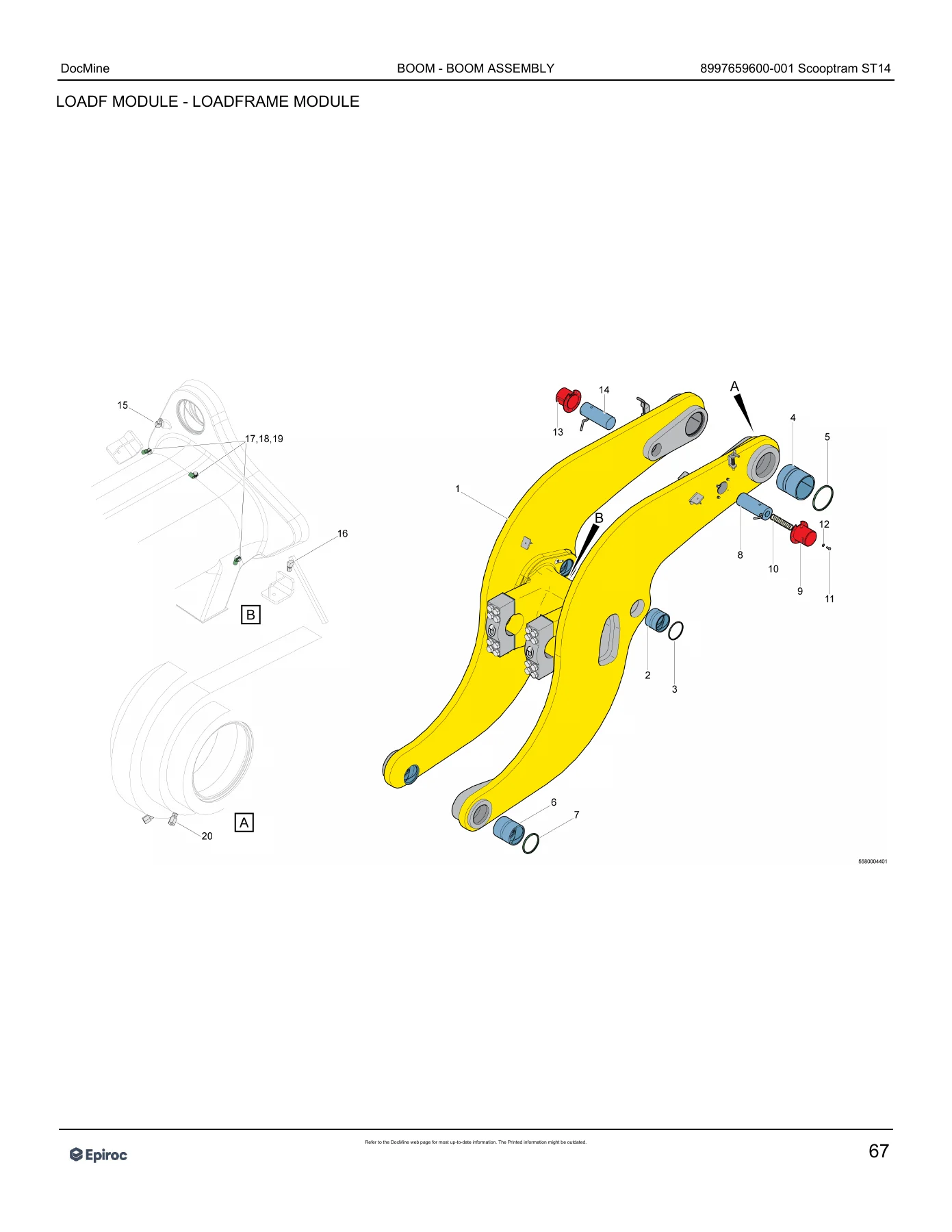

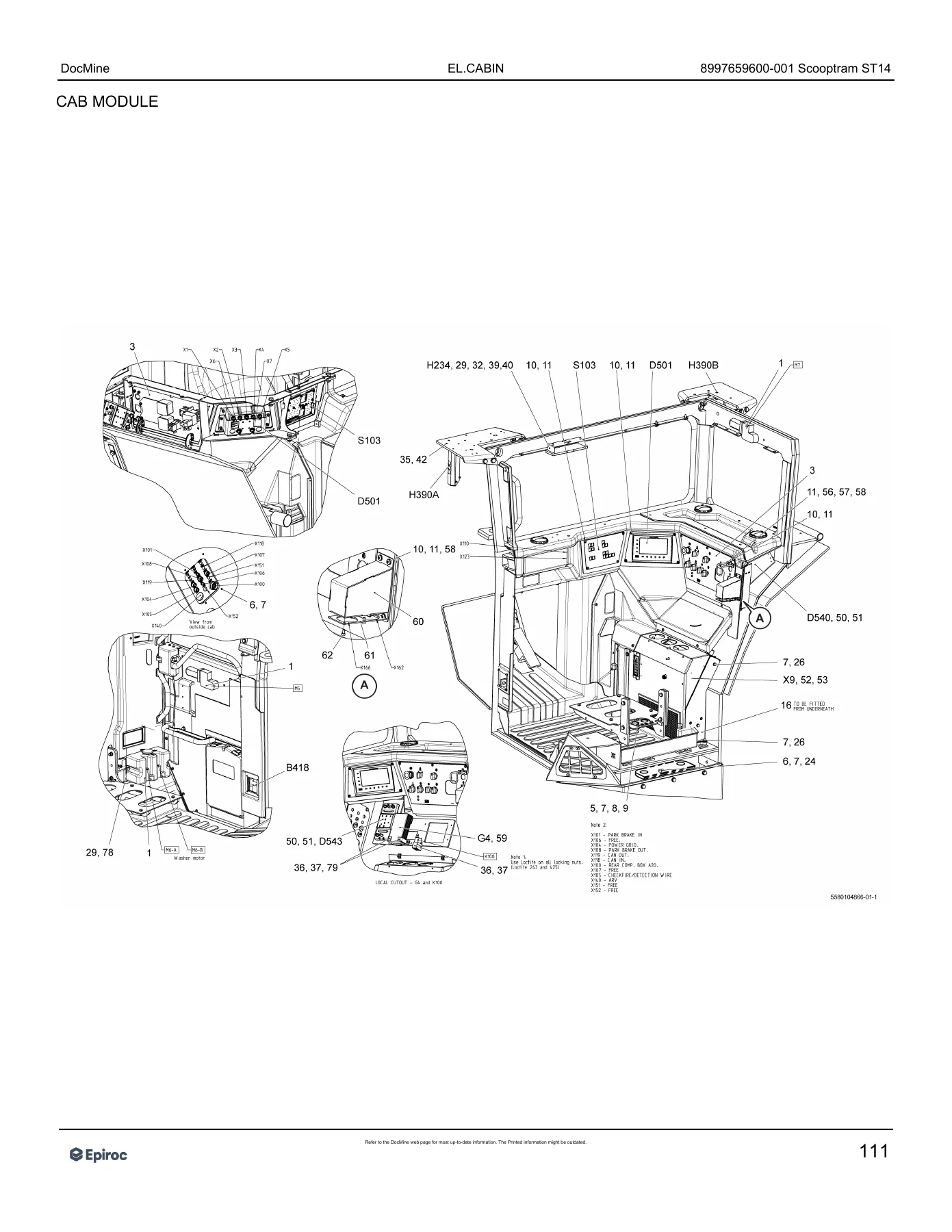

The catalog is laid out so each section opens with an illustration and then a numbered parts list showing item number, Epiroc part number, component name, quantity and, where relevant, remarks such as thread sizes, O-ring dimensions, hose lengths or the note that a component is only available as part of a larger assembly. That structure is what turns a vague description of a broken component into an exact order line.

The hydraulic content alone covers the dump/hoist/steer main valve with its outlet and valve sections, the steering cylinders, the brake J-block, the accumulator, the brake release valve, the transducer block, the shuttle valve, the auxiliary valve, the cooler assembly, the brake relay valve and the steering J-block. The lubrication section runs from the Lincoln lube power unit and divider block through the full hose list to the 4-litre grease pump with low level sensing. The fire suppression section documents the cab, powerframe and loadframe circuits, the AnsuL cartridge mounting, the triple tee set and the type F nozzles.

The driveline and axle chapters cover the complete Kessler front and rear axle assemblies, including the no-spin rear differential and the front limited slip, together with the diff kit, brake kit and planet gear kit breakdowns. The driveline module lists the cardan shaft and each of the driveline variants – PF, 7C, 9C, midship 9C and LF. The electrical side covers the powerframe harness A20, the C21 cable set, the I/O module D510 cable sets, the A20 cable set, the transmission cable set, the Gramko emergency stop wiring and the remote monitoring kit.

Who This Catalog Is For

This is a working document for the people who keep a Scooptram ST14 running underground. Parts interpreters use it to convert a description of a failed component into a part number and quantity. Maintenance planners use it to build a spare parts stock list for the assemblies that fail most often – bucket wear plates, brake discs, seals, hoses, filters, lamps and lubrication components. Rebuild workshops use the axle, transmission and valve section breakdowns to identify individual internal components rather than replacing complete units. Because every line carries an Epiroc part number and a quantity, the catalog also supports accurate quoting and lead-time planning before a machine is taken out of service.

Ordering, Maintenance and Rebuilds

Ordering the wrong part is expensive on any loader, and more so on a machine that has to be trammed out of a drift before it can be worked on. Having the illustrated breakdown in front of you means the correct O-ring, flange half, hose assembly, disc, bearing or spring set can be identified from the drawing and confirmed against the part number before the order goes out. The section-by-section structure also makes it straightforward to check what is included in a kit – for example the seal kits, the diff kit, the brake kit and the planet gear kit each list their individual contents, so there is no confusion about what arrives and what still needs to be ordered separately.

IMAGES PREVIEW

Instant PDF Delivery

The Epiroc Scooptram ST14 Spare Parts Catalog – 8997659600-001 is supplied as a PDF that can be downloaded immediately after payment – no shipping, no waiting for a disc, no customs delays. Keep it on a workshop laptop, a tablet on the bench or a phone in the drift, print the sections you need for a job and mark them up as you work. The Scooptram ST14 spare parts catalog gives you the part numbers, the quantities and the assembly context to order correctly, plan maintenance and rebuild the assemblies that keep the loader productive.
