EPSON AcuLaser C9200N A3 Color Laser Printer Service Manual PDF

AcuLaser C9200N

A3 Color Laser Printer

Factory Service Manual – PDF Download

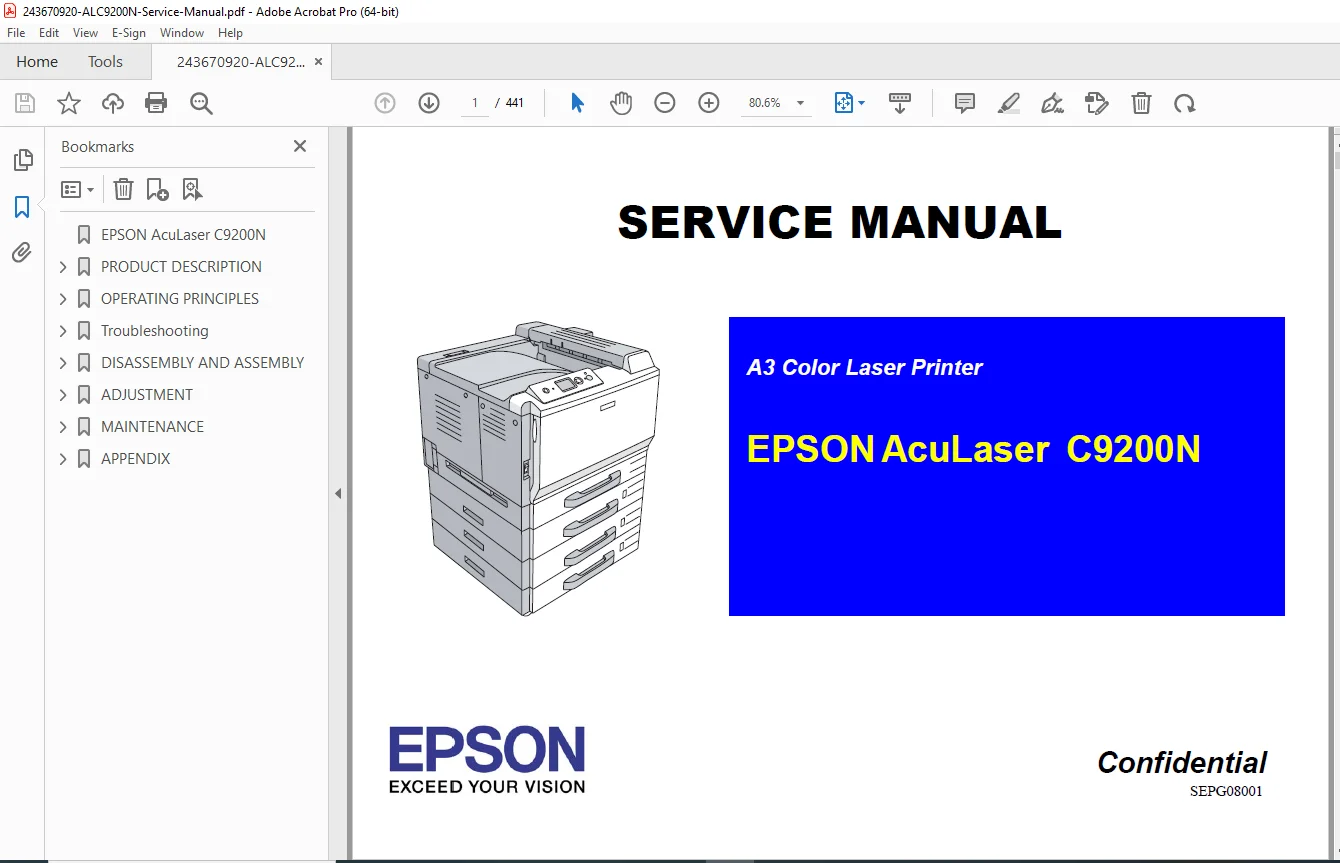

This is the official EPSON AcuLaser C9200N Service Manual (Revision D) for professional repair and maintenance of the A3 color laser printer.

Designed for service engineers and advanced technicians, this manual provides complete internal system documentation including print process, controller specifications, troubleshooting charts, firmware procedures, and detailed mechanical disassembly instructions.

📑 Manual Configuration (Factory Structured)

According to the manual structure, the document consists of seven main chapters

🔹 Chapter 1 – Product Description

• Basic specifications

• Print speed (25.6 ppm color & mono)

• Resolution (600 dpi)

• Dimensions & weight (648 × 608 × 477 mm)

• Controller specifications

• Paper specifications & printable area

• Replacement parts & consumables

• Interface specifications (USB, Ethernet, Parallel)

Includes detailed external and internal component layout diagrams.

🔹 Chapter 2 – Operating Principles

• Full-color electrophotographic print process

• YMCK drum system operation

• Primary & secondary transfer process

• Fusing process

• Paper path routing

• Duplex printing operation

• Center cross-section diagrams

• Engine section parts layout

• Motor, clutch & sensor mapping

Includes detailed diagrams of:

• Photoconductor units

• Transfer belt

• Fusing unit

• Toner system

• Drive motors & sensors

🔹 Chapter 3 – Troubleshooting

• LED status interpretation

• Error code lists

• Service call errors (Cffff / Eggg)

• Paper jam diagnostics (sensor locations)

• Power supply troubleshooting

• Image quality troubleshooting

• Toner & photoconductor errors

• Waste toner box errors

• Replace Fuser / Transfer Unit alerts

• Memory overflow & duplex errors

Includes complete printer message tables and remedies.

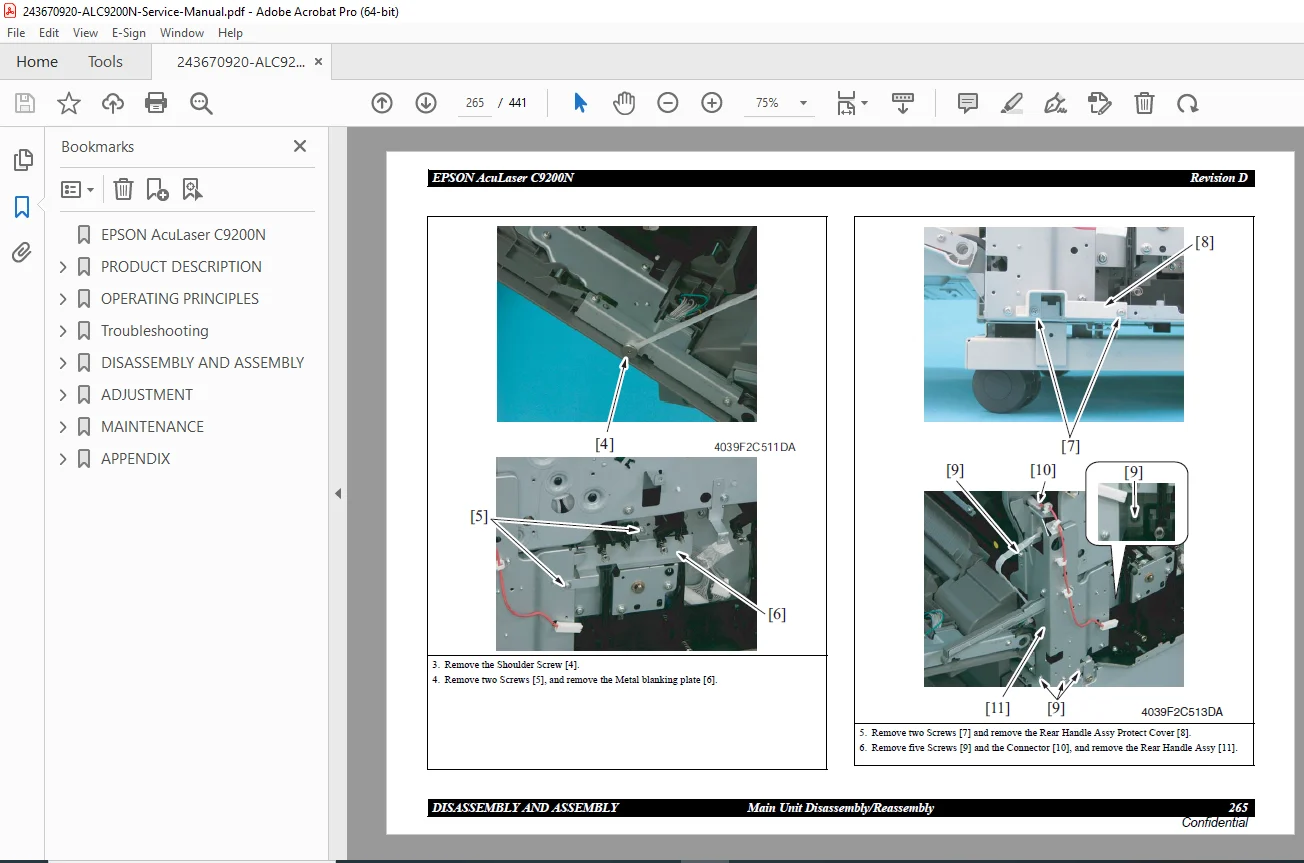

🔹 Chapter 4 – Disassembly & Assembly

• Preliminary checks

• Tool list

• Step-by-step group disassembly procedures

• Main unit teardown (17 mechanical groups)

• Fuser removal

• Transfer belt removal

• Photoconductor replacement

• Clutch & motor replacement

Includes exploded diagrams and reassembly procedures.

🔹 Chapter 5 – Adjustment

• Skew adjustment

• MP tray mechanical adjustment

• Reset life counter

• Writing USB ID

• Firmware update procedure

🔹 Chapter 6 – Maintenance

• Preventive maintenance procedures

• Cleaning procedures

• Roller cleaning

• Toner handling precautions

🔹 Chapter 7 – Appendix

• Wiring diagrams

• Connector layout drawings

• Control panel special operations

• Status sheet printing procedures

• Exploded diagrams & parts list

🔧 Technical Highlights

• Model: EPSON AcuLaser C9200N

• Type: A3 Color Laser Printer

• Resolution: 600 dpi

• Print Speed: 25.6 ppm (Color & Mono)

• Controller: 32-bit RISC CPU

• RAM: 256 MB standard (expandable to 768 MB)

• Interfaces: USB 2.0, Ethernet 100BaseTX/10BaseT, IEEE1284 Parallel

• Duplex Unit support

• Optional 500-sheet cassette support

• Rated life: 600,000 pages

🧾 Consumables & Replacement Units Covered

• Toner Cartridges (Y/M/C/K)

• Photoconductor Units

• Waste Toner Collector

• Fusing Unit

• Transfer Belt Unit

• Maintenance Unit

• Feed Rollers

Full life-cycle and replacement interval tables included.

📄 File Details

🚀 Why Buy This Manual?

Avoid costly service calls and misdiagnosis. Get the complete factory-level repair, adjustment, and troubleshooting documentation for the EPSON AcuLaser C9200N.

Instant download — start repairing your A3 color laser printer today.
