Epson EB-G7900U EB-G7500U Service Manual PDF Download
Original price was: $95.00.$16.95Current price is: $16.95.
Download the official Epson EB-G7900U service manual PDF (Revision B, 2016) for EB-G7900U, EB-G7905U, EB-G7500U, EB-G7400U, EB-G7200W, EB-G7000W, EB-G7800, EB-G7805 & EB-G7100 business projectors. This complete Epson projector repair guide includes troubleshooting flowcharts, error codes, full disassembly/assembly, optical engine maintenance, adjustment data writing, and safety checks. 168 high-resolution pages with diagrams, specs, and repair procedures for experienced technicians. Instant access for your Epson EB-G7900U maintenance manual or EB-G7500U service manual needs.
Description
Epson EB-G7900U EB-G7500U Service Manual PDF Download
Description This digital Epson EB-G7900U service manual PDF is the essential resource for technicians repairing Epsonβs high-brightness installation projectors. Covering the full EB-G79xx / EB-G75xx / EB-G74xx / EB-G72xx / EB-G70xx / EB-G78xx series (including EB-G7900U, EB-G7905U, EB-G7500U, EB-G7400U, EB-G7200W, EB-G7000W, EB-G7800, EB-G7805, EB-G7100), it provides detailed theory, step-by-step troubleshooting, disassembly, maintenance, and adjustment procedures.
File Details:

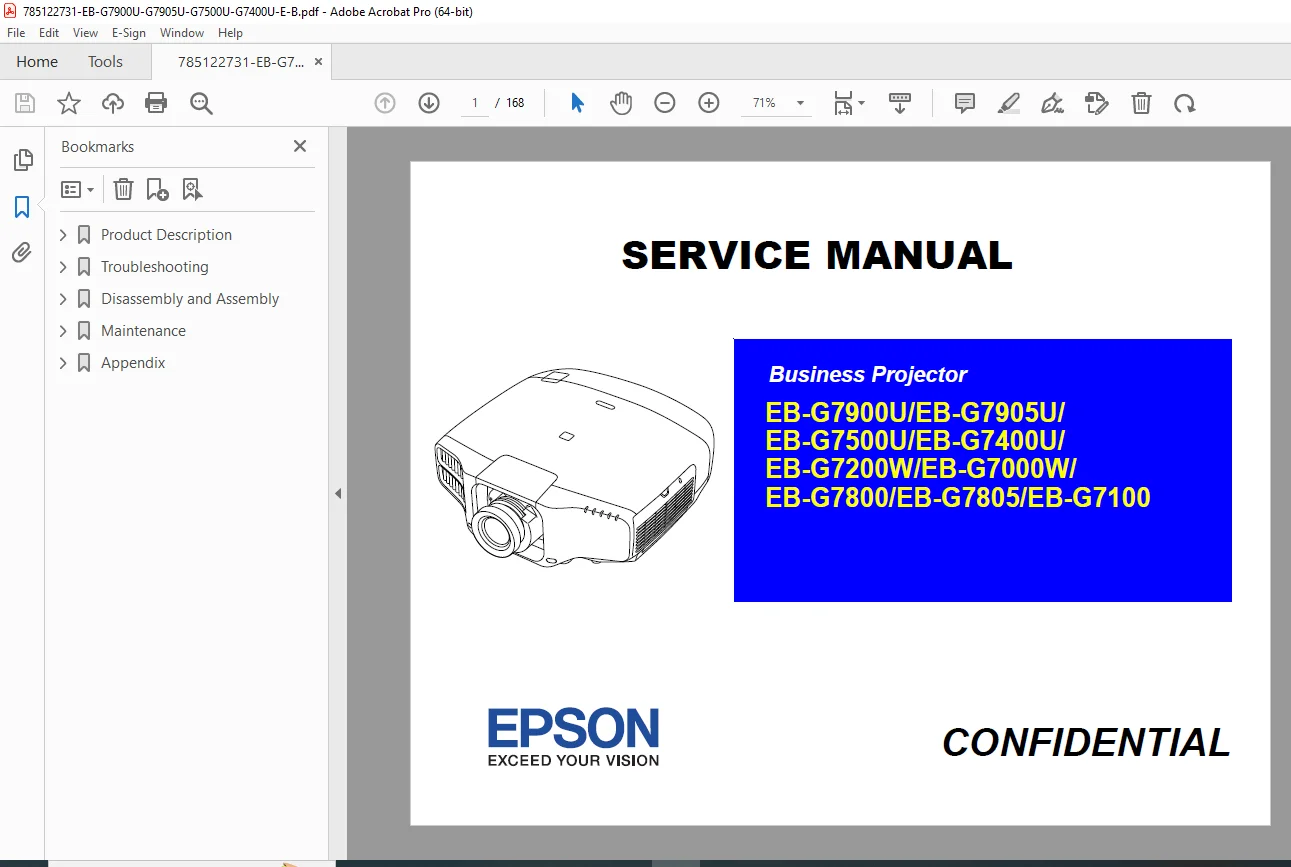

- Manual Name: SERVICE MANUAL β Business Projector EB-G7900U / EB-G7905U / EB-G7500U / EB-G7400U / EB-G7200W / EB-G7000W / EB-G7800 / EB-G7805 / EB-G7100
- Models Covered: All listed variants (WUXGA, WXGA & XGA resolutions)
- Year: 2016 (Revision B β March 2016)
- Manual PDF Quality: High-resolution scanned with clear text, exploded views, flowcharts, wiring diagrams, and photos
- No. of Pages: 168
Extracted and Categorized Table of Contents:
Chapter 1 β Product Description β’ Features (HDBaseT, optional lenses, 360Β° projection, multi-projection, 4K enhancement, HDCP 2.2, schedule function, etc.) β’ Specifications (brightness, lamp life, power consumption, dimensions, fan noise, operating temperature) β’ Dimensions & Ceiling Mount drawings
Chapter 2 β Troubleshooting β’ Required Tools β’ Troubleshooting Procedure (flowchart) β’ Exterior Check β’ Troubleshooting from Error Codes (FN / SE) β’ Error Indication & Problem Diagnosis (LEDs, error codes, image abnormalities) β’ Operation & Safety Check after repair

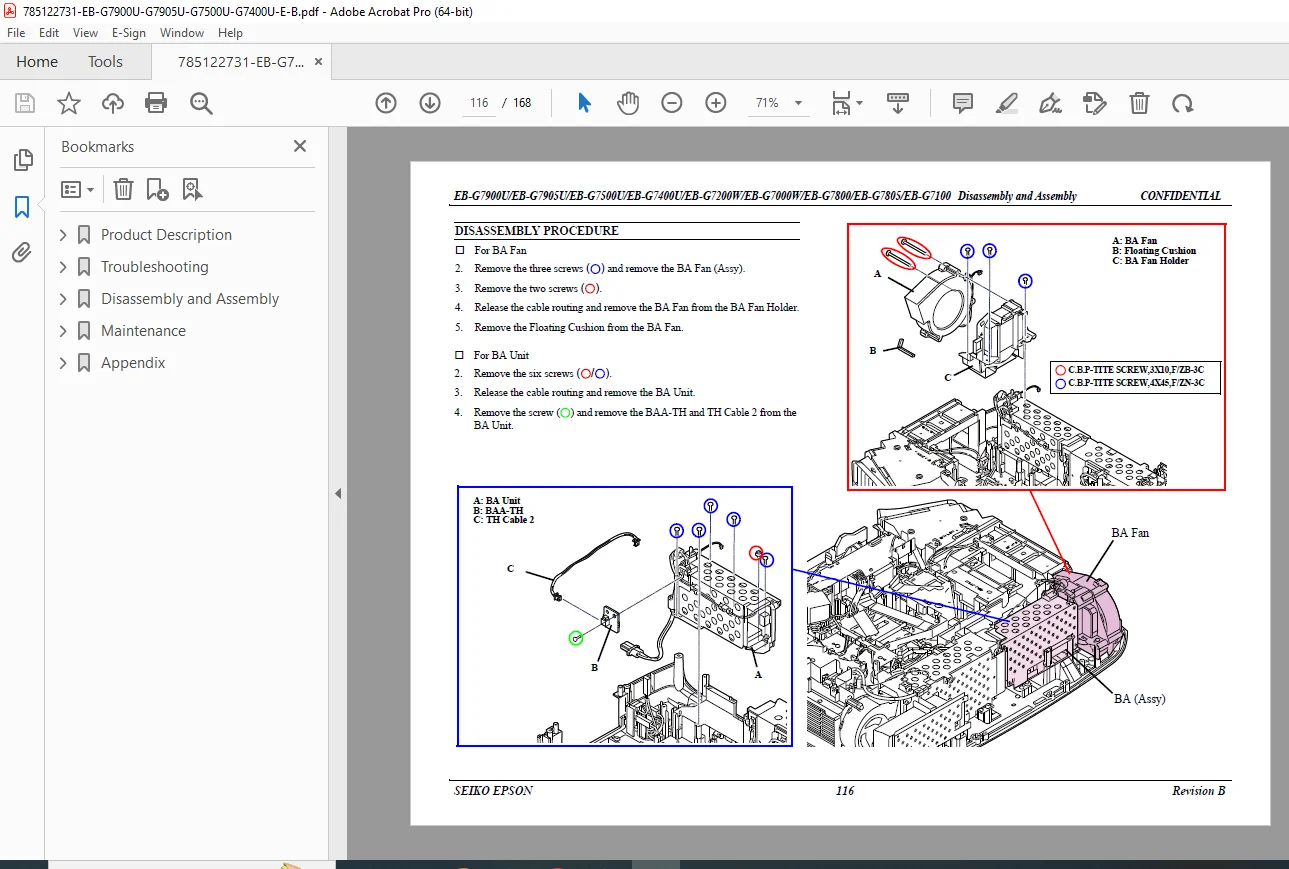

Chapter 3 β Disassembly & Assembly β’ Precautions & Tools β’ Flowchart & Standard Operation Time β’ Detailed disassembly procedures (Air Filter β Lamp β Projection Lens β Upper Case β Optical Engine β Fans β PS Assy β etc.) β’ Shortest removal procedures for failed parts (EX-Fan, PS Assy, BA Fan, etc.) β’ Safety checks, illumination check, operation check β’ Writing Adjustment Data (for Optical Engine & MA Board replacement)
Chapter 4 β Maintenance β’ Cleaning Method β’ General Cautions β’ Replacing Internal Optical Engine Parts (LIGHT GUIDE, PBS MASK, CONDENSER LENS, BDM/GDM, MIRROR, MULTI LENS)
Chapter 5 β Appendix β’ Confirmation method of error code (AS Menu & IPS Tool) β’ Initializing (Resetting)
Sample Specifications Table (Excerpt)
| Model | Resolution | Brightness (Normal) | Lamp Life (Normal/Eco) | Power Consumption (100-120V Normal) | Weight |
|---|---|---|---|---|---|
| EB-G7900U/G7905U | WUXGA | 7,000 lm | 3,000 / 4,000 H | 601 W | 12.9 kg |
| EB-G7500U | WUXGA | 6,500 lm | 3,000 / 4,000 H | 498 W | 12.9 kg |
| EB-G7400U | WUXGA | 5,500 lm | 3,000 / 4,000 H | 601 W | 12.9 kg |
| EB-G7800/G7805 | XGA | 8,000 lm | 3,000 / 4,000 H | 601 W | 12.9 kg |
| EB-G7100 | XGA | 6,500 lm | 3,000 / 4,000 H | 540 W | 12.9 kg |
Sample Error Code Excerpt (Cooling System)
| Error Code | Device Code (AS Menu) | Part Name | Reference Page |
|---|---|---|---|
| FN | 05 | EX Fan | p.110 |
| FN | 15 | BA Fan | p.115 |
| SE | 2A / 2B / 2C | LVR / LVG / LVB thermistor | Optical Engine |
This confidential Epson projector service manual is designed exclusively for experienced repair technicians and includes all safety warnings, symbols, and precautions required for safe servicing.
Download this must-have Epson EB-G7900U repair guide instantly and keep these powerful business projectors running at peak performance!
