📘 DOCUMENT OVERVIEW

This comprehensive service parts manual is your go-to resource for maintaining and repairing a range of gasoline-powered utility vehicles manufactured by EZGO, Cushman, and Jacobsen (all Textron companies). The manual, with a revision date of October 2007, covers specific models starting from the 2006 model year, providing detailed information for both professional mechanics and experienced DIY enthusiasts.

🔧 Equipment and Models Covered:

• MPT® 800
• Industrial™ 800
• Commander™ 280
• Hauler™ 800
• Sport™ II

📖 Manual Content and Sections:

The manual is meticulously organized into several key sections, making it easy to navigate and find the specific information you need. These sections include:

• General Information: This section provides a table of contents, instructions on using the manual, and important disclaimers.

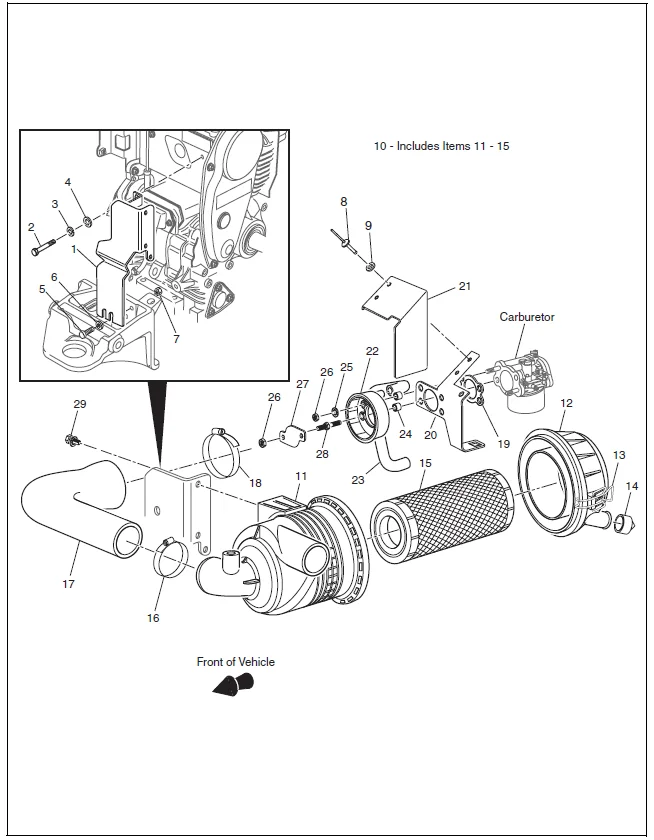

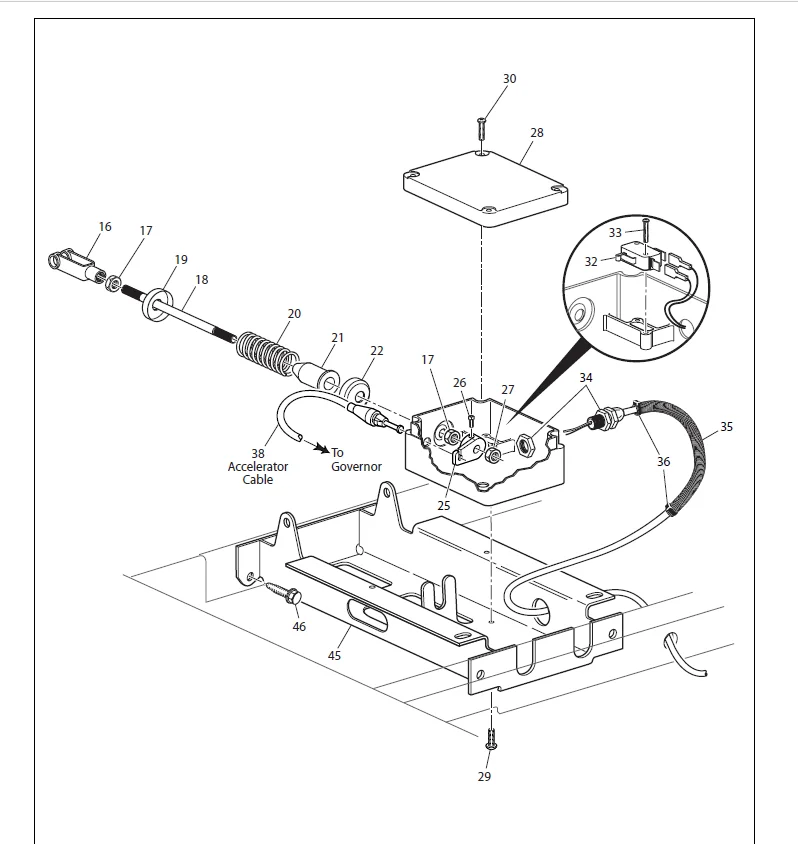

• Illustrated Parts Breakdown: This is the core of the manual, featuring detailed illustrations and parts lists for all major vehicle systems. Each part is clearly numbered for easy identification and ordering. The diagrams are high-quality and easy to understand, even for those unfamiliar with the specific models.
• Appendix: Includes a listing of specialty products and optional accessories.
• Index of Major Components: This comprehensive index allows quick location of parts based on their part numbers.
• Individual System Breakdown: Detailed diagrams and parts listings are provided for each system of the vehicle, such as accelerator, air filter, body, brakes (including front disc brakes), carburetor and choke, clutch, direction selector, electrical system, engine and muffler, fuel system, rear axle, rear suspension, seating, starter/generator, and truck bed (manual and electric lift). Each section features a clear illustration and corresponding parts list with part numbers and quantities.

⚠️ Important Notes and Warnings:

The manual highlights several critical points:

• Using non-OEM parts may void the warranty.
• Tampering with the governor will void the warranty.
• All engine service must adhere to original specifications to comply with federal and state emission standards.
• Information on battery prolonged storage is included.

⚙️ Technical Information:

The manual provides crucial technical details including part numbers, descriptions, and quantities for every component. It facilitates efficient maintenance and repair, offering a valuable resource for both professional and DIY users who are comfortable working with technical documentation. Remember to always consult the manual for specific procedures and safety measures before initiating any repair or maintenance tasks. For more comprehensive maintenance and repair information, the manufacturer recommends having a technician’s repair and service manual, available separately from the service parts department.

❌ WHAT’S NOT INCLUDED

• Detailed repair procedures.
• Wiring diagrams for some components.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

Q: What models does this manual cover?

This manual covers EZGO, Cushman, and Jacobsen gasoline-powered utility vehicles, specifically the MPT® 800, Industrial™ 800, Commander™ 280, Hauler™ 800, and Sport™ II models starting from the 2006 model year.

Q: What type of procedures are included?

The manual primarily focuses on providing detailed parts lists and diagrams for all major vehicle systems. While it doesn’t include step-by-step repair instructions, it’s essential for identifying and ordering the correct parts for repairs.

Q: Is this suitable for DIY mechanics?

Yes, but only for experienced DIY mechanics comfortable working with technical diagrams and parts lists. It requires a solid understanding of automotive systems and repair procedures. Beginners should seek professional assistance.

Q: What format is this manual in?

This manual is in digital PDF format, downloadable immediately after purchase. You will need a PDF reader to access it.

Q: Are there any language requirements?

The manual is written in English.

Q: What if I need more comprehensive repair information?

The manufacturer recommends having a technician’s repair and service manual, which is available separately. This manual is more focused on providing parts information.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent; detailed and well-organized.
• Content Type: Service Parts Manual
• Language: English
• Technical Level: Professional/Intermediate
• Recommended For: Professional mechanics and experienced DIY users
• Page Count: Approximately 135 pages
• Image Quality: Good; clear diagrams and illustrations.

📋 Original Product Description:

EZ GO Chushman Utility Service Manual RXV 2008

TABLE OF CONTENTS:
HOW TO USE THE SERVICE PARTS MANUAL v
ILLUSTRATED PARTS BREAKDOWN vii
ACCELERATOR A-1
AIR FILTER B-1
BODY C-1
BRAKES D-1
CARBURETOR AND CHOKE E-1
CLUTCH F-1
DIRECTION SELECTOR G-1
ELECTRICAL SYSTEM H-1
ENGINE AND MUFFLER J-1
ENGINE MOUNTING K-1
FRONT SUSPENSION L-1
FUEL SYSTEM M-1
REAR AXLE N-1
REAR SUSPENSION P-1
SEATING Q-1
STARTER / GENERATOR R-1
STEERING S-1
WEATHER PROTECTION T-1
WHEELS AND TIRES U-1
SPECIALTY PRODUCTS APPENDIX A-1
OPTIONS AND ACCESSORIES APPENDIX B-1
