📘 DOCUMENT OVERVIEW

This comprehensive service parts manual provides detailed information for maintaining and repairing a range of electric utility vehicles. Specifically designed for professional mechanics and experienced DIY enthusiasts, this manual offers a wealth of technical specifications, diagrams, and parts lists to assist in troubleshooting and repair operations. The document’s clear structure and detailed illustrations make it a valuable resource for anyone working on these vehicles.

🔧 Manual Type: This is a Service Parts Manual, focusing on providing detailed parts lists and diagrams for the various components of the specified electric utility vehicles. It’s not an operator’s manual, so it won’t teach you how to *drive* the vehicles.

🚜 Covered Equipment/Models: The manual covers the following Textron-owned brands and models, starting with the 2006 model year:

• EZGO MPT™ 800
• CUSHMAN® INDUSTRIAL™ 800
• CUSHMAN® COMMANDER™ 800
• JACOBSEN® HAULER® 280

🛠️ Major Sections & Procedures: The manual is organized into logical sections, each dedicated to a specific system or component of the vehicle. Key sections include:

• Accelerator
• Battery Chargers (on-board and portable)
• Body
• Brakes (front disc and rear)
• Cab
• Direction Selector
• Electric Motor
• Electrical System
• Electronic Speed Control
• Front Suspension/Steering
• Rear Axle
• Rear Suspension
• Seating
• Truck Bed (manual and electric lift)
• Wheels and Tires

Each section contains detailed illustrations, parts lists with part numbers and quantities, and notes to clarify assembly and installation procedures.

⚠️ Key Technical Information: The manual provides critical information, including:

• Limited warranty information and how to obtain a copy.
• Warnings about using non-OEM parts and voiding the warranty.
• Guidance on maintaining federal and state emission certifications.
• Battery care and prolonged storage instructions.
• Detailed exploded diagrams and parts lists for all major components.
• Specific instructions for ordering replacement parts.

This manual is an indispensable resource for anyone involved in the maintenance, repair, or restoration of these electric utility vehicles. The combination of detailed illustrations, comprehensive parts listings, and essential technical information makes it a highly valuable asset for both professional technicians and serious DIY enthusiasts.

❌ WHAT’S NOT INCLUDED

• Detailed repair procedures beyond parts identification.
• Wiring diagrams for some systems are limited.

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

Q: What models does this manual cover?

This manual covers EZGO MPT™ 800, CUSHMAN® INDUSTRIAL™ 800, CUSHMAN® COMMANDER™ 800, and JACOBSEN® HAULER® 280 models, starting with the 2006 model year.

Q: What type of procedures are included?

The manual focuses on providing detailed parts lists and diagrams, enabling users to identify and order replacement components. It doesn’t offer step-by-step repair instructions.

Q: Is this suitable for DIY mechanics?

While suitable for experienced DIYers with mechanical aptitude, this manual’s technical nature and detailed parts lists might not be ideal for beginners. A separate repair manual is recommended for detailed repair procedures.

Q: What format is this manual in?

This manual is in digital PDF format, instantly downloadable after purchase.

Q: Are there any language requirements?

The manual is written in English.

Q: What if I need parts?

The manual provides part numbers; contact the customer service department or a local distributor for ordering.

Q: What about warranty information?

The manual explains how to obtain a copy of the limited warranty applicable to your specific vehicle using the vehicle’s serial number and manufacturer code.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent – comprehensive and well-organized.
• Content Type: Service Parts Manual
• Language: English
• Technical Level: Professional/Intermediate
• Recommended For: Professional mechanics and experienced DIY users.
• Page Count: Approximately 120 pages
• Image Quality: Good – clear diagrams and illustrations.

📋 Original Product Description:

EZ GO Chushman Utility Services Manual Mod 800 280 2008 Gas

HOW TO USE THE SERVICE PARTS MANUAL v
ILLUSTRATED PARTS BREAKDOWNvii

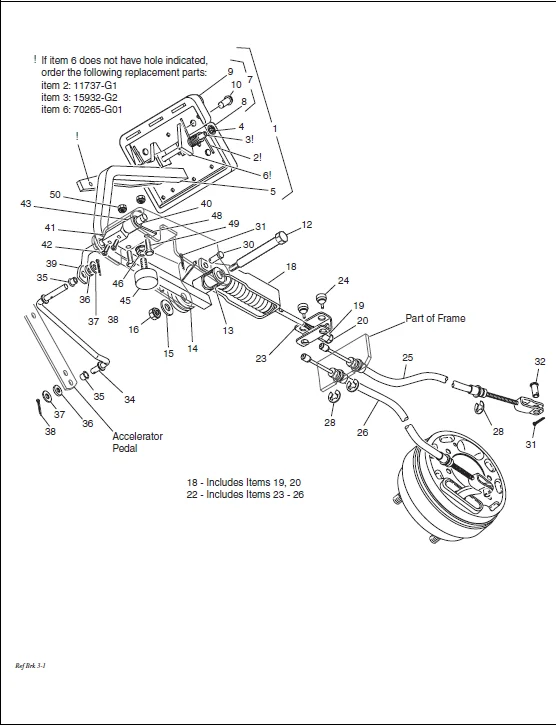

ACCELERATOR A-1

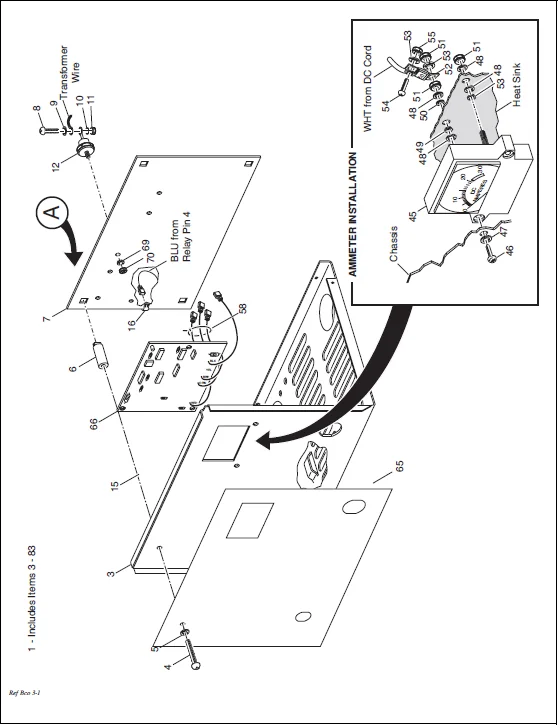

BATTERY CHARGER, ON BOARD B-1
BATTERY CHARGER, PORTABLE B-9
BATTERY CHARGER, LESTER B-11
BODYC-1
BRAKES D-1
BRAKES – FRONT DISC E-1
CAB F-1
DIRECTION SELECTORG-1
ELECTRIC MOTORH-1
ELECTRICAL SYSTEMJ-1
ELECTRONIC SPEED CONTROL K-1
FRONT SUSPENSION/STEERINGL-1
REAR AXLEM-1
REAR SUSPENSION N-1
SEATING P-1
TRUCK BED, MANUAL LIFTQ-1
TRUCK BED, ELECTRIC LIFT Q-7
WEATHER PROTECTION R-1
WHEELS AND TIRES S-1
SPECIALTY PRODUCTS APPENDIX A-1
OPTIONS/ACCESSORIES APPENDIX B-1
