EZGO EXPRESS L4 S4 TERRAIN 250 500 1000 SERVICE MANUAL – PDF DOWNLOAD

Description

EZGO EXPRESS L4 S4 TERRAIN 250 500 1000 SERVICE MANUAL – PDF DOWNLOAD

DESCRIPTION:

EZGO EXPRESS L4 S4 TERRAIN 250 500 1000 SERVICE MANUAL – PDF DOWNLOAD

GASOLINE POWERED UTILITY VEHICLES EXPRESS L4 EXPRESS S4 TERRAIN 250 TERRAIN 500 TERRAIN 1000

• Many vehicles are used for a variety of tasks beyond the original intended use of the vehicle; therefore, it is impossible to anticipate and warn against every possible combination of circumstances that may occur. No warnings can take the place of good common sense and prudent driving practices.
• Good common sense and prudent driving practices do more to prevent accidents and injury than all of the warnings and instructions combined. The manufacturer strongly suggests that all users and maintenance personnel read this entire manual paying particular attention to the CAUTIONS and WARNINGS contained therein.
• If you have any questions regarding this vehicle, contact your closest representative or write to the address on the back cover of this publication, Attention: Product Service Department. The manufacturer reserves the right to make design changes without obligation to make these changes on units previously sold and the information contained in this manual is subject to change without notice.
• The manufacturer is not liable for errors in this manual or for incidental or consequential damages that result from the use of the material in this manual. This vehicle conforms to the current applicable standard(s) for safety and performance requirements.
• These vehicles are designed and manufactured for off-road use. They do not conform to Federal Motor Vehicle Safety Standards of the United States of America (USA) and are not equipped for operation on public streets. Some communities may permit these vehicles to be operated on their streets on a limited basis and in accordance with local ordinances.

TABLE OF CONTENTS:

EZGO EXPRESS L4 S4 TERRAIN 250 500 1000 SERVICE MANUAL – PDF DOWNLOAD

GENERAL INFORMATION & ROUTINE MAINTENANCE A
SAFETY B
BODYC
WHEELS AND TIRESD
FRONT SUSPENSION AND STEERING E
SPEED CONTROL F
ENGINE G
FUEL SYSTEM H
CONTINUOUSLY VARIABLE TRANSMISSION (CVT) J
DIRECTION SELECTOR K
ELECTRICAL WIRING L
MECHANICAL BRAKES M
REAR SUSPENSIONN
REAR AXLE P
WEATHER PROTECTION Q
TROUBLESHOOTING S
GENERAL SPECIFICATIONS

EZGO EXPRESS L4 S4 TERRAIN 250 500 1000 SERVICE MANUAL – PDF DOWNLOAD:

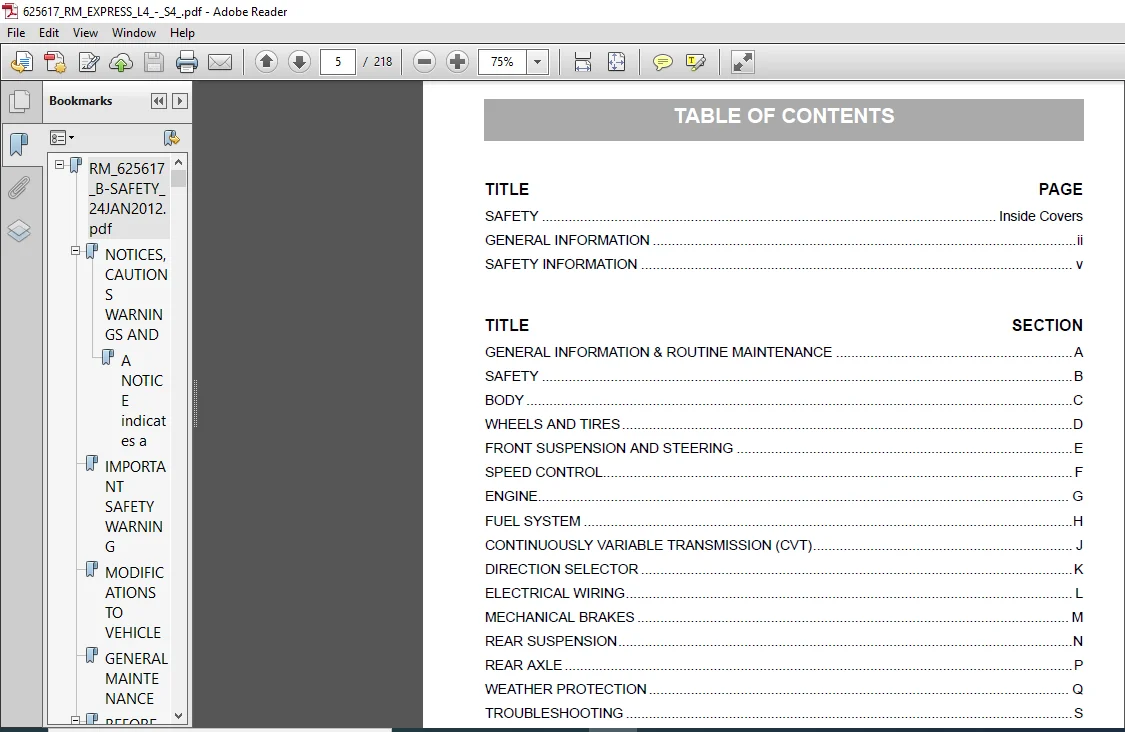

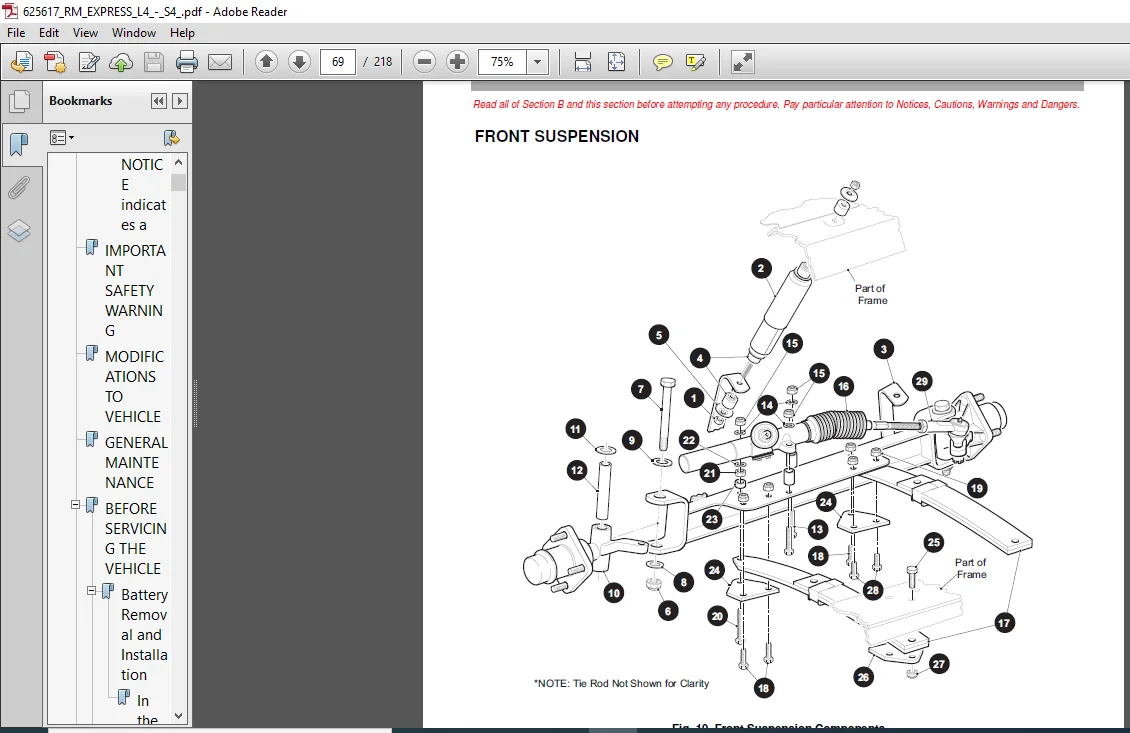

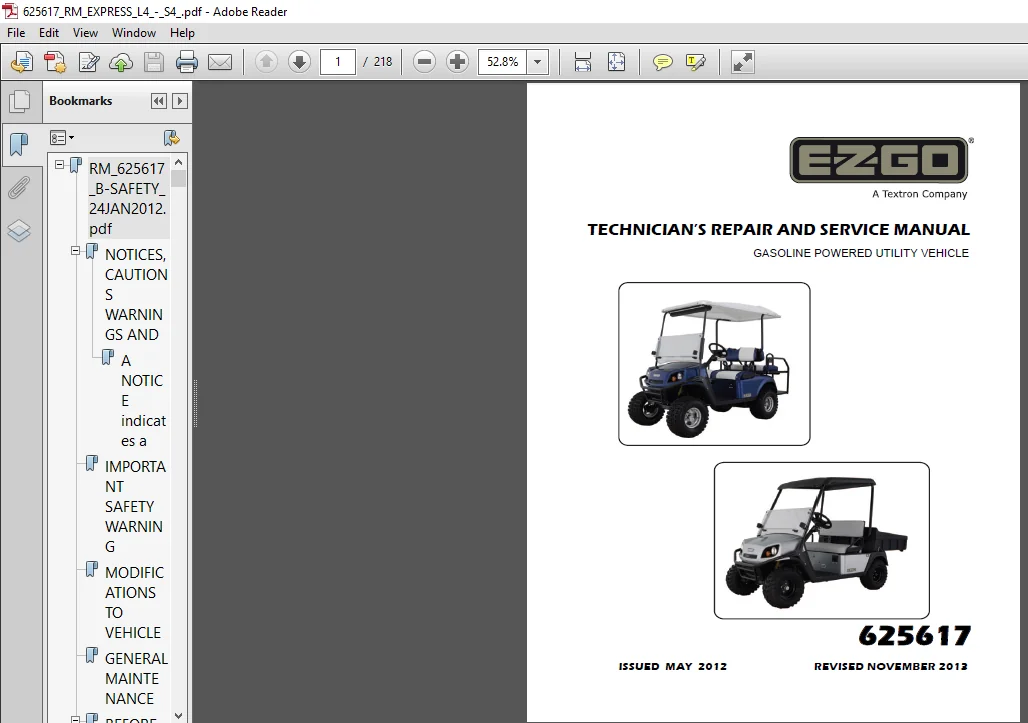

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
