FAW CA4250P66K24T1E Jiefang J6 Semi-Trailer Tractor Parts Catalog PDF

Description

File Details

• Manual type: Illustrated parts catalog
• Brand: FAW / Jiefang
• Model: CA4250P66K24T1E COE diesel semi-trailer tractor
• Language: English
• Page count: 373
• File format: PDF

This FAW CA4250P66K24T1E Jiefang J6 Semi-Trailer Tractor Parts Catalog PDF is the illustrated parts reference for the CA4250P66K24T1E COE diesel semi-trailer tractor. It is written for owners, fleet workshops, parts counter staff and service personnel who need to identify the right component on a Jiefang J6 tractor before ordering or fitting it. Every listing entry carries a part number, a part name and the quantity required, and the majority of the 171 sections are accompanied by an exploded disassembly drawing that shows how the parts sit together on the vehicle.

Truck Configuration Described in the Catalog

The forward section of the document sets out the build of the tractor this catalog was printed for: a CA6DM2-39E3F diesel engine, a φ430 clutch, a CA12TAX190M gear box, an R13T457 axle with a speed ratio of 4.111, 12R22.5 tubeless tires, a 2020 front shaft, drum brakes and the 2013 J6P all-floating high roof extended cab. The engine assembly entry lists the CA6DM2-39E3F unit as supplied with inline pump, turbocharger, oil-gas separator, fuel filter, oil filter, rotor filter, air compressor, power steering pump, generator, starter, fan and fan clutch, and with air conditioner installed. A second engine assembly entry for the CA6DM2-37E3F is also present in the right side view section. Knowing the exact configuration matters, because the catalog shows that more than one assembly option was built on this model and the correct part number depends on which one the truck carries.

Chapters Covered

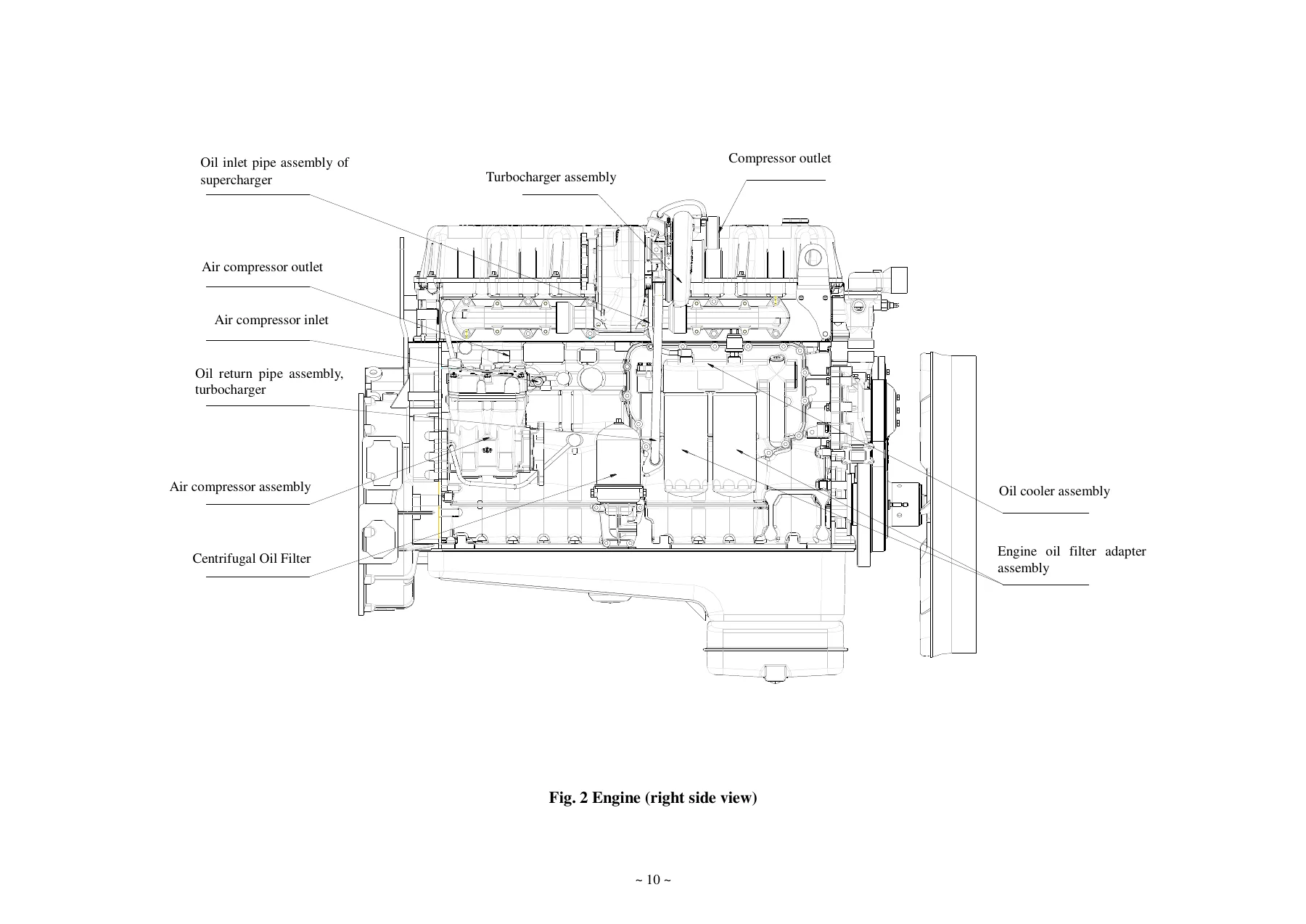

• Engine (Left Side View) / Engine (Right Side View)
• Engine Mounting

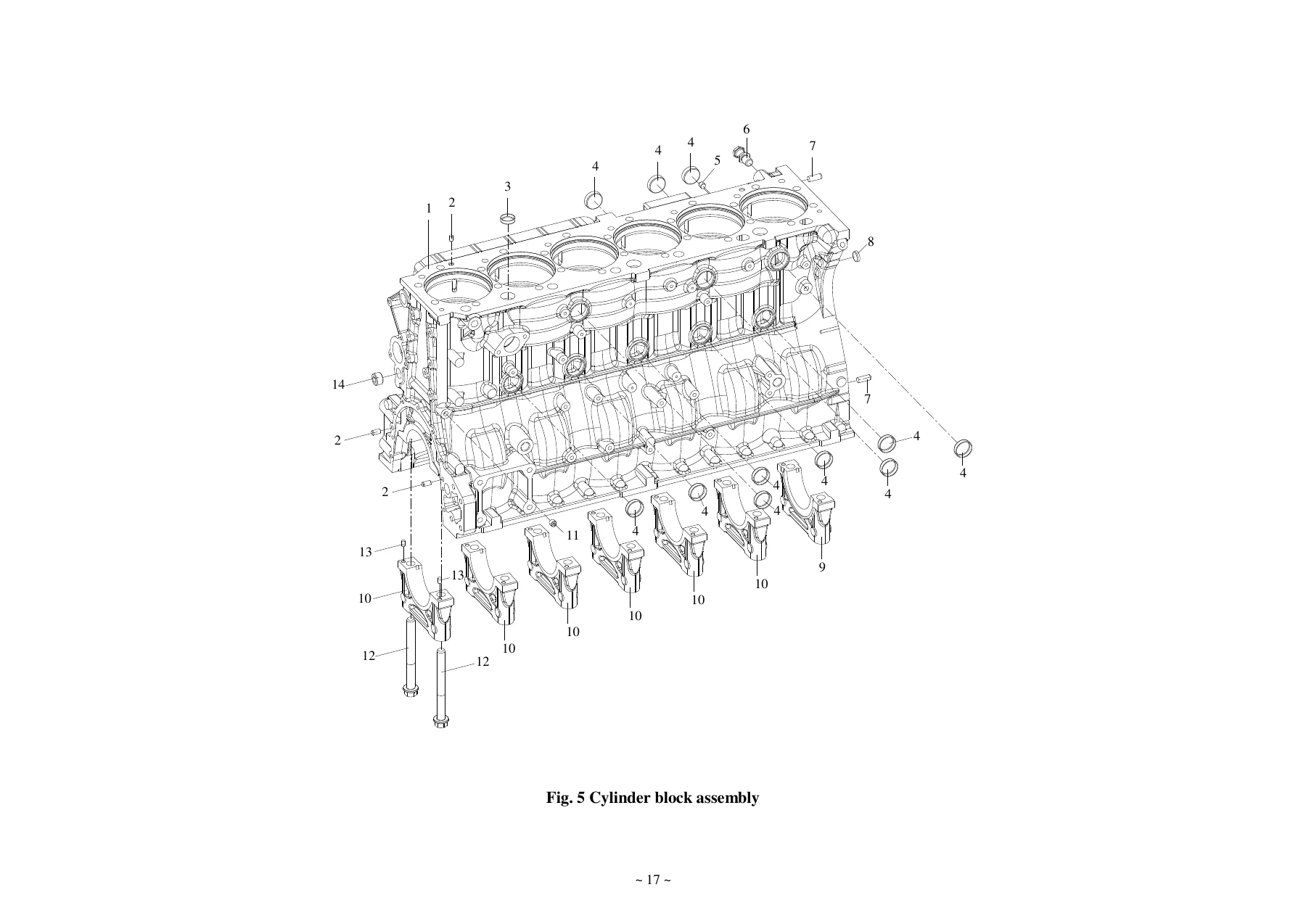

• Cylinder Block Set / Cylinder Block Assembly
• Cylinder Head Component / Cylinder Head Assembly / Cylinder Head Cover Assembly
• Piston and Connecting Rod
• Crankshaft and Flywheel / Camshaft / Powertrain
• Air Distribution System / Exhaust Manifold
• Engine Oil Pan / Oil Collector / Engine Oil Pump / Pressure Regulating Valve
• Oil Filter / Oil Cooler Valve / Crankcase Ventilation / Centrifugal Oil Filter
• Tensioner
• Fuel Supply System (I), (II), (III), (IV) and (V)
• Secondary Fuel Filter / Primary Fuel Filter
• Turbocharging System
• Drain Cock / Thermostat, Thermostat Cover, Minor Cycle Connection Tube
• Water Pump / Fan and Fan Clutch
• Power Steering Oil Pump
• Air Compressor (I) and (II)
• Alternator and Bracket / Starter Motor / Harness, Engine
• Air Heater / Engine Electric Logic Assembly / A/C Compressor
• Fuel Tank and Fuel Pipeline
• Air Filter / Exhaust System / Exhaust Brake Valve Component
• Radiator, Pipeline and Fan Shroud / Intercooler, Line, Mounting, Backstop
• Expansion Tank, Filler Cap, Expansion Tank Support, Lines
• Clutch / Clutch Operation System / Clutch & Transmission Housings
• Input Shaft / Output Shaft / Countershaft (LH, RH) / Reverse Gear
• Auxiliary Transmission Drive Gear / Countershaft, Auxiliary Gearbox / Mainshaft, Auxiliary Transmission
• Shell, Auxiliary Gearbox / Auxiliary Transmission Case Gears
• Valve, Hose and Connection Components / Upper Cover / Roof Cover
• Shift Control Mechanism / Rear Mounting, Powertrain
• Clutch Release Fork and Bracket
• Intermediate Axle Drive Shaft / Rear Axle Drive Shaft
• Frame and Bracket Assembly / Working Ladder / Trailer Bench
• Rear Axle / Intermediate Axle
• Bumper (FR) (I) and (II)
• Front Shaft and Steering Tie Rod / Drag Link / Steering Control and Drive / Power Steering Line
• Hub and Brake Drum, Wheel (FR) and (RR)
• Front Axle Brake / Middle Axle Brake / Rear Axle Brake
• Brake Line (I) and (II) / Auxiliary Air Reservoir / Energy Supply Module, Air Brake
• Brake Pedal with Brake Valve and Clutch Brake with Clutch Master Cylinder
• Control Unit, ABS / Functional Switch / Driver Tool
• Electrical Equipment, Cab / Electrical Equipment, Chassis / Power Supply Distribution Box with Electrical Equipment
• Footboard and Mud Guard (FR) / Mud Guard (RR) / Side Baffle, Engine
• Fender (UPR), Mud Guard (UPR) and Three-Stage Footboard (I), (II) and (III)
• Cab / Floor Insulation Pad / Floor Plug
• Wiper / Front Windscreen Glass / Washer / Plug and Waterproof Membrane, Front Wall
• Side Wall Tool Box / Lock and Cable, Side Wall Tool Box / Side Window Glass / Glass, Rear Window
• Air Grille / Hole Plug, Rear Wall
• Instrument Panel (I) through (VII) and Instrument Panel Components (V), (VI), (VII)
• Overhead Box Component (I) through (VII)
• Side Wall Guard Board and Get On/Off Armrest Assembly (I) through (IV)
• Rear Wall Facing (I) and (II) / Roof Finisher Set (I) through (VI)
• Armrest, Door / Door (FR) / Finisher (LWR), Door / Door Interior Trim Parts / Door Lock Mechanism
• Lock Ring, Dowel Pin Boss and Door Outer Seal / Seal, Door / Door Limiter
• Carpet Set / Gearshift Protective Sleeve / Driver’s Seat / Front Seat
• Berth Set (LWR) (I) and (II) / Berth (UPR) (I) and (II)
• Outside Rear-View Mirror (LH) and (RH) / Sun Visor (FR)
• Air Conditioning Equipment / Outside Air Filter / Air Duct / Evaporator and Condenser Assembly / Condenser Assembly / Freon Duct / Heater Water Pipe

Read as a whole, the catalog breaks the tractor into service-sized groups rather than leaving the reader to guess where a component belongs. The engine chapters walk from the bare cylinder block through the cylinder head, pistons and connecting rods, crankshaft and flywheel, camshaft and timing train, then outward to the intake and exhaust side, the lubrication circuit, the fuel supply chain and the cooling and turbocharging hardware. The driveline chapters follow the same logic through clutch, transmission housing, shafts, auxiliary gearbox and propeller shafts into the rear and intermediate axles. The chassis and cab chapters then cover the frame, suspension brackets, steering, brakes and air system, the ABS and electrical distribution, and finally the cab interior, doors, glass, seating and air conditioning. Each chapter is drawn as a numbered exploded view with a matching parts table, so a part seen on the vehicle can be traced back to a number and a name.

How the Part Numbers Are Presented

Parts are listed in tables with four columns: a serial number that matches the callouts in the drawing, the part number, the part name and the quantity used. FAW part numbers appear in their full factory form, and where an assembly has an alternative or fully interchangeable option, that alternative number is shown directly beneath the main entry. Standard fasteners and hardware are listed with their own designations, for example hexagon flange bolts, I-type non-metal insert hexagon lock nuts, cone elastic washers, cylindrical pins, bowl plugs and copper washers, so a fastener can be matched without measuring. The engine mounting chapter even records the exact number of each bolt and nut used, which is what makes this kind of catalog useful when a repair involves a lot of small hardware.

What This Catalog Lets You Do

With this FAW CA4250P66K24T1E Jiefang J6 Semi-Trailer Tractor Parts Catalog PDF in hand you can identify a component by looking at the exploded view rather than by description alone, order the correct part number the first time, confirm how many of a given item the assembly takes, and see which parts are supplied together as a unit. That last point saves real money on a Jiefang J6 tractor: the engine assembly entry alone shows how many accessories are included with the complete unit, which prevents a workshop from ordering a fan clutch or an air compressor separately when it already comes with the assembly. The transmission chapters go down to individual synchronizer cones, shift forks, guide blocks and interlocking pins, and the brake chapters break out camshafts, brake shoes, linings, rollers, bushings and slack adjusters, so a rebuild can be planned part by part instead of assembly by assembly.

For a fleet running this COE diesel semi-trailer tractor, the value is in the detail. The air brake section documents the energy supply module, reservoirs, drain valves, relay valves, ABS solenoid valves and every pipe bracket, which is exactly the level of information needed when tracing a leak or replacing a failed valve on a working truck. The cab section covers the instrument panel across seven sub-sections, the overhead storage unit across seven more, door locks, window regulators, seals, carpet and the berth sets, so interior repairs on the high roof extended cab are covered as thoroughly as the mechanical side.

IMAGES PREVIEW

Instant PDF Delivery

The catalog is delivered as a PDF file that downloads immediately after purchase. There is no shipping, no waiting for a printed binder, and no risk of a paper copy being damaged in a workshop. Open it on a laptop in the office, a tablet on the shop floor or a phone beside the truck, print the pages for the job you are doing, and keep the rest of the 373 pages clean for the next one. Because the file lives on your device, it is available whenever the truck needs attention, including evenings, weekends and roadside jobs where a parts counter is closed. Please note that this catalog covers the CA4250P66K24T1E and the assemblies listed in its contents, and it is an illustrated parts reference rather than a step-by-step repair manual, so torque sequences and service procedures are not part of its scope.
