Fendt 920 Tractor Parts Catalog F920002 – 707-Page Illustrated Parts Manual PDF

Description

Fendt 920 Tractor Parts Catalog F920002

The Fendt 920 Tractor Parts Catalog F920002 is the full illustrated parts reference for FENDT 920 tractors built within serial range 920/06001–99999. Every system on the machine is broken down into exploded views paired with itemised part-number tables, so a dealer, workshop or owner can pinpoint the exact component, fastener, gasket, seal, ring, bushing or complete assembly that belongs on a given tractor. Working from the F920002 parts catalog means ordering the correct part the first time, rather than measuring, guessing or returning the wrong item.

File Details

• Manual type: Illustrated Parts Catalog
• Brand: Fendt
• Model: FENDT 920 (serial range 920/06001–99999)
• Document number: F920002
• Language: English
• Page count: 707 pages
• File format: PDF

Chapters Covered

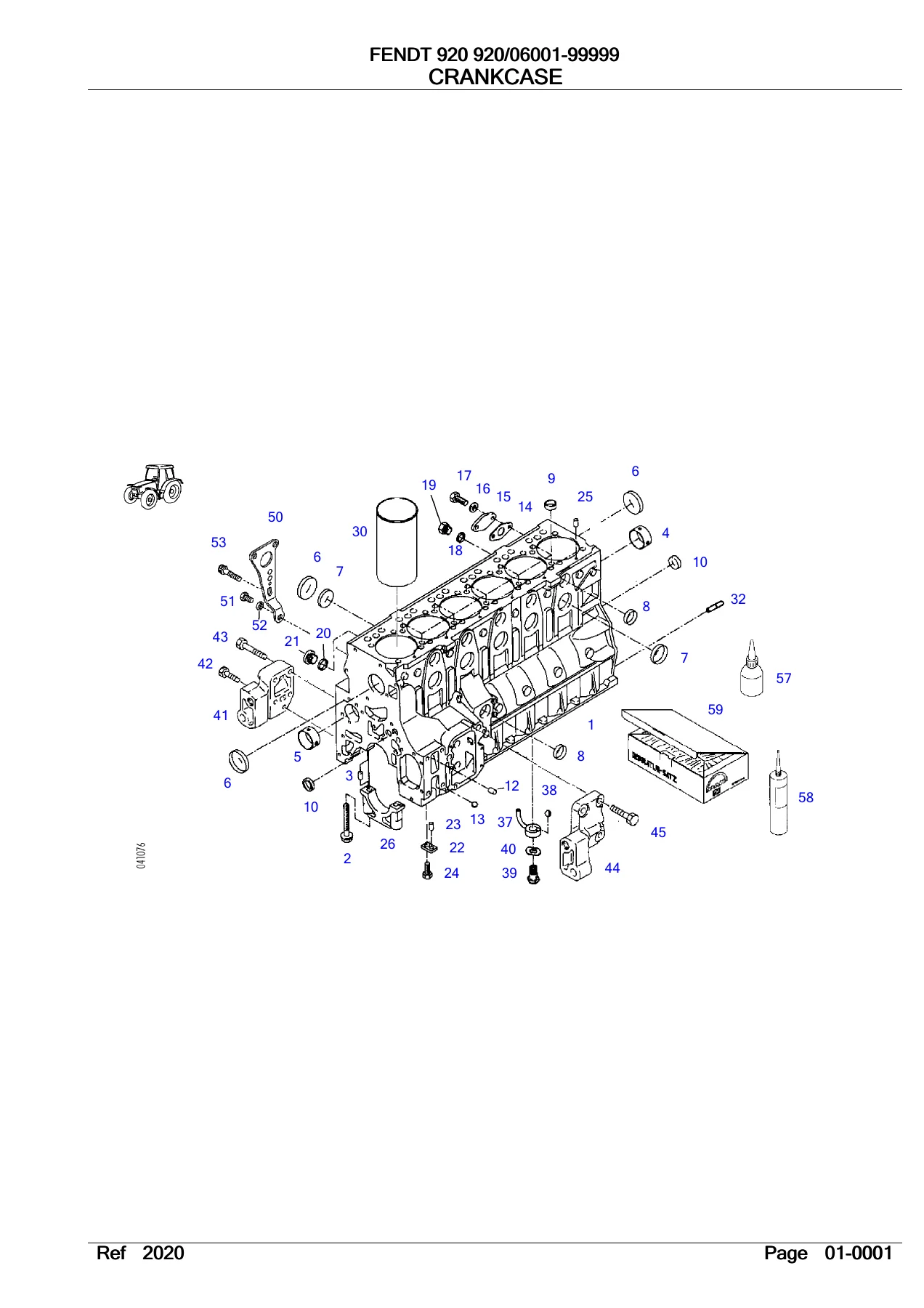

• 01 – Engine, Fuel and Exhaust System: crankcase, pump drive, front cover, flywheel housing, cylinder head, engine breathing, crankshaft, piston, camshaft, valve drive, oil pan, gear pump, oil filter/cooler, injection pump, fuel pressure lines, injector valve, leak oil line, fuel pump, fuel filter, hand primer, prefilter, fuel tank (left and right), breather line, cold starting aid, water-cooled radiator, coolant water piping, expansion tank, water pump, air filter, suction pipe, boost intercooling, turbo-supercharger, exhaust bend, end pipe, exhaust brake, speed control, V-belt, visco fan, tension roller, engine pre-heater

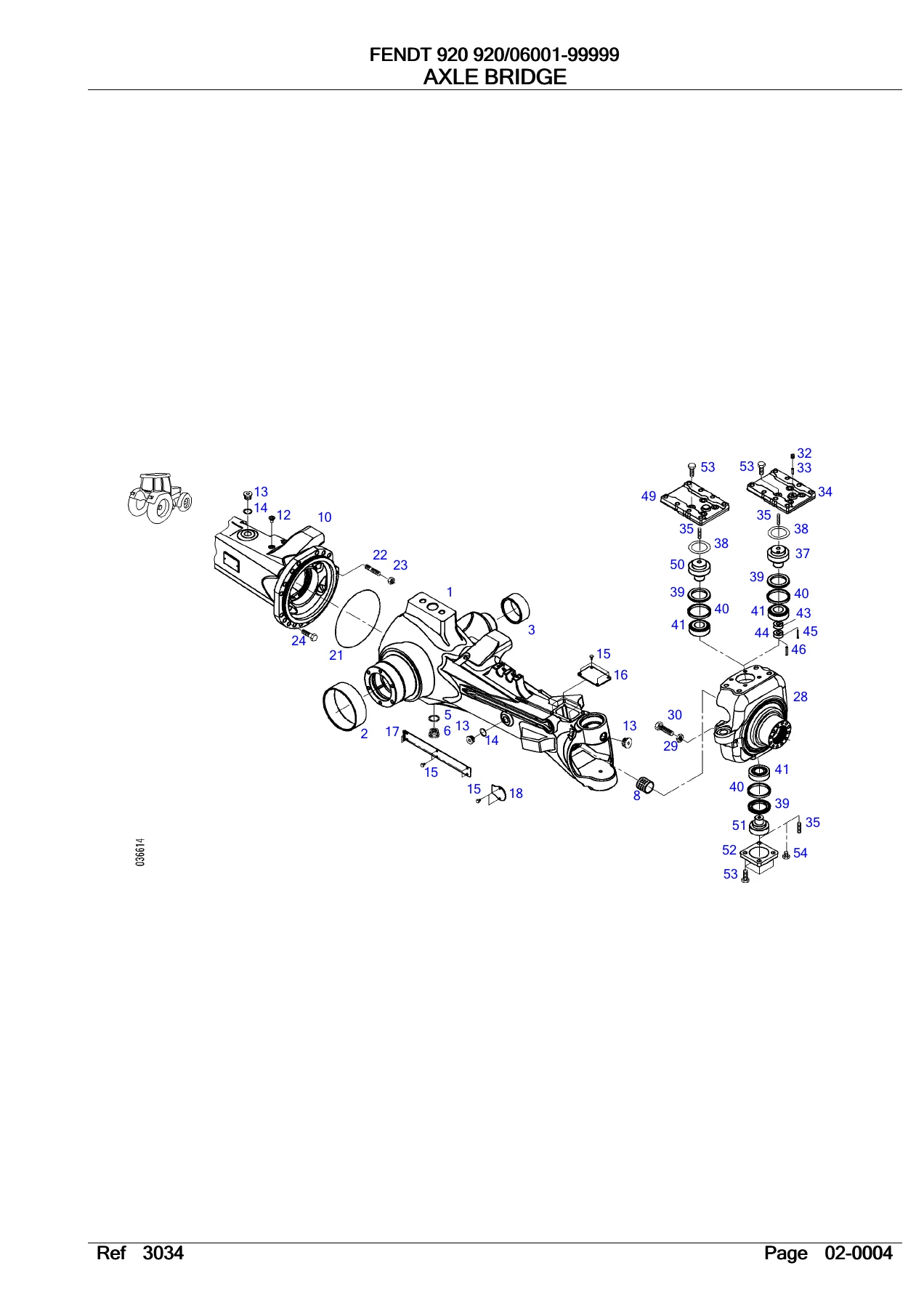

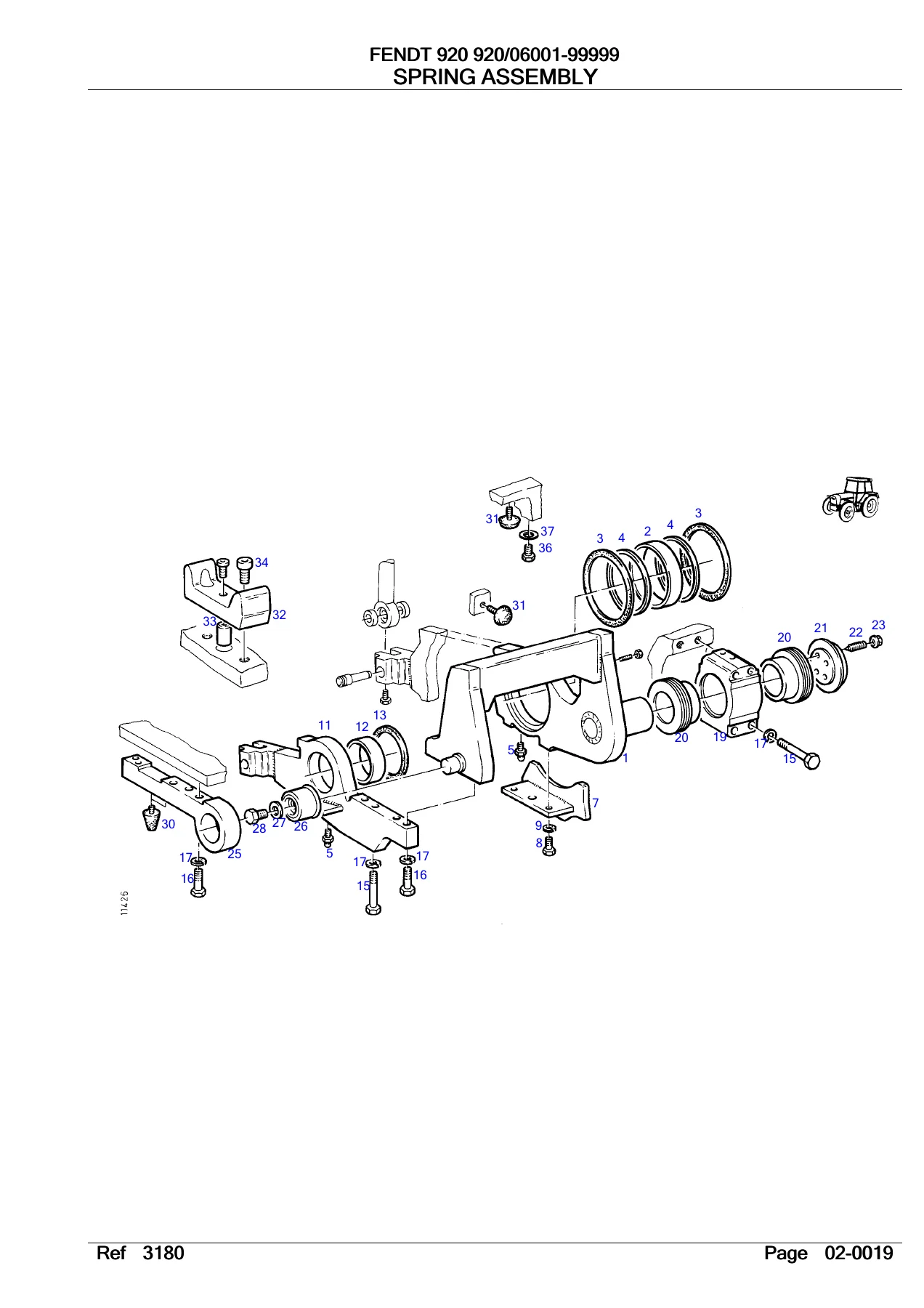

• 02 – Axle Bridge, Drive and Steering: planetary steering drive axle, axle arch, jointed housing, king pins, bevel gear and differential housing, jointed shafts, wheel hubs, ring gears, planet pinions, steering cylinder
• 03 – Steering System: steering wheel, steering bracket, steering column (including reverse driving implement variants), steering unit, control lever, valve unit, autoguide tube, support leg, steering angle sensor
• 04 – Drive Train System: clutch housing, gearbox housing, rear axle housing, oil level indicator, differential, final drive, disc brake, foot brake actuating, brake master cylinder, brake hydraulics, selector valve, breather line, cardan brake, hand-brake, clutch actuating and clutch hydraulic (including reverse driving implement variants), inner housing, drive pinion, planetary drive, pump shaft, accumulator shaft, range shaft, bevel drive, hydraulic pump, hydraulic motor, duct plate, adjusting device, transmission pipelines and piping, group gear shifting, emergency control shifting, P.T.O. clutch, engine P.T.O., spur gear, cylinder, pump drive, lube oil pump, feed pump, gearbox lubrication, valve unit, pressure filter, tube, oil cooler, valve system comfort, pipes diff lock front, linings system comfort, P.T.O. actuating, front P.T.O. housing and clutch, season gearshifting, front P.T.O. valve unit, pipes front P.T.O., front wheel drive constant and front wheel drive
• 05 – Compressed Air System: compressor installation, pressure pipes, defrosting pump, pressure regulator, air tanks (two-tank and four-tank left/right configurations), spill-valve, valve stack, hand brake valve, brake cylinder, trailer valve, double pipe brake, air brake single
• 06 – Hydraulic System: pump installations (45ccm, 63ccm, auxiliary steering pump), pipes basic circuit (flange shaft, piston pump, auxiliary steering pump), pipes hydraulic steering (including reverse driving implement), support section, control pipe, pipes steering cylinder, pipes power-lift (flange shaft and bar axle), shift, cover, change-over EHR/DA, pipes with oil cooler, valve unit, valve installation, directional control valves, control valve (electronic powerlift control rear), spacer, end plate, leakage tray, bottle, hydraulic connections rear, external pressure connection, return flow rear, hydraulic connections front, return flow front
• 07 – Electrical System: alternator assembly, headlight, work lamp, lighting front and rear, licence plate holder, dashboard, relays mounting, switch banks (dash-board, drivers cab, transmission, hydraulic, engine), cable looms (front, engine EDC, transmission, drivers cab, reverse driving implement, external counter), reverse beeper, socket for ABS, repair sets for cable looms, socket for implements, battery installation, jump start poles, starter installation, socket for trailer light, work lamps (cabin-roof front, cabin-roof rear, indicator brackets, light holders), signal light, display, terminal, camera, transmitter, radar sensor, comfort system, control transmission, main switch, tool holder, drivers-cabin outfit, control box engine, terminal autoguide, receiver autoguide, electronic box VIU autoguide, cable loom autoguide, base station autoguide
• 08 – Cab: cabin frame, column panelling, cladding front part, roof, roof hatch, cover plate for roof, coating (cabin-roof), doors, door lock, windscreen, window, rear window pane, flap, rear window lower, floor covering, coating base right and left, drivers-cabin outfit, heater (actuator, heater core, tubes heating), aeration, rear view mirror, sun visor, windshield wiper front and rear, windscreen wash-install front and rear, interior lighting, radio installation kit
• 09 – Air Conditioning and Heating System: compressor installation, compressor, tubes for refrigerant fluid front and drivers cab, evaporator, electrical equipment, condenser
• 10 – Chassis: body, body reverse driving implement, tractor hood, carrying frame, cover sheet, side covering, front blind, arm rests, operator seat (back part, seat, side part, rotary plate, spring assembly, compressor, seat spring assembly, bellows, service package, security belt) by seat number, seat console, turning bracket reverse driving implement, tool box, tools, hitch, PTO guard, trailer hitch (including automatic and ball-bolt versions), remote control, adjustable drawbar (including Australia), piton fix, ball type clevis, base frame hitch, mounting parts hitch, bottom hitch assembly, entry frame, entry left and right, base for frame front and rear, labelling, base, insulation base
• 11 – Wheels: front disc wheels, rear wheels, adjustable front and rear wheels, wheel hub single and duo, mud guards adjustable (multiple tyre configurations), additional parts, mudguard enlargements (150mm, 230mm, 300mm, 315mm, 450mm, 480mm), mudguard cover
• 12 – Implement Lift System Front: double-acting hydraulic cylinder, tubes, front power lift, bottom link, top link, sensor, directional control valve, loading weights (870 KG, 1800 KG), additional weight, carrier, hitch-loading weight
• 13 – Implement Lift System Rear: power lift, double-acting hydraulic cylinders (40/90 and 40/100 left and right, plus bar-axle variants), oil tank, draft pin, sensor, electrical hydraulic remote control, lift arm (including category variants), support (including bar-axle variants), top link, hydraulic upper link, clamping parts, link holder, bottom link (category 3 and 4), ball retainer
• 14 – Accessories: wheel wedge mounting, wheel weights rear, brake lever support, technical documents

What This Fendt 920 Parts Catalog Gives You

The F920002 parts catalog is not a repair guide – it is the lookup tool that sits open on the bench next to one. Every listing pairs an exploded view with a numbered table, so you can visually trace how a system is assembled and then read off the exact part number for the component you need. Torque-critical fasteners such as cylinder head bolts, wheel bolts, stud bolts and hex head bolts appear with their DIN or ISO standard, thread size and strength class (for example DIN 931 M12X60 GWA-10.9, DIN 933 M8X20-8.8A3L, wheel nut ZSB-M22X1,5). Seals, O-rings, gaskets, shaft sealing rings, split washers, lock washers and bearing bushings are itemised with their dimensions, so ordering a rebuild kit for a hydraulic cylinder, brake unit or steering cylinder becomes a straightforward lookup instead of a guess.

Because the catalog covers the entire machine – engine, drivetrain, brakes, hydraulics, compressed air, electrical, cab and both front and rear hitch systems – it is equally useful for a single fastener replacement and for a full tear-down. Serial-range notes such as ENG.NO. → 164 0739 999 9999 and ENG.NO. → 164 0740 000 0000 flag the point at which a component changed, so you can match the part to your actual tractor rather than to a generic drawing. Where a component was updated mid-production – steering column, rear window pane, air tank configuration, hydraulic cylinder, P.T.O. clutch, bevel drive, rear axle shaft, seat assembly – the catalog lists both the earlier and later variant with its own part number.

Who It Is For

This Fendt 920 illustrated parts manual is written for the people who actually keep the tractor running: independent workshops sourcing parts for a customer machine, owners who prefer to do their own maintenance, parts counters that need to cross-reference a fastener or seal, and restoration projects where every bracket and clip has to be correct. It also serves as an accurate assembly reference when a component has been removed and the original order of washers, spacers and retaining rings is no longer obvious.

Why Use the F920002 Parts Catalog

Getting the wrong part costs time and shipping both ways. The Fendt 920 parts catalog F920002 removes that risk by tying every part number to a specific position on a specific diagram, by model and serial range. When a seal has blown, a bushing is worn or a stud has snapped, the correct part is listed with its size and standard, so any supplier working from the Fendt numbering system can supply it. Sections covering fasteners, gaskets, sealing washers and lock washers are particularly useful for anyone rebuilding a hydraulic cylinder or brake caliper, since each individual seal in the assembly is listed separately.
