FENDT XYLON 524 Parts Manual – PDF DOWNLOAD

Description

FENDT XYLON 524 Parts Manual – PDF DOWNLOAD

DESCRIPTION:

FENDT XYLON 524 Parts Manual – PDF DOWNLOAD

Language :ENGLISH
Pages :194
Downloadable : Yes
File Type : PDF
Size:3.86 MB
TABLE OF CONTENTS:

FENDT XYLON 524 Parts Manual – PDF DOWNLOAD

H524810011010 CABIN FRAME 1
H524810011380 CABIN FRAME 1
3 524810011240 WINDSCREEN 1
4 524810011250 WINDSCREEN 1
6 524810011220 SIDE PANE 1
7 524810011200 SIDE PANE 1
524810011780 SIDE PANE 1
8 524810011230 SIDE PANE 1
9 524810011210 SIDE PANE 1
524810011790 SIDE PANE 1
11 X903005236995 SEALING RIBBON 1
12 X903055270000 SEALING COMPOUND N.B.
13 F816810040010 ADHESIVE N.B.
15 524810011280 COVER 1
16 X434102440000 HEXAGON NUT 4
17 H524810011290 COVER 1
18 X493812305000 SELF-TAPPING SCREW 20
19 X454303908000 DISC 20
20 X435722500000 SHEET METAL NUT 20
21 X903053634000 SEALING COMPOUND N.B.
22 524810011750 TUBE BRACKET 1
23 H524810011190 PANELLING 1
24 524810011400 COVER 1
25 X903005285995 SEALING RIBBON 1
26 816810250060 PIPE 1
27 H524810011420 SEALING PROFILE 1
28 H524810011400 SEALING PROFILE 1
29 H524810011410 SEALING PROFILE 1
30 H524810011430 SEALING PROFILE 1
31 X304296000950 OUTER PROTECTION 1
33 X499503696000 LOCKING PLUG 2
34 X499504195000 LOCKING PLUG 4
35 X499502395000 LOCKING PLUG 4
36 X495112100000 SELF-TAPPING SCREW 4
37 X450005108000 DISC 5
38 X487520441000 HEXAGON SCREW 1
40 X434102240000 HEXAGON NUT 1
42 524810010870 SPRING 1
44 X508530100000 PROTECTING CAP 2
45 X428202239000 HEXAGON NUT 2
46 X434102240000 HEXAGON NUT 2

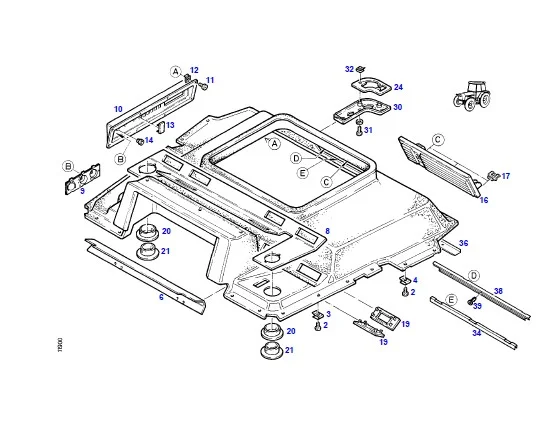

PANELLING 1
2 524810240020 PANELLING 1
3 524810240030 PANELLING 1
4 524810240040 PANELLING 1
5 816810080053 PLASTIC SCREW 26
6 X435706001000 SHEET METAL NUT 13
9 524810240050 PANELLING 1
10 524810240060 PANELLING 1
11 524810240070 PANELLING 1
12 816810240200 PLASTIC RIVET 4
14 524810240090 PANELLING 1
15 524810240100 PANELLING 1
16 X435706000000 SHEET METAL NUT 3
17 H524810240010 PANELLING 1
H524810240020 PANELLING 1
19 345810140070 SEALING RIBBON 1
20 X903000115000 ADHESIVE

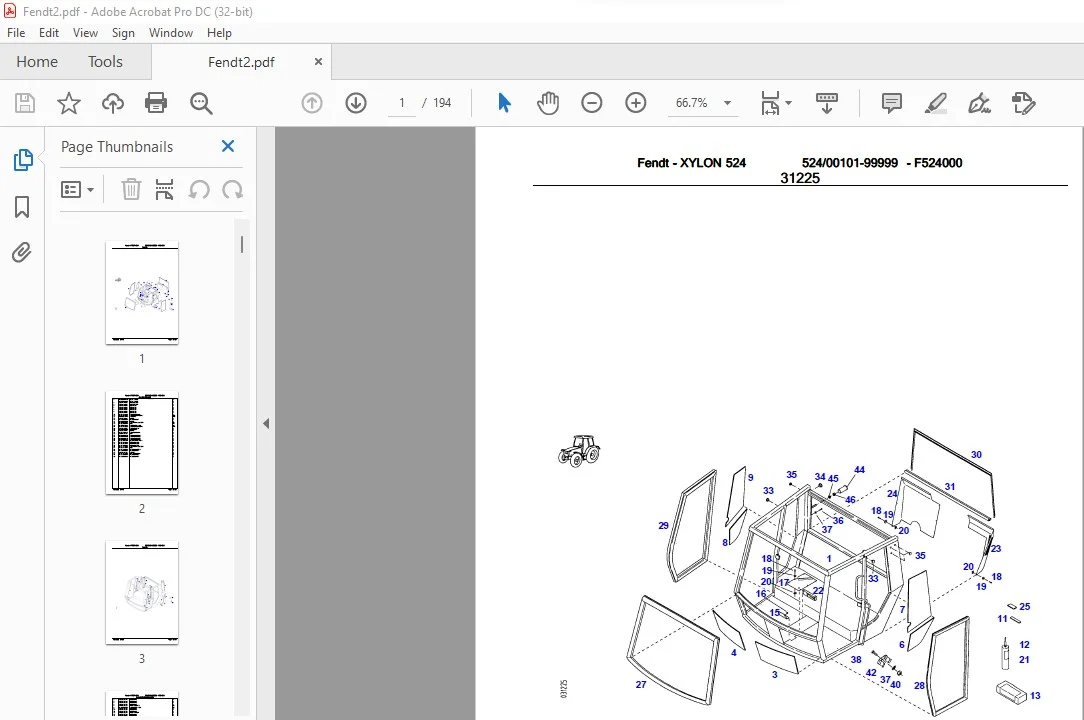

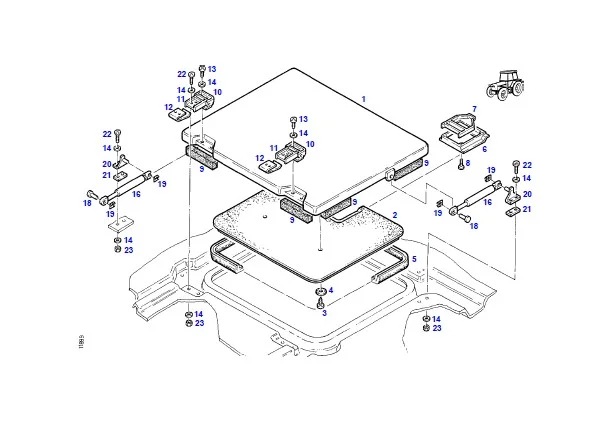

IMAGES PREVIEW OF THE MANUAL:
