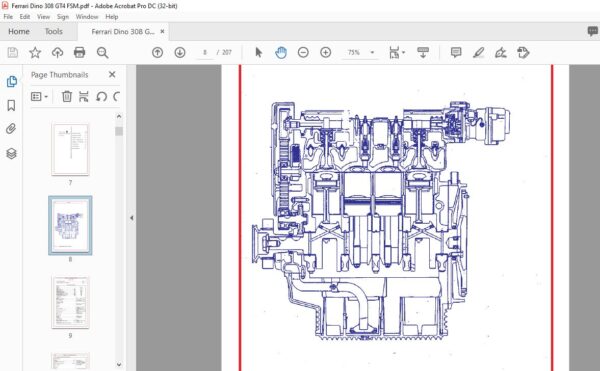

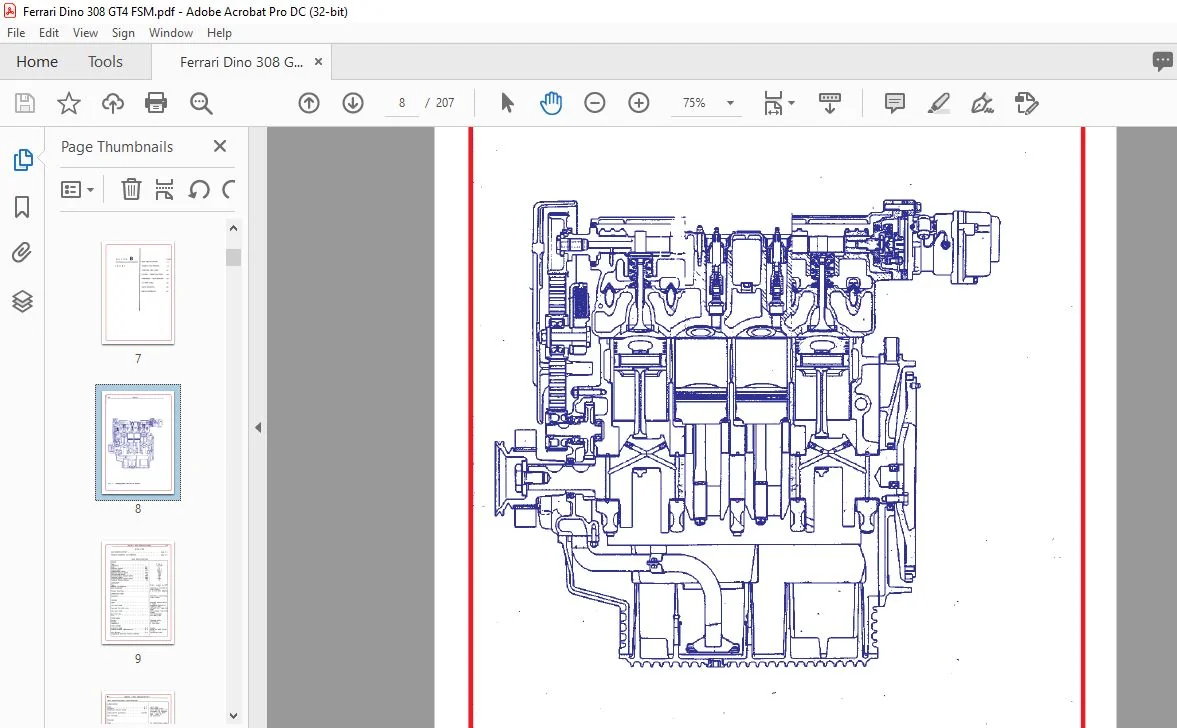

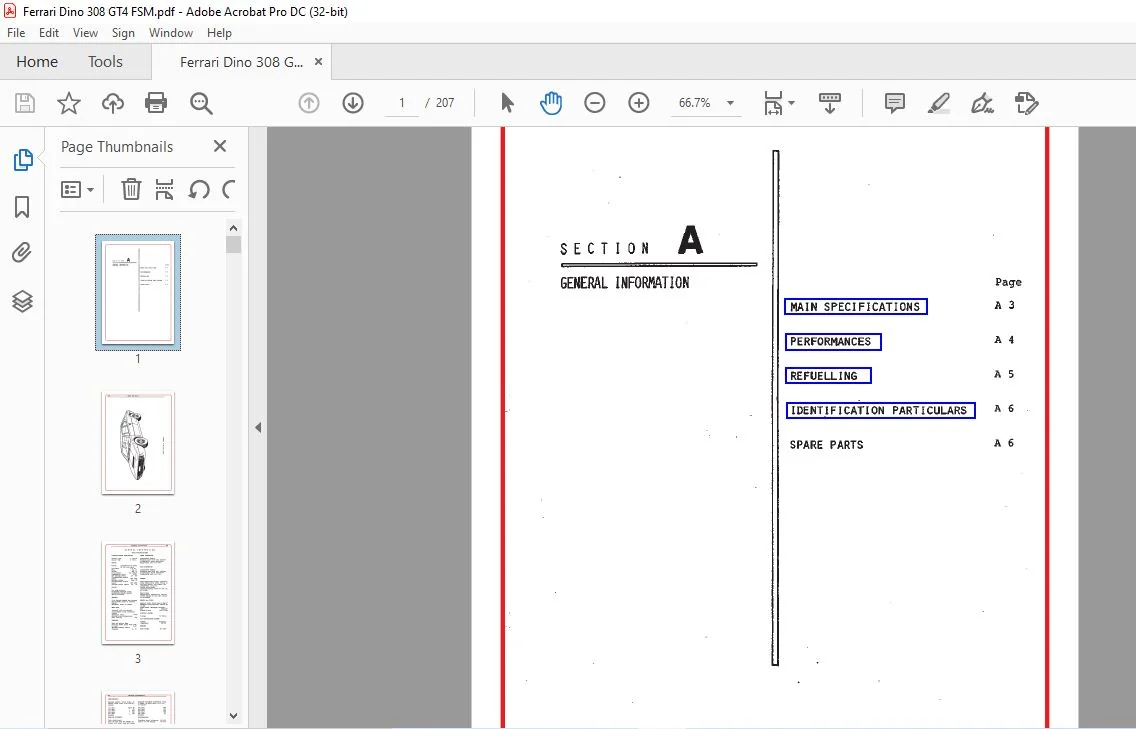

IMAGE PREVIEW:
DESCRIPTION:
Ferrari Dino 308 GT4 SERVICE MANUAL – PDF DOWNLOAD
- GENERAL INFORMATION Engine : Lubrication he engine is pressure lubricated by a gears pwnp which is fitted to the crankcase front cover and is driven by the crankshaft through g-ears.
- he lubrication system includes also: – Intake pipe provided with a filtering net, fixed to oil sump. – one full-flow filter fixed to the crankcase rear side. Pressure relief valve. – Oil radiator with proper air conveyor-double position “Summer and Winter. – One electric transmitter for oil pressure. – One electric transmitter for oil temperature.
- PRESSURE AND TEMPERATURE In normal running conditiens the oil pressure should be within 5,5 and 6, 5 kg/cm2 with the engine running at 6000 P.PM and oil temperatu re a£ 100° c. –
- Warning: If, with the engine running at the same speed and temperature, _ the pressure is less than 4, S kg/cm2, the engine revs should be reduced of 1000 RPM at least and the reason for the low oil press ure established. –
- It is necessary o reduce the engine RPM in case the temperature exceeds 1J0° C. OIL CHECKING AND REPLACEMENT Every 500 km. check oil level. Effect this operation with warm engine just after its stopping thus avoiding that radiator oil discharges into the sump.
- Evecy S000 km. or every 6 months at most, replace the oil and filters. Filters replacement can even be effect ed at 10000 km. – PRECAUTIONS FOR USE OF DIFFERENT 0JL BRANDS Should for any reason other brands of oil be used the following procedure is recommended. –
- Thoroughly drain the oi.1 from sump when hot. – Fill the sump with 7 litres of the oil to be used warming it by making the engine run at 2000+3000 RPM for 10 1 +15′. Fill up to maximum level with the new oil having the recommended rating. Every 5000 km. change oi 1 and f i 1 ter.
TABLE OF CONTENTS:
Ferrari Dino 308 GT4 SERVICE MANUAL – PDF DOWNLOAD
IDENTIFICATION PARTICULARS
Chassis type
Engine type
ENGINE
F 106 AL
F 106 A
Layout transversal in front
of the rear axle
Cylinders
Bore
Stroke
Displacement
compression ratio
DIN maximum power
Corresponding engine
speed
Maximum torque
Corresponding engine
speed
Ita1·1an fiscal rating
CLUTCH
Dry single plate
Diaphragm pressure plate
Mechanical clutch control
Spring assisted
GEARBOX
Five forward speeds and reverse
Synchromesh rings on forward
speeds.
Gearshift lever on tunnel
BEAR AXLE
Integral with the gearbox
Displacement final reduction
torque.
Reduction ratio 17/63
Limited slip differential
Self locking 40\
STEERING
Rack and pinion type
Steering wheel turns from lock
to lock . 3,28
Minimum turning circle
·diameter m. 12
FRONT SUSPENSION
Independent wheels.
swinging arms with coil springs
on hydraulic shock absorbers.
Transversal anti-roll bar,
REAR SUSPENSION
Independent wheels.
Swinging arms with coil springs
on hydraulic shock absorbers.
Transversal anti-roll bar.
BRAKES
Self-ventilating discs; hydraulically
operated by pedal acting on
the four wheels. Two pumps, two
independent circuits.
Vacuum servo-brake.
Limiting braking valve on the rear
brakes.
Hand brake:
mechanically operated by contrcu
levers acting on the rear calipers
cylinders.
.WHEELS and TYRES
Special light alloy wheels 6′)zx14″
Tubeless tyres Michelin 205/70 VR
14 XWX
Spare wheel (European version).
Rim J1/4Bx18 11
Michelin tyre 105 R 1 BxT
ELECTRIC SYSTEM
Voltage 12 Volts.
AIR CONDITIONING SYSTEM
system
Compressor
WEIGHTS
Kerb weight
Borletti
700 AP
kg 1365
