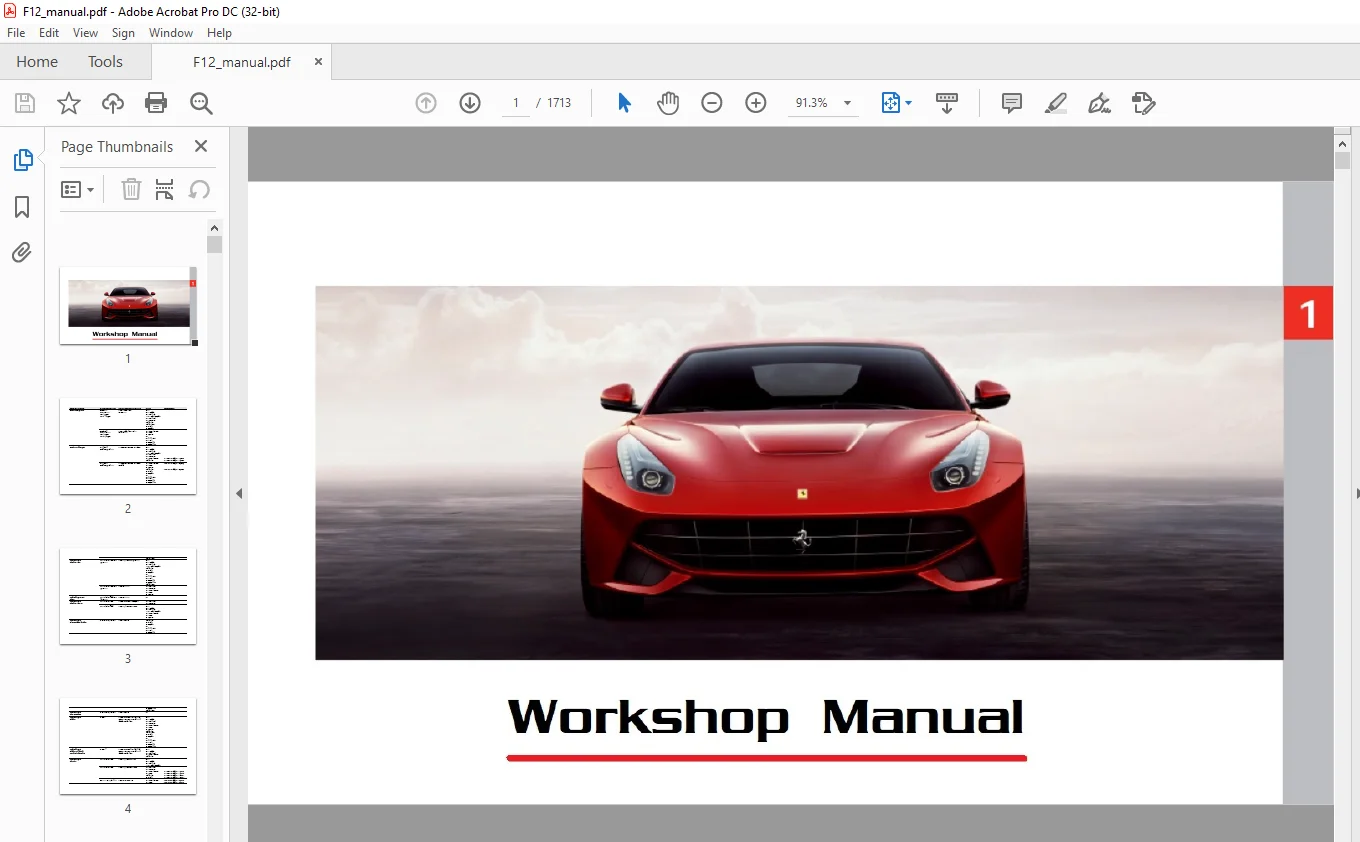

Ferrari F12 Berlinetta Workshop Manual – PDF DOWNLOAD

Description

Ferrari F12 Berlinetta Workshop Manual – PDF DOWNLOAD

FILE DETAILS:

Ferrari F12 Berlinetta Workshop Manual – PDF DOWNLOAD

Language : English
Pages : 1713
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Ferrari F12 Berlinetta Workshop Manual – PDF DOWNLOAD

040! Model EU fluids and lubricants table December 2014 2
0400 Model US Fluids and Lubricants 9

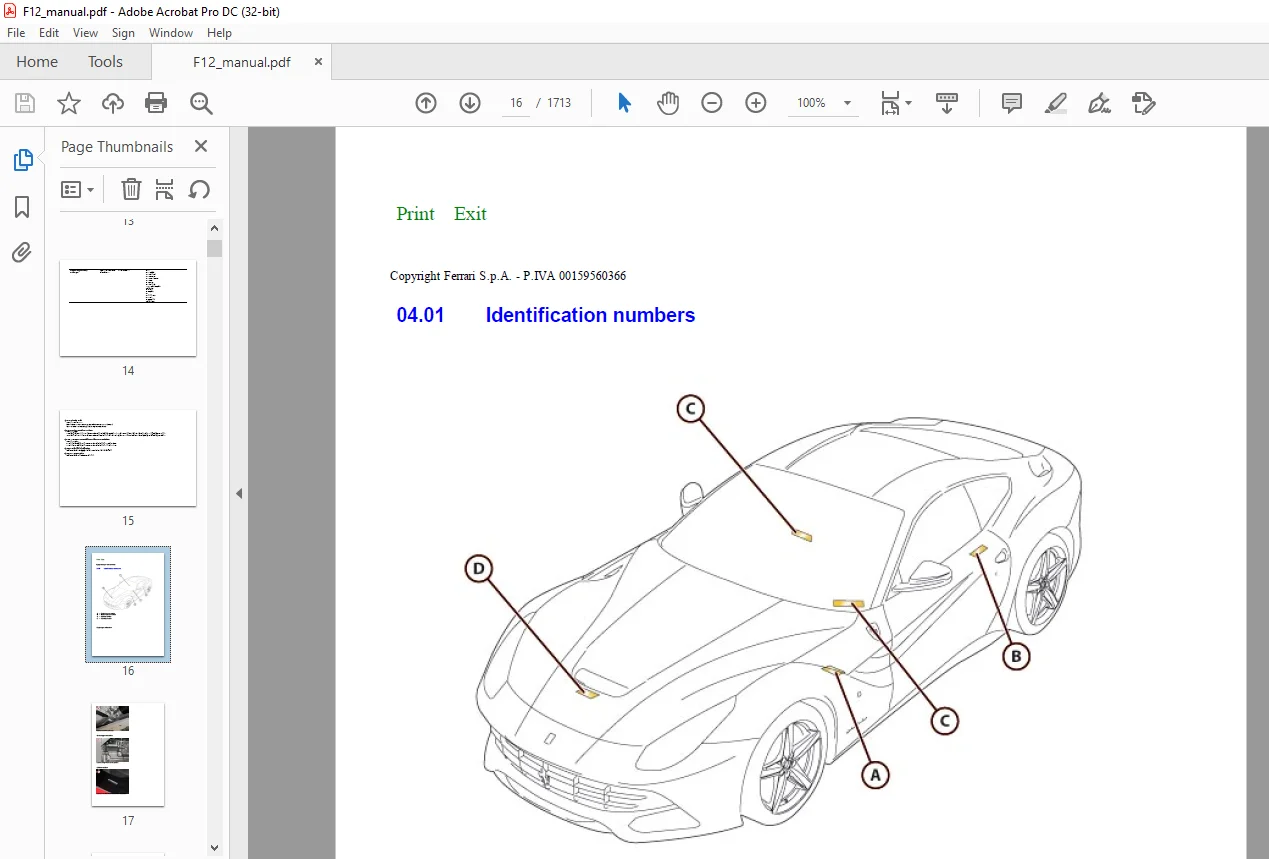

0401 Identification numbers 16

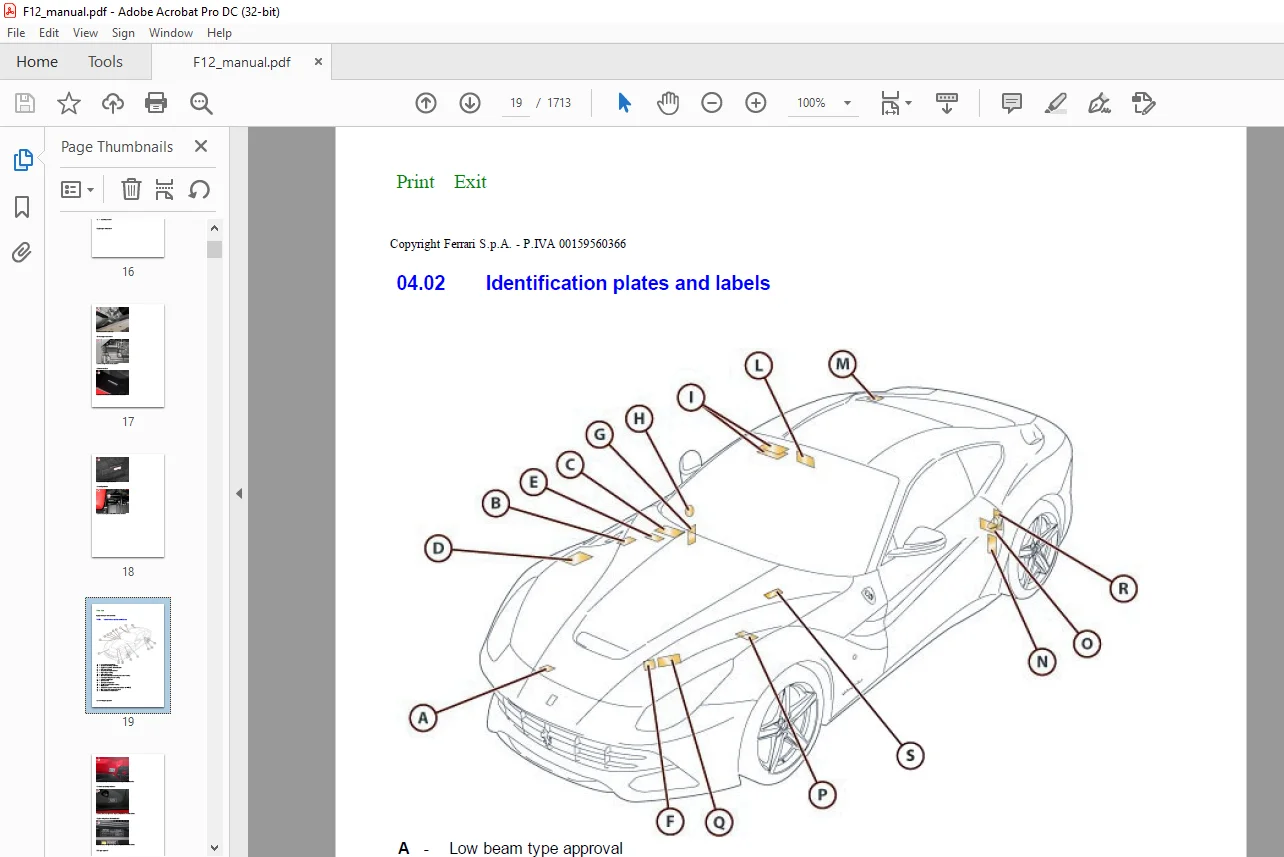

0402 Identification plates and labels 19
0501 Performance and consumption 27
0502 Dimensions and weight 28
A101 Fluid properties 29
A301 Checking engine oil level and changing engine oil and engine lubrication system filter 30
A302 Inspecting oil level and replacing Shell SPIRAX S5 ATE 75W-90 gearbox gear oil 37
A303 Checking level of Shell DCT F3 DCT clutch hydraulic system fluid 41
A304 Checking the windscreen and headlight washer fluid level 43
A306 Checking power steering system fluid level 44
A305 Checking brake system fluid level 46
A307 Checking engine coolant level 47
A308 Replacing the active carbon filter 48
A309 Replacing the oxygen sensors 51
A311 Replacing the air conditioning and heating system filter 53
A310 Replacing the engine air filters 55
A312 Checking tension and replacement of engine ancillary belts 57
A313 Checking and replacing spark plugs 65
A314 Checking Blow-by system pipes and connections 67
A316 Checking injection and ignition system pipes and connections 69
A315 Checking cooling system pipes and connections 70
A318 Checking exhaust emissions 71
A317 Checking exhaust system connections 72
A319 Checking service brakes for wear 73
A321 Checking suspension components 78
A320 Checking service brake_parking brake function 79
A322 suspension settings 80
A323 Checking proper installation and function of seats and seat belts 82
A324 Checking and recharging battery 83
A325 Checking the state of the chassis and box elements 88
A326 Checking wheels and tyres 89
A327 Inspecting the air conditioning and heating system 90
A328 Inspecting the brake system 91
A329 Tightening bolts, unions and clamps 92
A330 Checking and lubricating hinges and adjusters 93
A331 Treating interior trim in leather – Alcantara 94
A332 Checking radiators for fouling 97
A333 Cleaning and maintaining matt paints (optional) 98
A334 Service counter reset 99
A335 Cylinder compression test 100
B101 Technical specifications 101
B102 Specific tooling and equipment 102
B103 Tightening torques 105
B201 Removing the complete engine 107
B202 Refitting the complete engine 127
B203 Engine overhaul – Disassembly 142
B204 Engine overhaul – Inspections 154
B205 Engine overhaul – Rebuild 155
B301 Engine fuel system layout 175
B302 Fuel tank 176
B303 Fuel pumps and filters 181
B304 Fuel level sensor 188
B305 Active carbon filter 190
B306 Fuel vapour separator 193
B307 Fuel tank filler neck 194
B308 Draining the engine fuel system 201
B401 Engine air intake system layout 202
B402 Engine air duct 203
B403 Engine air filters 209
B404 Engine intake manifold 211
B501 Engine lubrication system layout 229
B502 Engine oil tank 230
B503 Engine oil pump 235
B504 Engine oil radiator 248
B505 Blow-by system 250
B506 Draining and filling the engine lubrication system 251
B601 Engine cooling system layout 255
B602 Engine coolant tank 256
B603 Engine coolant pump 258
B604 Engine coolant pressure switch_thermostat 259
B605 Engine coolant radiator 260
B606 Radiator electric fans 262
B607 Draining and filling the engine cooling system 268
B701 Exhaust system layout 272
B702 Exhaust manifolds 273
B703 Catalytic converters 283
B704 Exhaust extensions 291
B705 Silencers 296
C101 Technical specifications 301
C102 Specific tooling and equipment 302
C103 Tightening torques 305
C201 DCT gearbox hydraulic system layout 306
C202 Removing the complete DCT gearbox 307
C203 Refitting the complete DCT gearbox 315
C204 Single oil heat exchanger 324
C205 Draining and filling the Shell SPIRAX S5 ATE 75W-90 DCT gearbox gear oil 328
C301 DCT clutch hydraulic system layout 330
C302 Draining DCT clutch hydraulic system and filling with Shell DCT F-3 fluid 331
C401 Axle shafts 333
C403 Transmission housing 339
C402 Transmission shaft 342
C404 Flywheel 348
D101 Technical specifications 354
D102 Specific tooling and equipment 356
D103 Tightening torques 357
D201 Complete wheels 359
D202 Tyres and rims 361
D203 TPMS tyre pressure and temperature monitoring system 370
D301 Brake system layout 385
D302 Brake fluid tank 386
D303 Brake pads 388
D304 Brake callipers 392
D305 Brake discs 398
D306 EPB electric parking brake 400
D307 ABS electrohydraulic unit 416
D308 Brake servo 420
D309 Pedal board 423
D310 Filling and bleeding the brake system 427
D311 CCM Report form Model 430
D401 Complete suspension 431
D402 Arms 451
D403 Hub carriers 469
D404 Shock absorbers 476
D406 Vehicle set-up 490
D405 Stabiliser bars 493
D407 Suspension damping control system 501
D408 Lift ramp clearing front suspension lift (optional) 507
D501 Power steering system layout 516
D508 Emptying and filling the power steering system 517
D507 Steering column 521
D506 Steering wheel 529
D505 Power steering fluid radiator 532
D504 Steering box 534
D503 Power steering pump 541
D502 Power steering fluid tank 546
E101 Tightening torques 548
E102 Specific tooling and equipment 549
E201 General 551
E202 Front removable subframe 552
E203 Rear removable subframe 558
E204 Cross members and diagonal braces 578
E301 Engine compartment lid 594
E303 Front bumper 598
E302 Luggage compartment lid 603
E304 Rear bumper 616
E305 Wheelhouse 622
E306 Windscreen 624
E307 Quarterlights 628
E308 Rear screen 632
E309 Doors 638
E310 Windscreen wipers 670
E311 Windscreen and headlight washers 673
E312 Door perimeter trim panels 678
E313 Flat undertray sections and vehicle lifting 685
E314 Engine compartment cosmetic shields 701
E315 Fuel filler flap 709
E316 Tow hook 712
E401 Seats 714
E402 Dashboard 717
E403 Centre tunnel console trim panel 801
E404 Headliner and passenger compartment trim 806
E405 Mats 834
E501 Location of controls in vehicle 838
E406 Luggage compartment trim panels 842
E502 Instrument panel 860
E503 Warning lights 878
E504 Indications on the TFT display 883
E505 Switches and buttons 895
E507 Ignition switch 925
E506 Door controls 930
E508 Rear view mirrors 932
E509 Gearshift paddles 938
E510 Lid and fuel filler flap opening systems 942
E511 Park Lock 957
E512 Seat controls 964
E513 Internal lighting 968
E514 Infotainment system 971
E515 Telemetry 984
E601 Sanding and cleaning 985
E602 Use of hardeners and dilutants 987
E603 Preparing and painting the alumininum sheets 989
E604 Prepaing and paintin the steel sheets 997
E605 Restoring the cataphoresis coating1004
F101 Tightening torques1005
F102 List of light bulbs1006
F201 Battery, disconnecting _ reconnecting1007
F202 Stop&Start system (for vehicles with HELE)1013
F203 Logistic Mode1021
F204 Alternator1022
F205 Starter motor1027
F206 Lamps1033
F207 lights1036
F208 Fuses and relays1044
F209 Horn1056
F211 ECU1057
F210 Diagnostic socket1082
F212 Rain_twilight sensor1083
F213 Engine services cable1085
F214 electrical absorbtion1093
F301 DFI Technical specifications1096
F302 Timing sensors1100
F303 RPM sensor1104
F304 Engine coolant temperature sensors1105
F305 Engine oil temperature sensor1107
F306 Engine oil pressure sensor1108
F307 Variable timing adjuster control solenoid valves1109
F308 Air flow meters1112
F309 Motorised throttle bodies1114
F310 Accelerator control1117
F311 Evaporative emissions control system solenoid valves1118
F312 Secondary air system1121
F313 Ignition coils1127
F314 GDI direct injection system1128
F401Alarm system1142
F402 Airbag1149
F403 Seat belts1159
F404 Inertia switch1165
F405 Park assistance1168
F501 Air conditioning and heating system layout1174
F502 AC control panel1177
F503 AC system compressor1181
F504 AC system condenser1183
F505 AC system pressure switch1187
F506 AC system expansion valve1188
F507 Complete AC unit1189
F508 AC system TGK solenoid valves1198
F509 AC system recirculation pump1200
F510 AC system sensors1202
F511 Discharging and charging the AC system1204
R11 Ferrari quality standards1206
R12 Bodywork concept1207
R13 Safety Instructions1209
R16 Clearances1216
R15 Key to symbols1233
R17 Car bench jig bench1235
R18 Expanded foam1244
R19 workstation1245
R111 Aluminium1246
R110 Workshop tools1253
R112 Consumables1255
R113 Preparing and cleaning areas for welding1257
R114 Repair methods1258
R22 Replacing the front bumper cross member1272
R21 Replacing the fromt fender1277
R23 Replacing the front fender rails1288
R24 Replacing the front headlight trellis1297
R53 job times 31306
R52 job times 21307
R51 Job times1308
R48 Replacing rear cross pieces and tank cover1309
R47 Replacing the shock tower and rear diagonal members1322
R46 Replacing the upper rear diagonal member and lateral substructure1364
R45 Replacing the rear wheelhouse and lateral partition1392
R44 Replacing the rear spar1406
R43 Replacing the services tray1414
R42 Replacing the rear flank1424
R36 Replacing the sill1463
R41 Replacing the luggage compartment sill1516
R35 Replacing semi-floorplan and seat brackets1528
R34 Replacing rood pillars and cross members1542
R33 Replacing the roof skin1584
R32 Repacing the front firewall1608
R31 Replacing the windscreen valance1618
R29 Replacing the diagonal firewall braces and front lower1633
R28 Replacing the trellis upright1665
R27 Replacing the front shock tower1675
R26 Replacing the front spar1697
R25 Replacing the crash box upright1705
