Fiat Allis 161 Elevating Tractor Scraper Hydraulic System Service Manual 73121211 – PDF DOWNLOAD

Description

Fiat Allis 161 Elevating Tractor Scraper Hydraulic System Service Manual

FILE DETAILS:

Fiat Allis 161 Elevating Tractor Scraper Hydraulic System Service Manual

Language : English
Pages : 70
Downloadable : YES
Format : PDF
Part No : 73121211

DESCRIPTION:

Fiat Allis 161 Elevating Tractor Scraper Hydraulic System Service Manual

FOREWORD:

This manual contains the Fiat-Allis approved procedures for overhaul of hydraulic pumps. hydraulic control valves. hydraulic cylinders. and elevator motor and transmission. Assure best results and maintain original quality by always using Fiat- Allis parts. Always furnish Dealer with machine Serial Number when ordering parts. Many equipment owners employ Dealer’s Service Department for all work other than routine lubrication. adjustments. and minor service. This practice is encouraged, as our Dealers are well informed and equipped to render excellent service. This manual may not be reprinted or reproduced, either in whole or in part without written permission of Fiat-Allis.

GENERAL:

Study the Operation and Maintenance instruction Manual be- fore starting. operating, maintaining. fueling. or servicing machine. Read and heed all machine-mounted salety signs belore starting. operating. maintaining. fueling orserviclng machine. Machine-mounted safety signs have been ooiorcoded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head. body. limbs. hands and feet inside operator’s compartment at all times to reduce exposure to‘hazards outside the operator’s compartment.

• Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features. The lollow- ing are examples of dangerous work areas: slopes. over hangs. timber. demolitions. l ire. high walls. drop off. backfills. rough terrain. ditches, ridges. excavations. heavy traffic. crowded parking. crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop 0th be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or oil machine. Keep two hands and one foot, or two test and one hand. in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or oh machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator‘s compartment. stepping points. grab<rails and handles clear of foreign objects. oil. grease. mud or snow accumulation to minimize the danger oi slipping or stumbling.
• Clean mud or grease from shoes betore attempting to mount or operate the machine. Be careful of sfippery conditions on stepping points, hand rails. and on the ground. Wear safety boots or shoesthat have a high slip resistant sole material. For your personal protection. 00 not attempt to climbon or oil machine while machine is in motion. Neverleavethemachine unattended with the engine running.

TABLE OF CONTENTS:

Fiat Allis 161 Elevating Tractor Scraper Hydraulic System Service Manual

• Safety Rules
• Topic 1 – General Description
• Topic 2 – Hydraulic System Specifications
• Topic 3 – Hydraulic System Operation and Component Functions
• Topic 4 – Troubleshooting
• Topic 5 – Hydraulic Pump(s) and Pump Drive(s)
• Topic 6 – Hydraulic Control Valves
• Topic 7 – Hydraulic Cylinders
• Topic 8 – Elevator Motor, Elevator Drive and Speed Reducer
• Topic 9 – Service Tools

FIAT ALLIS 161 ELEVATING TRACTOR SCRAPER HYDRAULIC SYSTEM SERVICE MANUAL 73121211 – PDF DOWNLOAD:

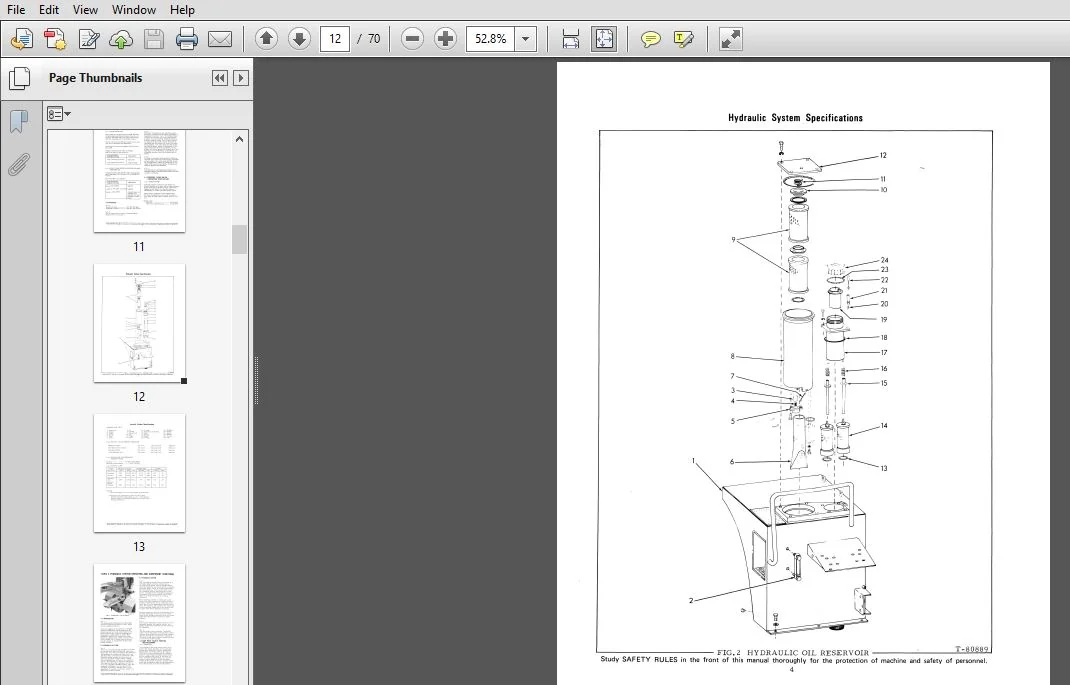

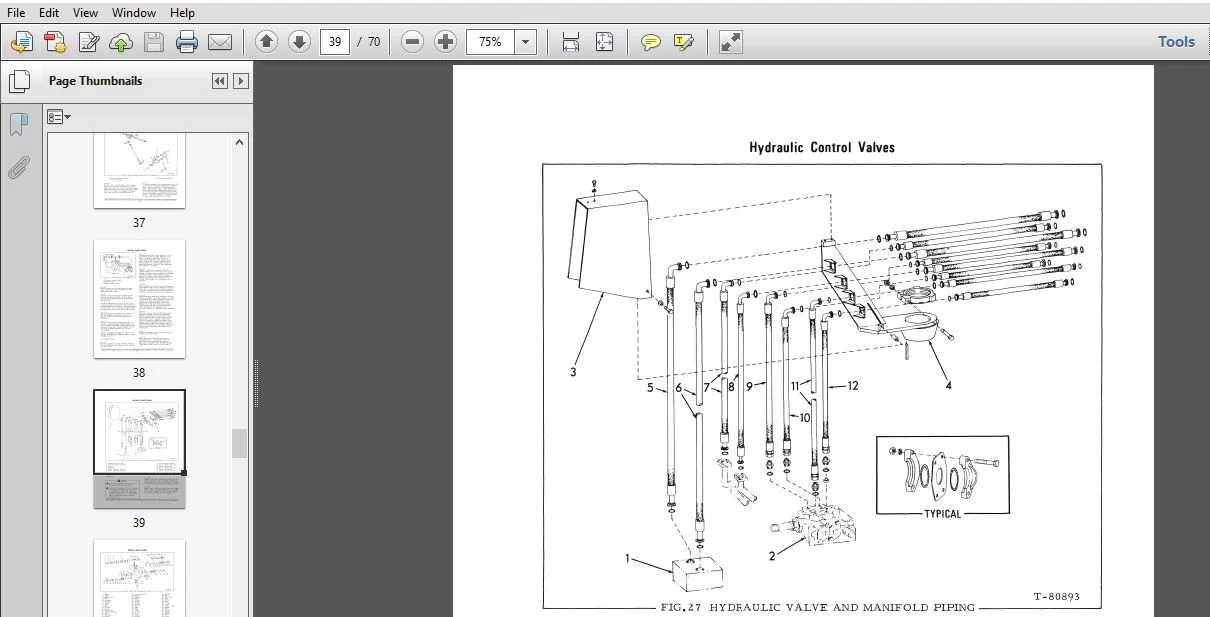

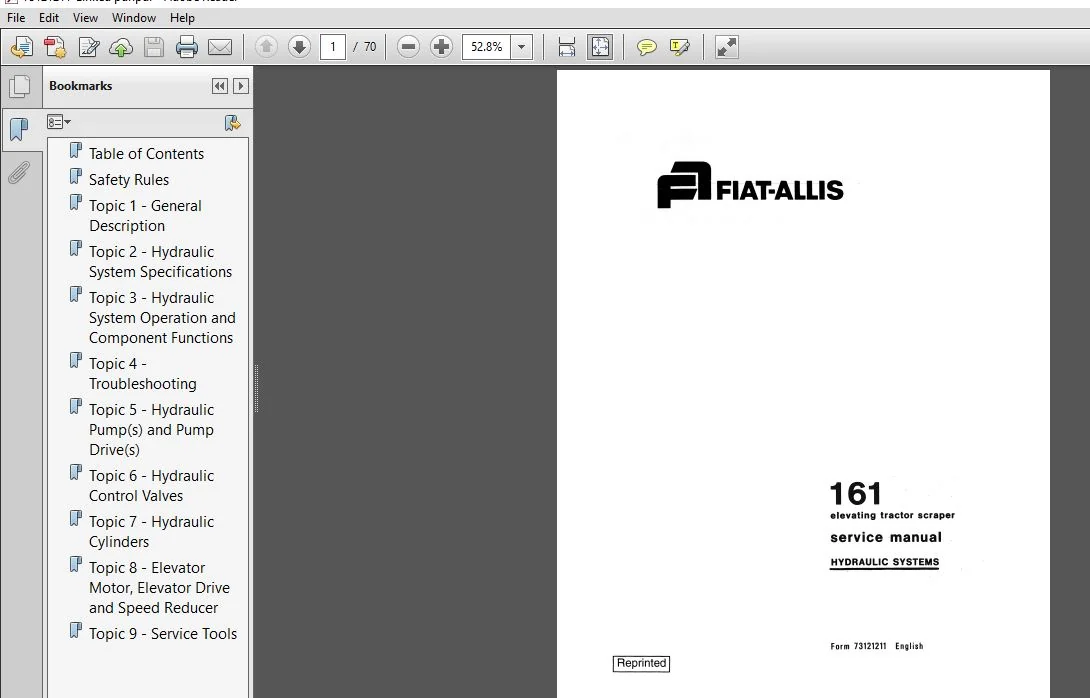

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
