Fiat Allis 645 Wheel Loader Service Manual 73058627 – PDF DOWNLOAD

Description

Fiat Allis 645 Wheel Loader Service Manual

FILE DETAILS:

Fiat Allis 645 Wheel Loader Service Manual

Language : English
Pages : 1267
Downloadable : YES
Format : PDF
Part No : 73058627

DESCRIPTION:

Fiat Allis 645 Wheel Loader Service Manual

FOREWORD:

Always furnish serial number it making an inquiry to dealerortactory about this machine. Many equipment owners employthe Dealer Service Department for all work other than routine lubrication and minor service. This practice is encouraged. as our Dealers are well iniomied and equipped to render efficient service by factory trained mechanics This manual may not be reprinted or reproduced. either in whole or in part. without written permission of Fiataiils ®. Illustrations show standard and optional items.

GENERAL :

Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling. or servicing machine. – Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine~mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at alltirnes to reduce exposure to hazards outside the operator’s compartment.

• Do not allow unauthorized personnel to operate service or maintain this machine. Aiways check work area for dangerous features. The follow. ing are examples of dangerous work areas: slopes. over hangs, timber. demolitions. fire. high walls, drop off, back fills, rough terrain, ditches. ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine‘s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a send support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator‘s compartment, stepping points, grab-rails and handles clear of foreign objects, oil. grease. mud or snow accumulation to minimize the danger of sliping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails. and on the ground. Wear safety boots orshoes that have a high slip resistant sole material. ‘ Foryour personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always look up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance instruction Manual.
• Always set the parking brake when leaving the machine for any reason.Do not wear rings, wrist watches, jewelry. loose or hanging apparel. such as ties. torn clothing. scarves. unbuttoned or unzipped jackets   that cen catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats. safety shoes. heavy gloves. ear protectors. safety glasses or goggles, reflector vests. or respirators.
• Consult your employer for specific safety equipment requirements. Do not carry loose objects in pockets that might fall unnoticed into open compartments. Do not use machine to carry, loose objects by means other than attachments for carrying such objects. DO NOT CARRY HIDER Sunless the machine is equipped for carrying people to reduce personal exposure to being thrown off.
• Do not operate machinery in a condition of extreme fatigue or illness. Be especially careful towards the end of the shift. Roll Over Protective Structures are required on wheel loaders, dozer tractors. track type loaders. graders and scrapers by local or national requirements. 00 NOT operate this machine without a Roll Over Protective Structure. Do not operate a machine without a falling object protective structure (FOPS). Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch. Seat belts are required to be provided with roll over protective structures or roll protection cabs by local or national regulations.
• Keep the safety belt fastened around you during operation. Where noise exposure exceeds 90 dBA for 8 hours. wear authorized ear protective equipment per fowl or national requirements that apply. Keep clutches and brakes on machine and attachments such as power control units, winches and master clutches adjusted acmrding to Operation and Maintenance instruction Manuals of the manufacturers at all times. NOT adjust machine with engine running except as specified.
• Do not operate a machine with brakes out of adjustment. See the Operation and Maintenance instruction Manual. Move carefully when under. in or near machine or implements. Wear required protective equipment. such as hard hat. safety glasses. safety shoes, ear protectors.

TABLE OF CONTENTS:

Fiat Allis 645 Wheel Loader Service Manual

• Description and Specifications
• Cooling System
• Electrical System
• Fuel System (WITH ROOSA MASTER FUEL INJECTION PUMP)
• Fuel System (WITH SIMMS FUEL INJECTION PUMP)
• Air Cleaner and Intake Manifold
• Exhaust Manifold and Turbocharger
• Valves, Volve Operating Mechanism, and Cylinder Head
• Front End and Gear Train
• Flywheel and Ring Gear; Flywheel Housing and Crankshaft Rear Oil Seol
• Lubricating System
• Camshaft and Camshaft Bearings
• Pistons, Piston Rings, Connecting Rods, and Connecting Rod Bearings
• Crankshaft and Crankshaft Gear, Main Bearings, and Main Bearing Caps
• Cylinder Block and Cylinder Sleeves
• Engine Removal and Installation
• Engine Disassembly and Assembly
• Fits and Tolerances and Torque Specifications
• Trouble Shooting
• Service Tools
• Conversion Tables

FIAT ALLIS 645 WHEEL LOADER SERVICE MANUAL 73058627 – PDF DOWNLOAD:

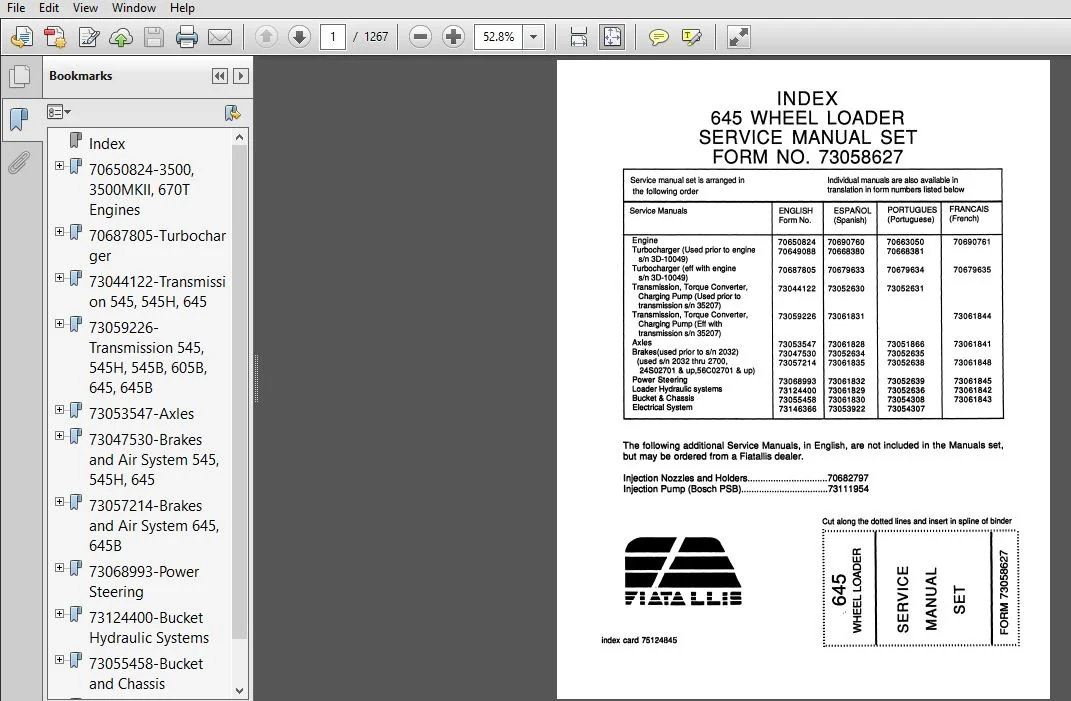

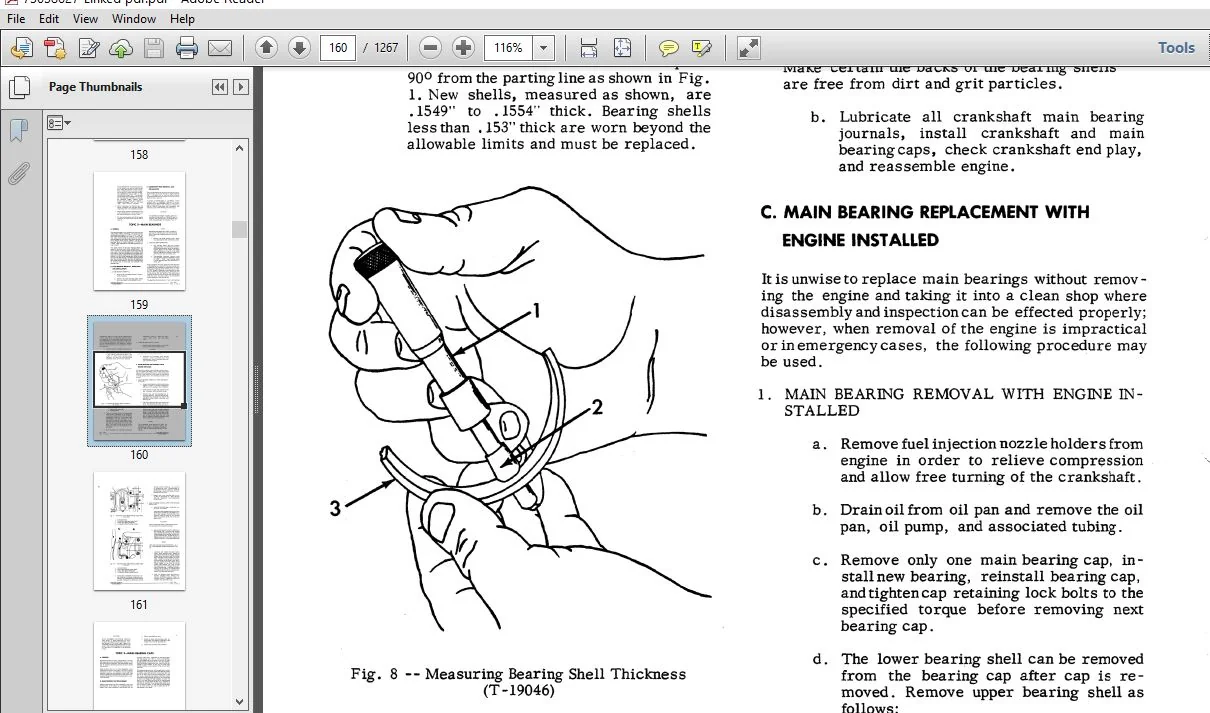

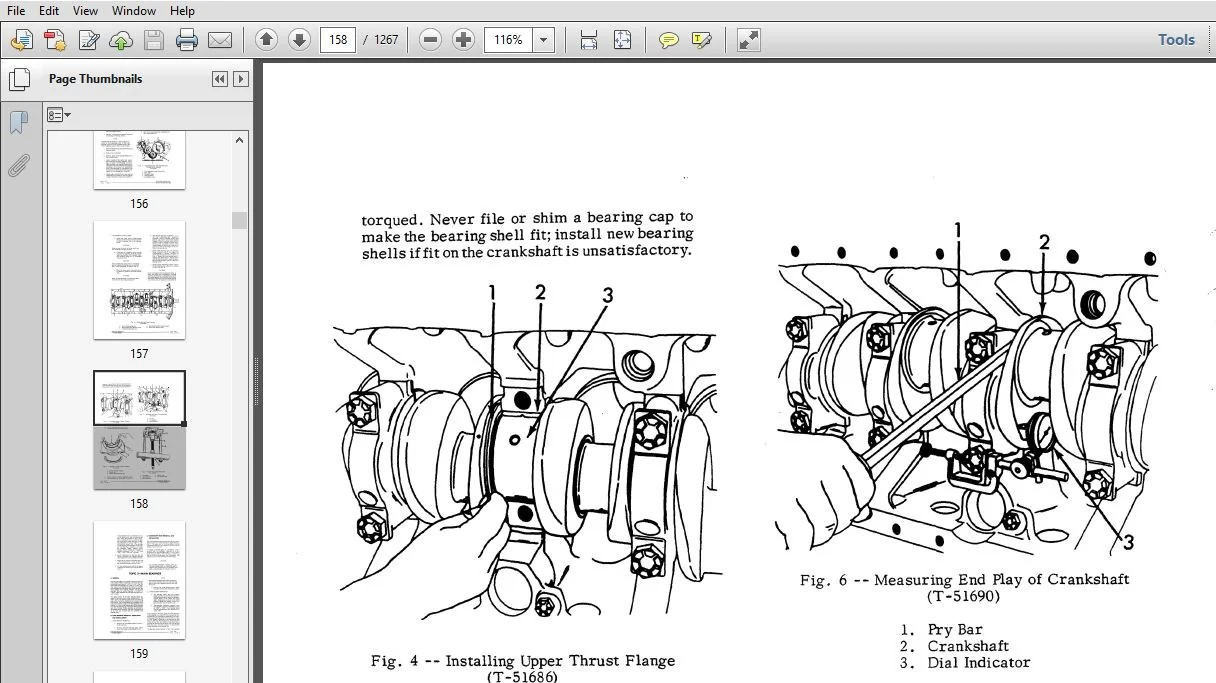

IMAGES PREVIEW OF THE MANUAL:
