Fiat Allis Fuel Injection Pump Parts catalog & Service Manual 73112988 – PDF DOWNLOAD

Description

Fiat Allis Fuel Injection Pump Parts catalog & Service Manual

FILE DETAILS:

Fiat Allis Fuel Injection Pump Parts catalog & Service Manual

Language : English
Pages : 142
Downloadable : YES
Format : PDF
Part No : 73112988

DESCRIPTION:

Fiat Allis Fuel Injection Pump Parts catalog & Service Manual

FOREWORD:

Always furnish serial number it making an inquiry to dealerortactory about this machine. Many equipment owners employthe Dealer Service Department for all work other than routine lubrication and minor service. This practice is encouraged. as our Dealers are well iniomied and equipped to render efficient service by factory trained mechanics This manual may not be reprinted or reproduced. either in whole or in part. without written permission of Fiataiils ®. Illustrations show standard and optional items.

GENERAL :

Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling. or servicing machine. – Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine~mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at alltirnes to reduce exposure to hazards outside the operator’s compartment.

• Do not allow unauthorized personnel to operate service or maintain this machine. Aiways check work area for dangerous features. The follow. ing are examples of dangerous work areas: slopes. over hangs, timber. demolitions. fire. high walls, drop off, back fills, rough terrain, ditches. ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine‘s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a send support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator‘s compartment, stepping points, grab-rails and handles clear of foreign objects, oil. grease. mud or snow accumulation to minimize the danger of sliping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails. and on the ground. Wear safety boots orshoes that have a high slip resistant sole material. ‘ Foryour personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always look up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance instruction Manual.

TABLE OF CONTENTS:

Fiat Allis Fuel Injection Pump Parts catalog & Service Manual

• Safety Rules
• Table of Contents
• General
• Topic 1 – Construction and Operation
• Topic 2 – Removal From Engine
• Topic 3 – Disassembly
• Topic 4 – Parts Inspection
• Topic 5 – Reassembly
• Topic 6 – Accessories
• Topic 7 – Torque Control
• Topic 8 – Test Bench Data
• Topic 9 – Fuel Injection Pump References,
• Calibration Procedures and Data
• Topic 10 – Installation
• Topic 11 – General Data
• Topic 12 – Parts Catalog
• Metric Conversion Tables

FIAT ALLIS FUEL INJECTION PUMP PARTS CATALOG & SERVICE MANUAL 73112988 – PDF DOWNLOAD:

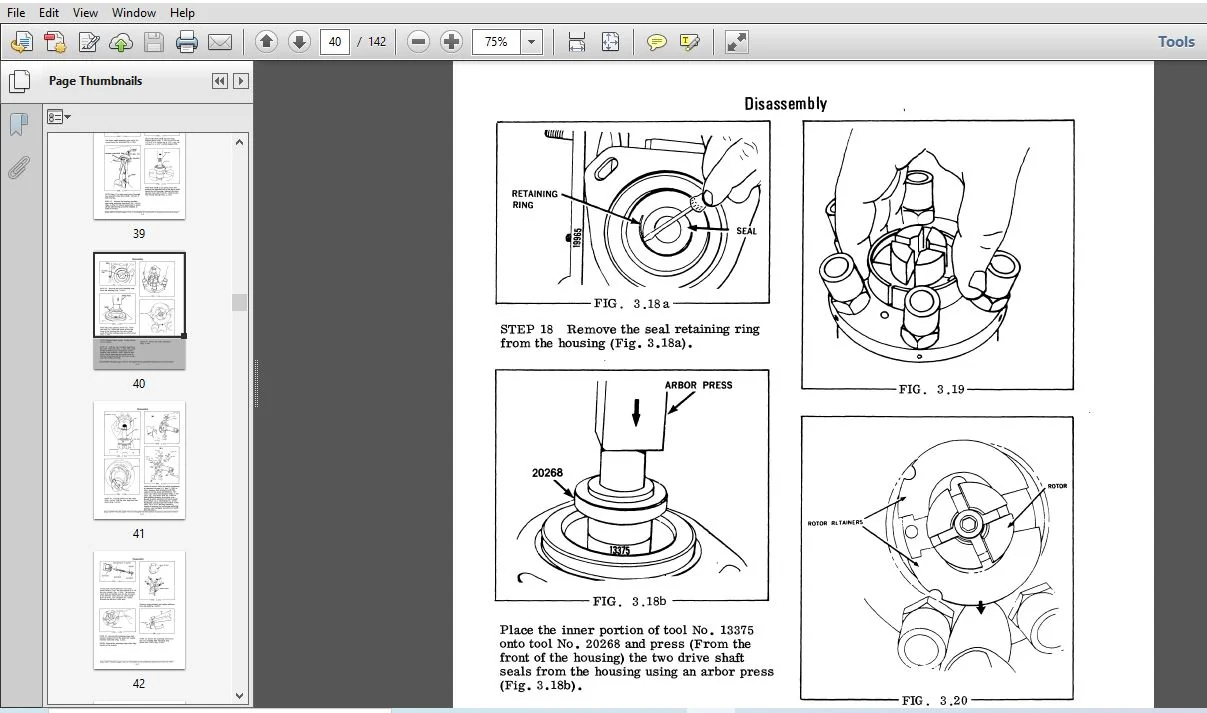

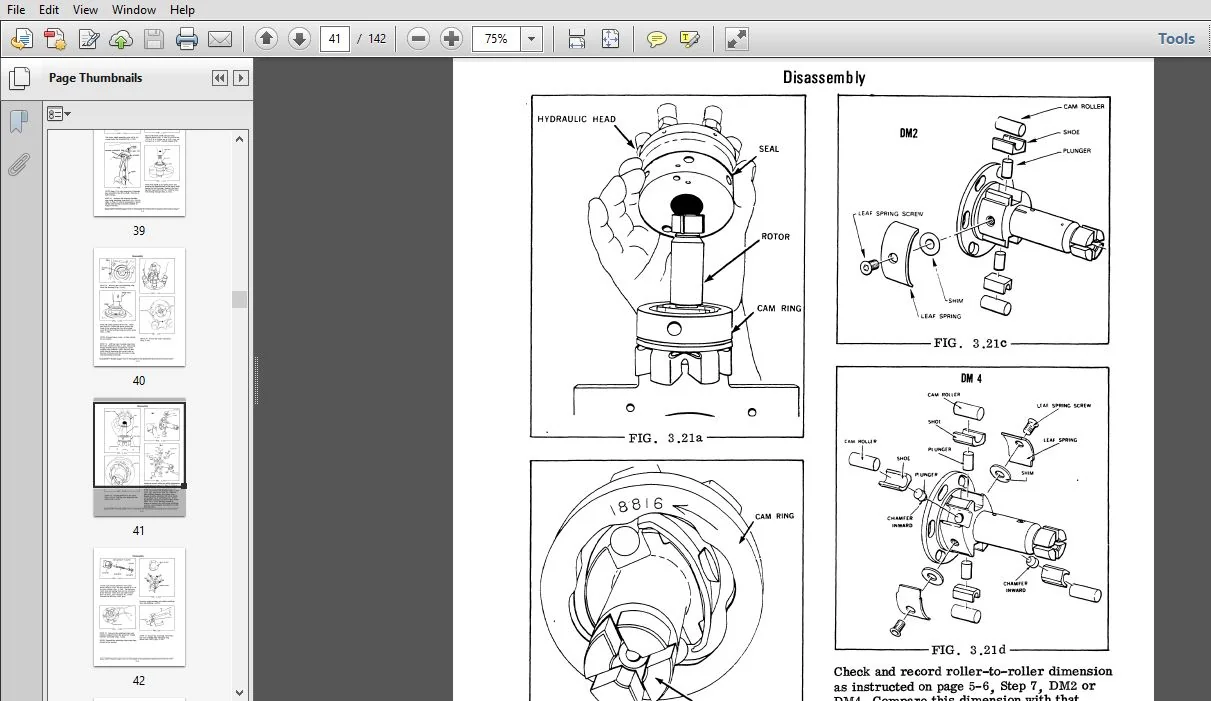

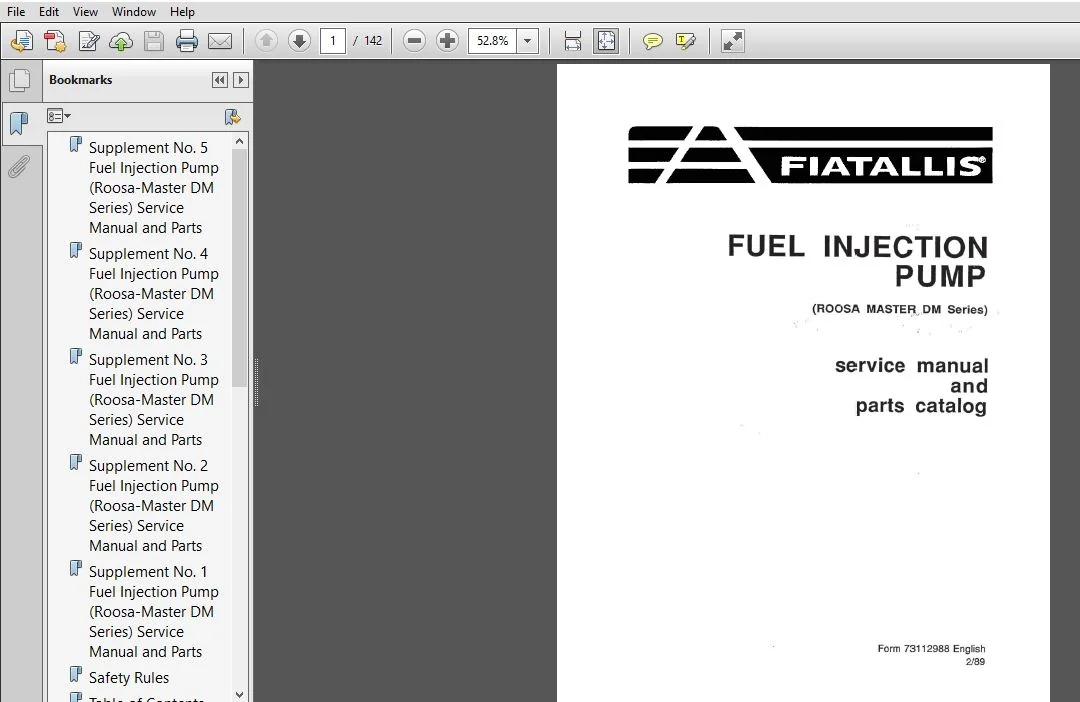

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
