Fiatallis 100-C 150-C 200-C Motor Grader Service Manual 70697310 – PDF DOWNLOAD

Description

Fiatallis 100-C 150-C 200-C Motor Grader Service Manual 70697310 – PDF DOWNLOAD

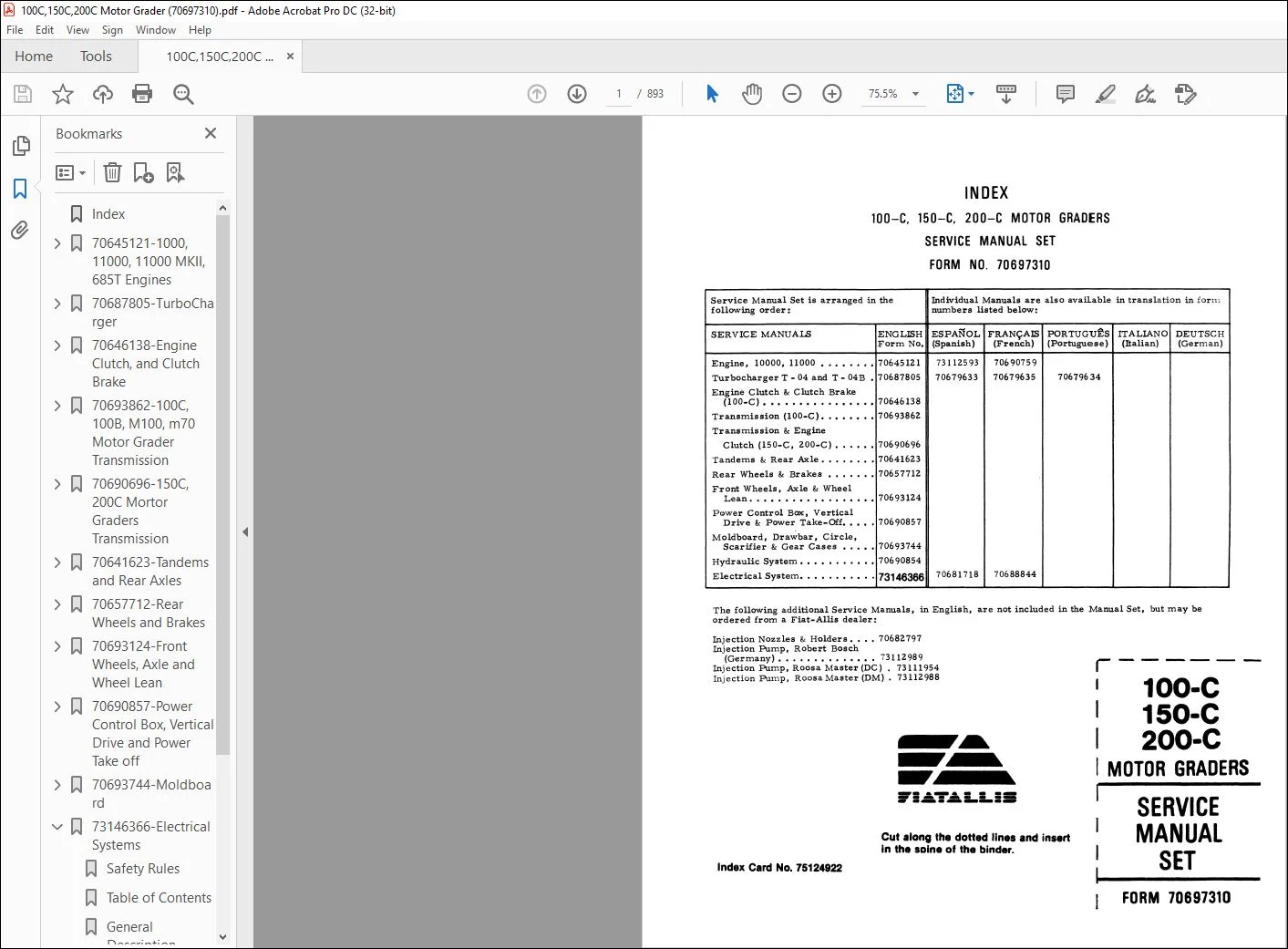

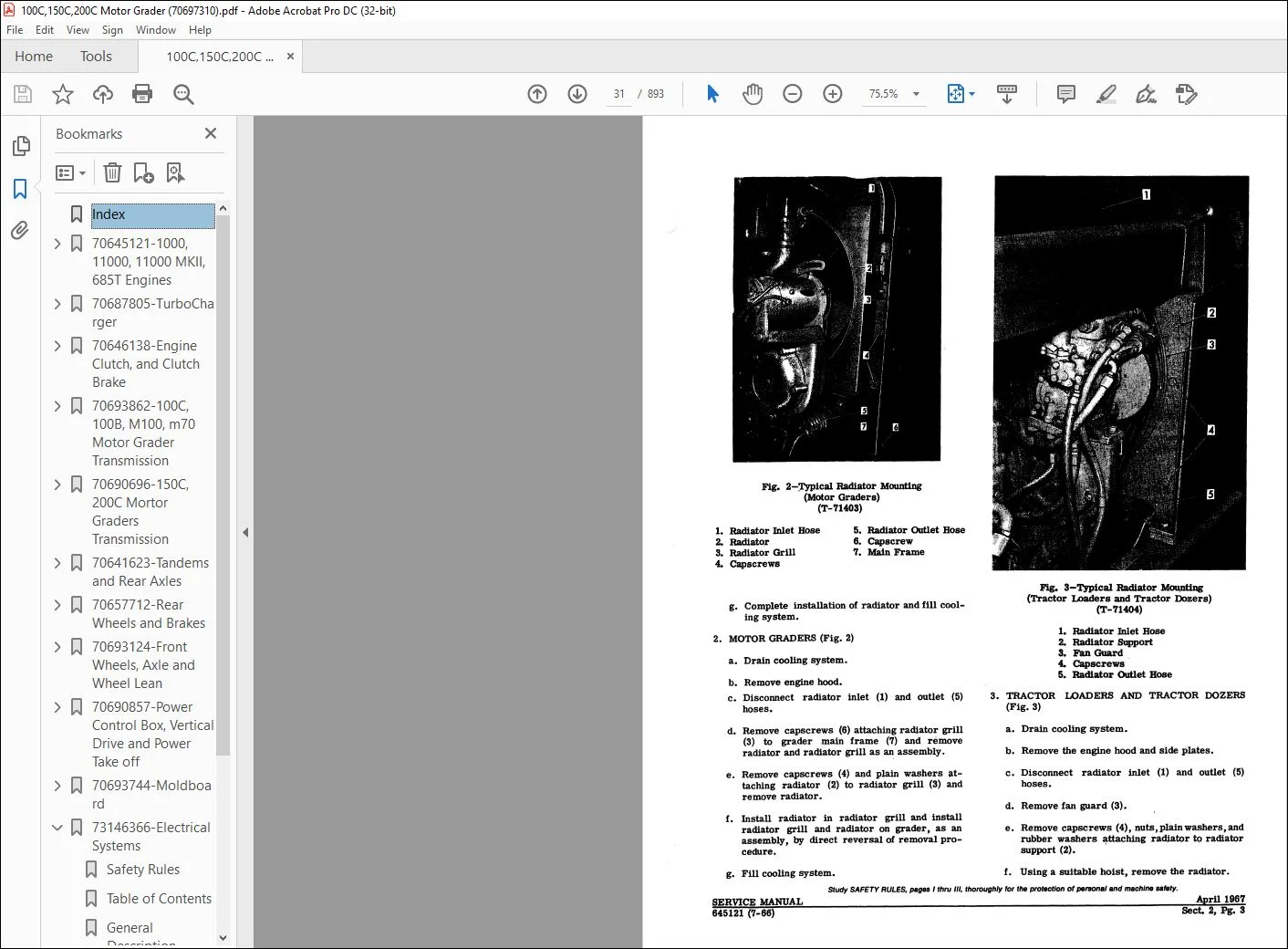

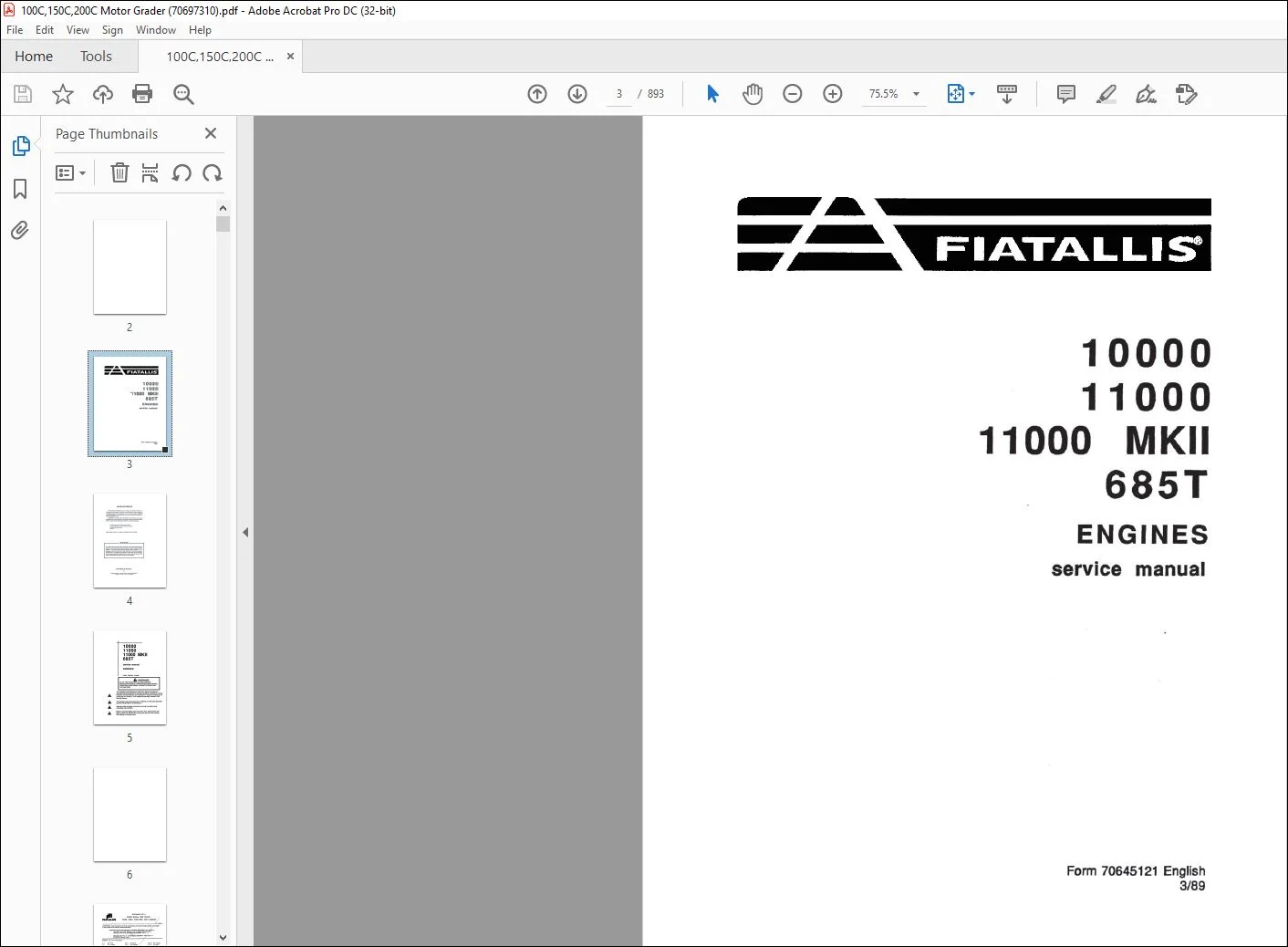

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis 100-C 150-C 200-C Motor Grader Service Manual 70697310 – PDF DOWNLOAD

SAFETY RULES:

To prevent entrapment in cabs or mounted enclosures, observe and know the mechanica of alternate exit routes. On machines equipped with suction radiator fans, be sure to periodically check all engine exhaust parts for leaks as exhaust gases are dangerous to the operator.

• Keep a vent open to outside air at all times when operating within a closed cab. STARTING FLUID IS FLAMMABLE. Follow the recommendations as outlined In the Operation and Maintenance Instruction Manual and as marked on the containers. Store containers in 0001, well-ventilated place secure from unauthorized personnel.
• DO NOT PUNCTURE OR BURN CONTAINERS. Follow the recommendations of the manufacturer for storage and disposal. Wire rope develops steel slivers. Use authorized protective equipment such as heavy gloves, safety glasses when hand& ng. . OPERATION Before starting machine, check, adjust and lock the operator’s seat for maximum comfort and controi of the machine. DO NOT START OR OPERATE AN UNSAFE MACHINE.
• Before working the machine, be sure that any unsafe condition has been satisfaclDrlly remedied. Check brakes, steering and attachment controls before moving. Advise the proper maintenance authority of any malfunctioning part or system. Be sure aU protective guards or panels are In place, and all safety devices provided are in place and In good operating condition. Check Instruments at start-up and frequently during operation.
• Do not run the engine of this machine in closed areas without proper ventilation to remove deadly exhaust gases. Be sure exposed personnel In the area of operation are clear of the machine before moving the machine or its attachments. WALK COMPLETELY AROUNDthe machine before mounting. Sound horn. Obey flag man, saf~ signals and signs. Know the principles of cross steering of crawlertraclDrs.
• Read section in Operation and Maintenance Instruction Manual on cross steering. Keep engine exhaust system and exhaust manifolds ‘Clear of combustible material. Equip machine with screens and guards when working under conditions of flying combustible material. If engine has a tendency to stall for any reason under load or idle, report this for adjustment to a proper maintenance authorfty immediately.
• Do not continue to operate machine until condition has been corrected. Never use bucket as a man-lift. II Use recommended bucket for machine and material load ability and heaping characteristics of material, terrain, and other pertinent job conditions.
• Avoid abrupt starts and stops when transporting a loaded bucket. Inspect your seat belt webbing and hardware at least twice a year for signs of fraying, wear or other weakness that could lead to failure. Use only designated towing or pulling attachment points.
• Use care in mal<ing attachment. Be aura pins and locks as provided are secure before pulling. Stay clear of draw bars, cables or chains under load. When pulling or towing through a cable or chain, do not start suddenly at full throttle.
• Take up slack carefully. Guard against kinking chains or cables. Inspect carefully for flaws before using. Do not pull through a kinked chain or cable due to the high stresses and possibility of failure of the kinked area. Always wear heavy gloves when handling chain or cable.

TABLE OF CONTENTS:

Fiatallis 100-C 150-C 200-C Motor Grader Service Manual 70697310 – PDF DOWNLOAD

• Index
• 70645121-1000, 11000, 11000 MKII, 685T Engines
• 70687805—TurboCharger
• 70646138-Engine Clutch, and Clutch Brake
• 70693862-100C, 100B, M100, m70 Motor Grader Transmission
• 70690696-150C, 200C Mortor Graders Transmission
• 70641623-Tandems and Rear Axles
• 70657712-Rear Wheels and Brakes
• 70693124-Front Wheels, Axle and Wheel Lean
• 70690857-Power Control Box, Vertical Drive and Power Take off
• 70693744-Moldboard
• 73146366-Electrical Systems
• Safety Rules
• Table of Contents
• General Description
• Troubleshooting
• Changing Circuit
• Starting Circuit
• Ignition Circuit
• Accessory Ciruits
• Batteries
• Electrical System Schematics

Contact us: [email protected]

https://vimeo.com/733900596

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
