Fiatallis 16000 T 17000 MKII 19000 MKII 21000 MKII 25000 Engine Service Manual PDF

Description

Fiatallis 16000 T 17000 MKII 19000 MKII 21000 MKII 25000 MKII 6138 L LT I Engine Service Manual – PDF DOWNLAOD

FILE DETAILS:

Fiatallis 16000 T 17000 MKII 19000 MKII 21000 MKII 25000 MKII 6138 L LT I Engine Service Manual – PDF DOWNLAOD

FN 70699853

Language : English
Pages : 264
Downloadable : Yes
File Type : PDF

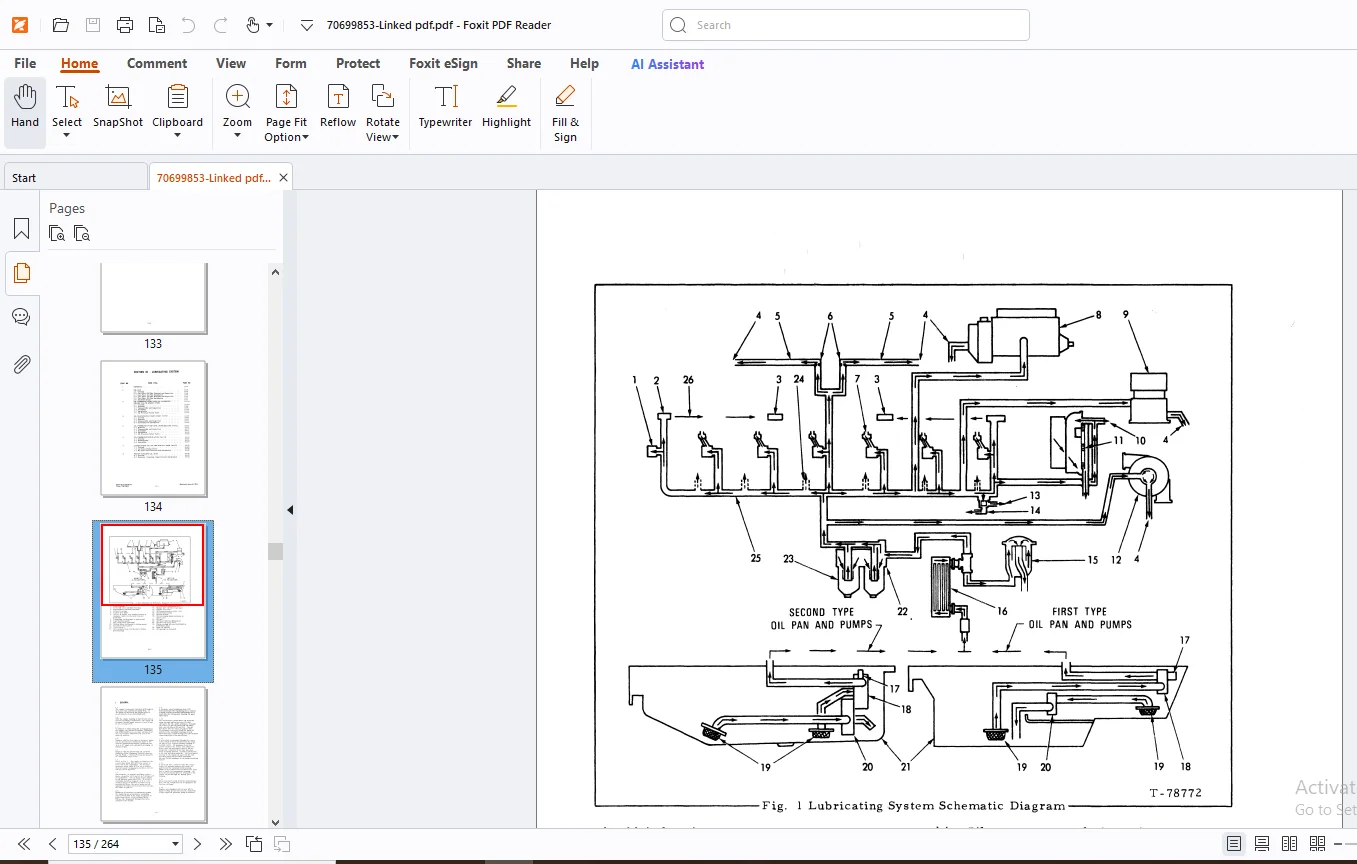

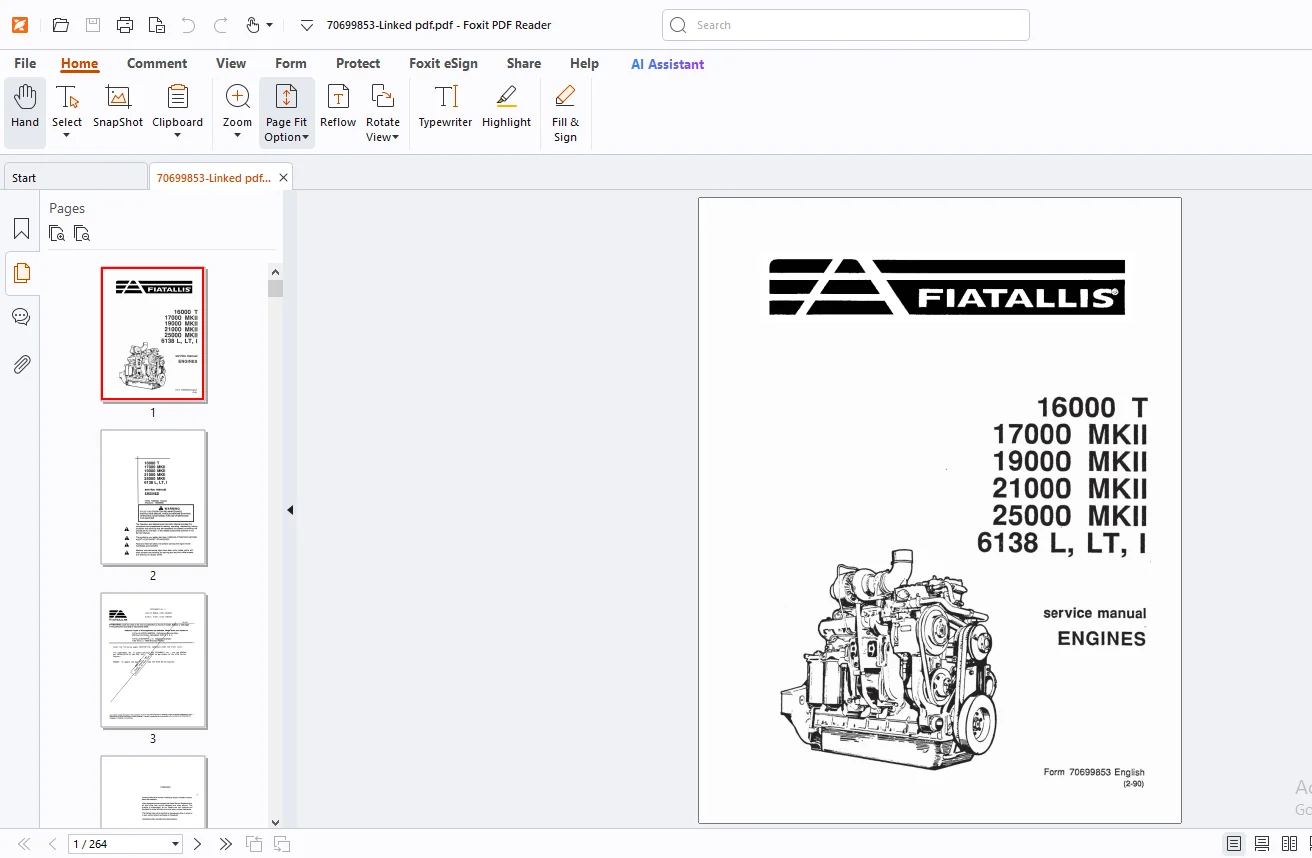

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 16000 T 17000 MKII 19000 MKII 21000 MKII 25000 MKII 6138 L LT I Engine Service Manual – PDF DOWNLAOD

FN 70699853

Supplement No 3 Service Manual Form 70699853 – 6138LT, 6138T, 613I Engines 3
Supplement No 2 Service Manual Form 70699853 – 16000T, 17000 Mark II, 19000 Mark II, 21000 Mark II, 25000 Mark II 6
Supplement No 1 Service Manual Form 70699853 – 16000T, 17000 Mark II, 19000 Mark II, 21000 Mark II, 25000 Mark II 7
Section 1 – Description and Specifications 14
Section 2 – Cooling System 18
Section 3 – Electrical System 46
Section 4 – Fuel System and Accessory Drive 48
Section 5 – Air Cleaner and Intake Manifold 82
Section 6 – Exhaust Manifold and Turbocharger 88
Section 7 – Valves, Valve Operating Mechanism and Cylinder Heads 90
Section 8 – Front End and Gear Train 112
Section 9 – Flywheel and Ring Gear; Flywheel Housing and Crankshaft Rear Oil Seal 120
Section 10 – Lubricating System 134
Section 11 – Camshaft and Camshaft Bearings 160
Section 12 – Pistons, Piston Rings, Connecting Rods and Connecting Rod Bearings 166
Section 13- Crankshaft and Crankshaft Gear, Main Bearings and Main Bearing Caps 180
Section 14 – Cylinder Block and Cylinder Sleeves 196
Section 15 – Engine Removal and Installation 206
Section 16 – Engine Disassembly and Assembly 210
Section 17 – Fits and Tolerances; Standard Torque Wrench Specifications and Stud Heights; Specific Application Torque Values 214
Section 18 – Troubleshooting 250
Section 19 – Fuel and Lubricant Specifications 262

DESCRIPTION:

Fiatallis 16000 T 17000 MKII 19000 MKII 21000 MKII 25000 MKII 6138 L LT I Engine Service Manual – PDF DOWNLAOD

FN 70699853

GENERAL:

SAFETY RULES:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine
• Read and head all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with whine border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine.
• Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hange, limber, demolitions, fire, high wals, drop off, back files, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these
  An operator must know the machine’s capabilities.
• When working on slopes or near drop offs be alert to avoid loose or soit conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high sip resistant sole material.
• For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
  Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason.
