Fiatallis FD 30B Crawler Dozer Service Manual – PDF

Description

Fiatallis FD 30B Crawler Dozer Service Manual -PDF DOWNLOAD

FILE DETAILS:

Fiatallis FD 30B Crawler Dozer Service Manual -PDF DOWNLOAD

FN 60406425

Language : English
Pages : 278
Downloadable : Yes
File Type : PDF

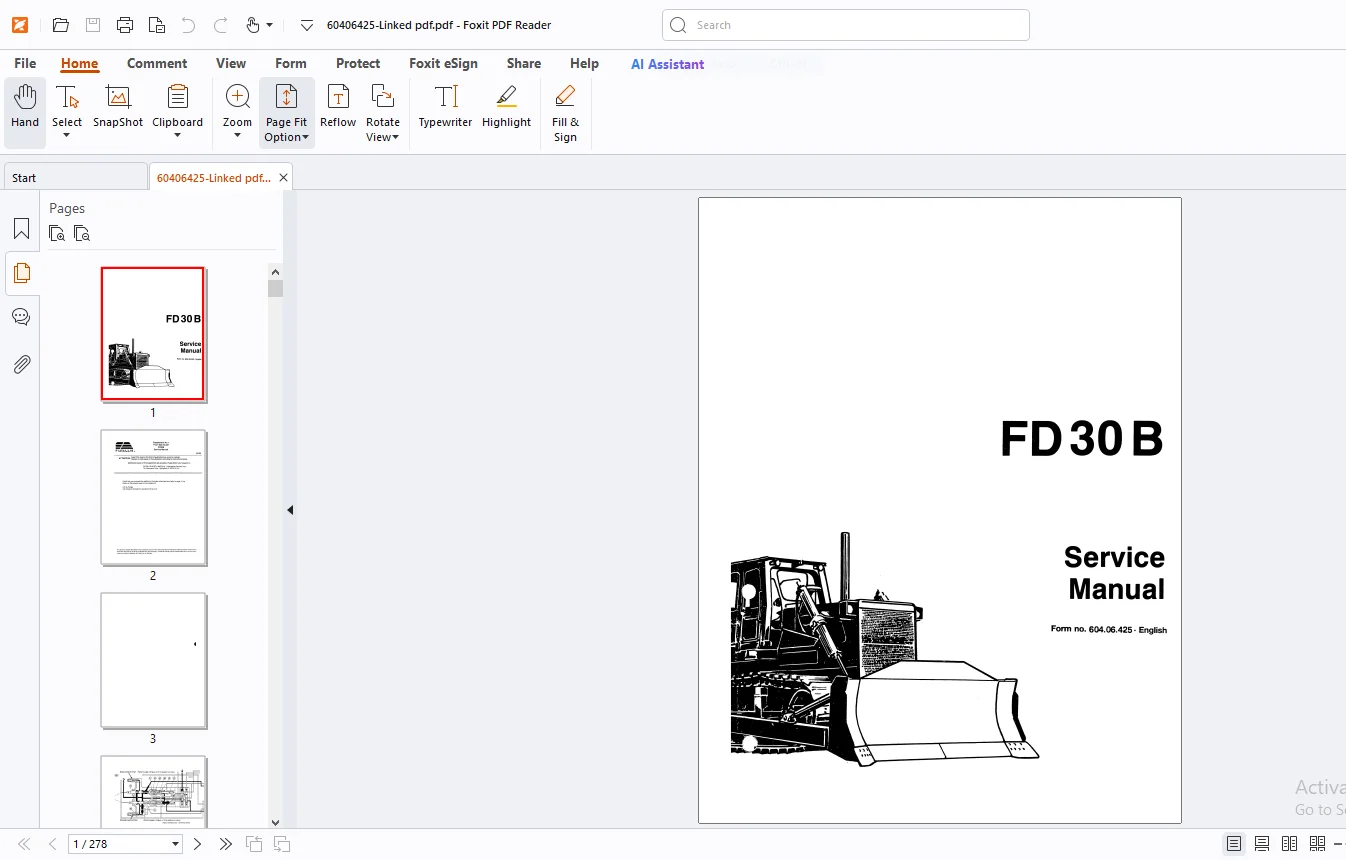

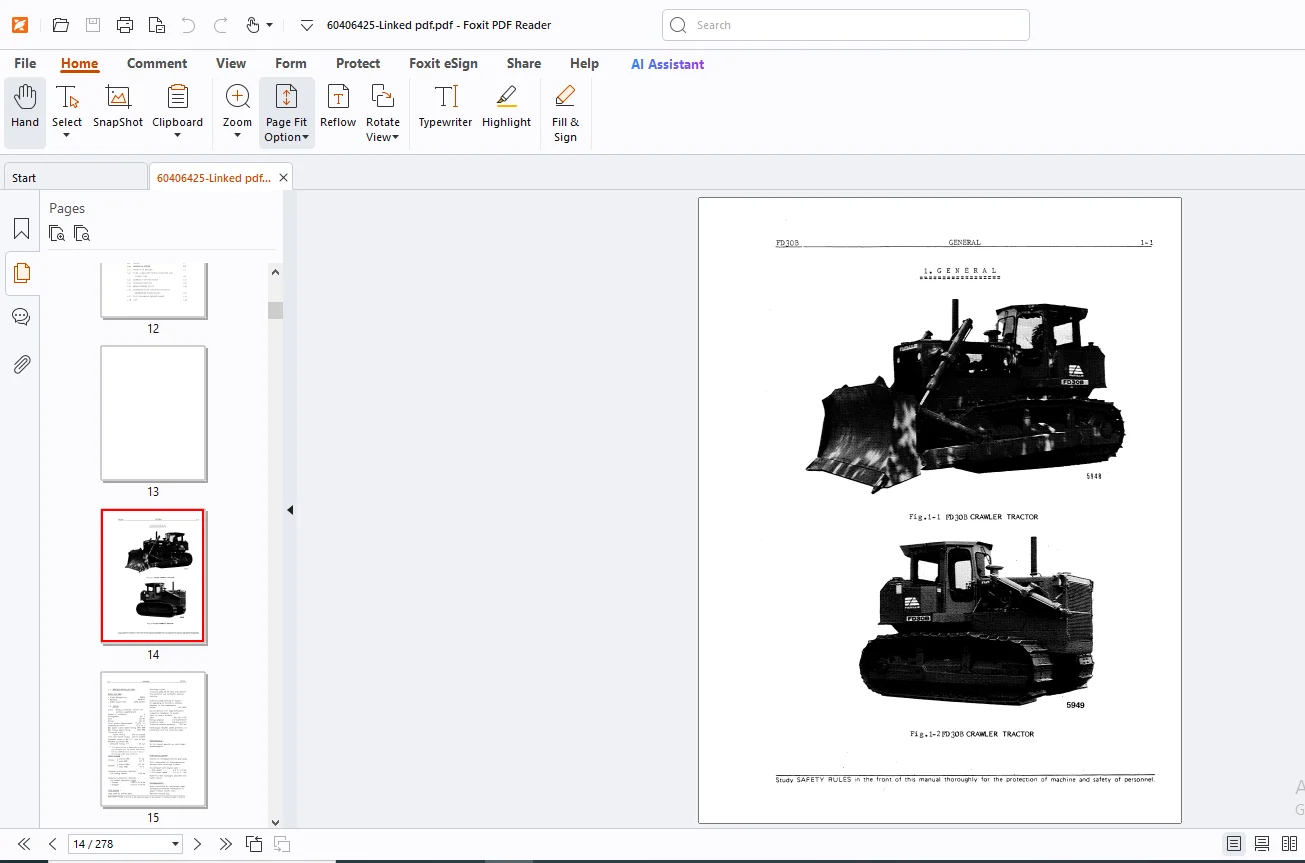

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FD 30B Crawler Dozer Service Manual -PDF DOWNLOAD

FN 60406425

Supplement No 1 Form 60406425 FD30B Service Manual 2
Table of Contents 8
Safety Rules 9
1 General 12
2 Engine Related Components 36
3 Transmission 46
4 Steering Clutches and Brakes 133
5 Bevel Gear 165
6 Side Final Drives 179
7 Hydraulic System 199
8 Undercarriage 243
9 Electrical System 267

DESCRIPTION:

Fiatallis FD 30B Crawler Dozer Service Manual -PDF DOWNLOAD

FN 60406425

GENERAL:

SAFETY RULES:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points.
• No unauthorized personnel should be allowed to service or maintain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this machine.
  Always wear safety glasses with side shields.
• Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, un- buttoned, or unzipped jackets that can catch on moving parts. Do wear proper safety equipment as authorized for the job. Examples hard hats, safety shoes, heavy gloves. ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements.
• Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times.
• Machine should not be serviced with anyone in the opera Tor’s seat unless they are qualified to operate the machine and are assisting in the servicing Keep operator’s compartment, stepping points, grab-rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
• Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat.
  Keep operator’s compartment clear of loose objects.
• If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat. Before starting ma- chine or moving attachment or tool, make sure to set brakes, sound horn and call for an all clear. Raise attachment slowly.
• Always block with external support any linkage or part on machine that requires work under the raised linkage, parts. or machine per OSHA requirements.
• Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking under raised blocked equipment unless you are assured of your safety.
