Fiat Allis HD-6 HD-11 Tractor, 7G Loader Steering Clutches & Brakes Service Manual 70690347 – PDF DOWNLOAD

Description

Fiat Allis HD-6 HD-11 Tractor, 7G Loader Steering Clutches & Brakes Service Manual

FILE DETAILS:

Fiat Allis HD-6 HD-11 Tractor, 7G Loader Steering Clutches & Brakes Service Manual

Size: 19.6 MB
Format: PDF
Language: English
Brand: Fiat
Type of machine: Crawler Tractors – Crawler Loader
Type of document: Service Manual
Model: Fiat Allis HD-6 HD-11 Crawler Tractors and 7G Crawler Loader
Number of Pages: 58 pages
Re-Print No.: 70690347

DESCRIPTION:

Fiat Allis HD-6 HD-11 Tractor, 7G Loader Steering Clutches & Brakes Service Manual

GENERAL :

Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling. or servicing machine. – Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine~mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at alltirnes to reduce exposure to hazards outside the operator’s compartment.

• Do not allow unauthorized personnel to operate service or maintain this machine. Aiways check work area for dangerous features. The follow. ing are examples of dangerous work areas: slopes. over hangs, timber. demolitions. fire. high walls, drop off, back fills, rough terrain, ditches. ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine‘s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a send support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator‘s compartment, stepping points, grab-rails and handles clear of foreign objects, oil. grease. mud or snow accumulation to minimize the danger of sliping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails. and on the ground. Wear safety boots orshoes that have a high slip resistant sole material. ‘ Foryour personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always look up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance instruction Manual.
• Always set the parking brake when leaving the machine for any reason.Do not wear rings, wrist watches, jewelry. loose or hanging apparel. such as ties. torn clothing. scarves. unbuttoned or unzipped jackets   that cen catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats. safety shoes. heavy gloves. ear protectors. safety glasses or goggles, reflector vests. or respirators.
• Consult your employer for specific safety equipment requirements. Do not carry loose objects in pockets that might fall unnoticed into open compartments. Do not use machine to carry, loose objects by means other than attachments for carrying such objects. DO NOT CARRY HIDER Sunless the machine is equipped for carrying people to reduce personal exposure to being thrown off.
• Do not operate machinery in a condition of extreme fatigue or illness. Be especially careful towards the end of the shift. Roll Over Protective Structures are required on wheel loaders, dozer tractors. track type loaders. graders and scrapers by local or national requirements. 00 NOT operate this machine without a Roll Over Protective Structure. Do not operate a machine without a falling object protective structure (FOPS). Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch. Seat belts are required to be provided with roll over protective structures or roll protection cabs by local or national regulations.
• Keep the safety belt fastened around you during operation. Where noise exposure exceeds 90 dBA for 8 hours. wear authorized ear protective equipment per fowl or national requirements that apply. Keep clutches and brakes on machine and attachments such as power control units, winches and master clutches adjusted acmrding to Operation and Maintenance instruction Manuals of the manufacturers at all times. NOT adjust machine with engine running except as specified.
• Do not operate a machine with brakes out of adjustment. See the Operation and Maintenance instruction Manual. Move carefully when under. in or near machine or implements. Wear required protective equipment. such as hard hat. safety glasses. safety shoes, ear protectors.

TABLE OF CONTENTS:

Fiat Allis HD-6 HD-11 Tractor, 7G Loader Steering Clutches & Brakes Service Manual

• General Description
• Trouble Shooting
• Pressure Checking Hydraulic System
• Clutch and Brake Control Linkage Adjustments
• Steering Control Valve
• Brake Control Valves
• Hydraulic Pumps
• Steering Brakes/ Steering Clutches, Throwout
• Bearings and Actuating Pistons
• Fits and Tolerances
• Service Tools
• Conversion Tables

FIAT ALLIS HD-6 HD-11 TRACTOR, 7G LOADER STEERING CLUTCHES & BRAKES SERVICE MANUAL 70690347 – PDF DOWNLOAD:

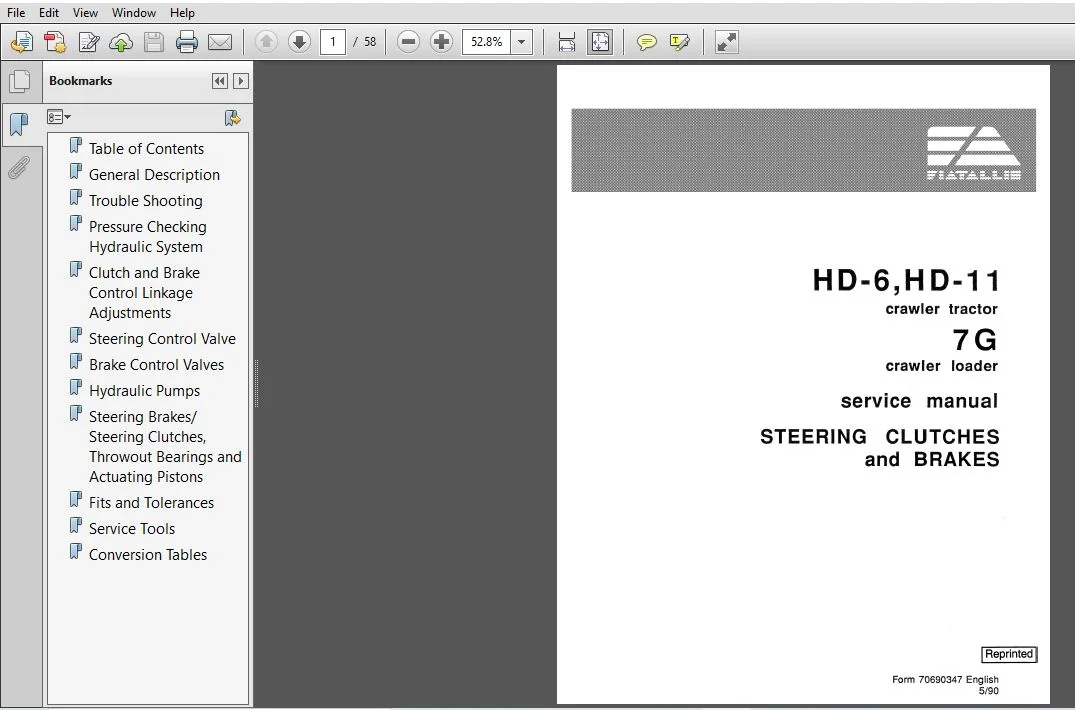

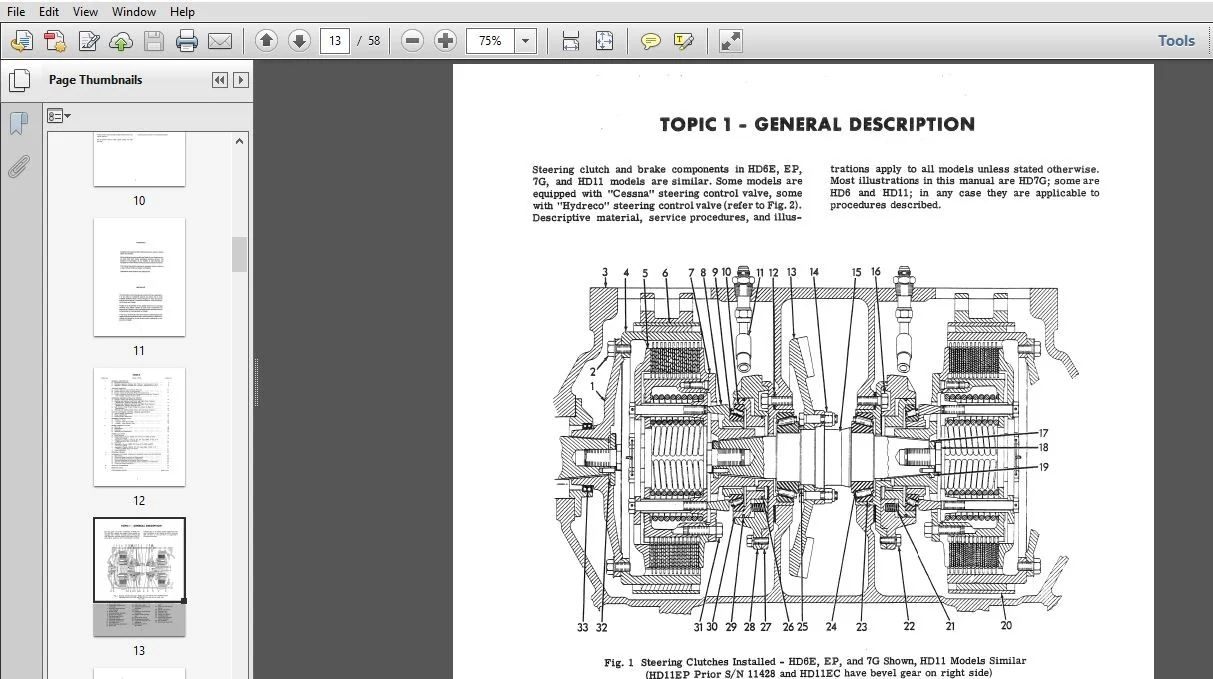

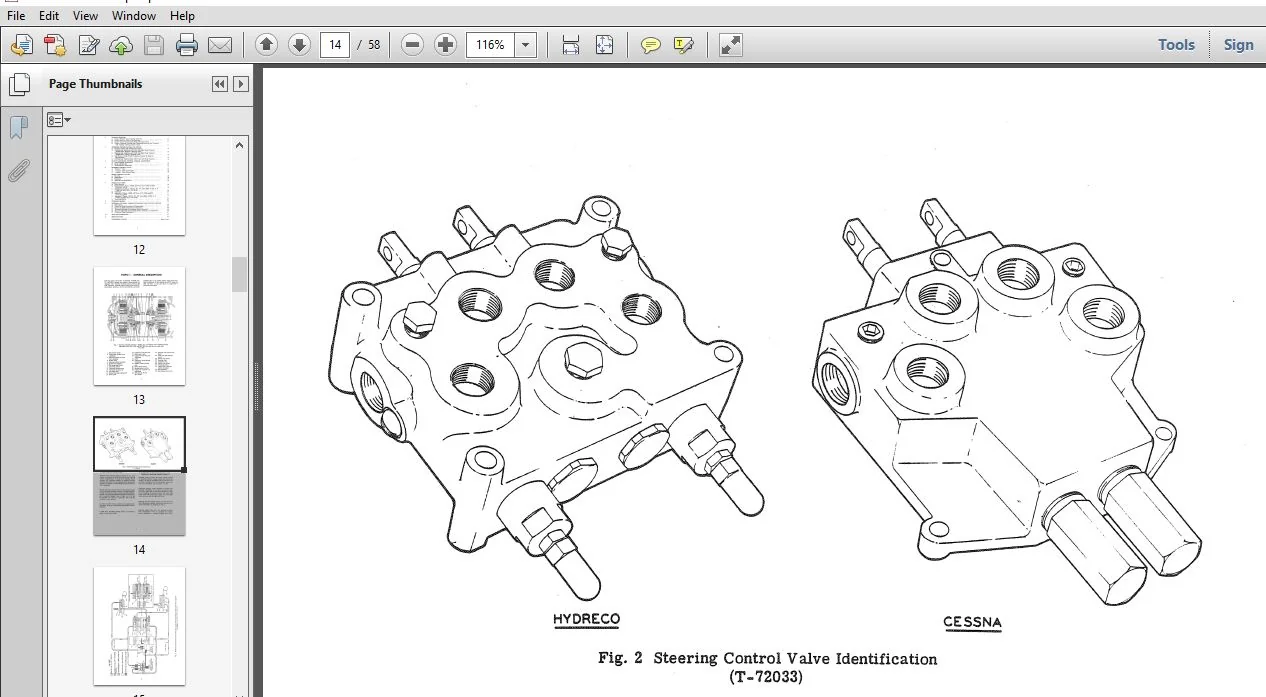

IMAGES PREVIEW OF THE MANUAL:
