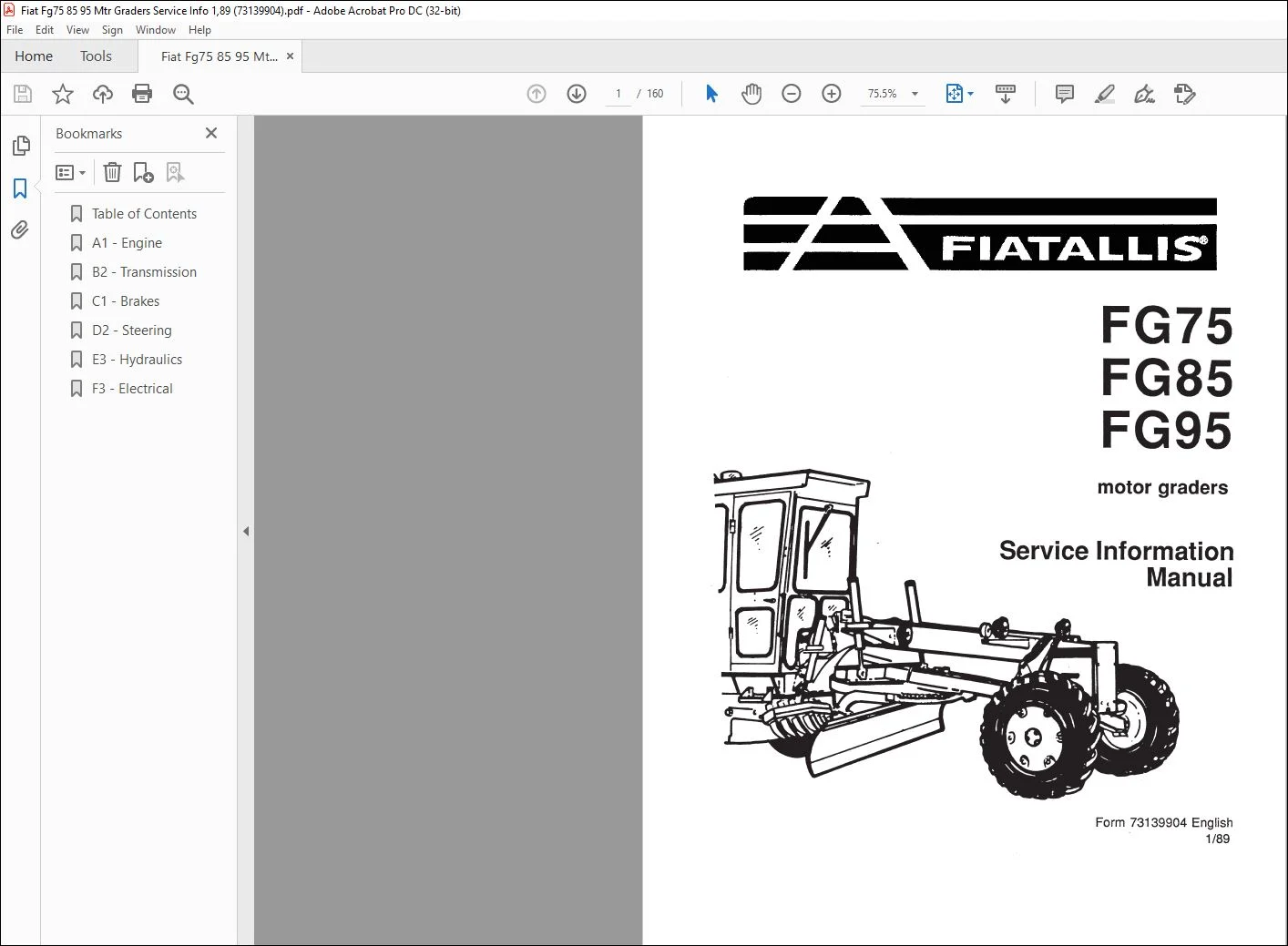

Fiatallis FG75 FG85 FG95 Motor Graders Service Information Manual 73139904 – PDF DOWNLOAD

Description

Fiatallis FG75 FG85 FG95 Motor Graders Service Information Manual 73139904 – PDF DOWNLOAD

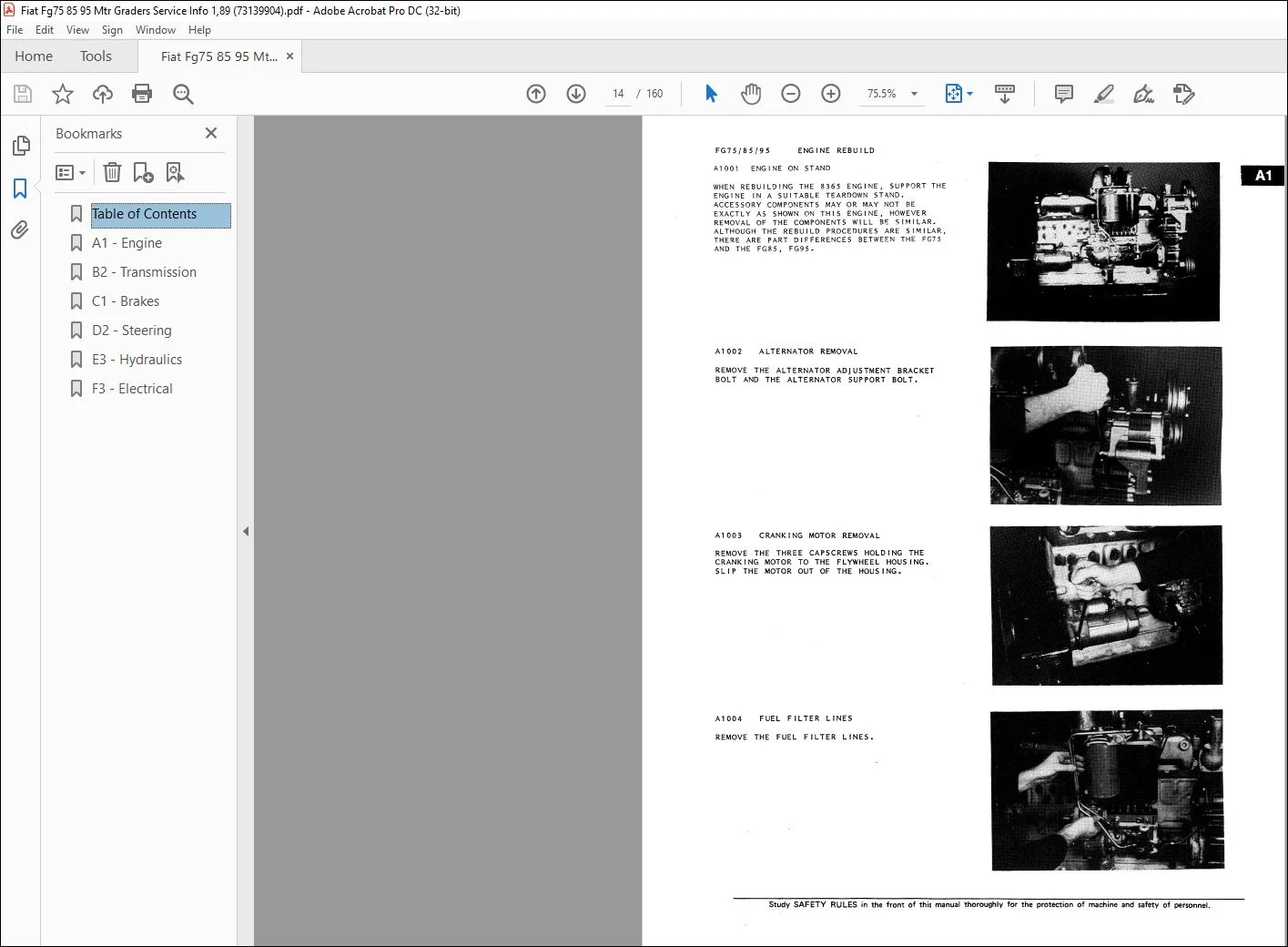

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FG75 FG85 FG95 Motor Graders Service Information Manual 73139904 – PDF DOWNLOAD

GENERAL:

Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.

• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.

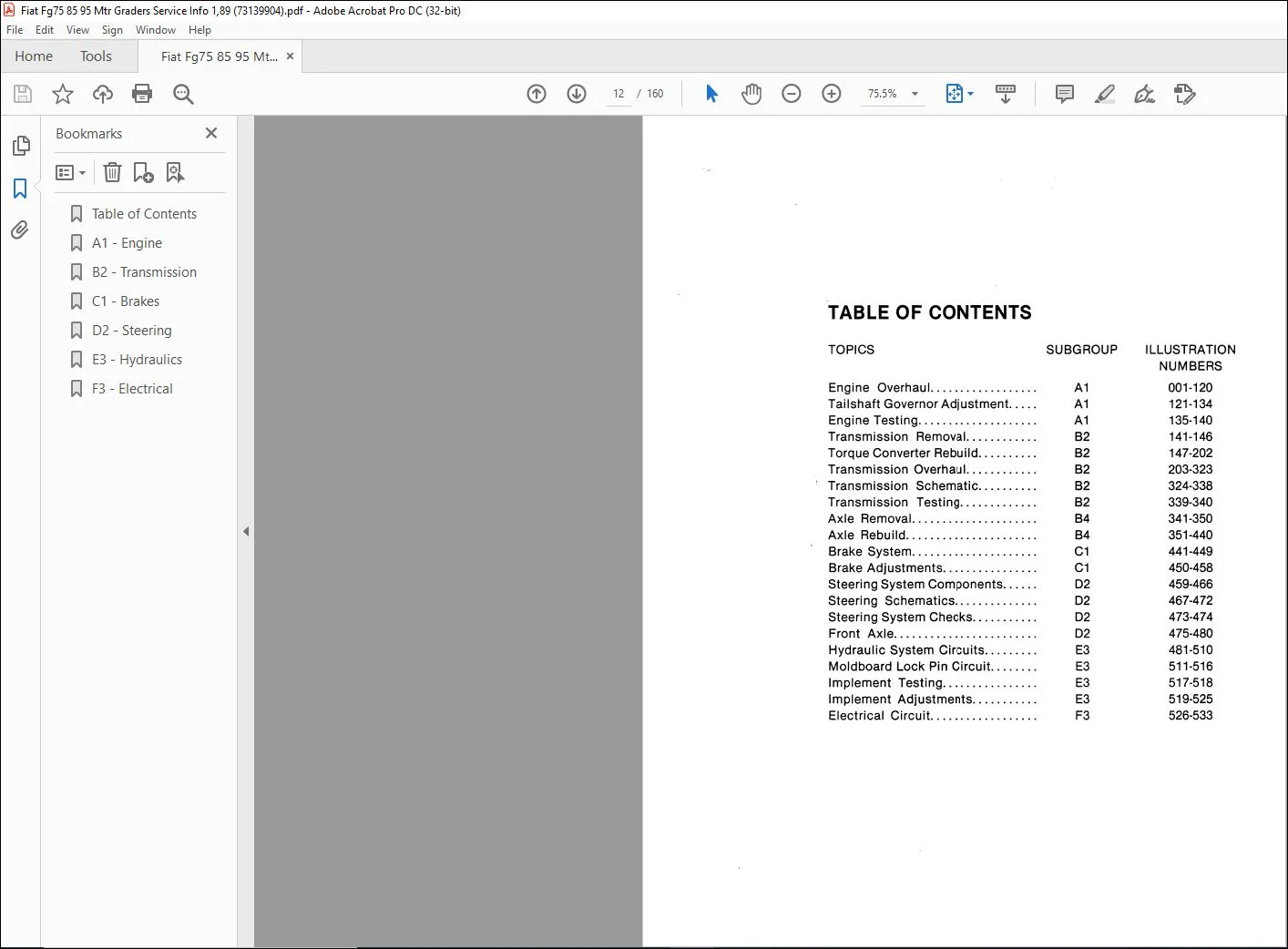

TABLE OF CONTENTS:

Fiatallis FG75 FG85 FG95 Motor Graders Service Information Manual 73139904 – PDF DOWNLOAD

Engine Overhaul A1 001-120
Tailshaft Governor Adjustment A1 121-134
Engine Testing A1 135-140
Transmission Removal 82 141-146
Torque Converter Rebuild 82 147-202
Transmission Overhaul 82 203-323
Transmission Schematic 82 324-338
Transmission Testing 82 339-340
Axle Removal 84 341-350
Axle Rebuild 84 351-440
Brake System C1 441-449
Brake Adjustments C1 450-458
Steering System Components 02 459-466
Steering Schematics 02 467-472
Steering System Checks 02 473-474
Front Axle 02 475-480
Hydraulic System Circuits E3 481-510
Moldboard Lock Pin Circuit E3 511-516
Implement Testing E3 517-518
Implement Adjustments E3 519-525
Electrical Circuit F3
