Fiat Allis 16B Crawler Tractor Steering Clutches & Brakes Service Manual – PDF DOWNLOAD

Description

Fiat Allis 16B Crawler Tractor Steering Clutches & Brakes Service Manual

FILE DETAILS:

Fiat Allis 16B Crawler Tractor Steering Clutches & Brakes Service Manual

Size : 10.8 MB
Format : PDF
Language : English
Brand: Fiat
Type of machine: Tractor-
Type of document: Service Manuals
Model: Fiat Allis 16-B Tractor-Dozer

DESCRIPTION:

Fiat Allis 16B Crawler Tractor Steering Clutches & Brakes Service Manual

GENERAL :

Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling. or servicing machine. – Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine~mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at alltirnes to reduce exposure to hazards outside the operator’s compartment.

• Do not allow unauthorized personnel to operate service or maintain this machine. Aiways check work area for dangerous features. The follow. ing are examples of dangerous work areas: slopes. over hangs, timber. demolitions. fire. high walls, drop off, back fills, rough terrain, ditches. ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine‘s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a send support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator‘s compartment, stepping points, grab-rails and handles clear of foreign objects, oil. grease. mud or snow accumulation to minimize the danger of sliping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails. and on the ground. Wear safety boots orshoes that have a high slip resistant sole material. ‘ Foryour personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always look up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance instruction Manual.

TABLE OF CONTENTS:

Fiat Allis 16B Crawler Tractor Steering Clutches & Brakes Service Manual

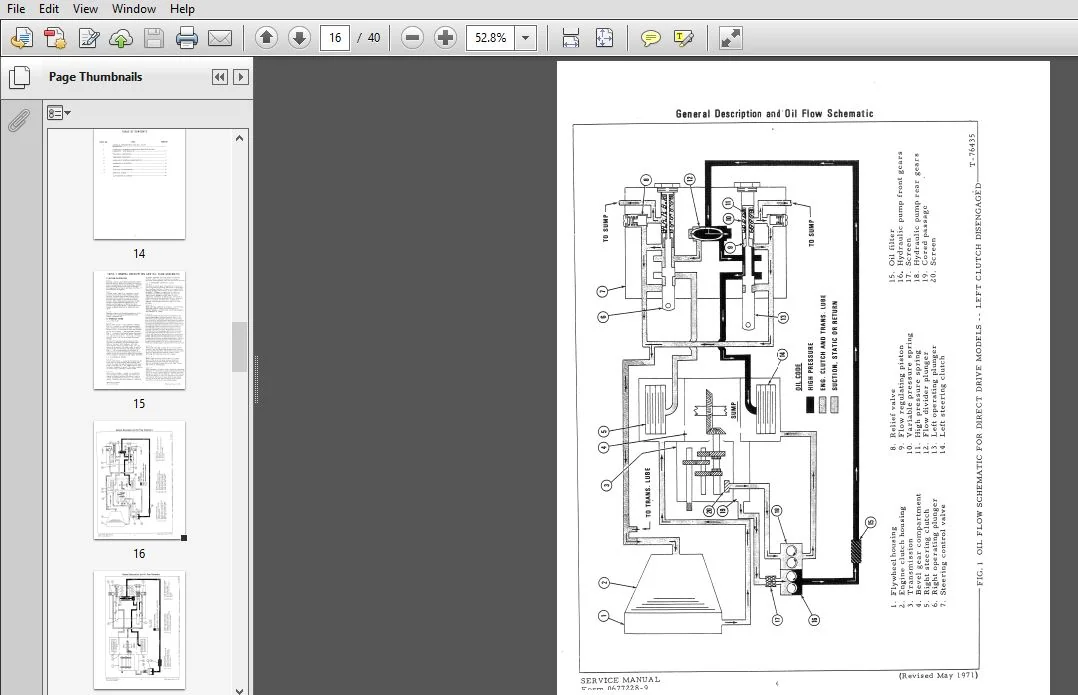

• GENERAL DESCRIPTION AND OIL FLOW SCHEMATIC
• HYDRAULIC SYSTEM LUBRICANT SPECIFICATIONS, CAPACITY, AND SERVICE
• TROUBLE SHOOTING
• PRESSURE CHECKING

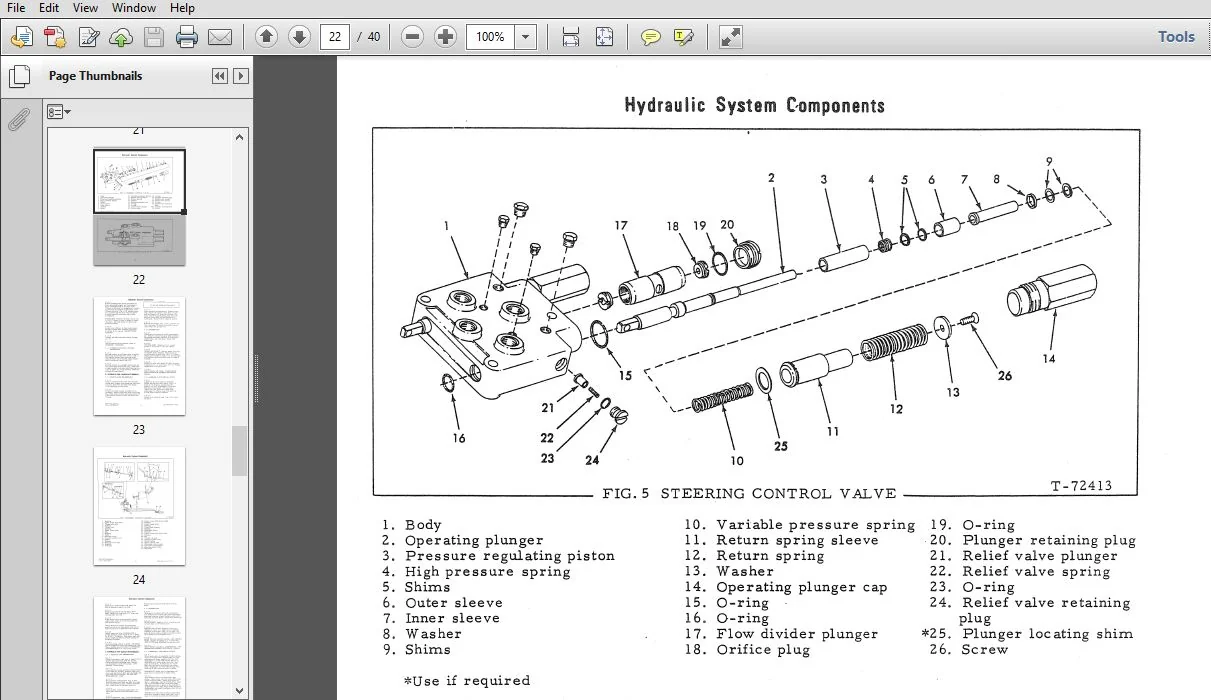

• HYDRAULIC SYSTEM COMPONENTS
• STEERING CLUTCHES
• BRAKES
• FITS AND TOLERANCES
• SERVICE TOOLS
• ALPHABETICAL INDEX

FIAT ALLIS 16B CRAWLER TRACTOR STEERING CLUTCHES & BRAKES SERVICE MANUAL – PDF DOWNLOAD:

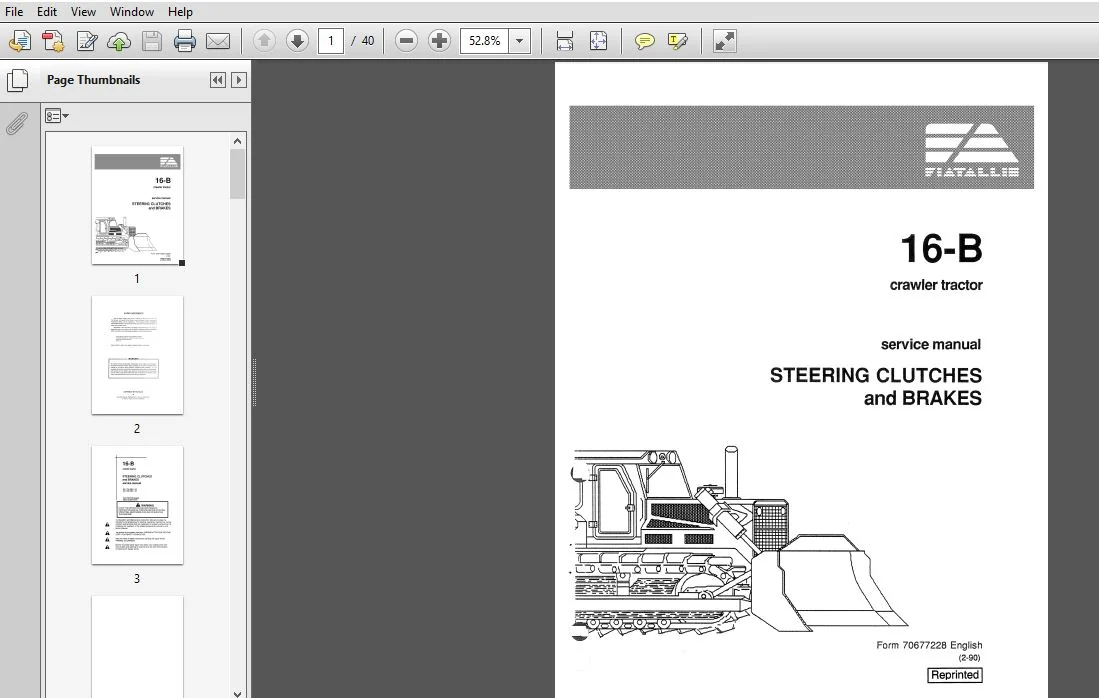

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
