Fiatallis FH200 Excavator Operation & Maintenance Instruction Manual 73158106 – PDF DOWNLOAD

Description

Fiatallis FH200 Excavator Operation & Maintenance Instruction Manual 73158106 – PDF DOWNLOAD

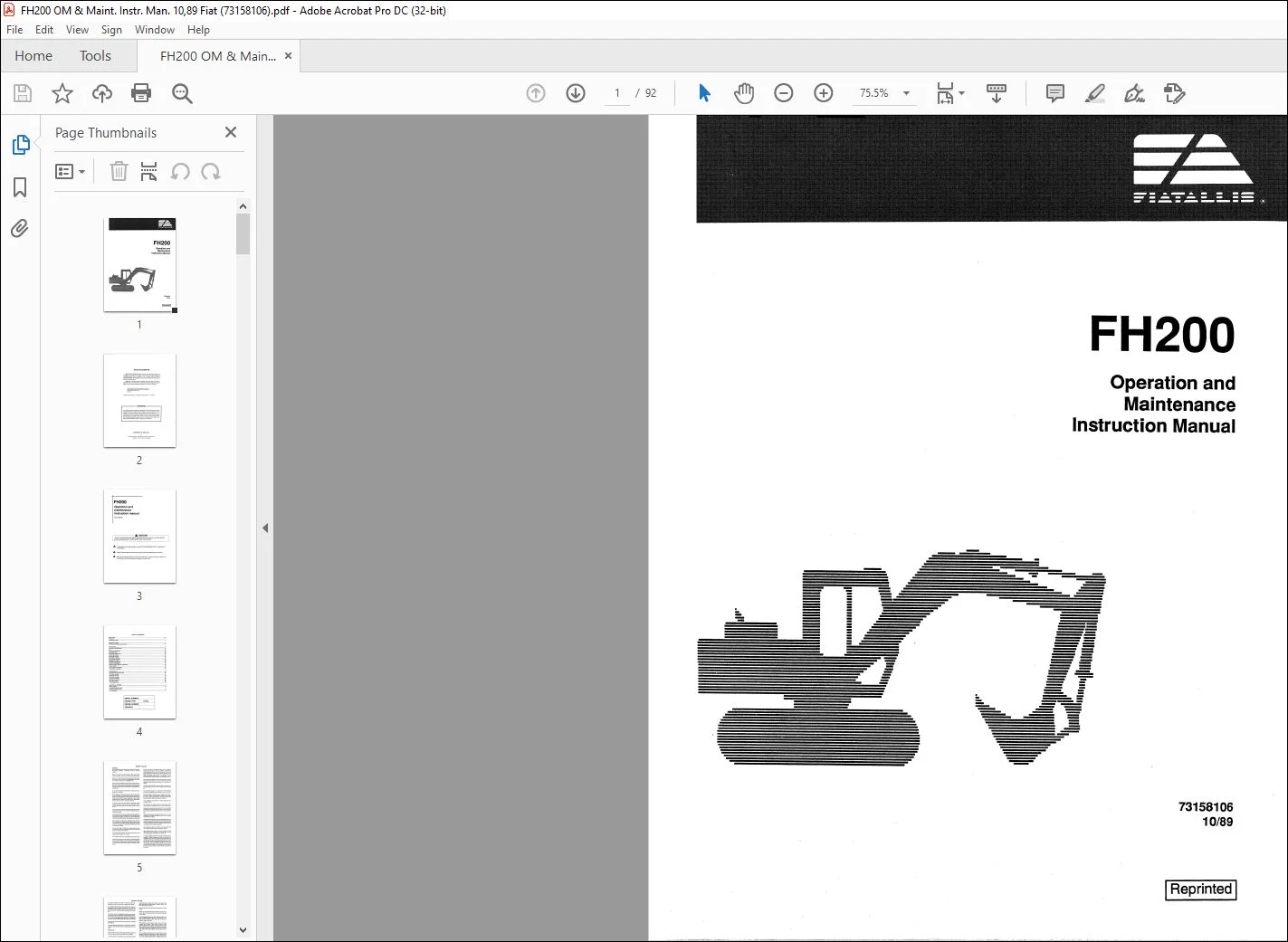

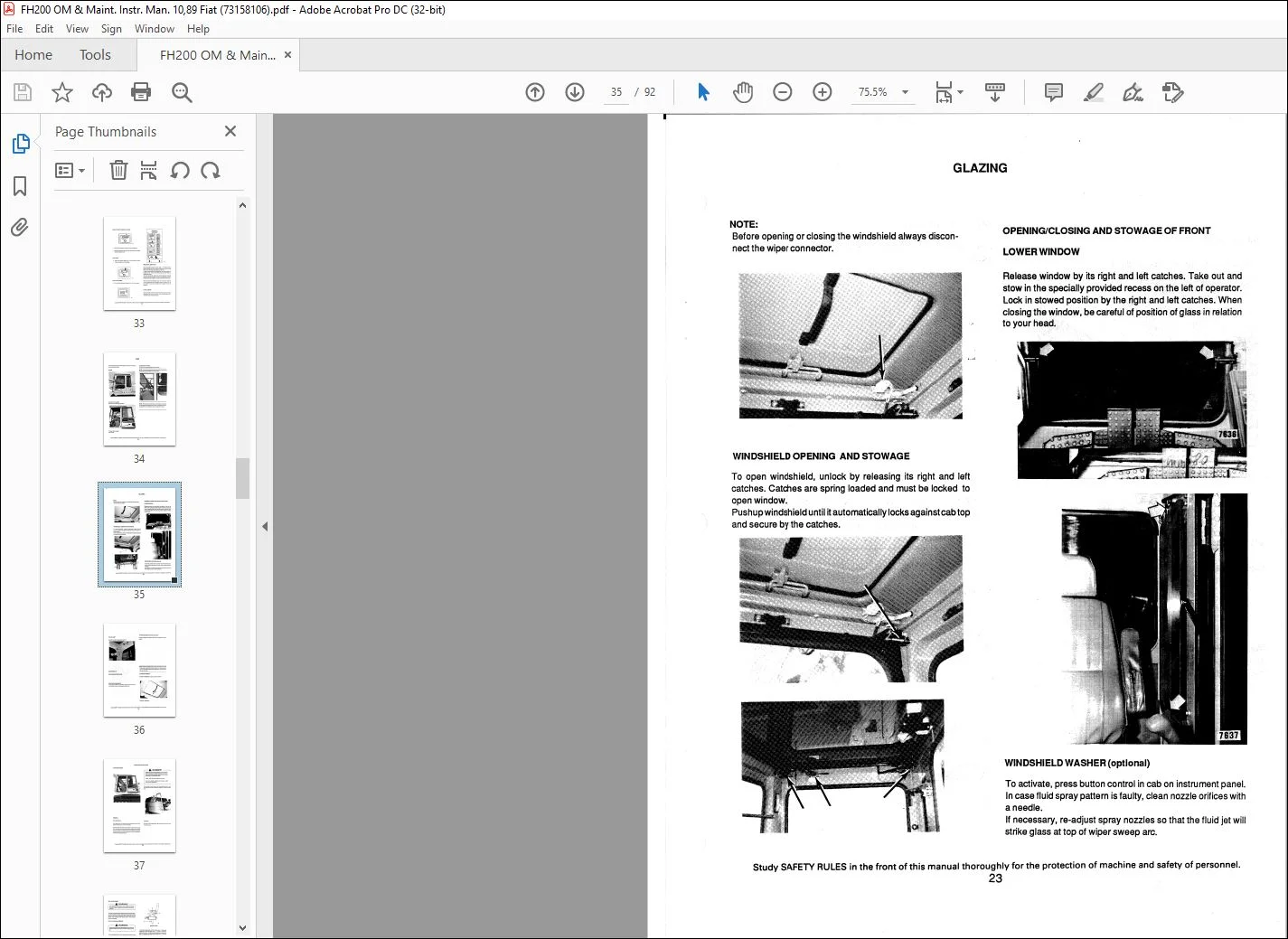

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FH200 Excavator Operation & Maintenance Instruction Manual 73158106 – PDF DOWNLOAD

GENERAL:

Study the Ope.ration and Maintenance Instruction Manual before , starting, operating, maintaining, fueling, or servicing machine.  Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.

• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, handn.nd feet i0$ide operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine.
• Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contad with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine.
• Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended.
• Return keys to authorized-security. Heed all shut down procedures of the Operation and Maimenance Instruction Manual. Always set the parking brake when leaving the machine for any reason.
• Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned (?r unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements. Do not carry loose objects in pockets that might fall unnoticed into open compartments.
• Do not use machine to carry loose objects by means other than attachments for carrying such objects. DO NOT CARRY RIDERS unless the machine is equipped for carrying people to reduce personal exposure to being thrown off. Do not operate machinery in a condition of extreme fatigue or illness.
• Be especially careful towards the end of the shift. Roll Over Protective Strudures are required on wheel loaders, dozer tractors, track type loaders, graders and scrapers by local or national requirements.
• DO NOT operate this machine without a Roll Over Protective Structure. Do not operate a machine without a falling object protective strudure (FOPS). Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch. Seat belts are required to be provided with roll over protective structures or roll protection cabs by local or national regulcltions. Keep the safety belt fastened around you during operation.

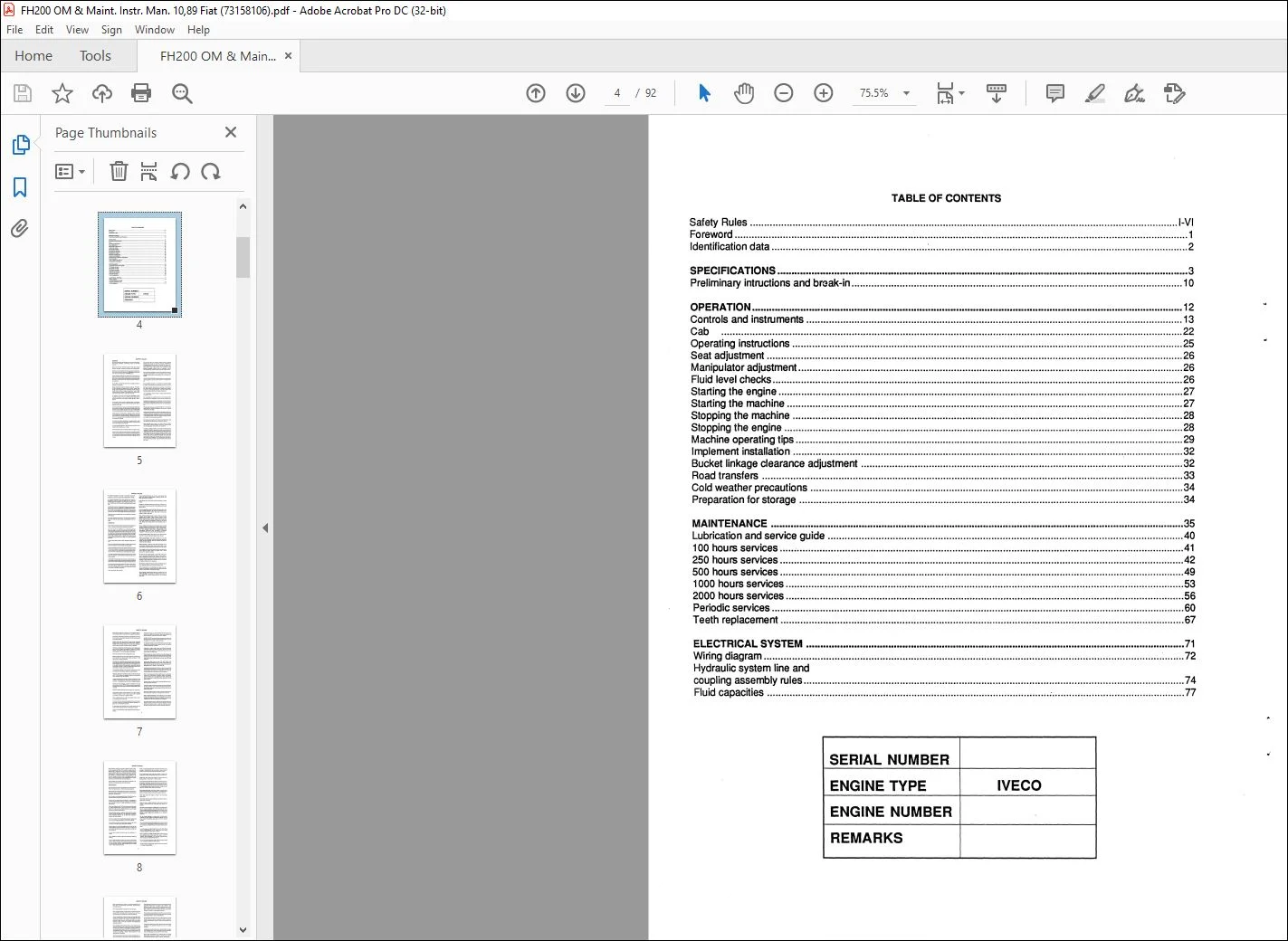

TABLE OF CONTENTS:

Fiatallis FH200 Excavator Operation & Maintenance Instruction Manual 73158106 – PDF DOWNLOAD

Safety Rules 1-VI
Foreword 1 1
Identification data 2
SPECIFICATIONS 3
Preliminary intructions and break-in 1 O
OPERATION 12
Controls and instruments 13
Cab 22
Operating instructions 25
Seat adjustment 26
Manipulator adjustment 26
Fluid level checks 26
Starting the engine 27
Starting the machine 27
Stopping the machine 28
Stopping the engine 28
Machine operating tips 29
Implement installation 32
Bucket linkage clearance adjustment 32
Road transfers 33
Cold weather precautions 34
Preparation for storage 34
MAINTENANCE 35
Lubrication and service guide 40
100 hours services 41
250 hours services 42
500 hours services 49
1000 hours services 53
2000 hours services 56
Periodic services 60
Teeth replacement 67
ELECTRICAL SYSTEM 71
Wiring diagram 72
Hydraulic system line and
coupling assembly rules 74
Fluid capacities 77
