Fiatallis FL5 FL5B FD5 Crawler Dozer Service Manual – PDF

Description

Fiatallis FL5 FL5B FD5 Crawler Dozer Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FL5 FL5B FD5 Crawler Dozer Service Manual – PDF DOWNLOAD

FN 60406358

Language : English
Pages : 210
Downloadable : Yes
File Type : PDF

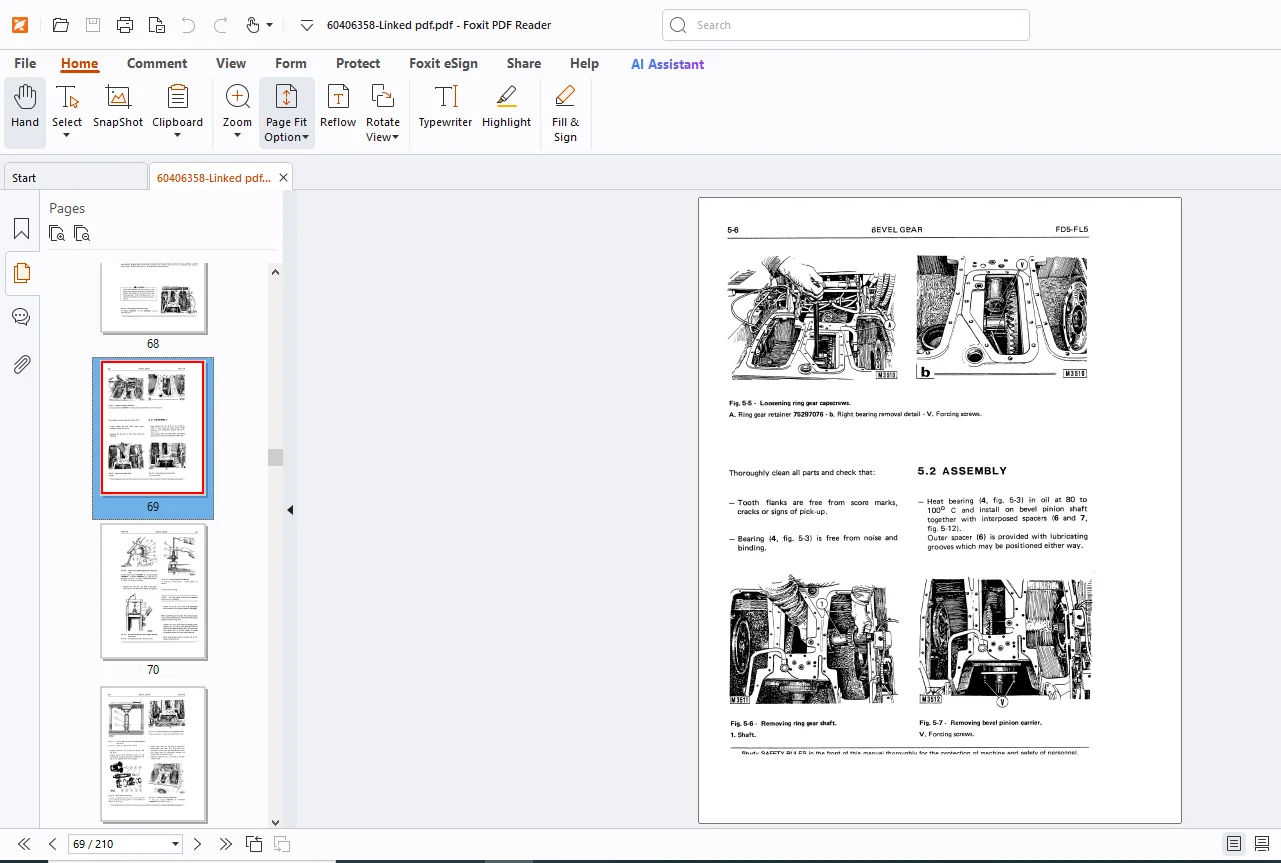

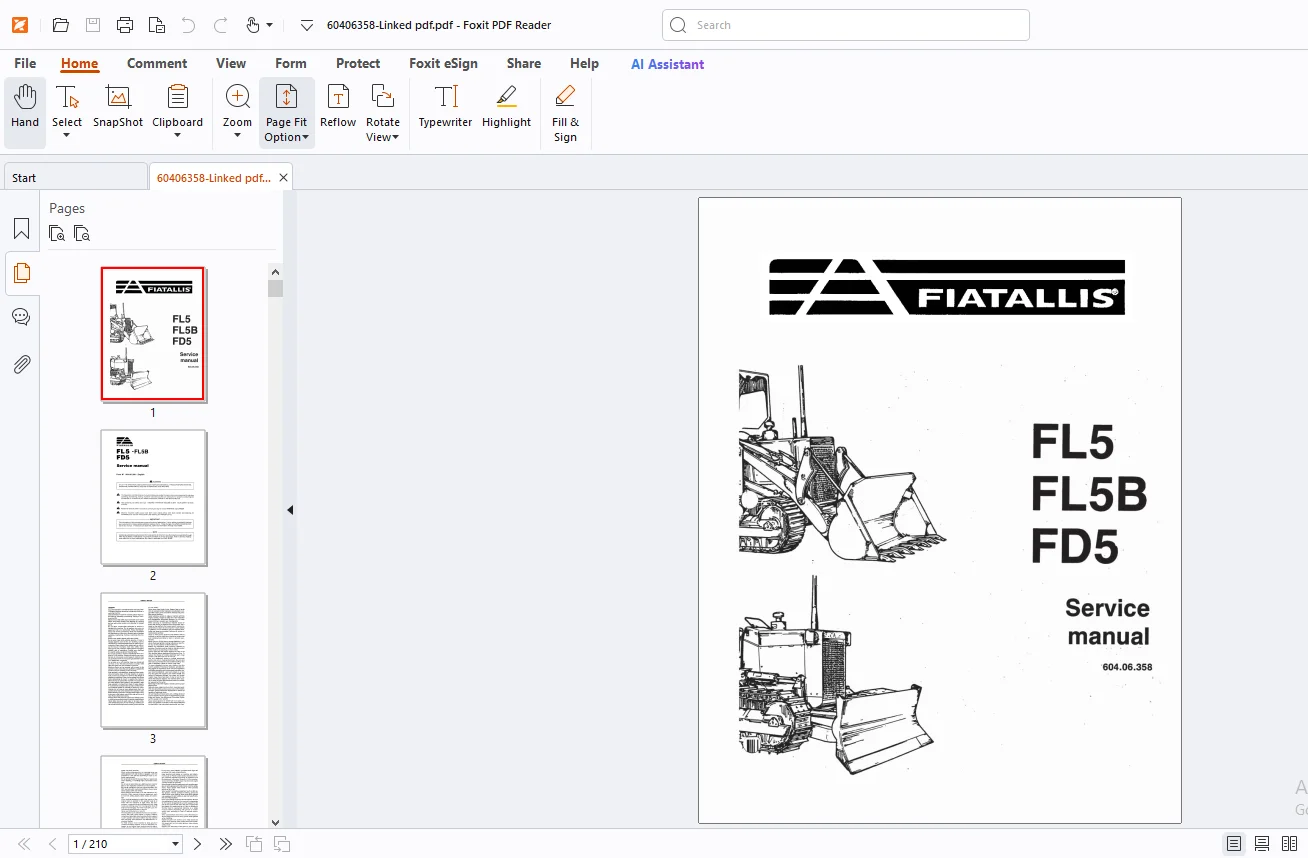

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FL5 FL5B FD5 Crawler Dozer Service Manual – PDF DOWNLOAD

FN 60406358

Table of Contents 6
1 General 8
2 Engine Related Components 20
3 Transmission 24
4 Transmission Hydraulic System 51
5 Bevel Gear 64
6 Steering Clutches 80
7 Brakes 88
8 Steering Clutch Hydraulics 94
9 Final Drives and Sprockets 108
10 Undercarriage 117
11 Equipment Hydraulics 143
11 Equipment Hydraulics 176

DESCRIPTION:

Fiatallis FL5 FL5B FD5 Crawler Dozer Service Manual – PDF DOWNLOAD

FN 60406358

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine Feed and head all machine-mounted safety signs be- fore starting, operating, maintaining, fueling or servicing machine
• Machine-mounted safety signs have been color coded yellow with black borders and lettering for waming and red with white borders and lettering for danger points.
• Do not allow unauthorized personnel to service or maintain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting.
• operating, maintaining, fueling or servicing this machine. Always wear safety glasses with side shields. Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety y glasses or goggles, reflector vest, or respirators. Consult your employer for specific safety equipment requirements.
• Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times.
• Machine should not be serviced with anyone in the operator’s seat unless they are qualified to operate the machine and are are assisting in the s servicing
• Keep operator’s compartment, stepping points, grab- rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of loping or stumbling.
• Clean mud or grease from shoes slipping before attempting to mount or operate the machine. Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat compartment clear of loose objects. Keep operator’s compartment
• If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any when position other than when seated in the operator’s seat. Before starting machine or moving attachment or tool make sure to set brakes, sound home and call for an all clear. Raise attachment slowly.
• Always block with external support any linkage, parts, or machine according to local or national requirements. Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking un- der raised blocked equipment unless you are assured.
