FIATALLIS FR35 BRAKES AND AIR SYSTEM WHEEL LOADER SERVICE MANUAL
FILE DETAILS:
FIATALLIS FR35 BRAKES AND AIR SYSTEM WHEEL LOADER SERVICE MANUAL
Size: 10.8 MB
Format: PDF
Language: English
Number of Pages: 102 pages
Brand: New Holland
Type of document: Service Manual
Model:FR35
Part No: 73148347
DESCRIPTION:
FIATALLIS FR35 BRAKES AND AIR SYSTEM WHEEL LOADER SERVICE MANUAL
GENERAL INFORMATION:
- Study the Operation and Maintenance instruction Manual before starting, operating, maintaining. fuei»ng. or servicing machine Read and heed alt machine mounted safety signs before star- ting. operating, maintaining tuelmg or serving machine Machine-mounted safety signs nave been color ceded yellow with black border and lettering lor WARNING and red with white border and lettering for
- DANGER points Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat Keep head, body. nmbs. hands and feel Inside operator s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate, service or maintain this machine Always check work area for dangerous features
- The following are examples of dangerous work areas slopes, overhangs timber demolitions, fire, high walls, dropoff backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas Use extreme care when in areas such as these An operator must know the machine’s capabilities When working on slopes or near dropoffs be alert to avoid loose or soil conditions that could cause suddon tipping or loss of con- trol
- Do not |ump on or off machine Keep two hands and one foot, or two feet and one hand, in contact with steps, grab rails and handles at all times. Oo not use controls or hoses as handholds when climbing on or off machine Moses and controls are movable and do not provide a sood support Controls also may be inadvertently moved causing accidental machine or equipment movement.
- Keep operator’s compartment, stepping points, grab raus and handles clear of foreign objects, oil. grease, mud or snow accumulation to minimize the danger of slipping or stumbling Clean mud or grease from shoes before attempting to mount or operate the machine 6c careful of slippery conditions on stepping pomts. hand rails, and on the ground Wear safety boots or shoes that have a high slip resistant sole material For your personal
- prolection, do not attempt to climb on or off machine while machine is in motion Never leave the machine unattended with the eng.ne running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shutdown procedures of the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason
- Oo not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts Wear proper safety equipment as authorized tor the |Ob Examples hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators Consult your employer tor specific safety equipment requirements
- Oo not use machine to carry loose Objects by means other than attachments tor carrying such objects DO NOT CARRY RlOERS unless the irach.ne is equipped lor carrying peop«e to reduce personal mposure IO being thrown oil Do not operate machinery in a condition of extreme fatiflue or illness Be especially careful towa’ds the end of Ihe shift. Roll Over Protective Structures are reauired on wheel loaders dozer tractors, track type loaders, graders and scrapers by local or national requirements
- DO NOT operate this machine without a Roll over Protective Structure Do not operate a machine without a tailing object protective structure (FOPS) Oo not operate this machine without a rea* canopy screen when machine is equipped with rear mounted towing winch. Seat bells are required to be provided with roll over protective structures or roll protection cabs by local or national regulations Keep ihe safety belt fastened around you during opera- tion Where no«se exposure exceeds 90 cBA for 8 hours, wear authored ear protective equipment per local or national requirements that apply.
- Keep clutches and brakes on machine and attachments such as power control units, winches and master clutches adjusted according to Operation and Maintenance instruction Manuals of the manufacturers at an times 00 MOT adjust machine with engine running except as spec-tied Do not operate a machine with brake* out of adjustment See the Operation and Maintenance Instruction Manual Move carefully when under, in or near machine or implements Wear required protective equipment, such as hard hat. safety glasses . safety shoes, ear protectors.
- To move a disabled machine, use a tiailer or low boy truck if available if towing is necessary, provide warning signals as required by local rules and regulatio»s and follow Operation and Maintenance Instruction Manual ecommerdations Load and unload on a level area that gives uil support to the trailer wheels. Use ramps of adequate strength, low angle and proper height Keep trailer bed clean of clay. Dll and all materials that become slippery. Tie machine down securely to truck or trailer bed and Wock tracks for wheelsi as required by the carrier.
- To prevent entrapment in cabs o mountod enclosures, observe and know the mechanics of alternate exit routes. On machines equipped with suction tadlator fans, be sure to periodically check ail engine exhauit parts fcr teaks as ex haust gases are dangerous to the operator Keep a vent open to outside air at all times when operating within a closed cab
VIDEO PREVIEW OF THE MANUAL:

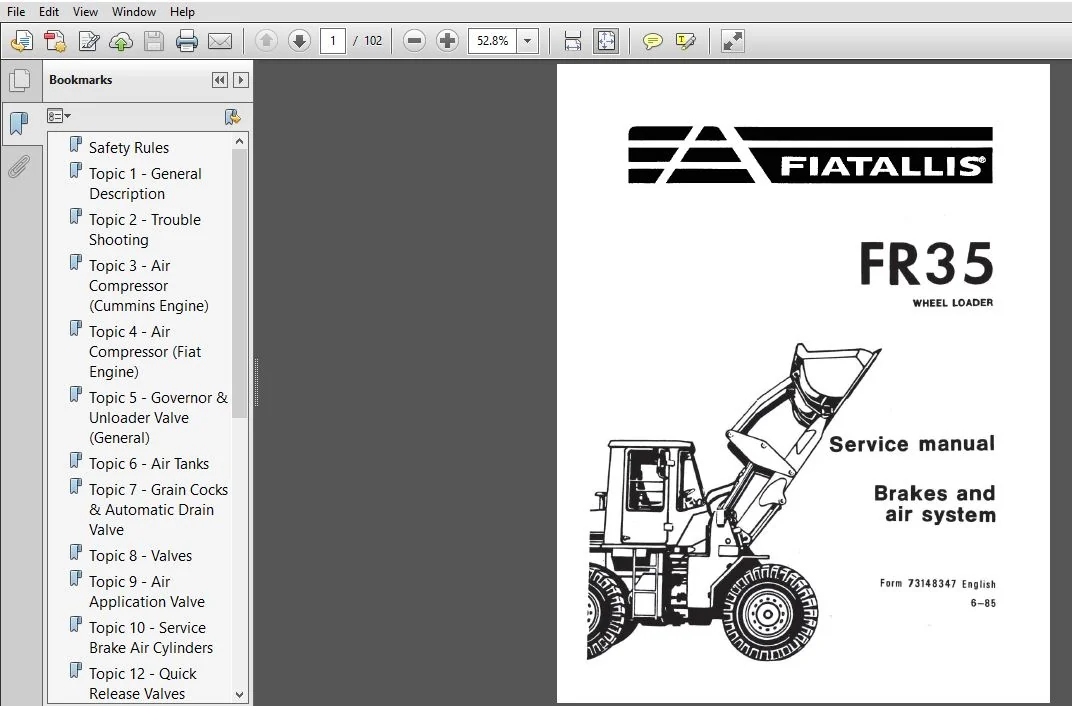

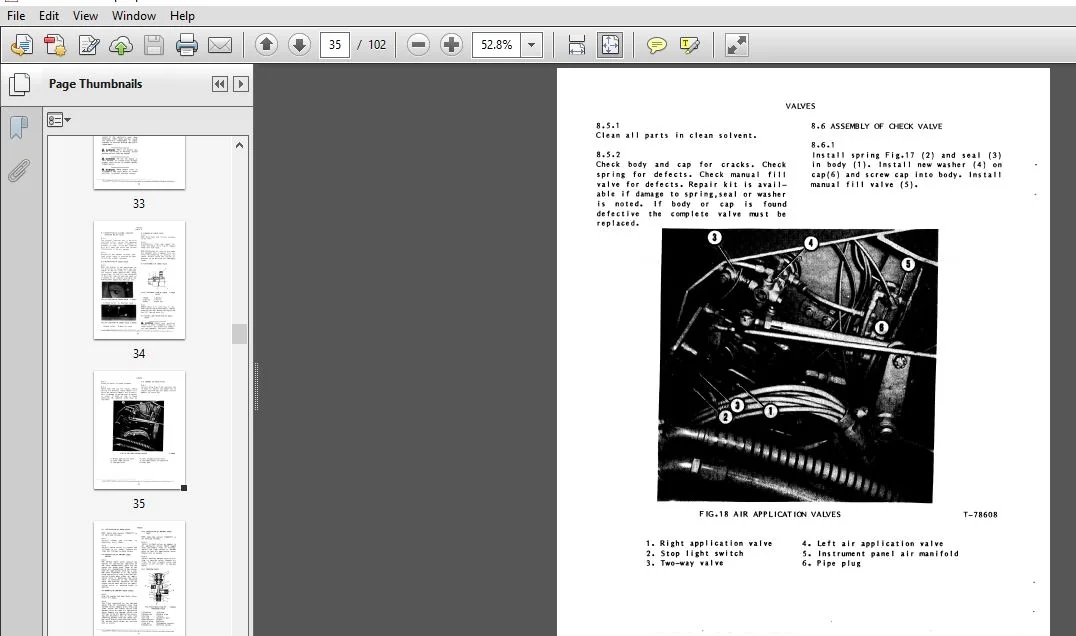

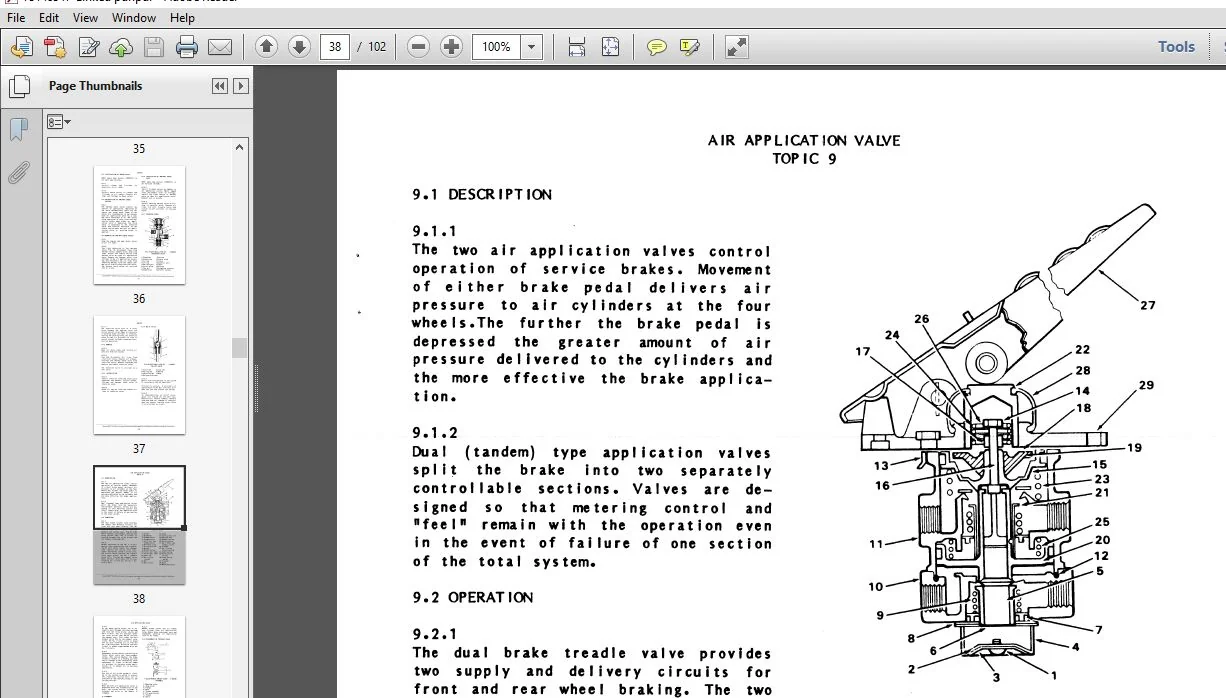

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
FIATALLIS FR35 BRAKES AND AIR SYSTEM WHEEL LOADER SERVICE MANUAL
Safety Rules 4
Topic 1 – General Description 9
Topic 2 – Trouble Shooting 13
Topic 3 – Air Compressor (Cummins Engine) 19
Topic 4 – Air Compressor (Fiat Engine) 21
Topic 5 – Governor & Unloader Valve (General) 25
Topic 6 – Air Tanks 28
Topic 7 – Grain Cocks & Automatic Drain Valve 31
Topic 8 – Valves 34
Topic 9 – Air Application Valve 38
Topic 10 – Service Brake Air Cylinders 42
Topic 12 – Quick Release Valves 52
Topic 13 – Alcohol Injector 55
Topic 14 – Air Dryer 58
Topic 15 – Air Pressure Gauge 62
Topic 16 – Air Horn 63
Topic 17 – Low Air Pressure & Brake Light Switches 66
Topic 18 – Parking Brake 67
Topic 19 – Parking Brake Actuator 76
Topic 20 – Parking Brake Valve 84
Topic 21 – Clutch Cut-Off Cylinder 86
Topic 22 – Tests 88
Topic 23 – Unloader Valve & Schmatics 91
Topic 24 – Alcohol Injector & Air Dryer Schematics 96
