Fiatallis FR35 Wheel Loader Service Manual – PDF

Description

Fiatallis FR35 Wheel Loader (Brakes & Air System)Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR35 Wheel Loader(Brakes & Air System)Service Manual – PDF DOWNLOAD

FN 73148347

Language : English
Pages : 102
Downloadable : Yes
File Type : PDF

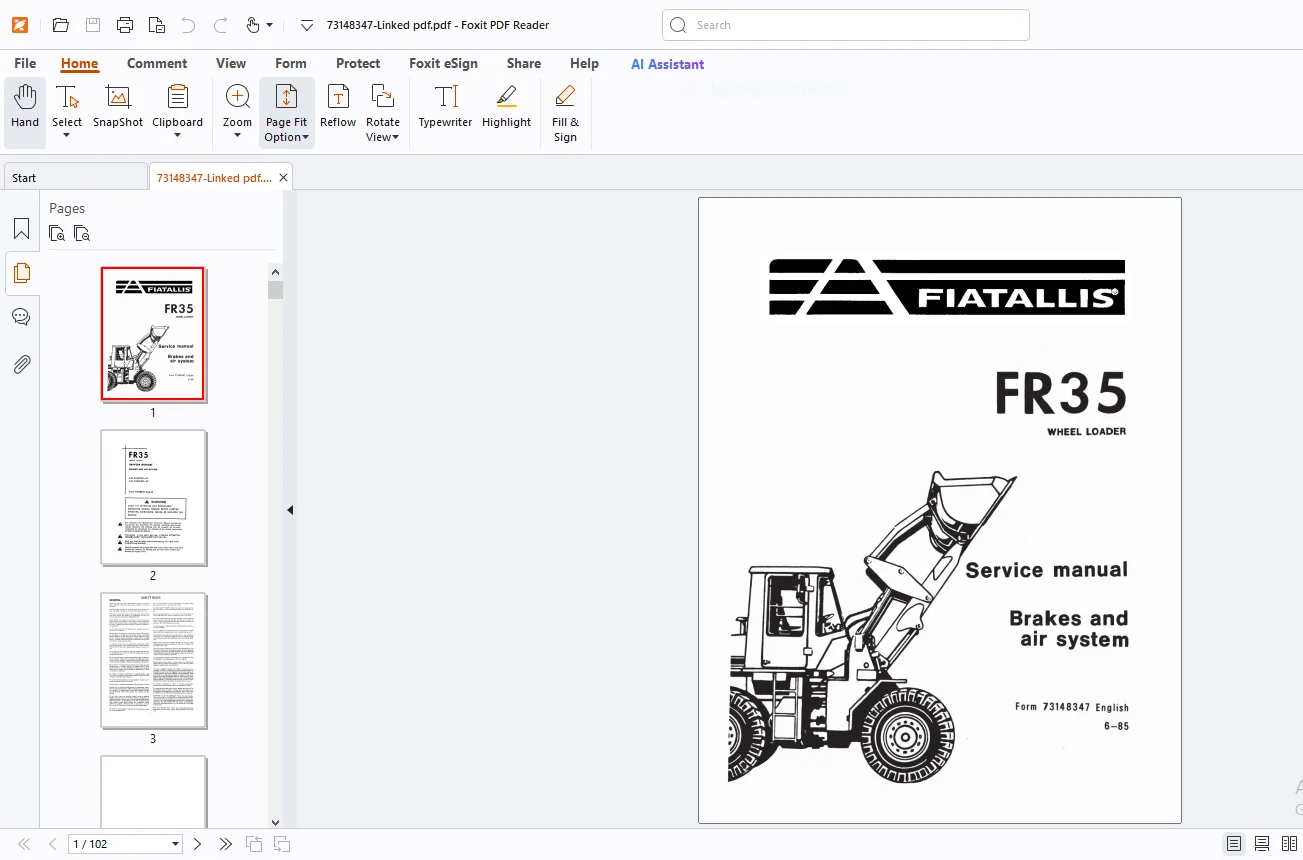

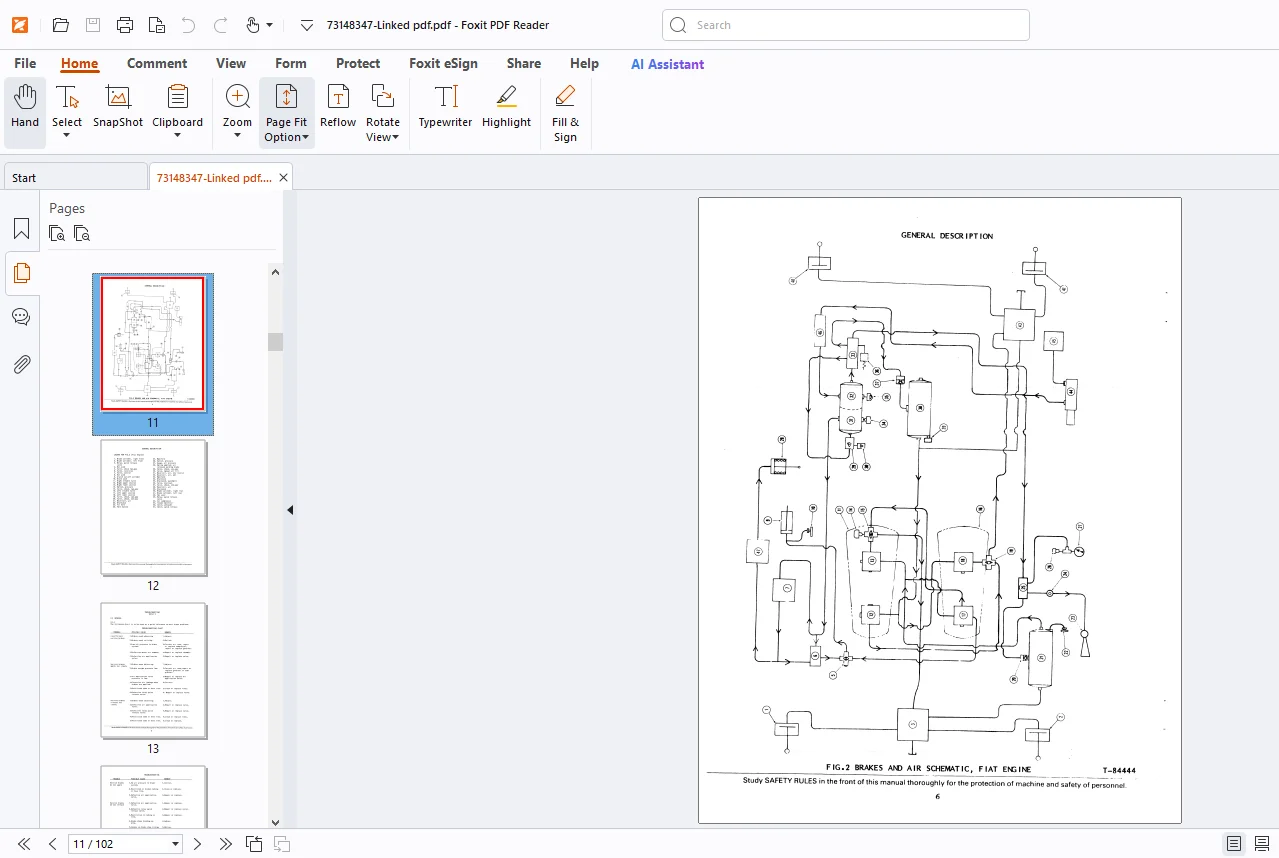

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FR35 Wheel Loader(Brakes & Air System)Service Manual – PDF DOWNLOAD

FN 73148347

Safety Rules 4
Topic 1 – General Description 9
Topic 2 – Trouble Shooting 13
Topic 3 – Air Compressor (Cummins Engine) 19
Topic 4 – Air Compressor (Fiat Engine) 21
Topic 5 – Governor & Unloader Valve (General) 25
Topic 6 – Air Tanks 28
Topic 7 – Grain Cocks & Automatic Drain Valve 31
Topic 8 – Valves 34
Topic 9 – Air Application Valve 38
Topic 10 – Service Brake Air Cylinders 42
Topic 12 – Quick Release Valves 52
Topic 13 – Alcohol Injector 55
Topic 14 – Air Dryer 58
Topic 15 – Air Pressure Gauge 62
Topic 16 – Air Horn 63
Topic 17 – Low Air Pressure & Brake Light Switches 66
Topic 18 – Parking Brake 67
Topic 19 – Parking Brake Actuator 76
Topic 20 – Parking Brake Valve 84
Topic 21 – Clutch Cut-Off Cylinder 86
Topic 22 – Tests 88
Topic 23 – Unloader Valve & Schmatics 91
Topic 24 – Alcohol Injector & Air Dryer Schematics 96

DESCRIPTION:

Fiatallis FR35 Wheel Loader(Brakes & Air System)Service Manual – PDF DOWNLOAD

FN 73148347

GENERAL:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before star ting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head. body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate, service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas slopes, overhangs. timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine.
• Keep two hands and one foot or two feet and one hand, in contact with steps, grab rails and handles at all times. Do not use controls or hoses as handholds when climbing on or off machine Hoses and controls are movable and do not provide a solid support.
• Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil grease, mud or snow accumulation to minimize the danger of slipping or stumbling Clean mud or grease from shoes before attempting to mount or operate the machine
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material For your personal protection, do not attempt to climb on or off machine while machine is in motion.
• Never leave the machine unattended with the engine running Always lock up machine when leaving it unattended. Retum keys to authorized security. Heed all shutdown procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason.
• Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, tom clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements.
