Fiatallis HD-41 HD41-B Crawler Tractors Service Manual – PDF

Description

Fiatallis HD-41 HD41-B Crawler Tractors(Hydraulics Without Power Assist) Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis HD-41 HD41-B Crawler Tractors(Hydraulics Without Power Assist)Service Manual – PDF DOWNLOAD

FN 70695805

Language : English
Pages : 68
Downloadable : Yes
File Type : PDF

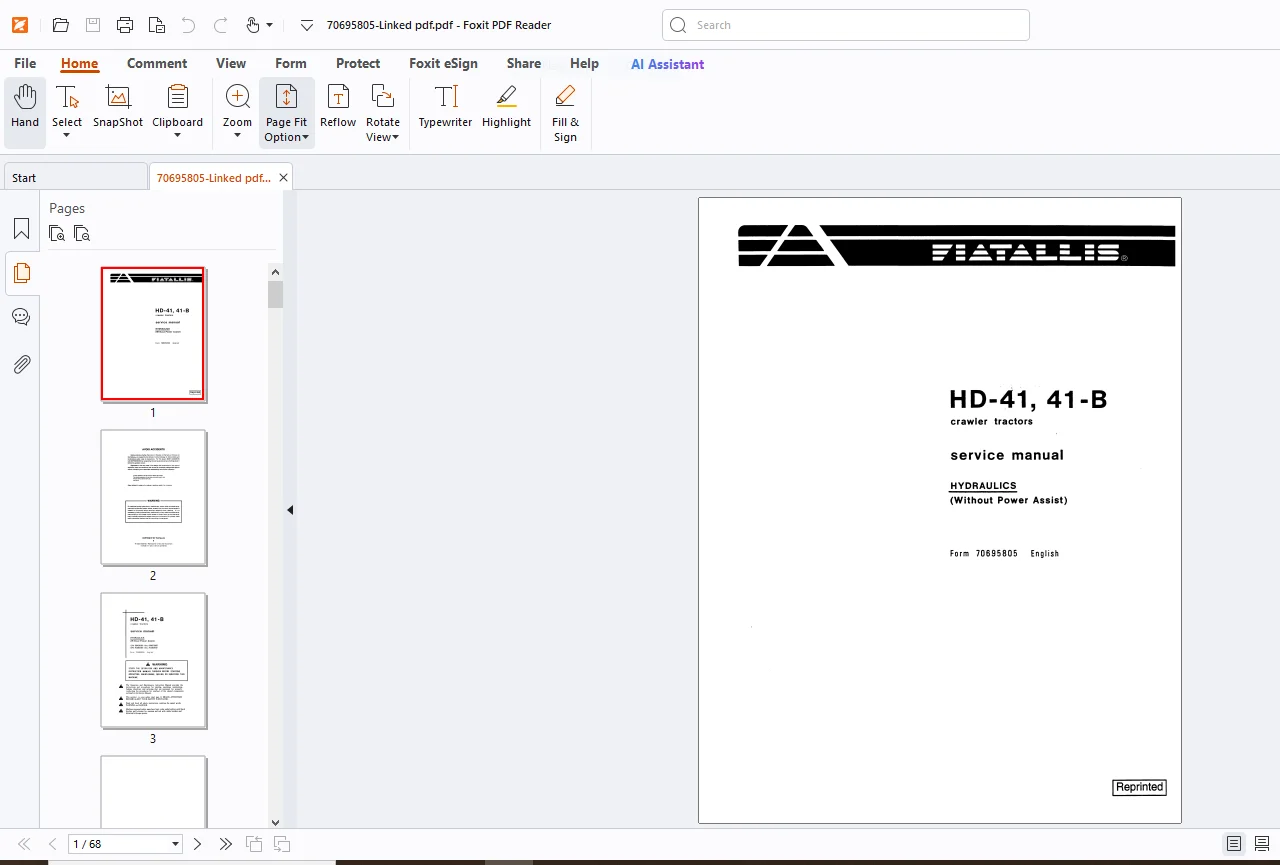

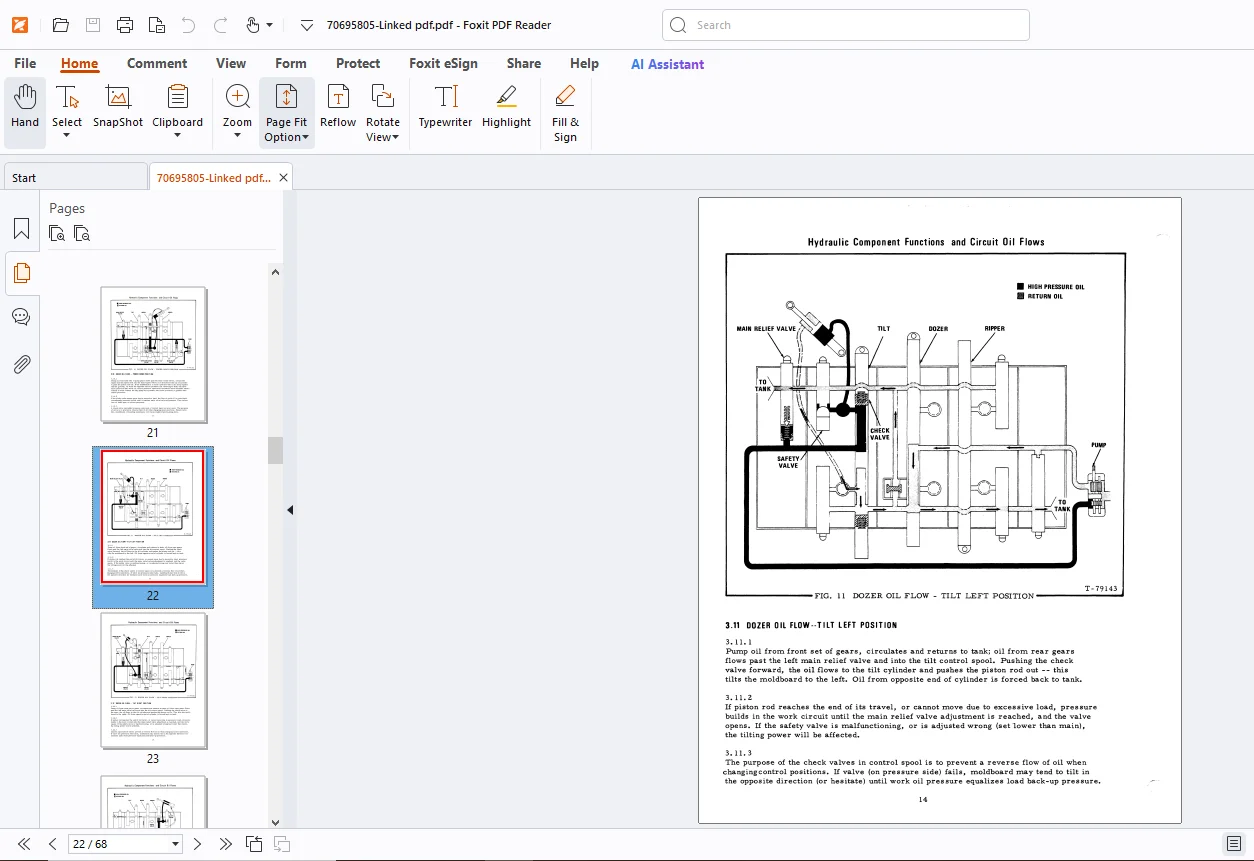

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis HD-41 HD41-B Crawler Tractors(Hydraulics Without Power Assist)Service Manual – PDF DOWNLOAD

FN 70695805

Table of Contents 10
Topic 1 – General Description / Topic 2 – Hydraulic System Specifications, Capacity, and Service 11
Topic 3 – Hydraulic Component Functions and Circuit Oil Flows 14
Topic 4 – Trouble-shooting 26
Topic 5 – Hydraulic Pump 34
Topic 6 – Hydraulic Controls Valves 39
Topic 7 – Hydraulic Cylinders 45
Topic 8 – Dozer and Ripper Removal and Installation 58
Topic 9 – Torque Values 63
Topic 10 – Service Tools 64
Alphabetical Index 65

DESCRIPTION:

Fiatallis HD-41 HD41-B Crawler Tractors(Hydraulics Without Power Assist)Service Manual – PDF DOWNLOAD

FN 70695805

GENERAL:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and head all machine-mounted safety signs before start- ing, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black borders and lettering for WARNING and red with white borders and lettering for DANGER points. Do not allow unauthorized personnel to service or maintain this machine.
• Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting starting, operating, maintaining, fueling or servicing this machine.
• Always wear safey glasses with side shields. Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators.
• Consult your employer for specific safety equipment requirements. Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement.
• Do not jump on or off machine. Keep two hands and one foot or two feet and one hand, in contact with steps and grab-rails and handrails at all times. Machine should not be serviced with anyone in the operator’s seat unless they are qualified to operate the machine and are assisting in the servicing.
• Keep operator’s compartment, stepping points, grab-rails and handles clean of foreign objects, oil, grease, mud or snow ac cumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat. Keep operator’s compartment clear of loose objects. Always block with external support any linkage or part on machine that requires work under the raised linkage, parts, or machine per local or national requirements. Never allow anyone to walk under or be near unblocked raised equipment.
• Avoid working or walking under raised blocked equipment unless you are assured of your safety. Never place head, body, limbs, fingers, feet or hands into ant exposed portion between uncontrolled or unguarded scissor points of machine without first providing secure blocking.
• Never leave machine unattended with the engine running. Never lubricate, service or adjust a machine with the engine running, except as called for in the Operation and Maintenance Instruction Manuals. Do not wear loose clothing or jewelry near moving parts.
