Description

📘 DOCUMENT OVERVIEW

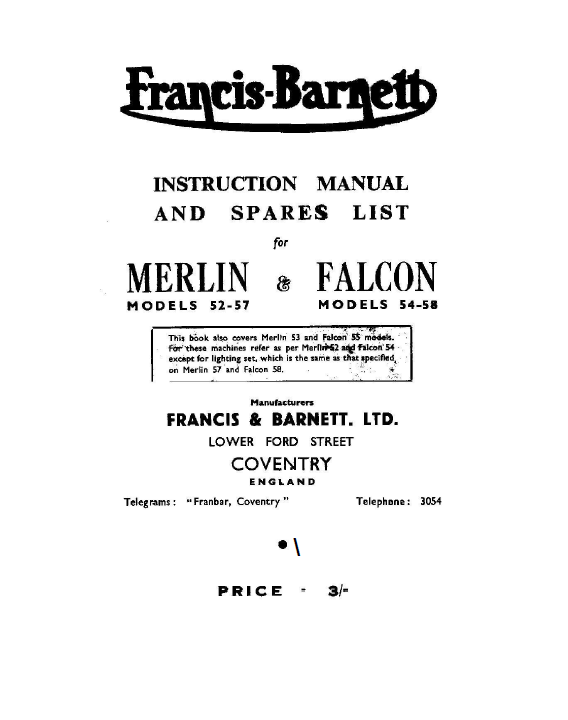

This comprehensive manual provides detailed instructions and a parts list for the maintenance and repair of Francis-Barnett Merlin and Falcon motorcycles, specifically models 52-57 and 54-58. It’s a valuable resource for both professional mechanics and experienced DIY enthusiasts. The manual seamlessly blends clear instructions with insightful diagrams, ensuring a user-friendly experience despite the technical nature of the content.

🔧 What’s Inside:

• Detailed Data Sheets: Provides key specifications for each model, including engine details, dimensions, and capacities. ⚙️
• Control Explanations: Clear illustrations and descriptions of all motorcycle controls, ensuring users understand how to operate the machine safely. 🏍️
• Maintenance Schedules: A handy periodic maintenance summary guides users through essential checks and service procedures at various mileage intervals. 🗓️
• Step-by-Step Procedures: The manual meticulously details procedures for servicing components like the gearbox, clutch, chain, brakes, front forks, and rear suspension. 🛠️
• Troubleshooting Guide: A fault-finding chart and troubleshooting section helps diagnose and resolve common mechanical issues, making repairs efficient and less frustrating. ⚠️
• Lighting System Information: Includes separate sections explaining the operation and maintenance of both direct and rectifier lighting systems.💡
• Comprehensive Parts List: A detailed parts catalog with part numbers and descriptions makes ordering replacement parts straightforward. 🛒

🚜 Equipment Covered:

The manual covers Francis-Barnett Merlin models 52, 53, 57 and Falcon models 54, 55, 58.

Key Technical Information:

• Detailed engine specifications (bore, stroke, capacity, power)
• Gear ratios
• Lubrication specifications and recommendations
• Electrical system diagrams and explanations
• Torque settings for various components

❌ WHAT’S NOT INCLUDED

• Extensive electrical circuit diagrams beyond those provided.
• Repair procedures for all possible issues (comprehensive but not exhaustive).

📊 RECOMMENDATION SUMMARY

❓ FREQUENTLY ASKED QUESTIONS

💬 Customer FAQs:

Q: What models does this manual cover?
A: This manual covers Francis-Barnett Merlin models 52, 53, 57 and Falcon models 54, 55, 58.

Q: What type of procedures are included?
A: The manual includes detailed procedures for servicing and maintenance of the engine, gearbox, clutch, brakes, chains, front forks, rear suspension, lighting systems, and more. It also provides a troubleshooting guide and a parts list.

Q: Is this suitable for DIY mechanics?
A: While the manual is detailed and comprehensive, some procedures require mechanical experience. It’s best suited for experienced DIY mechanics or those comfortable working with technical documentation.

Q: What format is this manual in?
A: This manual is provided as a downloadable digital PDF.

Q: Are there any language requirements?
A: The manual is primarily in English.

Q: Does this include a parts catalog?
A: Yes, a comprehensive parts list with part numbers and descriptions is included.

📂 PDF SNAPSHOT & USABILITY REPORT

• Overall Quality: Excellent – comprehensive and detailed.
• Content Type: Service Manual and Parts Catalog
• Language: English
• Technical Level: Intermediate to Professional
• Recommended For: Professional mechanics and experienced DIY users of Francis-Barnett Merlin and Falcon Motorcycles (models 52-57 and 54-58).
• Page Count: Approximately 58
• Image Quality: Good – clear diagrams and illustrations support the text.

📋 Original Product Description:

Francis Barnet – Merlin model 52 to 57 and Falcon 45 to 59 MOTORCYCLE Service Repair Manual – Download !
