FUJIFILM DryPix 7000 Dry Laser Imager Service Manual – PDF Download
Original price was: $65.00.$15.95Current price is: $15.95.

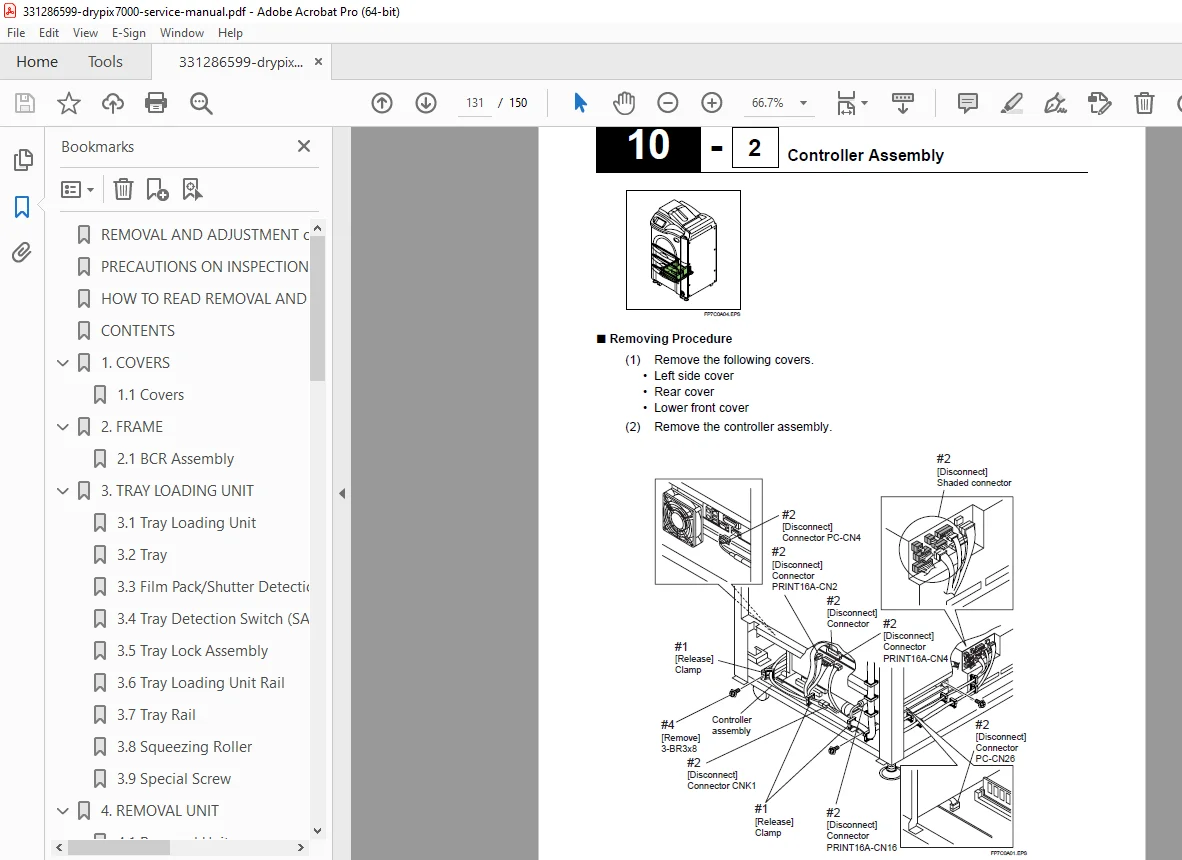

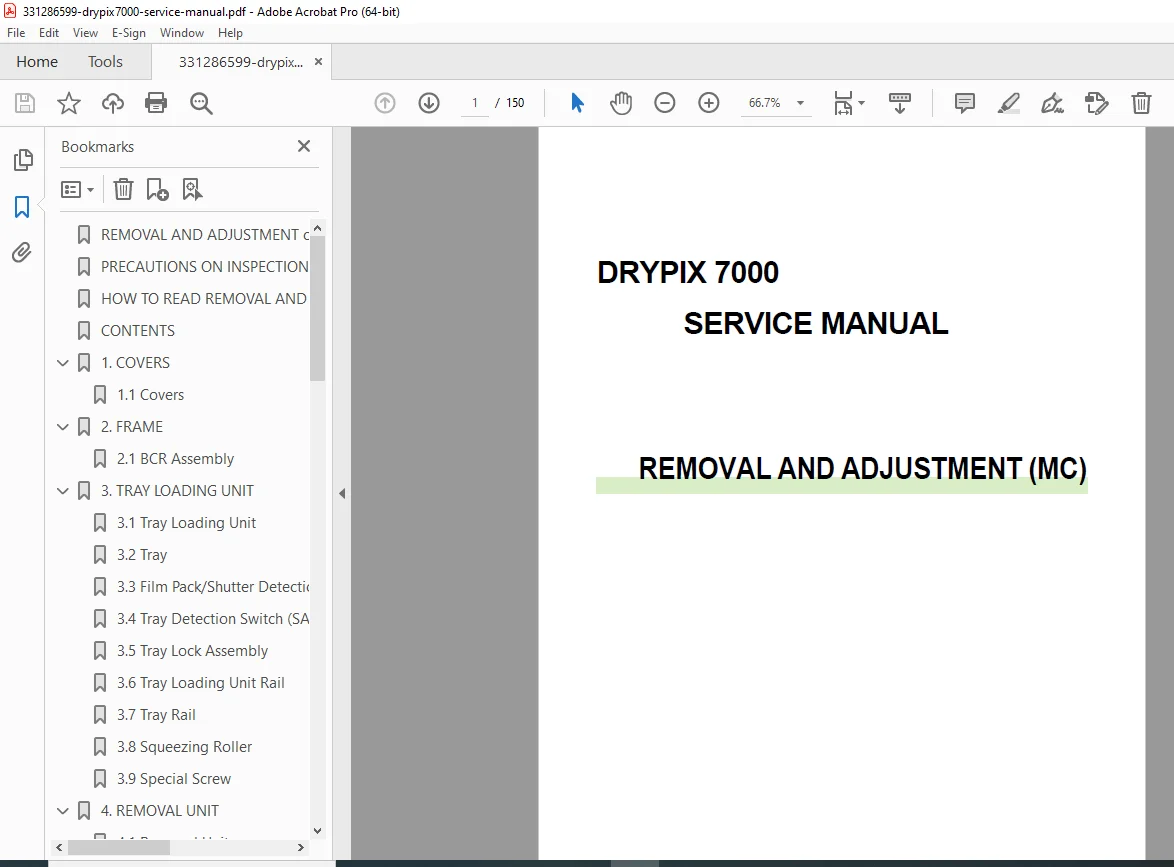

Official FUJIFILM DryPix 7000 Dry Laser Imager Service Manual covering diagnostic modes, error codes, preventive maintenance, calibration procedures, film transport system servicing, optical module adjustment, network settings, and full parts breakdown diagrams. Essential for medical imaging service engineers and radiology equipment technicians.
Description
FUJIFILM DryPix 7000 Dry Laser Imager Service Manual – PDF Download
DESCRIPTION
This is the factory-authorized Service Manual for the FUJIFILM DryPix 7000 medical dry laser imaging system used in radiology and diagnostic imaging environments.
It provides full setup, calibration, diagnostic troubleshooting, system disassembly, print quality optimization, mechanical maintenance, and network configuration procedures required to properly service and maintain this device.
This manual is intended for:
Biomedical engineering departments
PACS / Radiology IT support teams
Field medical imaging equipment service engineers
Diagnostic imaging technicians
It enables accurate, stable film output, consistent grayscale reproduction, and long-term device reliability in high-volume clinical environments.
TABLE OF CONTENTS
1. System Overview
General System Architecture
Component Layout & Module Overview
Film Handling & Imaging Workflow
2. Safety & Handling Information
Electrical Safety Precautions
Laser and Optical Exposure Warnings
Static and Mechanical Handling
3. Installation & Configuration
Site Requirements
Environmental Alignment
Initial Setup Sequence
Network Configuration & DICOM Settings
4. Operation Theory
Laser Exposure & Image Writing Process
Film Transport & Processing Path
Temperature Control & Stabilization
Optical Alignment Functions
5. Service Modes & Diagnostics
Service Login / Service Menus
Self-Test Patterns
Error Logs & Status Monitoring
Test Print Output Verification
6. Adjustment & Calibration
Optical Writing System Calibration
Film Transport Speed Adjustment
Density / Gamma / LUT Calibration
Thermal System Adjustments
7. Troubleshooting & Error Codes
Mechanical Jam Clearing
Optical / Exposure Errors
Temperature Control Errors
Network / Communication Faults
Film Output Quality Trouble Flows
8. Mechanical Service Procedures
Laser Unit Access
Transport Rollers & Drive Assembly
Feed / Exit Mechanisms
Cooling & Fan Assemblies
Main Control Boards
9. Parts List & Exploded Diagrams
Major Subassembly Breakdown
Field Replaceable Units
Part Numbers / Ordering Index
✅ KEY FEATURES / SERVICE CAPABILITY
Print density & grayscale reproduction calibration
Film path & feed roller servicing
Optical engine stability & alignment procedures
Network / DICOM image transfer troubleshooting
Temperature and humidity compensation tuning
Mechanical disassembly with exploded diagrams
✅ FILE DETAILS
| Field | Value |
|---|---|
| Manual Name | FUJIFILM DryPix 7000 Service Manual |
| Models Covered | DryPix 7000 Laser Imager Series |
| Year | Factory Release (Varies by revision) |
| Manual Quality | Original OEM Service Manual (High Resolution, Printable) |
| Pages | ~150 |
| Format |
