Funai Td5b n8481zb Hdd Dvd Vcr Service Manual – PDF DOWNLOAD

Description

Funai Td5b n8481zb Hdd Dvd Vcr Service Manual

DESCRIPTION:

Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a ! on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product’s Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are carefully inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

FUNAI TD5B N8481ZB HDD DVD VCR SERVICE MANUAL – PDF DOWNLOAD:

TABLE OF CONTENTS:

Specifications1-1-1
LaserBeamSafetyPrecautions1-2-1
ImportantSafetyPrecautions1-3-1
StandardNotesforServicing1-4-1
HandlingPrecautionsforHDD1-5-1
PreparationforServicing1-6-1

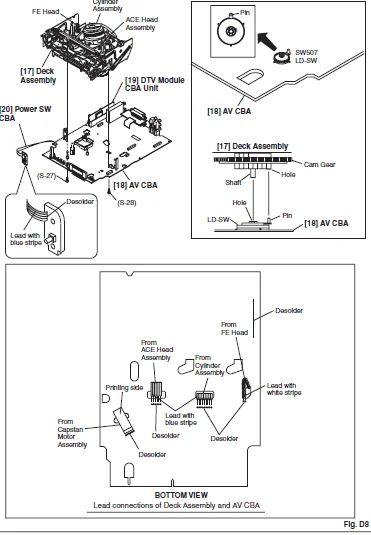

CabinetDisassemblyInstructions1-7-1
ElectricalAdjustmentInstructions1-8-1
HowtoSelf-CheckandHDDFormat1-9-1
HowtoInitializetheHDD&DVD/VCR1-10-1
FirmwareRenewalMode1-11-1
FunctionIndicatorSymbols1-12-1
Troubleshooting1-13-1
BlockDiagrams1-14-1

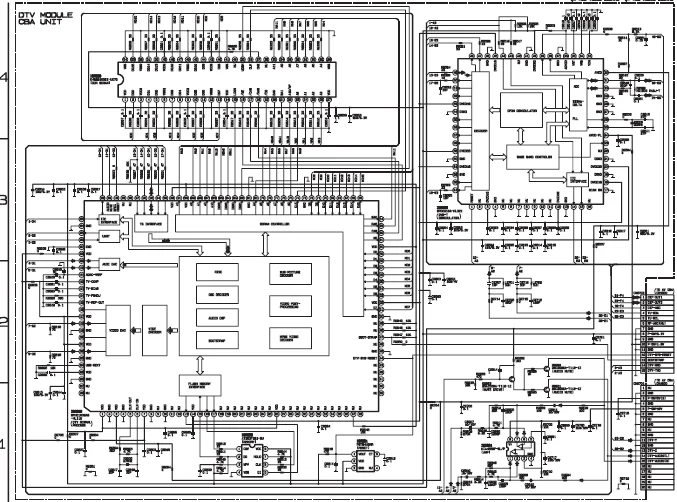

SchematicDiagrams/CBAandTestPoints1-15-1
Waveforms1-16-1
WiringDiagram1-17-1
ICPinFunctionDescriptions1-18-1
LeadIdentifications1-19-1

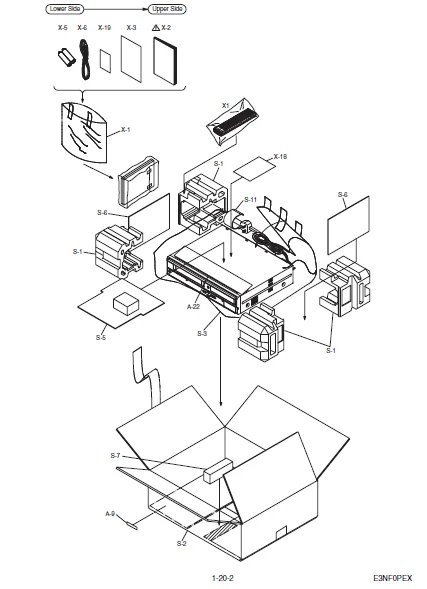

ExplodedViews1-20-1
MechanicalPartsList1-21-1
ElectricalPartsList1-22-1

IMAGES PREVIEW OF THE MANUAL:
