FW06 Model – Full Services & Maintenance Manual PDF DOWNLOAD
Original price was: $75.00.$19.95Current price is: $19.95.
Official FW06 Services Manual, covering detailed setup, usage, maintenance, troubleshooting, component removal, adjustment procedures, mechanical specifications, and repair workflow. Includes wiring diagrams, calibration sequences, service schedules, and replaceable parts list.
Description
FW06 Model – Full Services & Maintenance Manual PDF DOWNLOAD
description
Overview
Factory service & maintenance manual for the FELO FW-06 electric motorcycle. It covers safe service procedures, full technical specs, scheduled maintenance, torque data, EV electronics (VCU/MCU/ICM, battery, DC-DC, OBD), ABS, smart key, wiring harness routes, and step-by-step exterior/bodywork removal/refit.
FW06 Model – Full Services & Ma…
Models covered
FW06-01 (Classic)
FW06-02 (Sci-Fi Green Graffiti)
FW06-03 (Space Grey / Obsidian Black)
FW06 Model – Full Services & Ma…
Key technical data (selected)
Battery: 96 V lithium, 58 Ah; pack ~35 kg (26S1P); charger 100–240 Vac, 70–108 V/7.4 A, CC-CV, air-cooled.
Motor: 5 kW rated (10 kW max), central, PM, air-cooled.
Tires: 110/80-14 (F), 140/70-14 (R); cold pressures 200–225 kPa.
Brakes: Hydraulic discs; fluid DOT 3.
Gearbox oil: GL-5 80W-90, 350 mL.
Belt tension (sonic): 55–65 Hz.
Typical torques: Rear wheel nut 120 N·m; calipers 22–35 N·m; steering locknuts 58 N·m.
FW06 Model – Full Services & Ma…
Maintenance & procedures
Full maintenance schedule (pre-ride, 1,000 km, 5k/10k km, annual/biannual).
Brake bleeding & fluid replacement (front/rear), pad wear limits (3.0 mm).
Front fork oil change (≈57 mL each) and shock checks.
Gearbox drain/refill; belt inspection patterns and re-tensioning.
Steering column free play set-up; wheel/rim checks.
FW06 Model – Full Services & Ma…
EV & electrical

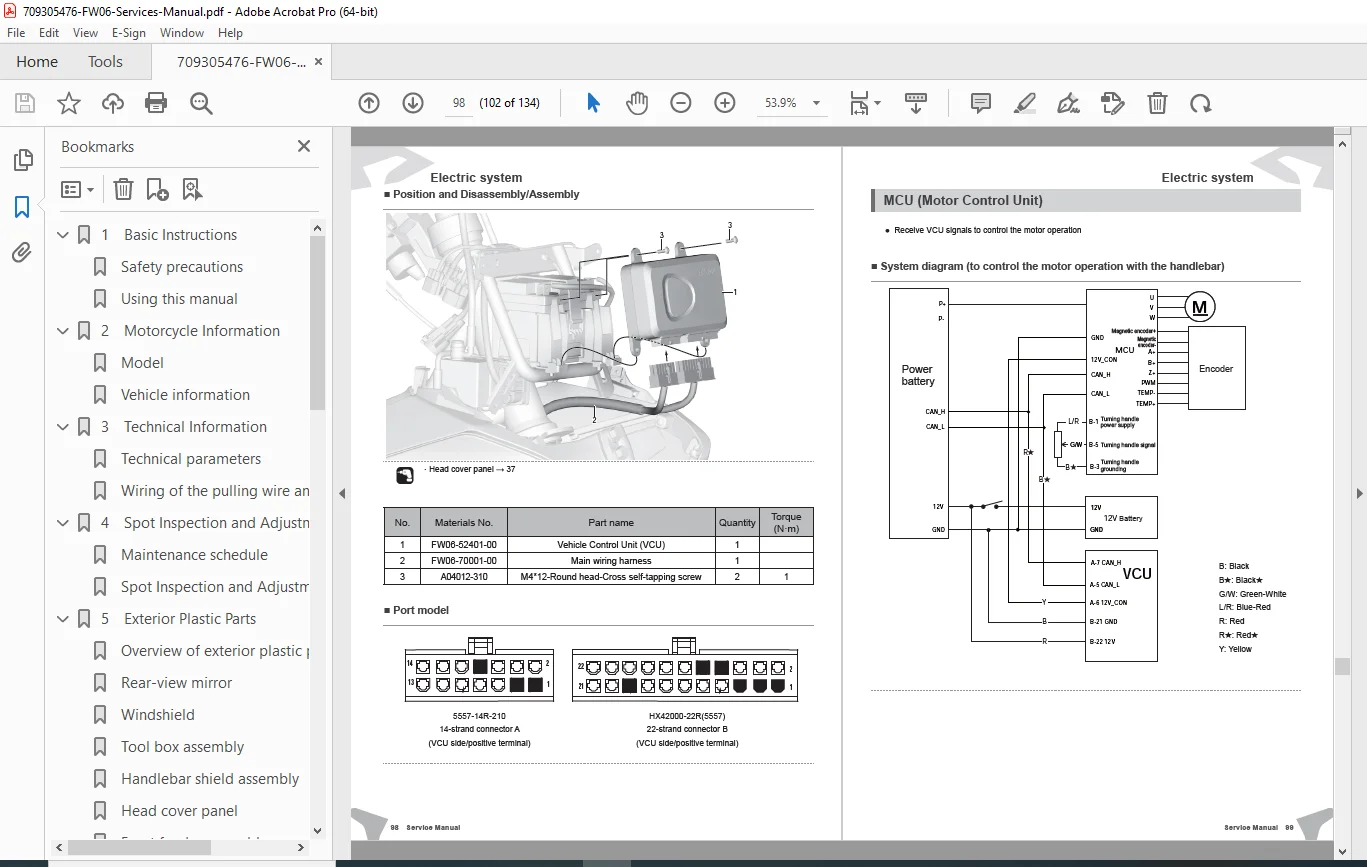

EV system layout; OBD port model; VCU/MCU/ICM roles; DC-DC, lighting, smart key, ABS.
Complete wiring harness routing with labeled sub-looms and connectors.
Electrical principle schematic in appendix.
FW06 Model – Full Services & Ma…
Bodywork & chassis
Exploded parts, fastener maps, and torques for: mirrors, windshield, handlebar shrouds, head covers, fenders, seat buckets, tail assemblies, side/mid covers, vents, battery pack covers, license plate bracket; plus wheels, fork, bars, side stand, rocker arms, rear shock.
FW06 Model – Full Services & Ma…
Why this manual helps
Cuts diagnosis time with exact specs and step order.
Reduces rework via factory torque values and belt frequency targets.
Safe high-voltage handling guidance for EV components.
FW06 Model – Full Services & Ma…
File details
| Item | Details |
|---|---|

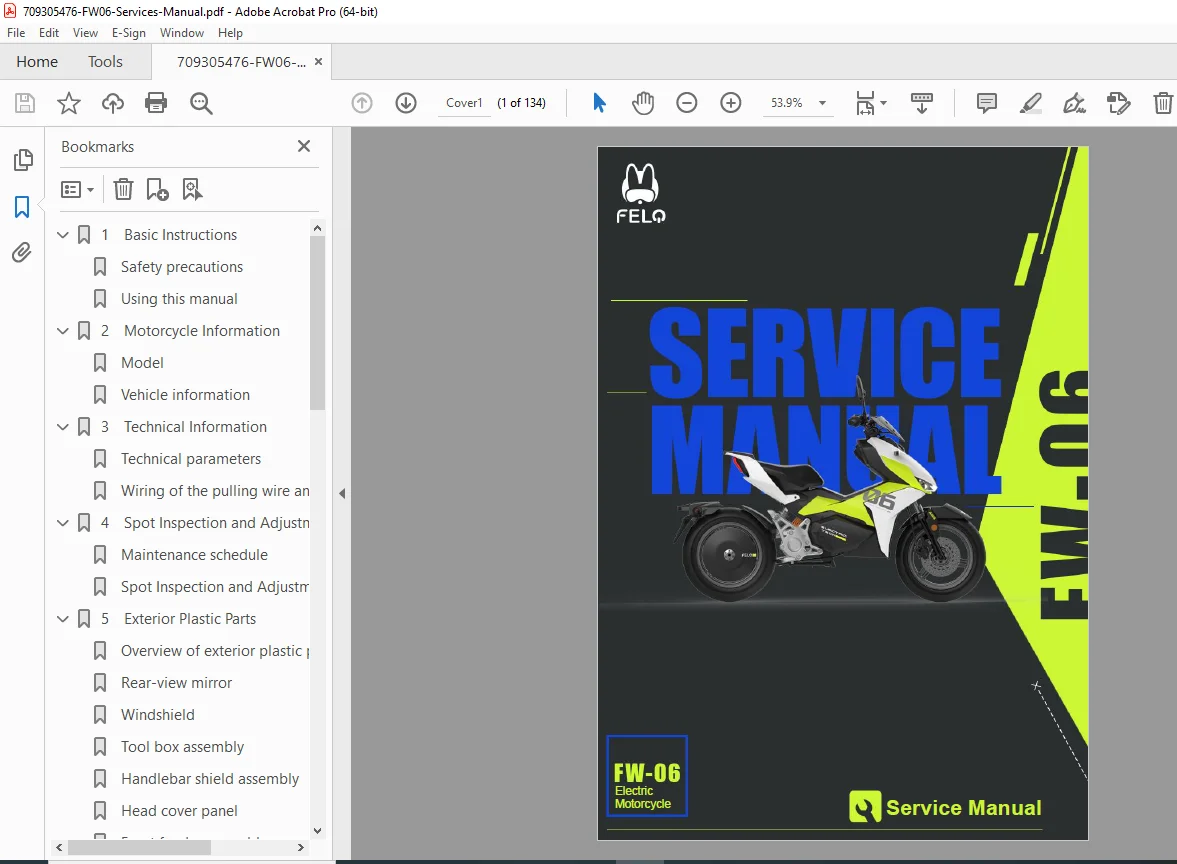

| Manual name | FELO FW-06 Service Manual (First Edition, Jan 2023) |
| Models | FW06-01 / FW06-02 / FW06-03 |
| Coverage | Service, maintenance, EV system, ABS, smart key, wiring, schematics |
| Quality | Clear searchable PDF with diagrams/exploded views |
| Pages | ~130+ (sections numbered through p.129 plus appendices) |
| Language | English |
Included sections (high level)
Basic instructions & safety
Motorcycle information (VIN/model)
Technical information (specs, torques, unit tables)
Spot inspection & adjustment (schedule & procedures)
Exterior plastic parts (exploded views)
Power system (reduction gearbox & motor)
Body structure (wheels, brakes, fork, bars, stands, shocks)
Electric system (EV/VCU/MCU/ICM, battery/charging, DC-DC, lighting, smart key, ABS)
Electrical schematic (appendix).
