GRAMMER MSG95EL Seat Suspension Repair Manual (January 2013)

Description

GRAMMER MSG95EL Seat Suspension Repair Manual

This GRAMMER MSG95EL Seat Suspension Repair Manual, dated January 2013, is the dedicated repair reference for the GRAMMER MSG95EL air-suspended seat base used across a range of heavy-vehicle applications. The document guides a technician from identifying the seat variant through electrical and pneumatic diagnosis to full component removal and installation, and it is the same GRAMMER MSG95EL Seat Suspension Repair Manual that GRAMMER references when directing technicians to the separate upper-seat-part manual for work above the suspension itself.

File Details

• Manual type: Repair manual (removal, installation, diagnosis)
• Brand / Model: GRAMMER MSG95EL seat suspension
• Language: English
• Page count: 170 pages
• File format: PDF, digital download
• Material no.: 1 142 202_c
• Document title reference: 1142202_02
• Publication date: January 2013

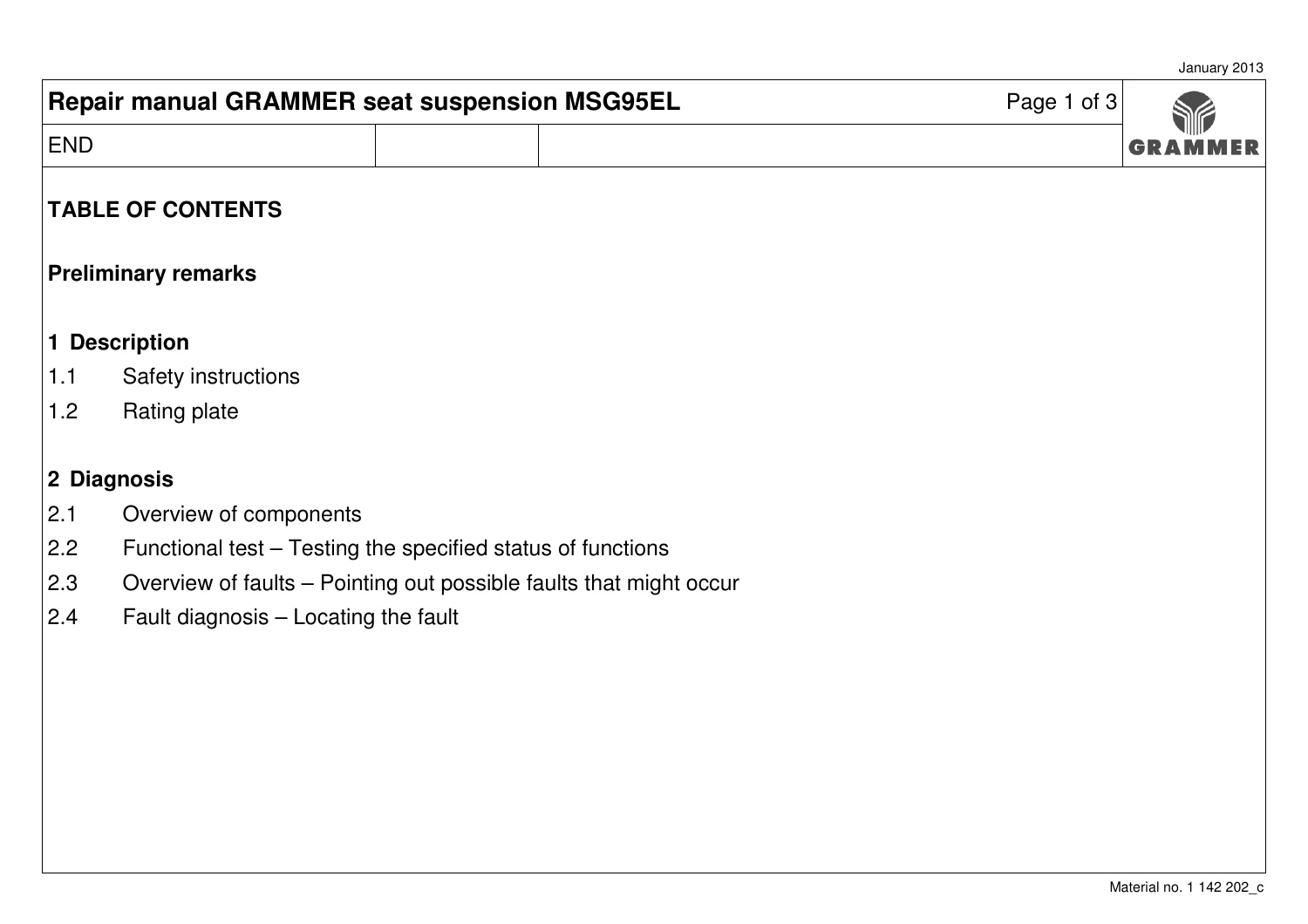

Chapters Covered

• Preliminary remarks — notes on using the manual, safety scope, and document layout
• 1 Description — 1.1 Safety instructions, 1.2 Rating plate (designation, inventory no., year/week/assembly code, order no.)

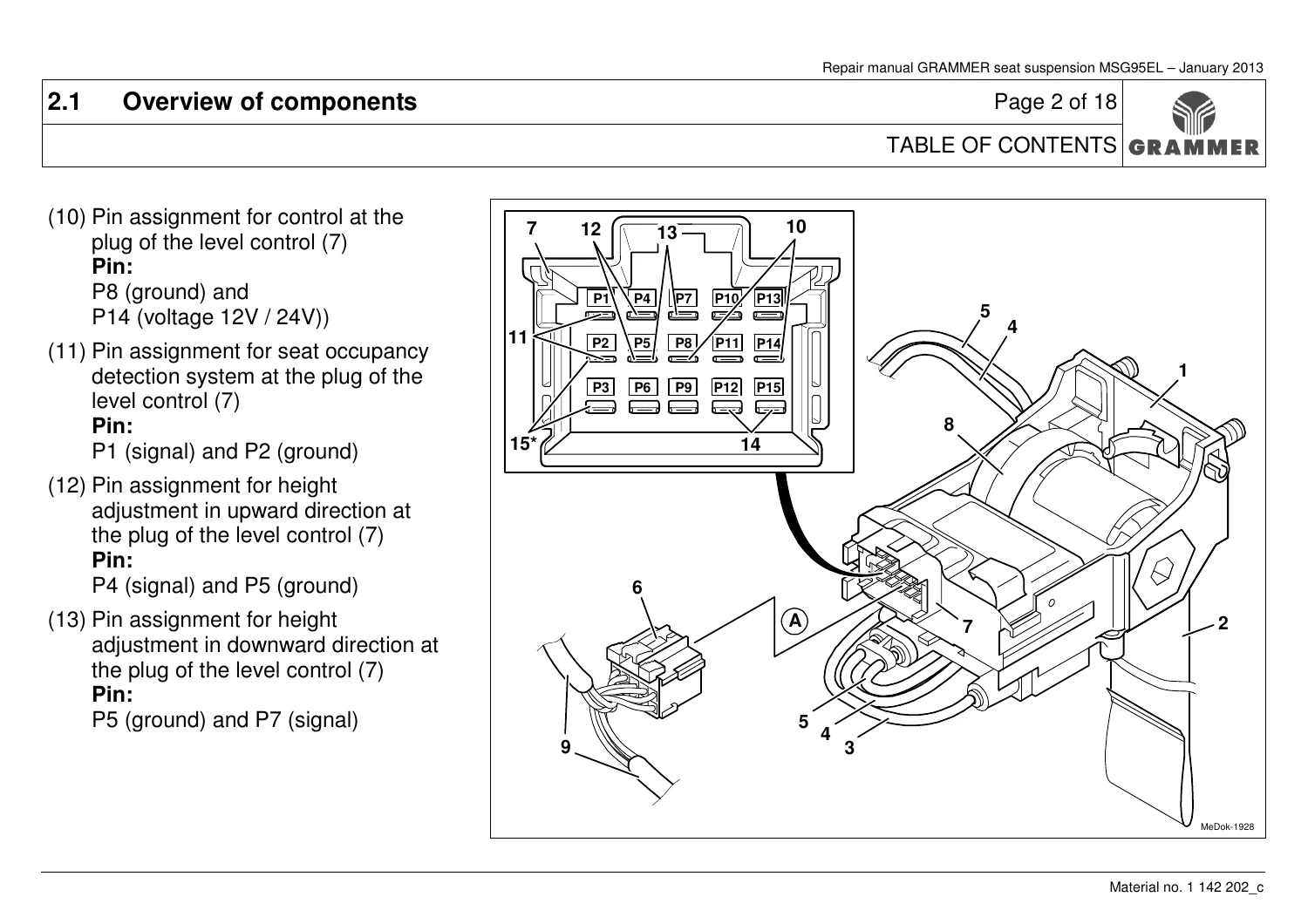

• 2 Diagnosis — 2.1 Overview of components (level control pin assignment, compressor and compressor cable pin assignment, pneumatic connecting diagram, height adjustment/seat occupancy cable harness pin assignment, entire cable harness), 2.2 Functional test, 2.3 Overview of faults, 2.4 Fault diagnosis (checking the level control, compressor/compressor cable, air spring and additional air supply, module for height adjustment, cable harness for height adjustment/seat occupancy detection, entire cable harness)
• 3 Repair work — Seat suspension removal/installation, front cover, top cover, bellows, height adjustment module, vertical shock absorber, longitudinal horizontal shock absorber, fore/aft isolator unit and handle, locking mechanism for fore/aft isolator, compressor, level control, secondary belt, air hoses, air spring, additional air supply, cable harness of vehicle connection, entire cable harness (incl. U-profile), cable harness of height adjustment/seat occupancy detection system, upper part of suspension, lower part of suspension, swinging structure disassembly/assembly, worn parts replacement

Together these chapters take a technician from spotting a fault on the rating plate and wiring diagrams all the way through a full suspension teardown, giving structured coverage of every subsystem in the MSG95EL rather than isolated repair notes.

What This Manual Supports

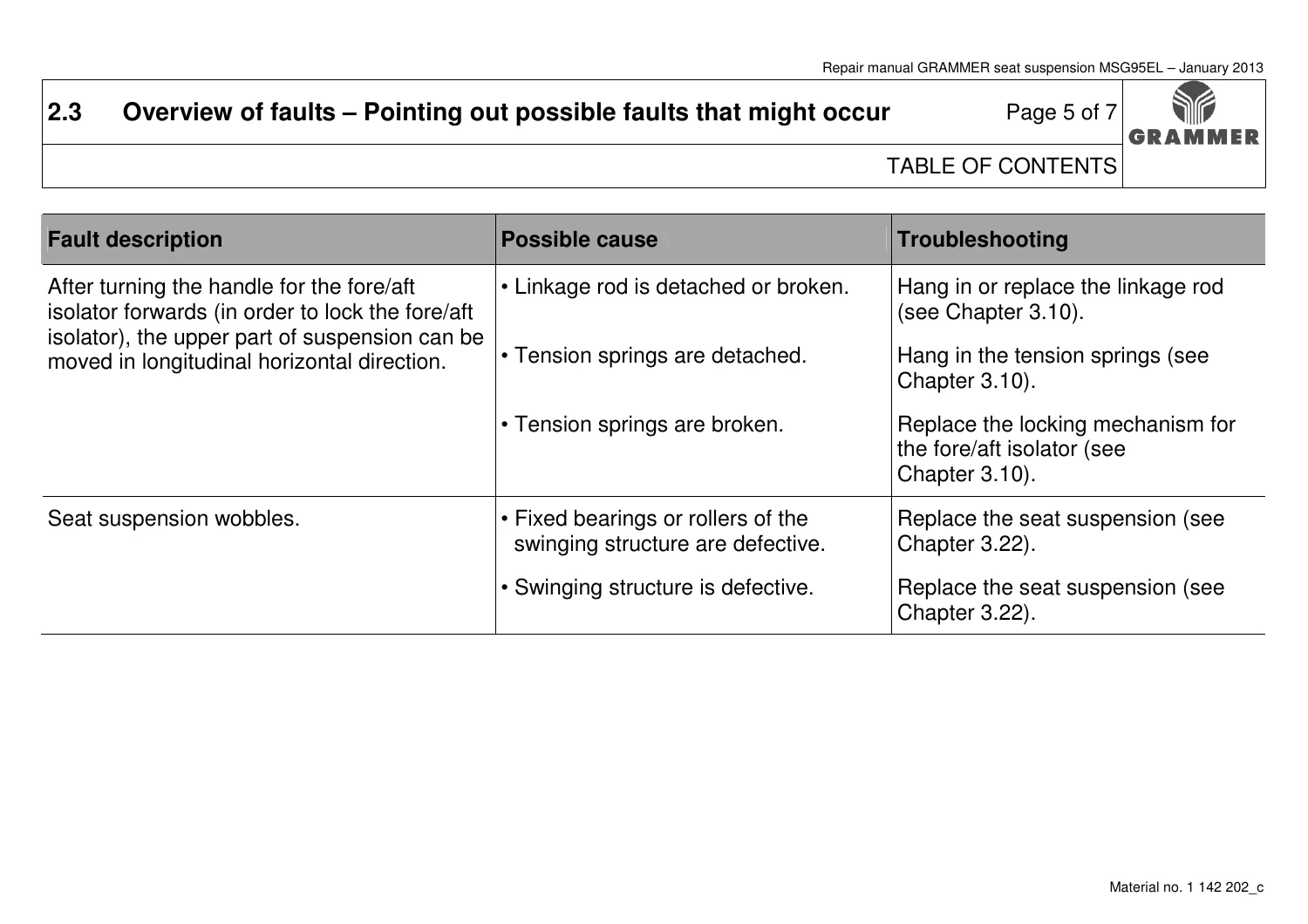

The GRAMMER MSG95EL Seat Suspension Repair Manual sets out numbered overview diagrams for every assembly, so each part referenced in a repair step matches a labelled illustration. The fault-diagnosis chapter lists specific symptoms — the seat not responding to the rocker switch, position drifting and deflating during operation, the suspension pumping up and sticking mid-stroke, or the fore/aft isolator failing to lock or unlock — and walks through checking the level control, compressor and compressor cable, air spring, additional air supply, height adjustment module, and the full cable harness in turn. The repair-work chapter then documents component-level removal and installation, including specified tightening torques such as 25 Nm for the micro-encapsulated cap screws securing the fore/aft adjustment and end stop, smaller 2.5–6 Nm fasteners on bearing and collar screws elsewhere in the suspension, and instructions on replacing single-use hardware rather than reusing it.

IMAGES PREVIEW

Why It Matters

Working from this GRAMMER MSG95EL Seat Suspension Repair Manual means torque values, part numbering, and disassembly sequence come straight from GRAMMER’s own documentation rather than guesswork — important on a seat suspension where incorrect reassembly can affect ride height control, pneumatic sealing, or the seat occupancy detection wiring. The manual explicitly notes that fastening hardware should be replaced rather than reused wherever GRAMMER specifies it, and that pneumatic system work should follow the GRAMMER Praticco special tool kit procedures, both of which are easy to miss without the source document in hand.

Get Your GRAMMER MSG95EL Seat Suspension Repair Manual Today

This GRAMMER MSG95EL Seat Suspension Repair Manual is delivered as an instant PDF download — no shipping wait, no physical copy to lose. Once payment completes you can save it to a laptop, tablet, or phone, print the pages you need at the bench, and keep it on hand for every diagnosis and repair job on this seat suspension platform.
