Grove Crane GMK 3055 Spare Parts List Manual 3099827 – PDF DOWNLOAD
$33.95
Grove Crane GMK 3055 Spare Parts List Manual 3099827 – PDF DOWNLOAD
Description
Grove Crane GMK 3055 Spare Parts List Manual 3099827 – PDF DOWNLOAD
FILE DETAILS:
Grove Crane GMK 3055 Spare Parts List Manual 3099827 – PDF DOWNLOAD
Language : English
Pages : 870
Downloadable : Yes
File Type : PDF

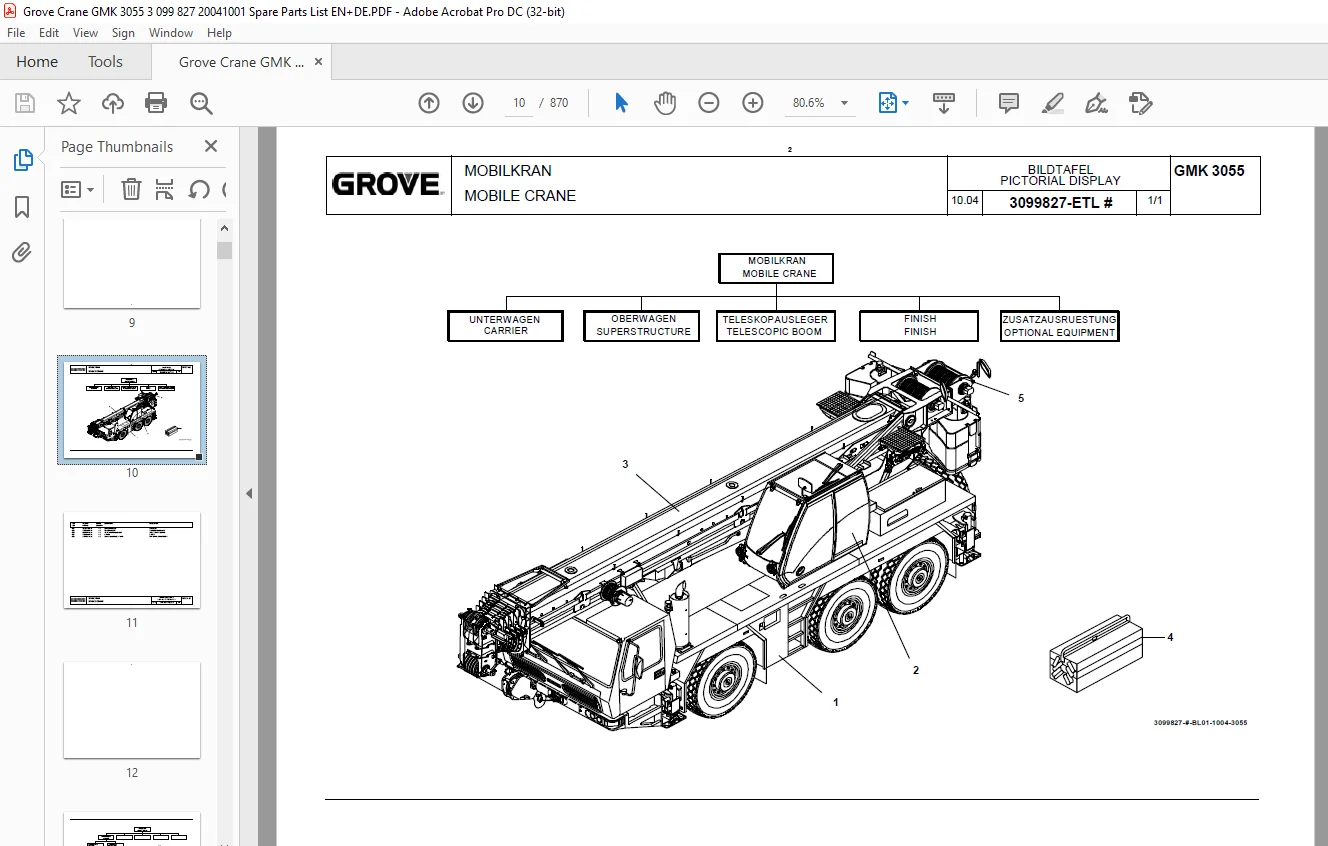

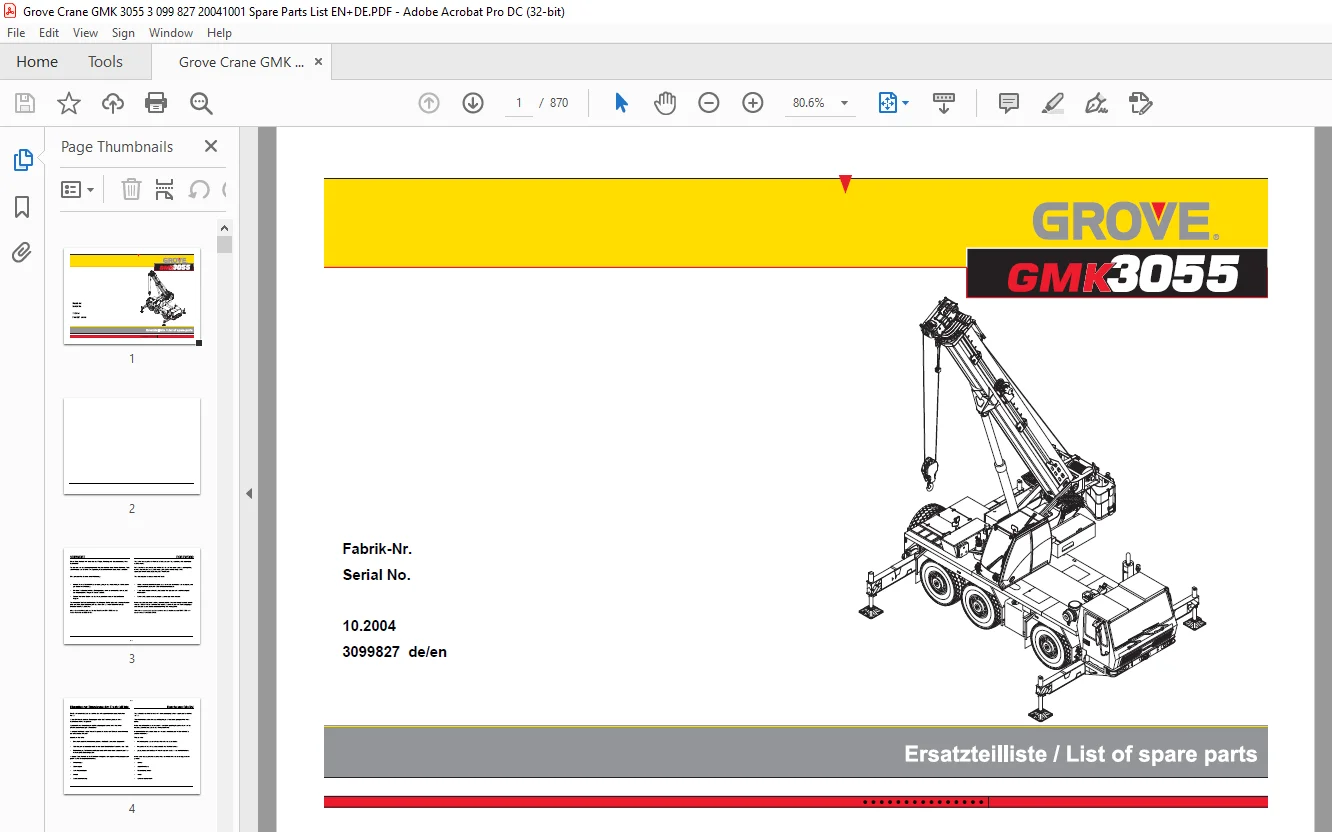

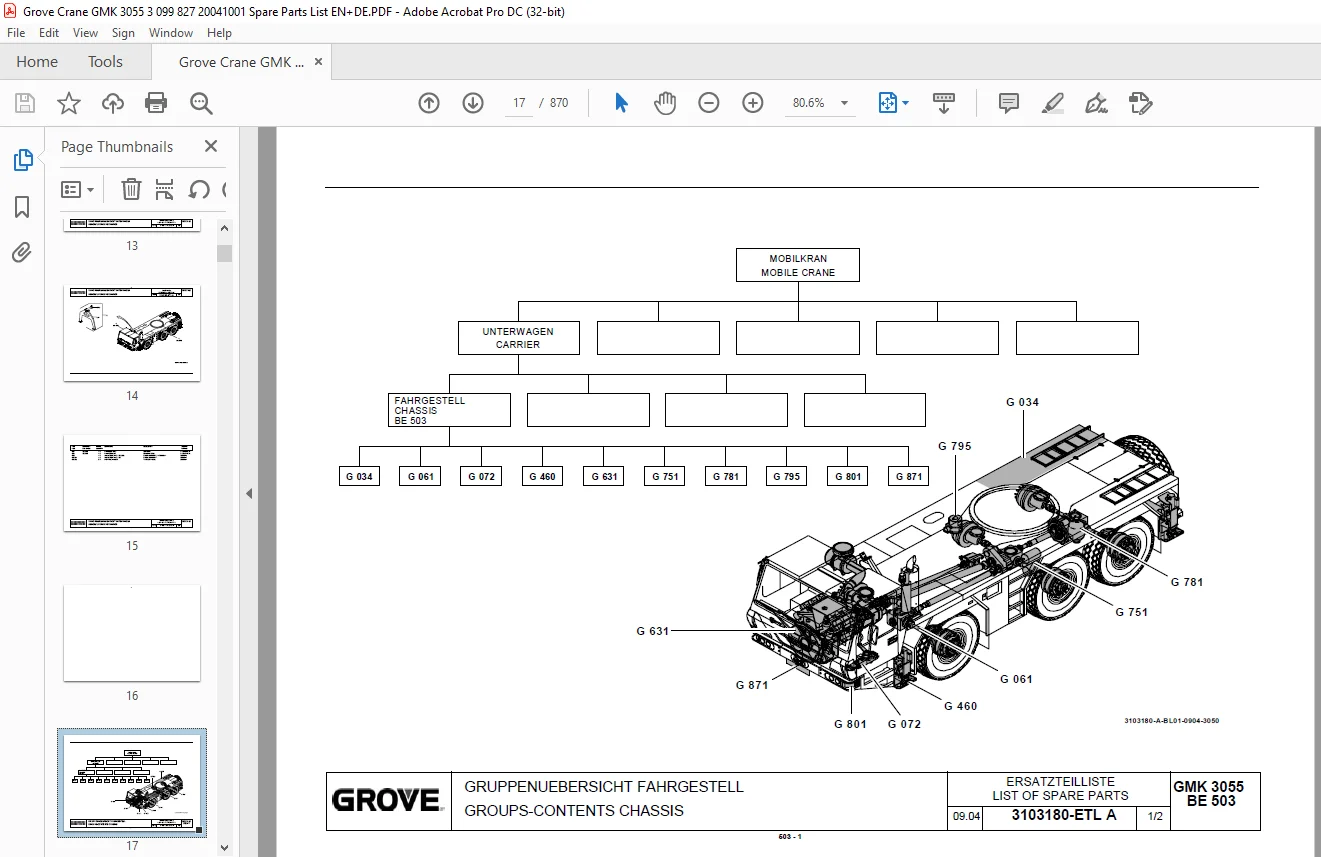

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Grove Crane GMK 3055 Spare Parts List Manual 3099827 – PDF DOWNLOAD
FOREWORD:
This list of spare parts is intended to help you care for, maintain, and repair your mobile crane.
With this list of products you will be able to see how your crane is put together, identify the
different parts, and order spare parts with the help of the
spare parts lists accompanying each illustration.
This also applies to accessories and tools.
– Make sure that your list of spare parts is always up-to-date and complete, and
keep it carefully so that it does not become illegible.
– If you make notes in the list, make sure that you can still read the original
information.
– Never lend pages to other people – photocopy them instead.
- In this way you can avoid sending out incorrect orders and having to check points with us – both of
which cost time and money. Above all, you will avoid stoppages and damage to your crane caused by
fitting the wrong parts. - This list of spare parts applies exclusively to mobile cranes GMK 3055 with serial number from 3055 9120.
How to use this list:
This list contains illustrations with accompanying lists of spare parts (called ‘ETL’).
The illustrations show the assembly groups or functional groups of the truck crane.
In the illustrations there are reference numbers pointing to parts which can be replaced,
connection pieces and fixing hardware.
In some illustrations where there are no such numbers you will be referred to another illustration.
Please note:
– individual parts are not always drawn to the same scale.
– the parts will not always look exactly like the illustrations.
– pipes, hoses and cables will not always run as shown in the illustrations.
In the list of spare parts the mobile crane is divided into the following product groups:
– carrier
– superstructure
– telescoping boom
– finish
– optional equipment
How to order spare parts:
If you want to order spare parts please proceed as follows:
Read the notes on how to use the list of spare parts.
-In the index you will find the assembly group you will find the group you are looking for with
group No. and spare parts list No.
group, then turn to the relevant subassembly group, to the subgroup and finally to the reqired
spare parts list.
— Find the part in question in the illustration. With the aid of the reference number you can then find the spare part in the spare parts list. Parts in the illustration without
reference No. are no spare parts. Parts with reference No. but without part No. (e.g. parts out of
set of seals)can not be delivered separatly.
parts list for this particular part.
Contact us: [email protected]
