DESCRIPTION:

Grove Crane GMK 6300L Spare Parts Manual 3194720 – PDF DOWNLOAD

FOREWORD:

• This list of spare parts is intended to help you care for, maintain, and repair your
  mobile crane.
• With this list of products you will be able to see how your crane is put together,
  identify the different parts, and order spare parts with the help of the
  spare parts lists accompanying each illustration.
• This also applies to accessories and tools.

– Make sure that your list of spare parts is always up-to-date and complete, and
keep it carefully so that it does not become illegible.
– If you make notes in the list, make sure that you can still read the original
information.
– Never lend pages to other people – photocopy them instead.

• In this way you can avoid sending out incorrect orders and having to check points
  with us – both of which cost time and money. Above all, you will avoid stoppages
  and damage to your crane caused by fitting the wrong parts.
• his list of spare parts are intended only for the truck crane with the
  serial nummber specified on the cover.

How to use this list:

• This list contains illustrations with accompanying lists of spare parts (called
  ‘ETL’).
• The illustrations show the assembly groups or functional groups of the truck
  crane.
• In the illustrations there are reference numbers pointing to parts which can be
  replaced, connection pieces and fixing hardware.
• In some illustrations where there are no such numbers you will be referred to
  another illustration.

Please note:
– individual parts are not always drawn to the same scale.
– the parts will not always look exactly like the illustrations.
– pipes, hoses and cables will not always run as shown in the illustrations.
In the list of spare parts the mobile crane is divided into the following product groups:
– carrier
– superstructure
– telescoping boom
– finish
– optional equipment

• These product groups are subdivided into assembly groups; the assembly groups
  (BE) themselves are subdivided into groups (G). The numbers of the subassembly
  groups and subgroups are three-figure numbers.
• The number of the assembly group (BE) and groups (G) is at the bottom of the
  spare parts list on the right-hand side and is written in bold type. Two columns to
  the left of this number you will find the seven-figure spare parts list number with
  the suffix ‘ETL’ and possibly also an additional letter indicating that this list has
  been updated (e.g. ‘A’).
• The number between these two numbers is the page number of the spare parts
  list.
• In each spare parts list on the right of the reference number (Pos.) you will also
  find the part No. (Teile-Nr.) of the particular part or group. This part No. identifies
  the individual part or group unambiguously.
• If the part No. is followed by the suffix ‘ETL’ this means that there is a separate
  illustration with its own spare parts list in the list for that particular group.
• If the reference number contains a full stop followed by further numbers this means
  that the part belongs to the assembly group referred to by the number in front of
  the full stop (e.g. reference number ‘017.03’ designates a part ’03’ belonging to
  assembly group ‘017’).
• We have usually only shown individual parts of assembly groups if they can be
  repaired without special tools or specialist knowledge. It is still worth considering
  replacing the whole assembly group, however, and letting us repair the one which
  is causing problems.

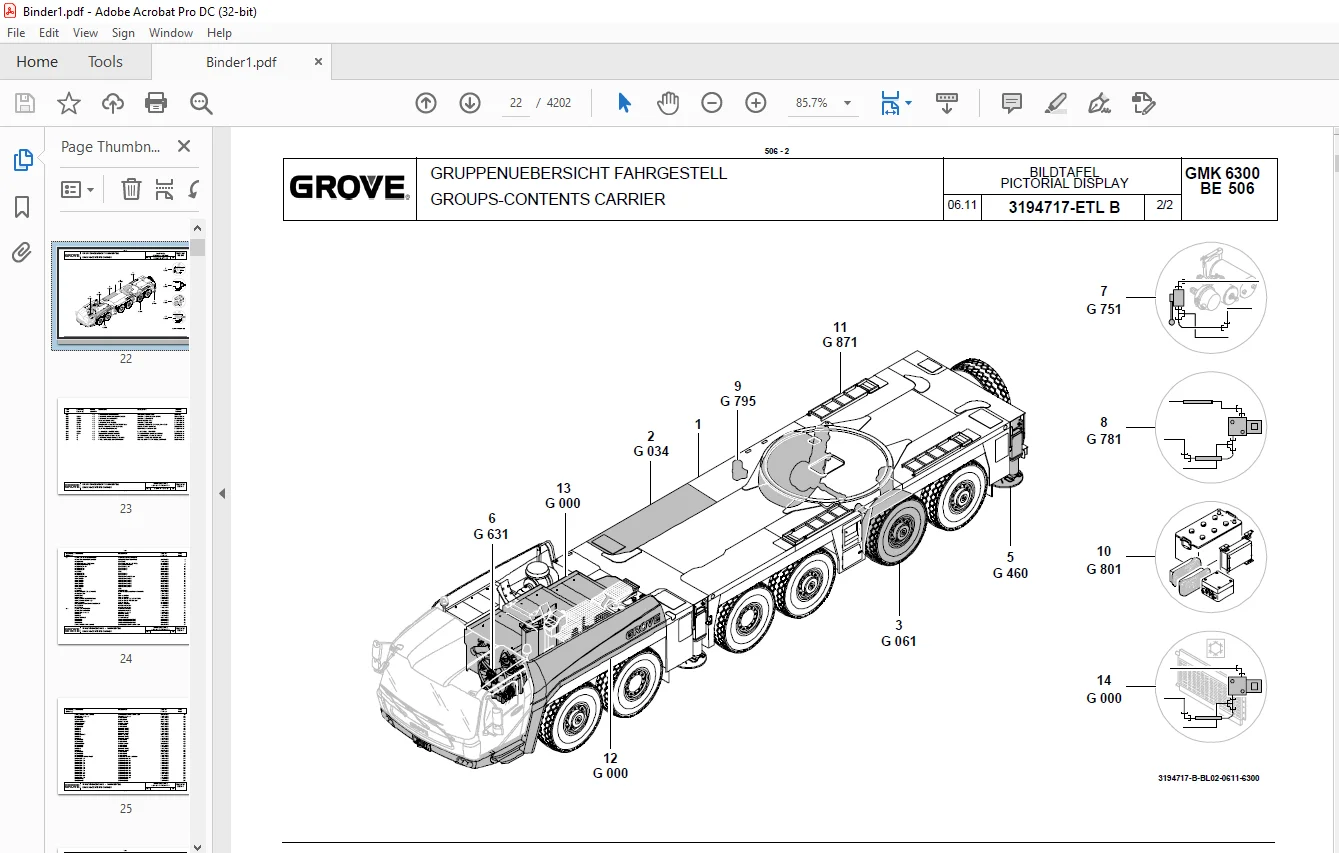

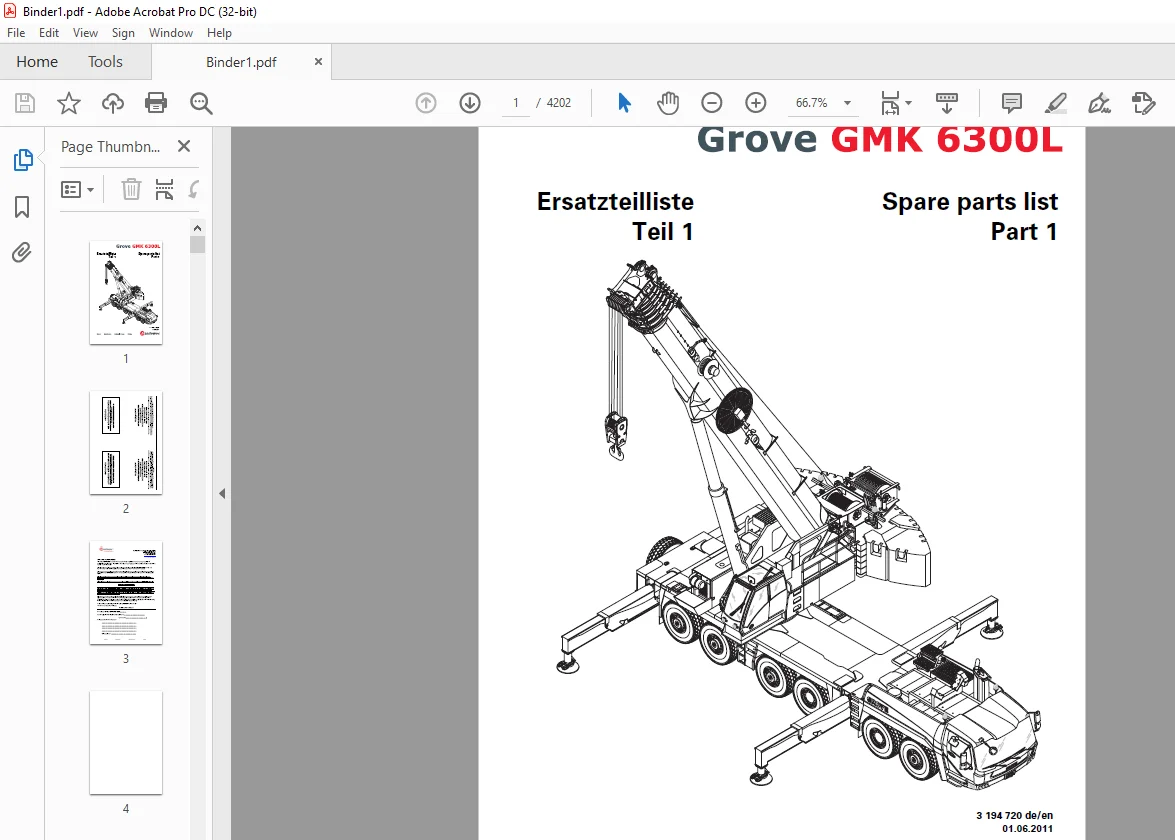

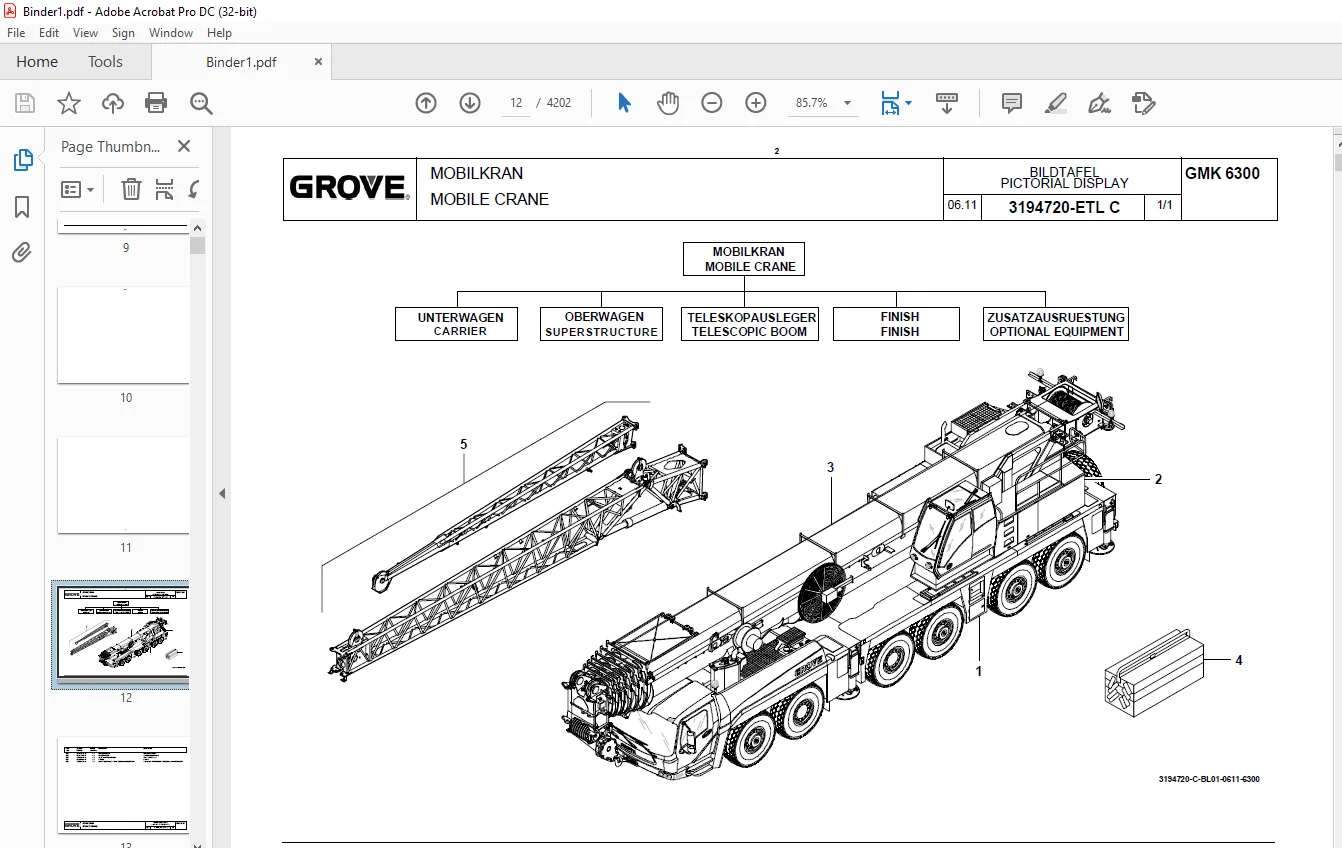

IMAGES PREVIEW OF THE MANUAL:
