Grove Crane RT 880 Spare Parts Manual – PDF DOWNLOAD

Description

Grove Crane RT 880 Spare Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Grove Crane RT 880 Spare Parts Manual – PDF DOWNLOAD

Language : English
Pages : 927
Downloadable : Yes
File Type : PDF

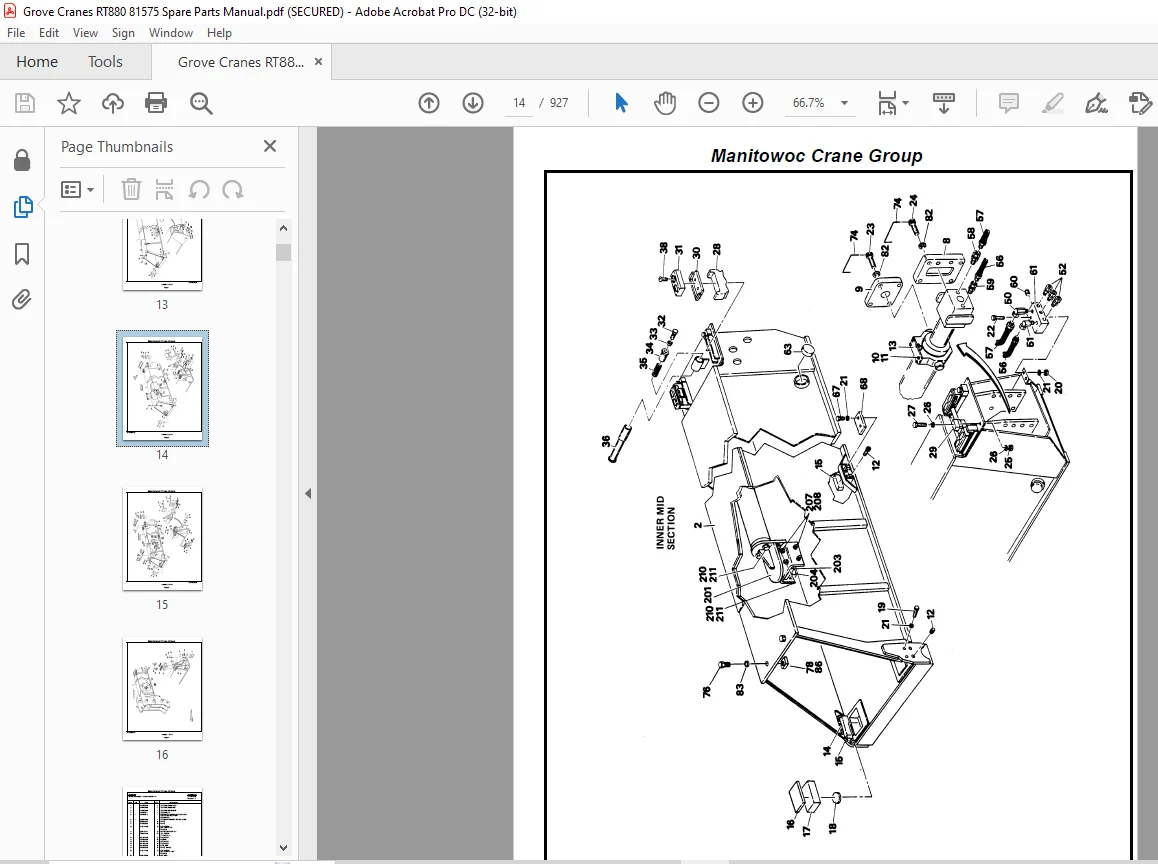

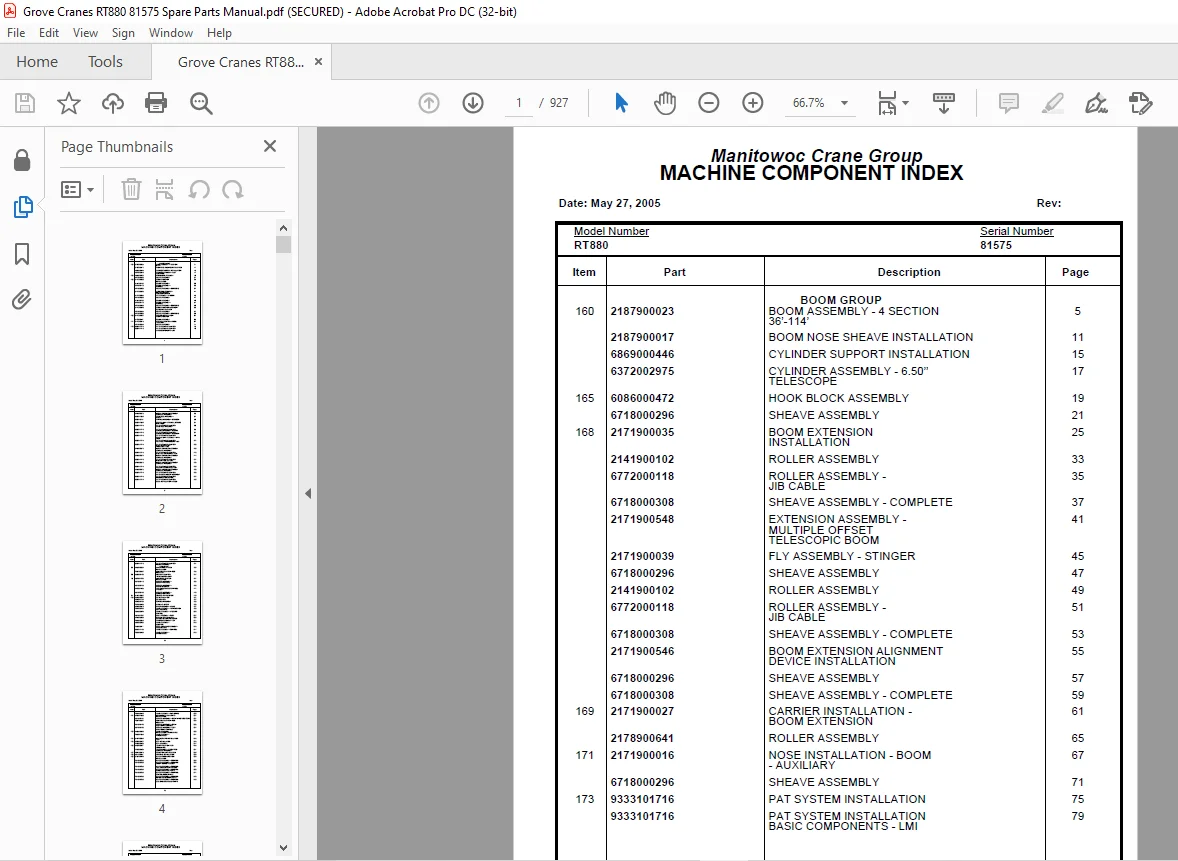

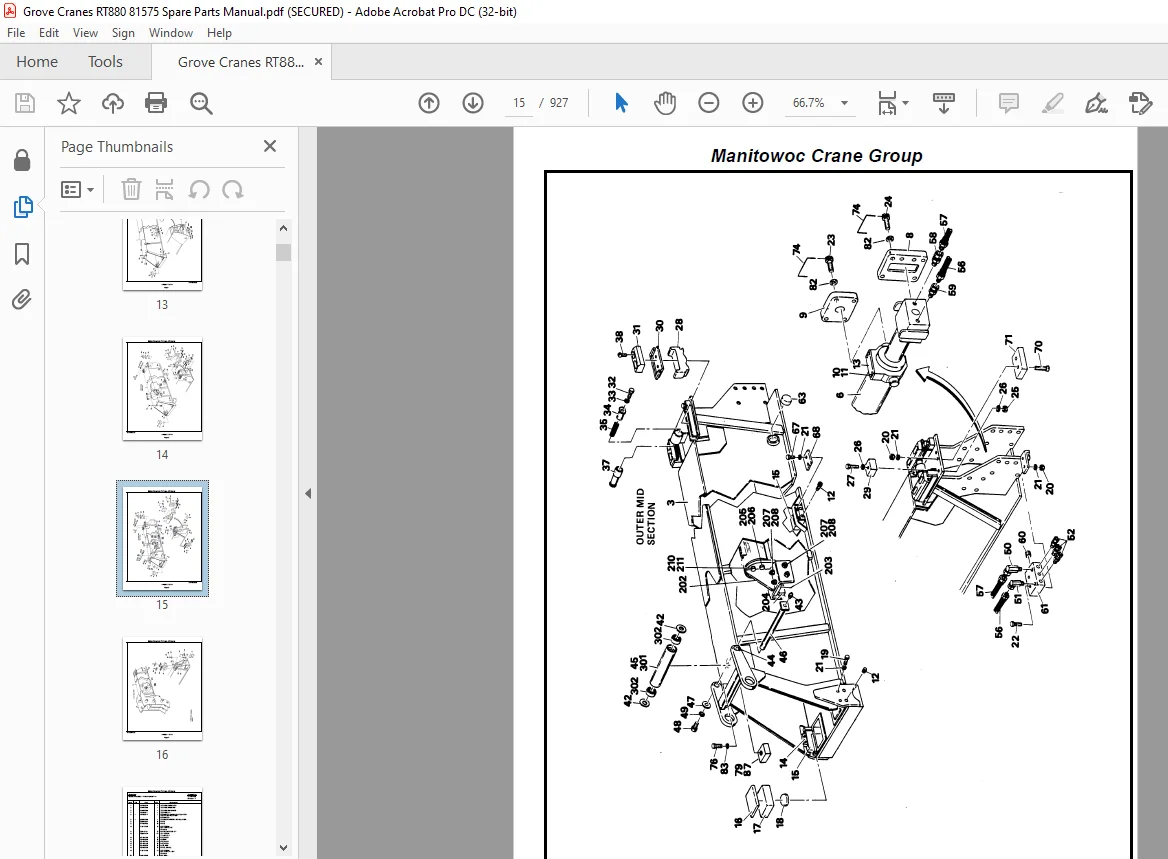

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Grove Crane RT 880 Spare Parts Manual – PDF DOWNLOAD

160 2187900023 BOOM ASSEMBLY – 4 SECTION 5
36’-114’
2187900017 BOOM NOSE SHEAVE INSTALLATION 11
6869000446 CYLINDER SUPPORT INSTALLATION 15
6372002975 CYLINDER ASSEMBLY – 6.50’’ 17
TELESCOPE
165 6086000472 HOOK BLOCK ASSEMBLY 19
6718000296 SHEAVE ASSEMBLY 21
168 2171900035 BOOM EXTENSION 25
INSTALLATION
2141900102 ROLLER ASSEMBLY 33
6772000118 ROLLER ASSEMBLY – 35
JIB CABLE
6718000308 SHEAVE ASSEMBLY – COMPLETE 37
2171900548 EXTENSION ASSEMBLY – 41
MULTIPLE OFFSET
TELESCOPIC BOOM
2171900039 FLY ASSEMBLY – STINGER 45
6718000296 SHEAVE ASSEMBLY 47
2141900102 ROLLER ASSEMBLY 49
6772000118 ROLLER ASSEMBLY – 51
JIB CABLE
6718000308 SHEAVE ASSEMBLY – COMPLETE 53
2171900546 BOOM EXTENSION ALIGNMENT 55
DEVICE INSTALLATION
6718000296 SHEAVE ASSEMBLY 57
6718000308 SHEAVE ASSEMBLY – COMPLETE 59
169 2171900027 CARRIER INSTALLATION – 61
BOOM EXTENSION
2178900641 ROLLER ASSEMBLY 65
171 2171900016 NOSE INSTALLATION – BOOM 67
– AUXILIARY
6718000296 SHEAVE ASSEMBLY 71
173 9333101716 PAT SYSTEM INSTALLATION 75
9333101716 PAT SYSTEM INSTALLATION 79
BASIC COMPONENTS – LMI
I
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
3486000212 WEIGHT AND CHAIN ASSEMBLY 85
COMPLETE ASSEMBLY
9333101534 CABLE REEL ASSEMBLY – 87
LWG221
9333102181 CONSOLE ASSEMBLY – DS350GW 89
9333101954 CENTRAL UNIT ASSEMBLY, DS350G 91
WITH TIMER
9333101716 PAT SYSTEM INSTALLATION 93
CABLE REEL ASSEMBLY
9333101716 PAT SYSTEM INSTALLATION 95
CONSOLE ASSEMBLY – DS350G
9333101716 PAT SYSTEM INSTALLATION 97
CONSOLE ASSEMBLY – DS350GW
9333101716 PAT SYSTEM INSTALLATION 99
CENTRAL UNIT ASSEMBLY – WITH
TIMER
9333101716 PAT SYSTEM INSTALLATION 101
PRESSURE TRANSDUCERS – LMI
9333101716 PAT SYSTEM INSTALLATION 105
33’-58’ TELE OFFSET
SWINGAWAY – LMI
3486000212 WEIGHT AND CHAIN ASSEMBLY 109
COMPLETE ASSEMBLY
9333101716 PAT SYSTEM INSTALLATION 113
33’ OFFSET SWINGAWAY – LMI
3486000212 WEIGHT AND CHAIN ASSEMBLY 117
COMPLETE ASSEMBLY
9333101716 PAT SYSTEM INSTALLATION 121
60’-88’ LATTICE JIB – LMI
3486000212 WEIGHT AND CHAIN ASSEMBLY 125
COMPLETE ASSEMBLY
9333101716 PAT SYSTEM INSTALLATION 129
AUXILIARY BOOM NOSE – LMI
3486000212 WEIGHT AND CHAIN ASSEMBLY 133
COMPLETE ASSEMBLY
9333101716 PAT SYSTEM INSTALLATION 135
ANTI 2 BLOCK WEIGHT ASSEMBLY
9333101716 PAT SYSTEM INSTALLATION 137
MINIMUM LAYER DEVICE
9333101716 PAT SYSTEM INSTALLATION 139
DECAL INSTALLATION – DS350
II
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
9333101716 PAT SYSTEM INSTALLATION 151
WIRING DIAGRAMS
CAB GROUP
35 6025000233 A/V WARNING SYSTEM 153
INSTALLATION
7581000267 LIGHT INSTALLATION – RED 155
INDICATOR
38 6352000158 LINES INSTALLATION 157
– TRANSMISSION SHIFT
78 6978001790 ELECTRICAL SYSTEM 161
INSTALLATION
6512000115 HARNESS ASSEMBLY – 165
SUPERSTRUCTURE
6512000126 HARNESS ASSEMBLY – 169
S/S CAB INTERIOR
6679001048 FUSE AND CONNECTOR PANEL 171
ASSEMBLY
6512000120 HARNESS ASSEMBLY – 173
CONNECTOR PANEL
81 2187100027 AIR LINES INSTALLATION 175
120 6245000297 CAB INSTALLATION 181
6245001136 CAB SECTION 187
6245000183 CONSOLE ASSEMBLY 193
7576000433 LATCH KIT – DOOR 195
6258000615 COVER ASSEMBLY – VALVE 197
7926000720 VALVE ASSEMBLY – TRANSMISSION 199
SHIFT CONTROL
7926003340 VALVE ASSEMBLY – STEERING 203
CONTROL
6810001707 SHAFT ASSEMBLY – PIVOT 207
6486002033 LOCKOUT INSTALLATION – 209
AUTOMATIC CONTROL LEVER
7926002924 CYLINDER ASSEMBLY – AIR 211
6926002002 VALVE ASSEMBLY – 213
SELECTOR
7683000011 PEDAL AND VALVE ASSEMBLY – 215
ACCELERATOR
9926101156 VALVE ASSEMBLY – CONTROL 217
7926000608 VALVE ASSEMBLY – 219
SPRING BRAKE
III
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
7926000644 VALVE ASSEMBLY – DUAL BRAKE 223
121 6486001655 INSTRUMENTS AND LIGHTS 227
INSTALLATION
6512000137 HARNESS ASSEMBLY – RIGHT HAND SIDE CONSO 231
7581000267 LIGHT INSTALLATION – RED 233
INDICATOR
6512000140 HARNESS ASSEMBLY – RIGHT 235
HAND FRONT CONSOLE
6512000139 HARNESS ASSEMBLY – LEFT 237
HAND FRONT CONSOLE
123 6683000045 VALVE AND PEDAL 239
INSTALLATION – SWING BRAKE
7926001304 VALVE ASSEMBLY – 241
POWER BRAKE
124 2187400034 WEATHERSTRIP INSTALLATION 243
– CAB
125 6798000077 SEAT INSTALLATION 245
7798000053 SEAT ASSEMBLY 247
126 6425000071 FAN INSTALLATION – CAB 249
CIRCULATING
7425000659 FAN ASSEMBLY – 12 VOLT CAB 251
COMPLETE ASSEMBLY
127 6001000518 ACOUSTICAL INSTALLATION 253
129 6511000391 GRAB RAIL INSTALLATION 255
132 2187400044 HEATER AND DEFROSTER 259
INSTALLATION
7515000795 HEATER ASSEMBLY – PROPANE 263
7515000795 HEATER ASSEMBLY – PROPANE 265
CIRCUIT BOARD ASSEMBLY
7515000795 HEATER ASSEMBLY – PROPANE 267
FUEL AND IGNITION SYSTEMS
7515000795 HEATER ASSEMBLY – PROPANE 269
REMOTE CONTROL PARTS
7515000795 HEATER ASSEMBLY – PROPANE 271
CONTROL PANEL PARTS
7515000795 HEATER ASSEMBLY – PROPANE 273
MOTOR AND BLOWER PARTS
7515000795 HEATER ASSEMBLY – PROPANE 275
CASE AND EXCHANGER PARTS
IV
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
7515000795 HEATER ASSEMBLY – PROPANE 277
REGULATOR AND EXHAUST PARTS
6576000462 KIT INSTALLATION – PROPANE 279
TANK MOUNTING
7850000845 KIT, TANK MOUNTING 281
133 6348000113 FIRE EXTINGUISHER INSTALLATION 283
134 2171400035 SKYLIGHT WIPER 285
INSTALLATION
137 6576000527 LOAD CHART MANUAL 287
INSTALLATION
CONTROL VALVE GROUP
9 2187600651 HYDRAULIC SCHEMATIC – AXLE 289
LOCKOUT
79 6679000403 PANEL INSTALLATION – 291
HYDRAULIC TEST
84 2187600644 HYDRAULIC LINES INSTALLATION – 293
MAIN AND AUXILIARY HOIST
92 2187600642 HYDRAULIC LINES INSTALLATION – 297
LIFT
122 2187600639 CONTROL VALVE AND LINKAGE 301
INSTALLATION
7926002941 VALVE ASSEMBLY – 305
4 SECTION
7926000229 VALVE ASSEMBLY – OUTLET 311
7926002973 VALVE ASSEMBLY – 313
3 SECTION
7926000229 VALVE ASSEMBLY – OUTLET 317
7926002969 VALVE ASSEMBLY – 319
3 SECTION
7926002968 VALVE ASSEMBLY – 1 SECTION 325
130 2187600080 HYDRAULIC LINES INSTALLATION – 329
FRONT STEER – CAB
131 2171600094 HYDRAULIC LINES INSTALLATION – 331
FREE SWING
162 2187600641 HYDRAULIC LINES INSTALLATION – 335
INNER MID TELESCOPE
163 2187600019 HYDRAULIC LINES INSTALLATION – 337
OUTER MID
164 2187600020 HYDRAULIC LINES INSTALLATION – 339
FLY TELESCOPE
V
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
HOIST GROUP
83 6974001735 HOIST INSTALLATION – 341
MAIN AND AUXILIARY
6974002061 HOIST ASSEMBLY 343
6974001830 HOIST ASSEMBLY 347
7632000100 MOTOR ASSEMBLY – HYDRAULIC 353
6188000738 BRAKE ASSEMBLY 357
6974001847 VALVES AND PLUMBING 359
INSTALLATION
7926003312 VALVE ASSEMBLY – MOTOR 363
CONTROL
7926000583 VALVE ASSEMBLY – SELECTOR 367
6974002050 CABLE FOLLOWER AND IDLER 369
DRUM ASSEMBLY
7926002924 CYLINDER ASSEMBLY – AIR 373
6974002061 HOIST ASSEMBLY 375
6974001830 HOIST ASSEMBLY 379
7632000100 MOTOR ASSEMBLY – HYDRAULIC 385
6188000738 BRAKE ASSEMBLY 389
6974001847 VALVES AND PLUMBING 391
INSTALLATION
7926003312 VALVE ASSEMBLY – MOTOR 395
CONTROL
7926000583 VALVE ASSEMBLY – SELECTOR 399
6974002050 CABLE FOLLOWER AND IDLER 401
DRUM ASSEMBLY
7926002924 CYLINDER ASSEMBLY – AIR 405
85 6486002617 INDICATOR INSTALLATION – 407
HO30B HOIST ROTATION
86 6486002617 INDICATOR INSTALLATION – 409
HO30B HOIST ROTATION
TURNTABLE GROUP
48 2186200011 BEARING BOLT INSTALLATION 411
70 2187200580 TURNTABLE BEARING AND 413
DRIVE INSTALLATION
6176002612 BOX ASSEMBLY – SWING 415
6176002603 SWING BOX AND BRAKE 417
ASSEMBLY
VI
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
6188000707 BRAKE ASSEMBLY – SWING 421
7632000042 MOTOR ASSEMBLY – ORBIT 423
71 2171200573 LOCK INSTALLATION – SWING 425
2171200574 CONTROL LEVER INSTALLATION 427
72 2187200046 COUNTERWEIGHT INSTALLATION 429
73 6364001639 SWIVEL INSTALLATION – 433
ELECTRIC/HYDRAULIC
6364001438 SWIVEL ASSEMBLY – 437
HYDRAULIC
6364001600 SWIVEL ASSEMBLY – 12 PORT 439
AIR/HYDRAULIC
7753000789 RING ASSEMBLY – SLIP 441
74 6486001594 ELEVATION AND SWING 447
WARNING INSTALLATION
75 6926002886 HYDRAULIC OIL COOLER AND 449
BY-PASS VALVE INSTALLATION
7632000146 MOTOR ASSEMBLY – FAN 453
7425000054 FAN ASSEMBLY – OIL COOLER 455
7726000120 COOLER ASSEMBLY – OIL 457
7926001327 VALVE ASSEMBLY – 459
SELECTOR
76 6738000114 HOSE REEL 461
INSTALLATION
6738000147 REEL ASSEMBLY – HOSE 467
6738000146 REEL ASSEMBLY – HOSE 469
6738000145 REEL ASSEMBLY – HOSE 471
80 6926001337 VALVE INSTALLATION – 475
PRESSURE REDUCING
7926003515 VALVE ASSEMBLY – PRESSURE/ 477
REDUCING/RELIEVING
91 6372004757 CYLINDER INSTALLATION – 481
LIFT
6372004742 CYLINDER ASSEMBLY – 483
10’’ LIFT
6926001420 VALVE ASSEMBLY 485
– OVERCENTER
93 2187200578 TURNTABLE LOCK PIN INSTALLATION 489
INSTALLATION
VII
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
161 6810001507 SHAFT INSTALLATION – 491
BOOM PIVOT
ENGINE GROUP
33 2187800707 ENGINE INSTALLATION – 495
CAT 3306T-DI
7356000165 TORQUE CONVERTER ASSEMBLY 503
7356000165 TORQUE CONVERTER ASSEMBLY 505
CONVERTER GROUP
7356000165 TORQUE CONVERTER ASSEMBLY 509
PRESSURE REGULATING VALVE
7356000165 TORQUE CONVERTER ASSEMBLY 513
DISCONNECT ASSEMBLY – PUMP
7722000139 PUMP ASSEMBLY – 517
STEERING
7722000068 PUMP ASSEMBLY 519
7722000170 PUMP ASSEMBLY 521
7372000303 CYLINDER ASSEMBLY – THROTTLE 523
34 2187800089 QUICK START INSTALLATION 525
40 2187800029 CONVERTER OIL FILTER 527
INSTALLATION
7437000038 FILTER ASSEMBLY – OIL 529
44 6722000946 PUMP DISCONNECT CONTROL 531
INSTALLATION
45 2187800695 PUMP COVER INSTALLATION 533
46 2187800696 BATTERY INSTALLATION 535
DRIVE TRAIN GROUP
37 2187800700 TRANSMISSION INSTALLATION 537
39 2187600648 HYDRAULIC LINES INSTALLATION – 539
TRANSMISSION AND TORQUE CONVERTER
43 2187800086 DRIVE LINE INSTALLATION 541
7364001384 DRIVE LINE ASSEMBLY 543
7364001385 DRIVE LINE ASSEMBLY 545
7364001386 DRIVE LINE ASSEMBLY 547
7364002586 DRIVE LINE ASSEMBLY 549
AXLE GROUP
3 2187500001 AXLE INSTALLATION – 551
FRONT
7049000351 AXLE ASSEMBLY 553
VIII
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
7049000351 AXLE ASSEMBLY 555
HOUSING ASSEMBLY
7049000351 AXLE ASSEMBLY 557
DIFFERENTIAL CARRIER ASSEMBLY
7049000351 AXLE ASSEMBLY 561
HUB AND SHAFT GROUP
7049000351 AXLE ASSEMBLY 565
BRAKE ASSEMBLY
7049000351 AXLE ASSEMBLY 567
BRAKE ASSEMBLY
7049000351 AXLE ASSEMBLY 569
FAILSAFE BRAKE CHAMBER
ASSEMBLY
6372001602 CYLINDER ASSEMBLY – STEER 571
4 2187600081 HYDRAULIC LINES INSTALLATION – 573
FRONT STEER
5 2187500004 VALVE INSTALLATION – 575
RELIEF
7926000850 VALVE ASSEMBLY – RELIEF 577
6 2187700022 AXLE INSTALLATION – REAR 579
7049000536 AXLE ASSEMBLY 583
7049000536 AXLE ASSEMBLY 585
DIFFERENTIAL CARRIER ASSEMBLY
7049000536 AXLE ASSEMBLY 589
AIR BRAKE CHAMBER
7049000536 AXLE ASSEMBLY 593
HUB AND SHAFT GROUP
7049000536 AXLE ASSEMBLY 597
BRAKE ASSEMBLY
7049000536 AXLE ASSEMBLY 599
HOUSING ASSEMBLY
6372001602 CYLINDER ASSEMBLY – STEER 601
6372003011 CYLINDER ASSEMBLY – 603
LOCKOUT
7 2187700540 VALVE INSTALLATION – 605
REAR AXLE LOCKOUT
7926002364 VALVE ASSEMBLY – REAR AXLE 609
LOCKOUT
7926000676 VALVE ASSEMBLY 611
TRANSMISSION
IX
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
7372001146 CYLINDER ASSEMBLY – AIR 613
LOCKOUT
7581000267 LIGHT INSTALLATION – RED 615
INDICATOR
8 2187600024 REAR STEER HYDRAULIC 617
SCHEMATIC
25 6970001771 TIRE AND WHEEL ASSEMBLY 619
26 6659000184 LUG NUT AND WASHER 621
INSTALLATION
27 6576000411 TIRE INFLATION KIT 623
INSTALLATION
OUTRIGGER GROUP
10 2187100084 OUTRIGGER BEAM 625
INSTALLATION
6372003015 CYLINDER ASSEMBLY – 6.50’’ 629
STABILIZER
6372002589 CYLINDER ASSEMBLY – 2 1/2″ 631
OUTRIGGER EXTENSION
11 2187100716 OUTRIGGER CONTROL VALVE 633
INSTALLATION
7926000219 VALVE ASSEMBLY – 4 STACK 635
OUTRIGGER SOLENOID
7926003297 VALVE ASSEMBLY – 639
INTEGRATED OUTRIGGER
12 2187600098 HYDRAULIC LINES INSTALLATION – 643
OUTRIGGER
13 2187100053 OUTRIGGER PAD AND STORAGE 647
INSTALLATION
6458000040 FLOAT ASSEMBLY – 649
OUTRIGGER
FRAME GROUP
14 6978001776 ELECTRICAL SYSTEM 653
INSTALLATION
6512000150 HARNESS ASSEMBLY – CARRIER 657
15 2187100075 AIR LINES INSTALLATION 661
7515000047 DRYER ASSEMBLY – AIR 665
17 2187100095 RESERVOIR INSTALLATION – 669
HYDRAULIC
7437000164 FILTER ASSEMBLY 673
19 2187100021 COVER INSTALLATION – 675
HYDRAULIC TANK
X
Manitowoc Crane Group
MACHINE COMPONENT INDEX
Date: May 27, 2005 Rev:
Model Number
RT880
Serial Number
81575
Item Part Description Page
20 2171800016 TANK INSTALLATION – FUEL 677
7880000943 FUEL TANK ASSEMBLY – 679
100 GALLON
21 2187100041 TOOL BOX AND LADDER 681
INSTALLATION
22 2187100057 WEATHERSTRIP INSTALLATION – TOOL BOX 685
23 2187100092 TURNSIGNAL AND LIGHTS 687
INSTALLATION
24 2171100086 REAR VIEW MIRROR 689
INSTALLATION
30 6025000088 ALARM INSTALLATION – 691
BACK-UP
41 2187800679 HOOD INSTALLATION – ENGINE 695
2187800047 DOOR ASSEMBLY – LEFT HAND SIDE 699
2187800043 DOOR ASSEMBLY – RIGHT HAND 701
42 2187100701 FENDERS AND BATTERY BOX 703
INSTALLATION
47 2187100058 MOULDING INSTALLATION – BATTERY BOX 707
82 2187600652 HYDRAULIC LINES INSTALLATION – 709
SUPPLY, PRESSURE AND RETURN
500 6376007590 DECAL INSTALLATION –

Questions? Email us: [email protected]

https://vimeo.com/857857835?share=copy

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.V
