Description

Grove Crane RT9150E Load Chart Manual SN 231938 – PDF DOWNLOAD

FILE DETAILS:

Grove Crane RT9150E Load Chart Manual SN 231938 – PDF DOWNLOAD

Language : English
Pages : 207
Downloadable : Yes
File Type : PDF

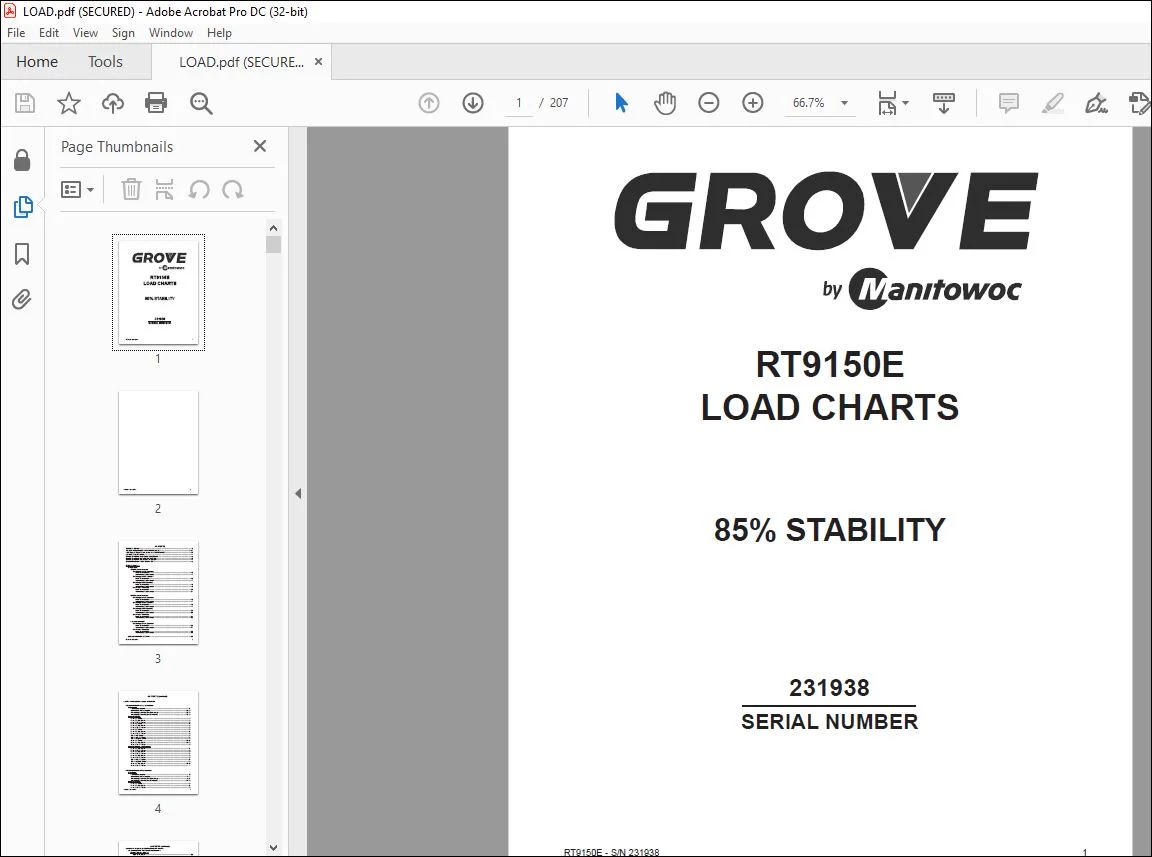

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Grove Crane RT9150E Load Chart Manual SN 231938 – PDF DOWNLOAD

GENERAL:
1. Rated loads as shown on lift chart pertain to this machine as originally manufactured and
equipped. Modifications to the machine or use of optional equipment other than that specified can
result in a reduction of capacity.
2. Construction equipment can be hazardous if improperly operated or maintained. Operation and
maintenance of this machine shall be in compliance with the information in the Operator’s and
Safety Handbook, Service Manual, and Parts Manual supplied with this machine. If these manuals
are missing, order replacements from the manufacturer through the distributor.
3. The operator and other personnel associated with machine shall fully acquaint
themselves with the latest American National Safety Standards (ASME/ANSI) for cranes.
SETUP:
1. The machine shall be level and on a firm supporting surface. Depending on the
nature of the supporting surface, it may be necessary to have structural supports under the
outrigger floats or tires to spread the load to a larger bearing surface.
2. For outrigger operation, all outriggers shall be properly extended with tires raised free of
crane weight before operating the boom or lifting loads.
3. When machine is equipped with center front stabilizer, the front stabilizer shall be set in
accordance with instructions in Operator’s & Safety Handbook.
4. When equipped with removable and/or extendible counterweight, the proper counterweight
shall be installed and fully extended before and during operation.
5. Tires shall be inflated to the recommended pressure before lifting on rubber.
6. With certain boom and hoist tackle combinations, maximum capacities may not be obtainable with
standard cable lengths.
7. Unless approved by the crane manufacturer, do not travel with boom extension or
jib erected. Refer to Operator’s and Safety Handbook for job-site travel information.
OPERATION:
1. Rated loads at rated radius shall not be exceeded. Do not attempt to tip the machine to
determine allowable loads. For clamshell, grapple, magnet or concrete bucket operation, weight of
component and load must not exceed 70% of rated lifting capacities.
2. All rated loads have been tested to and meet the requirements of SAE J1063 – Cantilevered Boom
Crane Structures – Method of Test, and do not exceed 85% of the tipping load on
outriggers fully extended. Capacities on outriggers 50% extended and 0% extended (fully
retracted) correspond to SAE J1289 (Test Load = 1.25P + 0.1A). 0.1A represents
one-tenth (0.10) of the total boom weight reduced to the boom point.
3. Rated loads include the weight of hookblock, slings and auxiliary lifting devices
and their weights shall be subtracted from the listed rating to obtain the net load
to be lifted. When more than the minimum required parts of line needed to pick the
load are used, the additional rope weight as measured from the lower sheaves of the the main boom
nose shall be considered part of the load to be lifted. When both the hook block and headache ball
are reeved, the lifting device that is NOT in use, including the line as measured from the lower
sheave(s) of the nose supporting the unused device shall be considered part of the load.
4. Load ratings are based on freely suspended loads. No attempt shall be made to
move a load horizontally on the ground in any direction.
5. The maximum in-service wind speed is 20 m.p.h. It is recommended when wind velocity is above
20 m.p.h., rated loads and boom lengths shall be appropriately reduced. For machines not
in-service, the main boom should be retracted and lowered with swing brake set in wind velocities
over 30 m.p.h.
6. Rated loads are for lift crane service only.
7. Do not operate at a radius or boom length where capacities are not listed. At these positions,
the machine may overturn without any load on the hook.
8. The maximum load which can be telescoped is not definable because of variations in
loadings and crane maintenance, but it is safe to attempt retraction and extension of the
boom within the limits of the capacity chart for intermediate boom lengths.
9. When the boom length or lift radius or both are between values listed, the smallest load shown
at either the next larger radius or next longer or shorter boom length shall be used. If the fixed
boom length capacity charts are used, then all of the telescopic boom sections must be locked.
If any of the telescopic boom sections are not locked, then the capacity charts for
intermediate boom lengths must be used.
10. For safe operation, the user shall make due allowances for his particular job
conditions, such as: soft or uneven ground, out of level conditions, high winds, side
loads, pendulum action, jerking or sudden stopping of loads, experience of personnel,
two machine (tandem) lifts, traveling with loads, electric wires, obstacles, hazardous
conditions, etc. Side pull on boom or jib is extremely dangerous.

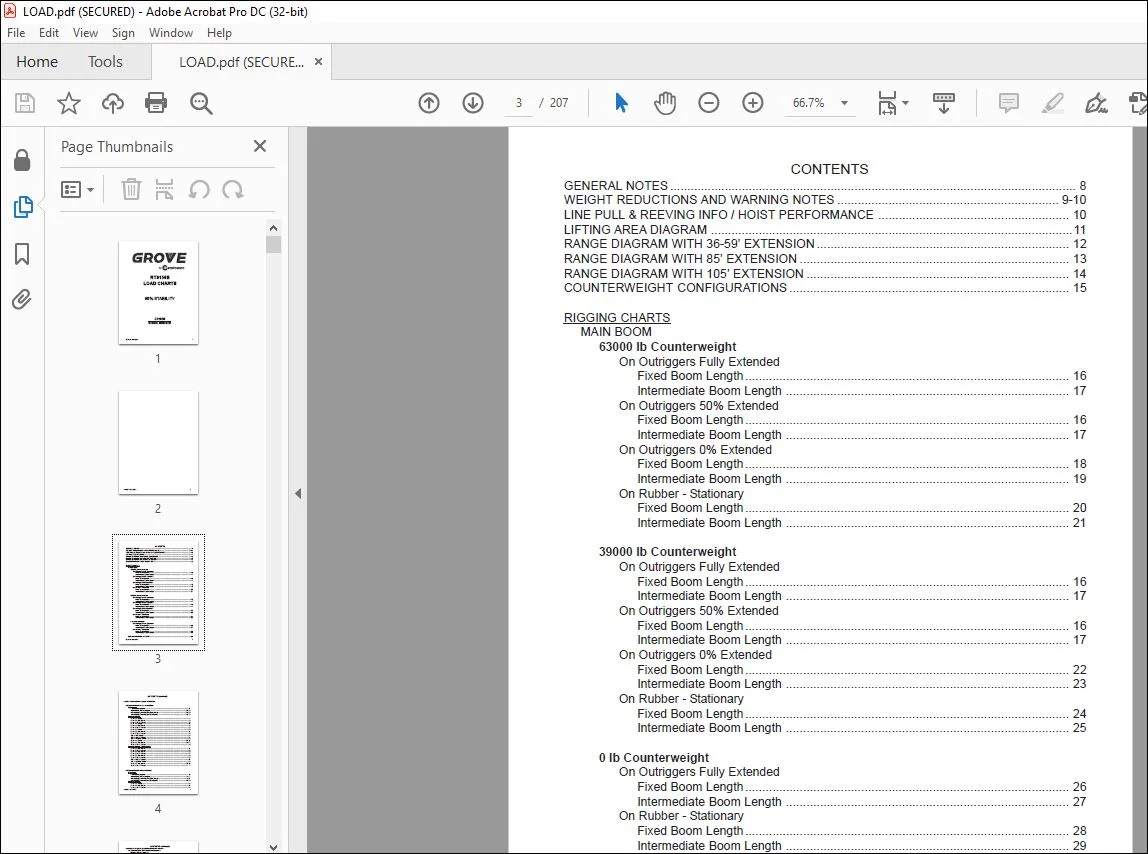

TABLE OF CONTENTS:

Grove Crane RT9150E Load Chart Manual SN 231938 – PDF DOWNLOAD

GENERAL NOTES 8
WEIGHT REDUCTIONS AND WARNING NOTES 9-10
LINE PULL & REEVING INFO / HOIST PERFORMANCE 10
LIFTING AREA DIAGRAM 11
RANGE DIAGRAM WITH 36-59’ EXTENSION 12
RANGE DIAGRAM WITH 85’ EXTENSION 13
RANGE DIAGRAM WITH 105’ EXTENSION 14
COUNTERWEIGHT CONFIGURATIONS 15
RIGGING CHARTS
MAIN BOOM
63000 lb Counterweight
On Outriggers Fully Extended
Fixed Boom Length 16
Intermediate Boom Length 17
On Outriggers 50% Extended
Fixed Boom Length 16
Intermediate Boom Length 17
On Outriggers 0% Extended
Fixed Boom Length 18
Intermediate Boom Length 19
On Rubber – Stationary
Fixed Boom Length 20
Intermediate Boom Length 21
39000 lb Counterweight
On Outriggers Fully Extended
Fixed Boom Length 16
Intermediate Boom Length 17
On Outriggers 50% Extended
Fixed Boom Length 16
Intermediate Boom Length 17
On Outriggers 0% Extended
Fixed Boom Length 22
Intermediate Boom Length 23
On Rubber – Stationary
Fixed Boom Length 24
Intermediate Boom Length 25
0 lb Counterweight
On Outriggers Fully Extended
Fixed Boom Length 26
Intermediate Boom Length 27
On Rubber – Stationary
Fixed Boom Length 28
Intermediate Boom Length 29
BOOM EXTENSION RIGGING 30
CONTENTS
RT9150E – S/N 231938 4
LIFTING WITH 63000 lb COUNTERWEIGHT
ON OUTRIGGERS FULLY EXTENDED
Main Boom
Fixed Boom Lengths 31
Intermediate Boom Lengths 32-35
Telescoping Boom Lengths (Extending) 36-39
Telescoping Boom Lengths (Retracting) 40-43
Luffing Extension
36 ft at 0° Offset 44
36 ft at 0-20° Offset 45
36 ft at 20-40° Offset 46
59 ft at 0° Offset 47
59 ft at 0-20° Offset 48
59 ft at 20-40° Offset 49
85 ft at 0° Offset 50
85 ft at 0-20° Offset 51
85 ft at 20-40° Offset 52
105 ft at 0° Offset 53
105 ft at 0-20° Offset 54
105 ft at 20-40° Offset 55
12 ft at 0° Offset 56-57
12 ft at 0-20° Offset 58-59
12 ft at 20-40° Offset 60
Luffing Extension – While Luffing
36 ft at 0-20° Offset 61
36 ft at 20-40° Offset 62
59 ft at 0-20° Offset 63
59 ft at 20-40° Offset 64
85 ft at 0-20° Offset 65
85 ft at 20-40° Offset 66
105 ft at 0-20° Offset 67
105 ft at 20-40° Offset 68
12 ft at 0-20° Offset 69-70
12 ft at 20-40° Offset 71
ON OUTRIGGERS 50% EXTENDED
Main Boom
Fixed Boom Lengths 73
Intermediate Boom Lengths 74-77
Telescoping Boom Lengths (Extending) 78-81
Telescoping Boom Lengths (Retracting) 82-85
Luffing Extension
36 ft at 0° Offset 86
36 ft at 0-20° Offset 87
36 ft at 20-40° Offset 88
CONTENTS (continued)
RT9150E – S/N 231938 5
59 ft at 0° Offset 89
59 ft at 0-20° Offset 90
59 ft at 20-40° Offset 91
12 ft at 0° Offset 92-93
12 ft at 0-20° Offset 94-95
12 ft at 20-40° Offset 96
Luffing Extension – While Luffing
36 ft at 0-20° Offset 97
36 ft at 20-40° Offset 98
59 ft at 0-20° Offset 99
59 ft at 20-40° Offset 100
12 ft at 0-20° Offset 101-102
12 ft at 20-40° Offset 103
ON OUTRIGGERS 0% EXTENDED
Main Boom
Fixed Boom Lengths 105
Intermediate Boom Lengths 106-109
Telescoping Boom Lengths (Extending) 110-113
Telescoping Boom Lengths (Retracting) 114-117
ON RUBBER – Pick and Carry
Main Boom
Fixed Boom Lengths 118
Intermediate Boom Lengths 119
LIFTING WITH 39000 lb COUNTERWEIGHT
ON OUTRIGGERS FULLY EXTENDED
Main Boom
Fixed Boom Lengths 121
Intermediate Boom Lengths 122-125
Telescoping Boom Lengths (Extending) 126-129
Telescoping Boom Lengths (Retracting) 130-133
Luffing Extension
36 ft at 0° Offset 134
36 ft at 0-20° Offset 135
36 ft at 20-40° Offset 136
59 ft at 0° Offset 137
59 ft at 0-20° Offset 138
59 ft at 20-40° Offset 139
85 ft at 0° Offset 140
85 ft at 0-20° Offset 141
85 ft at 20-40° Offset 142
CONTENTS (continued)
LIFTING WITH 63000 lb COUNTERWEIGHT (cont’d )
ON OUTRIGGERS 50% EXTENDED (cont’d )
Luffing Extension (cont’d )
RT9150E – S/N 231938 6
105 ft at 0° Offset 143
105 ft at 0-20° Offset 144
105 ft at 20-40° Offset 145
12 ft at 0° Offset 146-147
12 ft at 0-20° Offset 148-149
12 ft at 20-40° Offset 150
Luffing Extension – While Luffing
36 ft at 0-20° Offset 151
36 ft at 20-40° Offset 152
59 ft at 0-20° Offset 153
59 ft at 20-40° Offset 154
85 ft at 0-20° Offset 155
85 ft at 20-40° Offset 156
105 ft at 0-20° Offset 157
105 ft at 20-40° Offset 158
12 ft at 0-20° Offset 159-160
12 ft at 20-40° Offset 161
ON OUTRIGGERS 50% EXTENDED
Main Boom
Fixed Boom Lengths 163
Intermediate Boom Lengths 164-167
Telescoping Boom Lengths (Extending) 168-171
Telescoping Boom Lengths (Retracting) 172-175
Luffing Extension
36 ft at 0° Offset 176
36 ft at 0-20° Offset 177
36 ft at 20-40° Offset 178
59 ft at 0° Offset 179
59 ft at 0-20° Offset 180
59 ft at 20-40° Offset 181
12 ft at 0° Offset 182
12 ft at 0-20° Offset 183
12 ft at 20-40° Offset 184
Luffing Extension – While Luffing
36 ft at 0-20° Offset 185
36 ft at 20-40° Offset 186
59 ft at 0-20° Offset 187
59 ft at 20-40° Offset 188
12 ft at 0-20° Offset 189
12 ft at 20-40° Offset 190
CONTENTS (continued)
LIFTING WITH 39000 lb COUNTERWEIGHT (cont’d )
ON OUTRIGGERS FULLY EXTENDED (cont’d )
Luffing Extension (cont’d )
RT9150E – S/N 231938 7
ON OUTRIGGERS 0% EXTENDED
Main Boom
Fixed Boom Lengths 191
Intermediate Boom Lengths 192-195
Telescoping Boom Lengths (Extending) 196-199
Telescoping Boom Lengths (Retracting) 200-203
ON RUBBER – Pick and Carry
Main Boom
Fixed Boom Lengths 204
Intermediate Boom Lengths 205
LIFTING WITH 0 lb COUNTERWEIGHT
ON OUTRIGGERS FULLY EXTENDED
(For installing Counterweight)
Fixed and Intermediate Boom Lengths 206
ON RUBBER
(For installing Outrigger Boxes)
Fixed and Intermediate Boom Lengths 207

Customer Support: [email protected]

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.V
