Hamilton Jet HJ322 Waterjet Product Manual – Installation, Maintenance & Overhaul PDF

Description

Hamilton Jet HJ322 Waterjet Product Manual

This is the complete HJ322 Product Manual (Revision R2, Amendment A9) direct from C.W.F. Hamilton & Co Ltd, covering the single-stage HJ series waterjet unit from initial hull design through to full teardown overhaul. If you are installing, commissioning, maintaining, or rebuilding an HJ322 jet unit, this Hamilton Jet HJ322 manual is the single reference document you need on hand.

File Details

• Manual type: Product Manual
• Brand/Model: C.W.F. Hamilton & Co Ltd / HJ322
• Document part number: 089322
• Revision: R2 (27/01/15), Amendment A9 (11/04/17)
• Language: English
• Page count: 270 pages
• File format: PDF, instant digital download

Chapters Covered

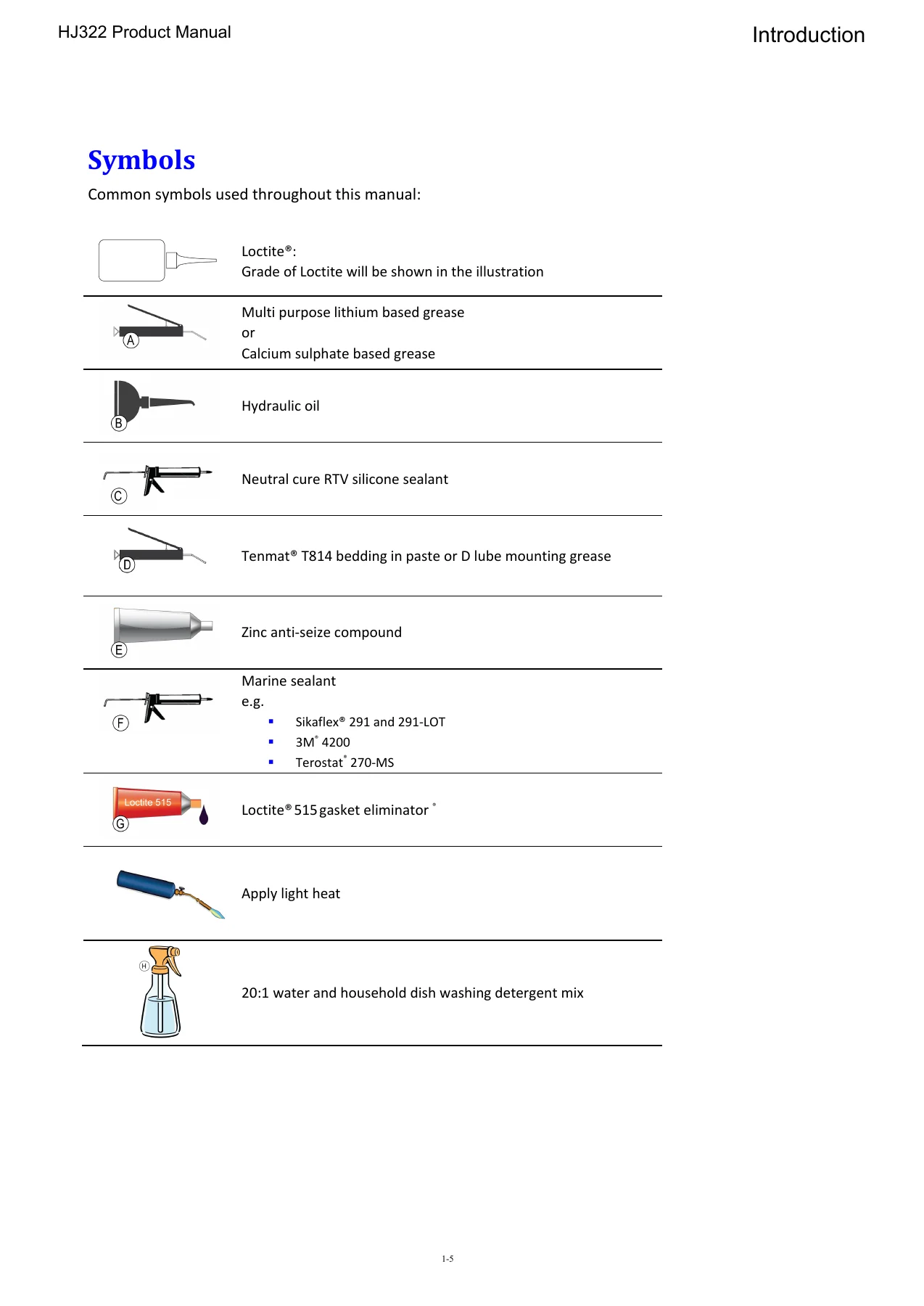

• Introduction — limited warranty, ownership registration, general safety, symbols
• Product Description — equipment description, main components overview

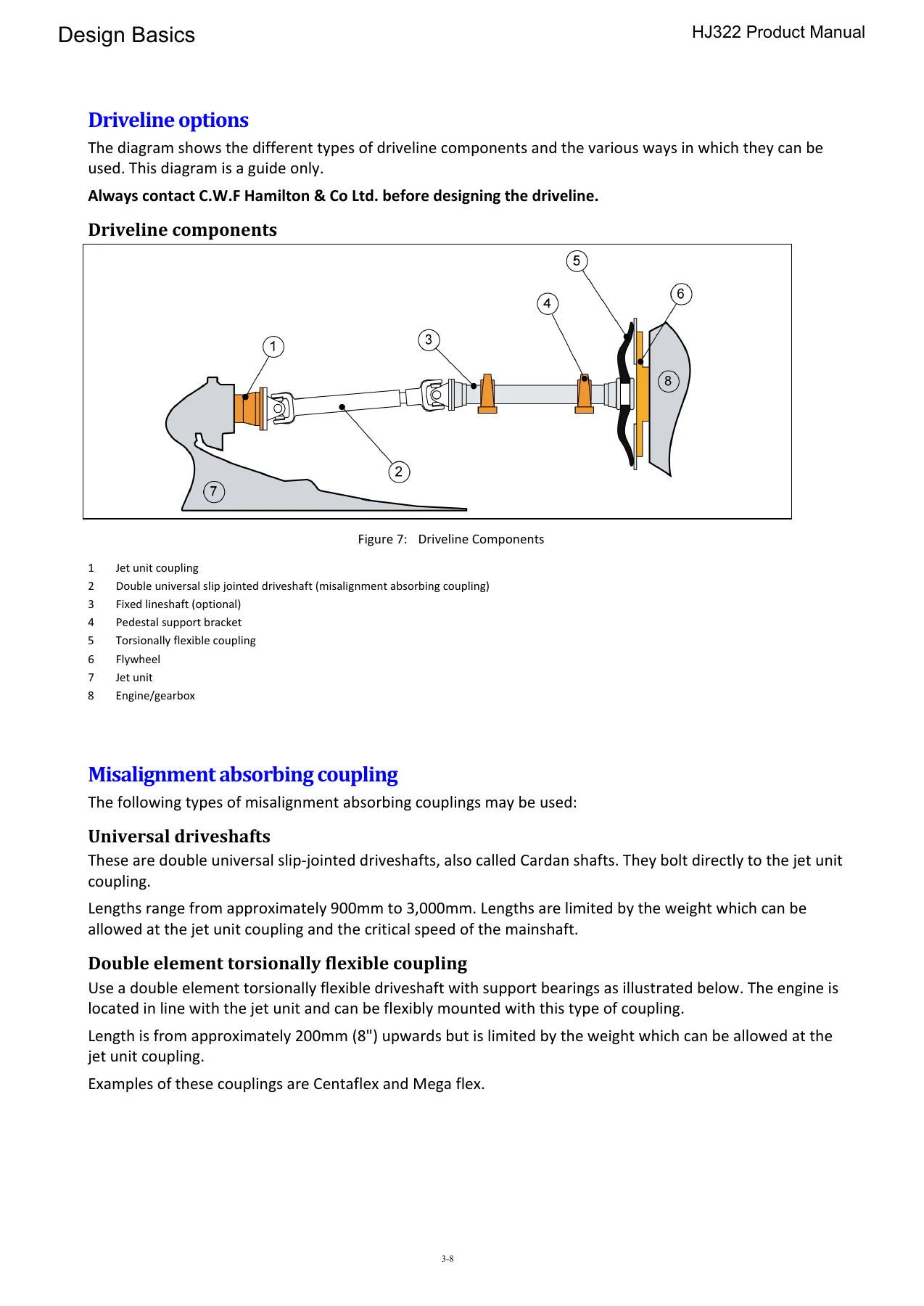

• Design Basics — propulsion system design, hull design, drive lines, universal driveshaft alignment, water offtake, engine location and mounting, dry run kit
• Precautions Against Corrosion — electrical wiring, shore connections, earth bonding, anodes, anti-fouling, impressed current protection
• Installation — intake block fitting, transom seal, mounting the jet unit, transom plate fitting, multiple jet installations, engine mounting, installation checks
• Commissioning — pre-launch checks, post-launch checks, engine running checks, speed and handling trials
• Fault Finding — jet unit faults, dry run faults, reverse system faults, steering system faults
• Maintenance — care of jet unit, service intervals, thrust bearing, water seal, screen rake, steering and reverse linkages, hydraulic cylinders, JHPU oil check and change, anodes, surface coating procedure
• Overhaul — reverse assembly, reverse cylinder, steering assembly, bearing housing, tailpipe, impeller area, transom plate, overflow preventer, intake screen, oil cooler
• Appendix — conversions, Loctite application guide, installation checks, tightening torques, stud installation, set screws

Taken together, these chapters give a technician or installer everything needed to correctly fit an HJ322 unit into a hull, commission it, diagnose faults in the field, keep it running to schedule, and take it apart for a full rebuild without guessing at torque values or clearances.

Design, Installation & Commissioning

The manual opens with core propulsion design guidance: hull loads, mono and multi-hull considerations, trim tabs, driveline requirements, misalignment-absorbing couplings, and universal driveshaft alignment with mainshaft dimensions and critical speed data. It walks through the water offtake specification (1¼” BSP point, output of roughly 10kPa/1.5psi at 600rpm rising to 310kPa/45psi at around 500kW input) and engine mounting requirements, then moves into a full installation sequence covering GRP, aluminium and steel intake blocks, transom sealing, jet unit mounting, and multi-jet tie-rod arrangements. Commissioning steps for pre-launch, post-launch, engine running and sea trial checks are laid out so a new installation is brought into service correctly the first time.

Fault Finding & Field Diagnosis

A dedicated fault-finding chapter of the HJ322 manual pairs common symptoms — rising or falling engine RPM, water leaking from under the bearing housing, high-pitched rattling, vibration, hot thrust bearings — with their likely causes across the jet unit, dry-run kit, reverse system, and steering system. Reverse-duct problems are covered in detail, including the specification that reverse back-pressure should be 500psi (34bar) at a flow of 9 litres per minute, useful for confirming whether a pressure relief valve needs replacing.

Scheduled Maintenance

The maintenance chapter sets out a full service interval chart — daily, monthly, 100hr, 500hr, 1000hr, 2000hr and 6000hr tasks — for the internal water path, thrust bearing, water seal, screen rake, cotter pins, steering and reverse linkages, hydraulic hoses and cylinders, driveshaft, V-belts, hydraulic oil and filter, oil pump and anodes. Specific instructions include greasing the thrust bearing monthly with lithium-based grease (30ml only, checked at 50–55°C normal operating temperature), and changing JHPU hydraulic oil and filter after the first 5 hours and every 1000 operating hours thereafter, with a full hydraulic purge procedure.

IMAGES PREVIEW

Overhaul & Rebuild

The overhaul section takes the HJ322 apart component by component: reverse duct and reverse cylinder removal, dismantling and reseal; steering cylinder, steering shaft and nozzle assembly overhaul; bearing housing removal and water seal replacement; tailpipe and impeller area overhaul including impeller race work; transom plate overhaul; and servicing the overflow preventer, intake screen, screen rake assembly and oil cooler. The appendix backs all of this up with a complete tightening-torque reference — nut torques for 316 and 2205 stainless studs, bolt and screw torques in both metric and imperial sizes, stud installation torques, and a Loctite application guide with grade equivalents — so every fastener goes back together to the correct spec.

What This Manual Enables

With the Hamilton Jet HJ322 Product Manual in hand, an installer, boatbuilder, or marine technician can correctly plan and complete an HJ322 installation, commission the unit properly, work through the fault-finding tables to resolve steering, reverse, or vibration problems, follow the exact service intervals to avoid premature wear, and carry out a full overhaul with the correct torque values and Loctite grades rather than relying on guesswork. Getting these procedures and specifications right protects a jet unit that represents a significant investment and keeps the vessel’s propulsion and steering reliable. This is a digital PDF delivered instantly after purchase — no shipping, no waiting, viewable and printable on any computer, tablet, or phone.
