Haulotte Compact 14 Spare Parts Catalogue 2420341680

This is the full spare parts catalogue for the Haulotte Compact 14 scissor lift, issued under document code 2420341680 at edition E11.09. It is a 182-page parts identification manual built around exploded illustrations and matching parts tables, so every component on the machine can be traced from the drawing to a Haulotte part number and an order quantity. The catalogue was produced under the CASSINI project (Project 167) and is written bilingually in French and English throughout, with the part tables carrying both the French designation and the English designation side by side.

The document is organised the way Haulotte builds the machine: the chassis and its hydraulics first, then the scissor stack, then the platform, and finally the electrical harnesses, labels and factory options. Each group opens with an exploded view carrying reference balloons, followed by a table listing every rep. number, designation, specification, quantity and Haulotte code. Some tables add an “Up to / jusqu’à” column so you can match the part to the correct build range.

File Details

• Manual type: Spare Parts Catalogue (Catalogue Pièces Détachées)
• Brand: Haulotte
• Model: Compact 14
• Document code: 2420341680
• Edition: E11.09
• Project: CASSINI / Project 167
• Language: English and French (bilingual)
• Pages: 182
• Format: PDF

Chapters Covered

The catalogue is divided into machine groups, each with its own exploded views and parts tables:

• Group A – Bottom Part / Partie Basse
  • A10 Sub-frame unit (bushes, grease nipple, plug, lower chassis)
  • A12 Cover chassis (hoods, protective hood, screws and washers)
  • A15 Chassis hydraulics (on/off movements block, return filter, retaining bracket, bonding jumper, electropump unit, hydraulic tank)

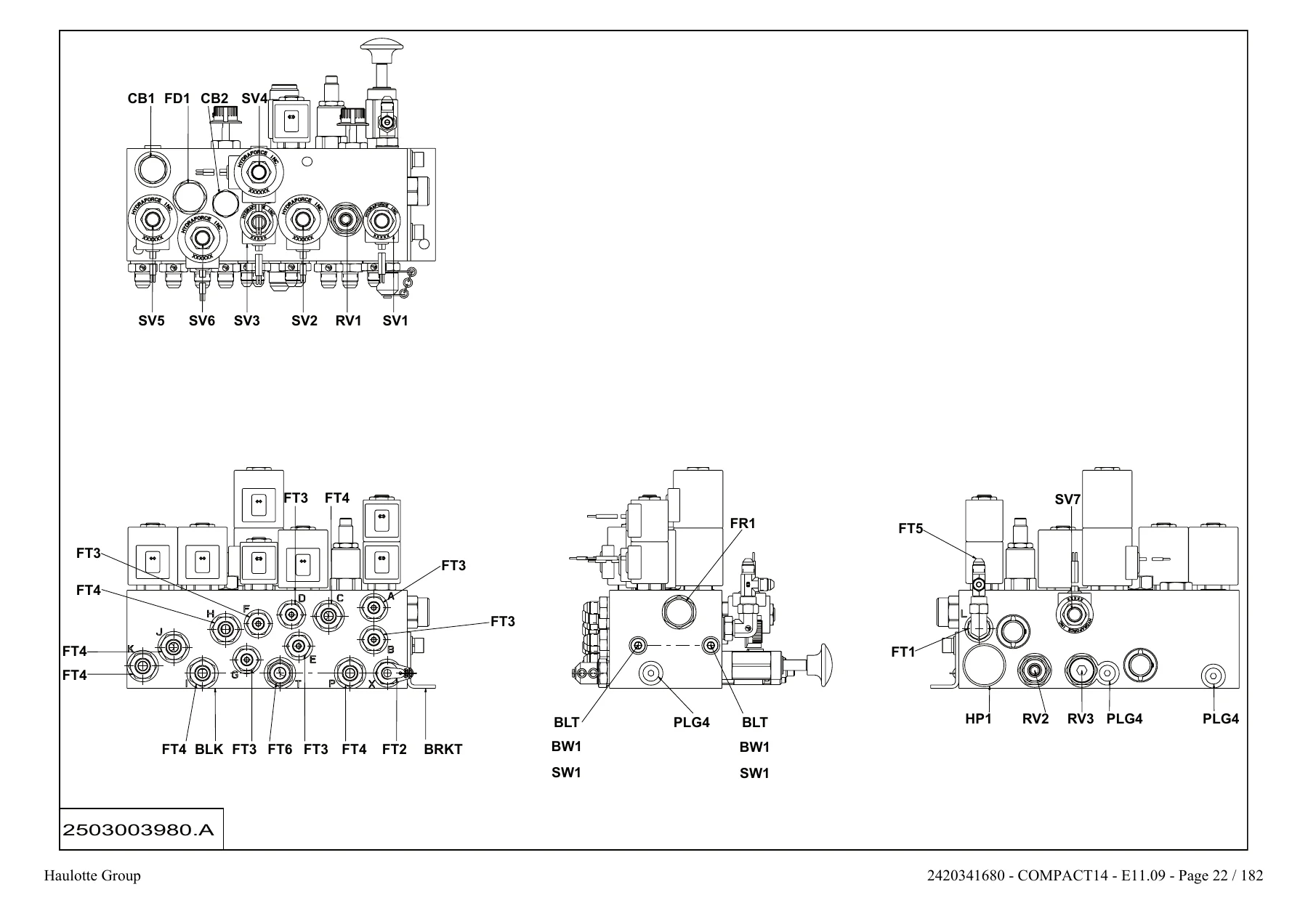

  • A15-1 On/off movements block – valve block breakdown with counterbalance valves, flow divider, priority valve, fittings, hand pump, pressure limiters and solenoid valves
  • A15-2 Return filter
  • A15-5 Electropump unit (electric motor, hydraulic pump, carbon brush kit, couplings)
  • A15-6 Hydraulic tank (reservoir, O-rings, fittings, drainage plug)
  • A26 Hydraulic section (flexible hoses and fittings)
  • A27 Battery unit (battery box, semi-traction batteries, rollers, pads, stops, steps)
  • A30 Fixed axle (reduced-pressure brake, wheels, screws, nuts, split pins)
  • A32 Motor guiding axle (steering pivots, connecting rod, steering cylinder, hydraulic motor, direction lever, wheels)
  • A32-4 Steering cylinder seal kit
  • A35 Emergency control
  • A37 Counterweight assembly
  • A38 Deverstilt assembly (slope sensor)
  • A39 Travel cut (cam, switch support, position switch)
  • A40 Angle sensor
  • A41 Anti-tipping over device (pothole cylinders, pins, position switches, counterweight)
  • A21.1 Electrical component kit (battery charger, variable speed unit, relay, battery cut-off, buzzer, weighing card, fuse holder)
  • A21.2 Plate mounting unit and bottom panel with loom
• Group B – Scissor Assembly / Ensemble Ciseaux

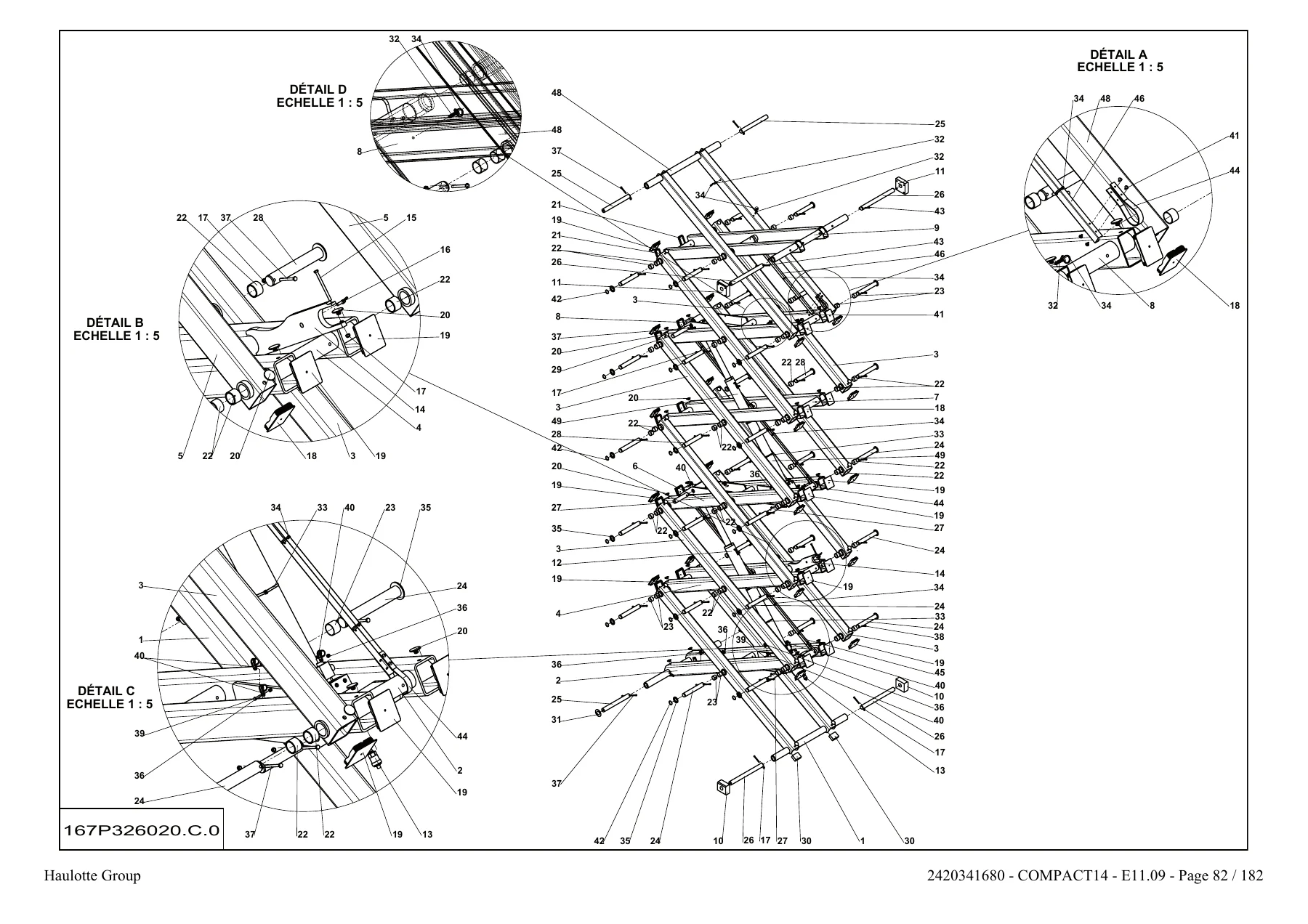

  • B25 Scissor assembly (exterior and interior arms for each level, scissor pads, lifting cylinders, pressure sensors, maintenance stand, pins, bushes, collars, straps and trunking)
  • B25-12 Lifting cylinder breakdown (bush, block, one-way valve, solenoid valve and coil, plugs, seal kit)
  • B25-49 Second lifting cylinder breakdown
• Group C – Platform / Plateforme
  • Platform with foldable guardrail (deck, extension, anti-slip tape, document box, safety brackets, pedals, guardrails, links, rollers, chains)
  • C21 Panel kit with weighing (control box, single-axis joystick, indicator lights, switches, contact blocks, labels)
  • C21-5 Loom (connectors, pins, terminals, cable, collars)
• Group D – Wiring Harness and Cabling Drawing / Faisceau + Plan Câblage
  • Loom – variator battery/pump
  • Loom – battery switch / FU1
  • Loom +BAT N1 / battery switch
  • Loom -BAT N4 / B- variator
  • Loom YV7/YV8 and SP1 or G1
  • Loom general chassis weighing and weighing loom
  • Interconnection loom
• Group E – Label / Étiquette
  • Common labels
  • Country-specific label sets (France, UK, Germany, Spain, Italy, Holland, Australia, Denmark, Finland, Portugal, Sweden)
• Group F – Options
  • F1 Australia option – joystick protection
  • F2 Extension – charger plug
  • F23 Power supply lifting device option (sockets, plugs, modules, cable glands)
  • F35 Working light
  • F46 Flashing light mounting unit

What makes this catalogue useful is not just the parts list itself but the way it is tied to the drawings. Every group opens with an illustration where the callouts match the rep. numbers in the table, so once you identify the assembly you are looking at, finding the correct part number is a matter of reading across the row. The specification column adds thread sizes, diameters, valve functions and electrical ratings where they matter – for example the on/off movements block table lists each solenoid valve by its function designation (YV5A/B – 4/3 – 24V, YV1 – 4/2 – 24V and so on) and the battery tables carry the semi-traction battery reference. Where a component is itself an assembly, the catalogue points you to a second page for its internal breakdown, such as the lifting cylinder exploded into bush, block, one-way valve, solenoid valve, coil, plug, valve and seal kit. This two-level structure means you can order either a complete cylinder or just the seal kit, depending on what the job needs. The harness group works the same way, listing connectors, pins, terminals, cable sizes and collars so a damaged loom section can be rebuilt or replaced rather than guessed at.

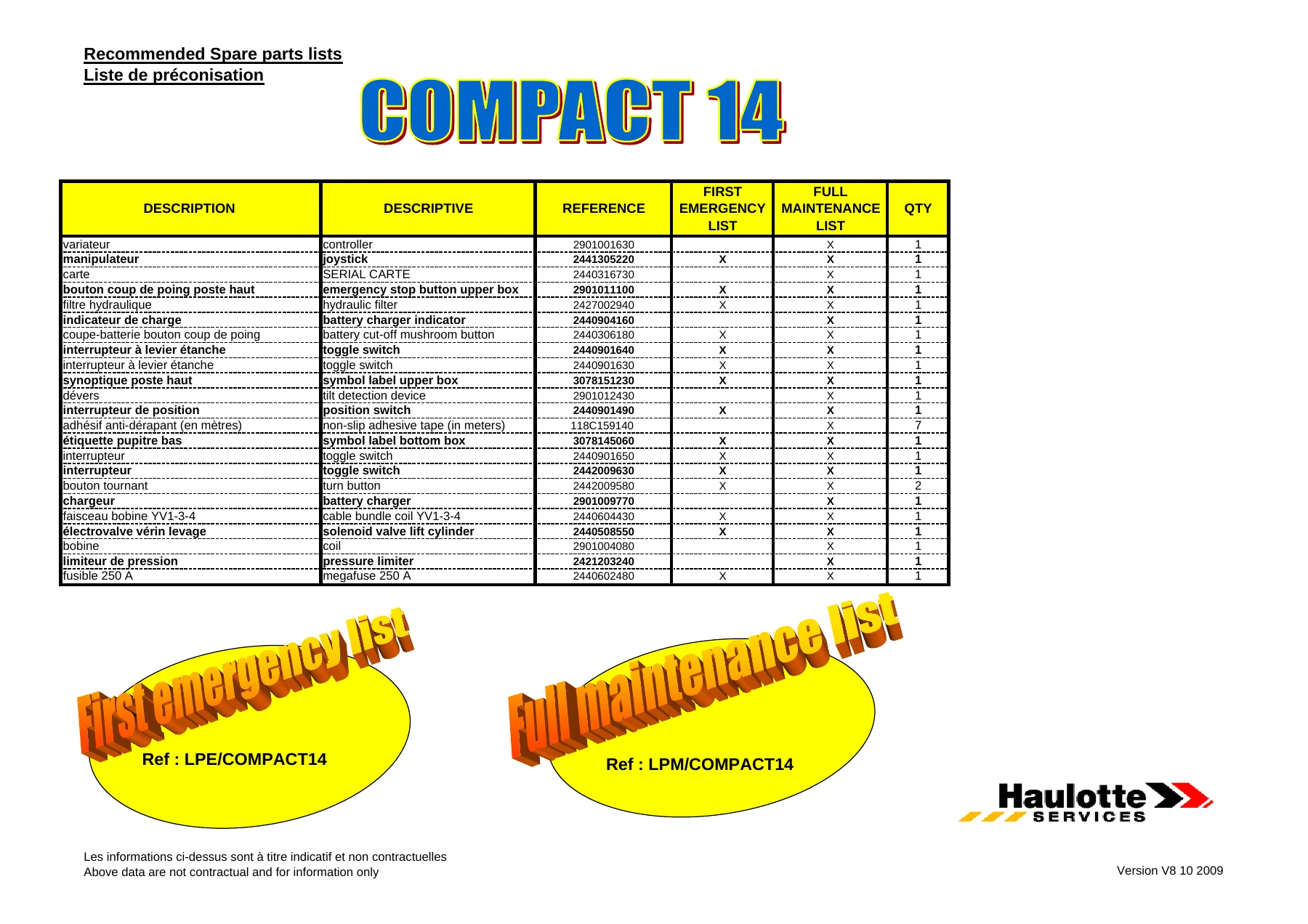

Two quick-reference lists are included at the front of the catalogue to speed up ordering: the first emergency list (ref. LPE/COMPACT14) and the full maintenance list (ref. LPM/COMPACT14). These flag the items Haulotte recommends holding for urgent breakdowns and the wider set for planned maintenance, covering the controller, joystick, serial card, emergency stop buttons, hydraulic filter, battery charger indicator, battery cut-off, toggle switches, symbol labels, tilt detection device, position switches, anti-slip tape, charger, coil bundle, lift cylinder solenoid valve, coil, pressure limiter and the 250 A megafuse.

Also included is a short parts order procedure that explains what Haulotte Services needs from you when ordering: machine serial number, catalogue code and edition, part number, quantity, and the exact quantity required. It is worth reading before you place an order, because the “Up to / jusqu’à” column in several tables means the correct part can depend on the build date or serial range of your particular Compact 14.

Why This Catalogue Matters

Ordering the wrong part on a scissor lift is expensive and slow. A hydraulic valve block, a steering cylinder or a lifting cylinder seal kit that does not match the build range means the machine stays down while a replacement is sourced. This catalogue removes that risk by giving you the drawing, the rep. number, the Haulotte code and the quantity for each item in one place, at the same revision level Haulotte used when the machine was built. It supports identification work on the chassis and sub-frame, the full hydraulic circuit from the on/off movements block through the hoses to the tanks and cylinders, the battery and axle assemblies, the motor guiding axle and steering, the entire scissor stack with every arm level, the platform and foldable guardrail hardware, the electrical component kit and panel, all the wiring harnesses, the label sets and the factory options. Whether you are rebuilding a lifting cylinder, replacing a damaged guardrail link, tracing a harness connector or ordering a replacement battery, the reference material is on the page in front of you.
