Haulotte HA20PX HA61JRT HA260PX HA80JRT Operator’s Manual 4000351200 – PDF Download

Description

This Haulotte HA20PX HA61JRT HA260PX HA80JRT operator’s manual is the manufacturer’s complete operating guide for these four articulated boom lifts, issued under document number 4000351200 in edition E 05.16. The 114-page PDF covers the full working life of the machine: pre-operation inspection, ground and platform control box operation, emergency rescue procedures, transportation, storage and cold-weather starting. It serves both the CE / AS / EAC machines (HA20PX and HA260PX) and the ANSI / CSA machines (HA61JRT and HA80JRT), with regulation-specific tables and hazard notices kept clearly separate so the reader never mixes one standard with another.

File Details

• Manual type: Operator’s manual
• Brand: Haulotte
• Models covered: HA20PX, HA61JRT, HA260PX, HA80JRT
• Document number: 4000351200
• Edition: E 05.16
• Region: USA / GB
• Language: English (original instructions also issued in French)
• Page count: 114
• File format: PDF

Chapters Covered

• Foreword — User responsibility, Safety, Safety inquiries, Incident notification, Compliance
• Familiarization — General safety, Models description, Primary machine components, Performance Specifications, Decals and markings locations
• Pre-operation inspection — Recommendations, Working area assessment, Inspection and Functional test, Safety functional checks
• Operation instructions — Operation, Ground control box, Platform control box, Emergency procedure, Transportation, Cold Weather Recommendations
• General specifications — Machine dimensions, Major component masses, Acoustics and vibrations, Wheel/Tire assembly, Options
• Maintenance — General, Maintenance Schedule, Inspection program, Repairs and adjustments
• Warranty — Warranty disclosure, Subsidiary contact information

Foreword and User Responsibility

Sets out who is responsible for what before the machine moves: the owner, the employer, the trainer and the operator. It explains the conditions under which an operator is authorized, when the machine must be taken out of service, and how to notify Haulotte of an incident involving personal injury or major property damage. The compliance section also covers product information updates, the change of ownership notification and the owner information form.

Familiarization

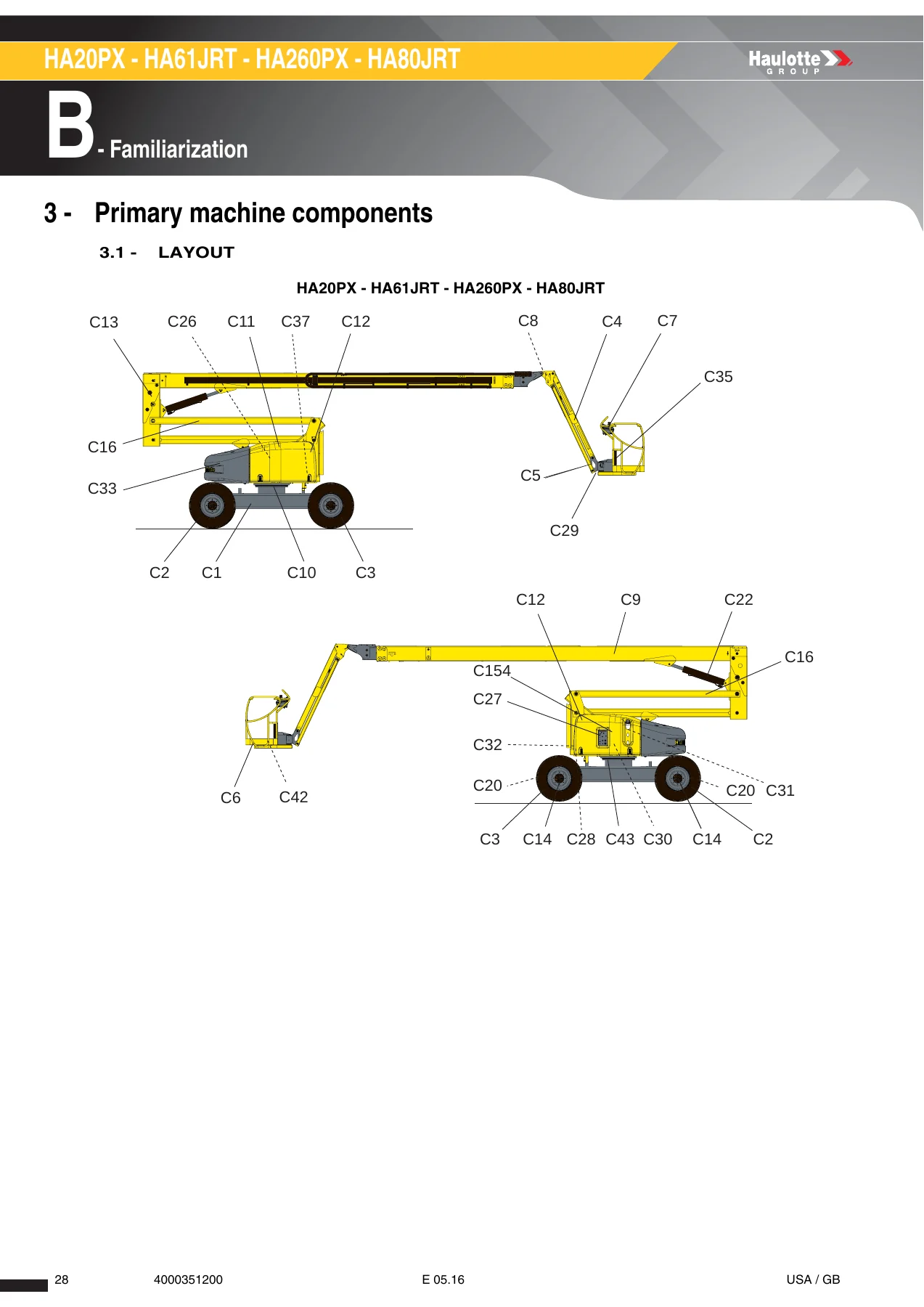

Defines the intended use of the HA20PX, HA61JRT, HA260PX and HA80JRT, then walks through the machine itself: major components C1 to C42, the ground control box layout with its full control and indicator table, the platform control box layout, and the decal set for CE, AS, EAC, ANSI and CSA standards. The performance specification tables give working height, platform height, maximum horizontal reach, platform capacity, wind limit, gradeability and turning radius for each model.

Pre-Operation Inspection and Safety Functional Checks

The daily inspection chapter lists what to check before every shift and at every change of operator — control boxes, platform floor and guardrails, boom and arm assemblies, frame and axle, turret rotation system, hydraulic cylinders, batteries, engine and sensors. The safety functional checks that follow cover E-stop operation on both boxes, control activation, fault detector behaviour, buzzer tests, automatic engine cut-out, overload sensing, slope warning, travel speed limitation, length and angle sensors and radius limitation.

Operation Instructions

Explains how to start and shut down the machine from the ground control box and from the platform control box, how to operate the boom, arm, jib, turntable and platform levelling controls, and how to drive and steer. A dedicated section covers the overriding system used to rescue an operator trapped in the platform when the normal ground controls are unavailable, plus a no-power procedure that warns against tampering with the hydraulic manifold.

Emergency Procedures and Transportation

Step-by-step procedures for power loss and for rescuing an operator in the platform using the secondary back-up unit. The transportation chapter covers putting the machine into transport position, disengaging and re-engaging the drive hubs for towing (the procedure differs between HA20PX / HA61JRT and HA260PX / HA80JRT), storage, and lifting with slings and spreaders. A cold-weather chapter gives engine oil and hydraulic oil viscosity tables and describes the preheating operation.

General Specifications

Machine dimensions in stowed and transport position, major component masses, acoustics and vibration data, wheel and tire specifications with replacement criteria, and the option list — the on-board generator and the Activ’ Shield Bar secondary guarding system with its pre-operation inspection, operation and reset instructions.

Maintenance and Inspection Program

Sets out the inspection intervals that keep the machine in service: daily inspection by the operator, annual periodic inspection, reinforced inspection at 5000 hours or 5 years, and major inspection at 10 years. The maintenance schedule and repair guidance close out the technical content, followed by warranty terms and a full list of Haulotte subsidiary contacts.

Who This Manual Is For

Owners and hire companies who need to brief operators, site supervisors responsible for rescue planning, trainers delivering familiarization on the HA20PX, HA61JRT, HA260PX or HA80JRT, and operators who want the machine’s own procedures to hand rather than a generic third-party guide. The manual is also the reference for the decals and markings fitted to the machine, so it doubles as a check sheet for missing or illegible decals.

Work Safely, Work Correctly

Every load chart, slope limit, wind threshold and emergency procedure in this Haulotte HA20PX HA61JRT HA260PX HA80JRT operator’s manual exists because the machine will not forgive a shortcut. The 230 kg platform capacity, the 45 km/h wind limit, the 5° rated slope and the maximum freewheel tow speed are the numbers that decide whether the machine stays upright. Having the exact figures and the manufacturer’s own procedures on hand means the operator, the supervisor and the rescue team are all working from the same playbook.
