Haulotte HTL3614 HTL3617 HTL4014 HTL4017 Parts Catalogue 4000202020 E01.15

Description

Haulotte HTL3614 HTL3617 HTL4014 HTL4017 Parts Catalogue 4000202020 E01.15

This Haulotte parts catalogue is the complete spare parts reference for the HTL3614, HTL3617, HTL4014 and HTL4017 telehandler models. Published under document number 4000202020 and updated to edition E01.15 in January 2015, this 816-page catalogue gives you exploded views, part numbers, quantities and assembly references for every major system on these machines. Whether you are identifying a replacement hydraulic hose, ordering a new cabin door latch or rebuilding a telescopic boom section, this Haulotte HTL3614 HTL3617 HTL4014 HTL4017 parts catalogue gives you the exact part numbers and visual references you need to order correctly the first time.

File Details

• Manual Type: Parts Catalogue / Spare Parts Catalog
• Brand: Haulotte
• Models Covered: HTL3614, HTL3617, HTL4014, HTL4017
• Document Number: 4000202020
• Edition: E01.15 (January 2015)
• First Publication: E 12.13 (December 2013)
• Language: French / English (bilingual)
• Page Count: 816
• File Format: PDF

Chapters Covered

• A – Lower Frame Group (Groupe Partie Basse): Movements block, steering block, braking block, bridge locking unit, tank hood assembly, sub-frame unit, cut-out switch assembly, counterweight assemblies, power supply section, oscillating motor guiding axle, fender assembly, hydraulic section, hose assemblies, foot-step unit, fuel tank assembly, hydraulic tank assembly, wheels assembly, traffic signage assembly, load levelling cylinder assembly
• B – Cabin Unit (Groupe Cabine): Cabin assembly (Tier 3), equipped cabin, door, window, cabling, inside lining, windscreen wiper, heating, driving element, seat, control pillar, cab accessories, brake pedal
• C – Heat Motor Group (Groupe Moteur Thermique): Pump + coupling 78 CC, start battery assembly, cowling assembly Tier 3, exhaust assembly Tier 3, diesel pre-filter assembly Tier 3, motor assembly 70 kW Tier 3, radiator unit 70 kW Tier 3, thermal engine support assembly Tier 3
• D – Telescopic Boom Group (Groupe Flèche Télescopique): Chain jib withdrawal, chain pushing jib out, intermediate case assemblies, case assemblies with welded cases, hydraulic sections, boom bottom assemblies, tool holder bulkhead, interior cases, compensating input cylinder assembly, boom lifting cylinder assembly, compensating output cylinder assembly, boom telescoping cylinder assemblies
• E2 – Accessories Group Phase 2: Fly jib with hook (2.5M-1.2T and 4M-0.6T), fly jib with winch, jib (2M 2T and 1M 3T), winch (1.2T and 2.4T), bucket assemblies (toothless, with teeth, 4-in-1 charger), protection for buckets, fork holder bulkheads, hook option, Australia option with rotating fork
• E3 – Accessories Group Phase 3: Fly jib with hook (2.5M 1.2T and 4M 0.6T), jib (1M 3T and 2M 2T), fork holder bulkhead group
• F – Power Supply Unit (Groupe Électricité): Sub-frame unit loom Tier 3, motor loom extension, motor bundle, rear lights bundle, electrovalve loom, front lights loom, front lights bundle
• G – Variant Group T IV i 86 kW: Pump + coupling 78 CC Tier 4, cabin assembly Tier 4 standard, engine hood assembly Tier 4, exhaust assembly Tier 4, sub-frame unit loom Tier 4, air filter assembly 86 kW Tier 4, motor assembly 86 kW, radiator unit 86 kW Tier 4, wheels assembly negative offset, thermal engine support assembly Tier 4
• G2 – Variant Group T IV 55 kW: Pump + coupling 78 CC Tier 4, sub-frame unit loom, cabin assembly Tier 4 standard, engine hood assembly Tier 4, exhaust assembly Tier 4, oscillating motor guiding axle, air filter assembly 55 kW Tier 4, hose assemblies, motor assembly 55 kW, radiator unit 55 kW, thermal engine support assembly Tier 4
• H3 – Options Group Tier 3: Fork, window breaker hammer, additional rear-view mirror, signalling triangle, cold weather start battery, complete wheel stop assembly, air conditioner assembly, protective grid, bio hydraulic oil, cold weather oil, hot country oil, raised level, reflective jacket, float unit, working light assembly, radio-control unit, wheels 400 80 24, spare wheel, hydraulic adapter kit, stickers, reflectors, towing yoke, fast tool attachment, tool bulkhead, fork 100 mm, sling fastener, reflective sticker, hoses protection, engine flexibility, truck standby unit, Europe visibility, single pin, tank cap with key, bulkhead type M, joystick, anti overspeed kit, Italy option, non-compliant engine, chassis plug socket 12V, start-up preventer, sealed battery, first emptying kit, display, basket winch command kit, additional remote control, transparent labels, emergency stop, geolocation, white diesel
• H4 – Options Group Tier 4: Air conditioner assembly for standard Tier 4 cabin, engine flexibility Stage 3B Europe, engine flexibility US Tier 4
• I – Consumables Group (Groupe Consommables): Consumables assemblies for HTL3614, HTL3617, HTL4014 and HTL4017
• J1 – Labels Group Tier 3 (Groupes Étiquettes): Germany, Australia (HTL3614, HTL3617, HTL4014, HTL4017), Canada, common labels except USA-Canada, Spain, Finland, France, Holland, Italy, Lithuania, Poland, Portugal, Sweden, UK, USA
• J2 – Labels Group Step 2 (Groupes Étiquettes): Germany, Australia, common labels except USA-Canada Tier 4, Spain, Finland, France, Holland, Italy, Lithuania, Poland, Portugal, Sweden, UK, USA

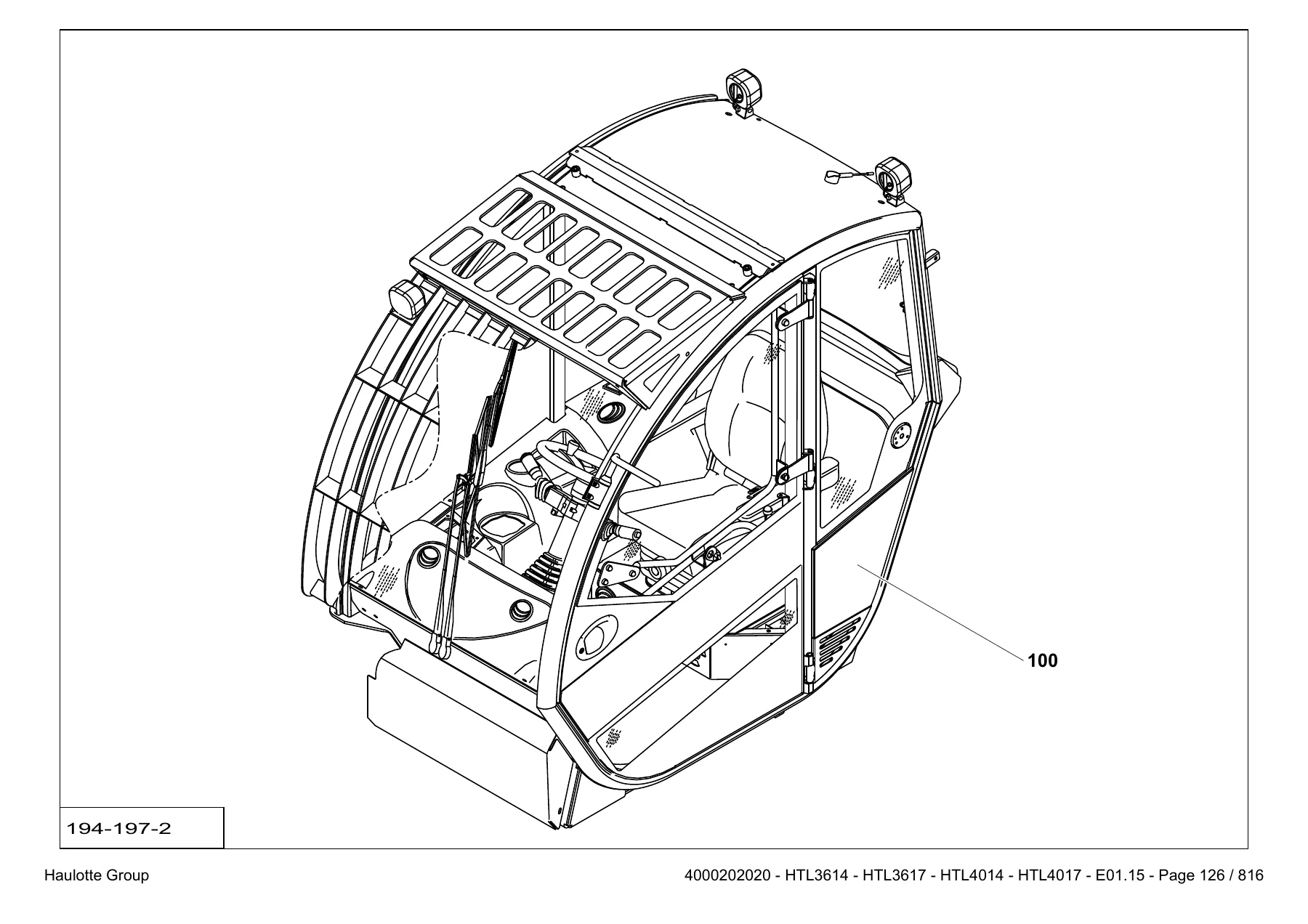

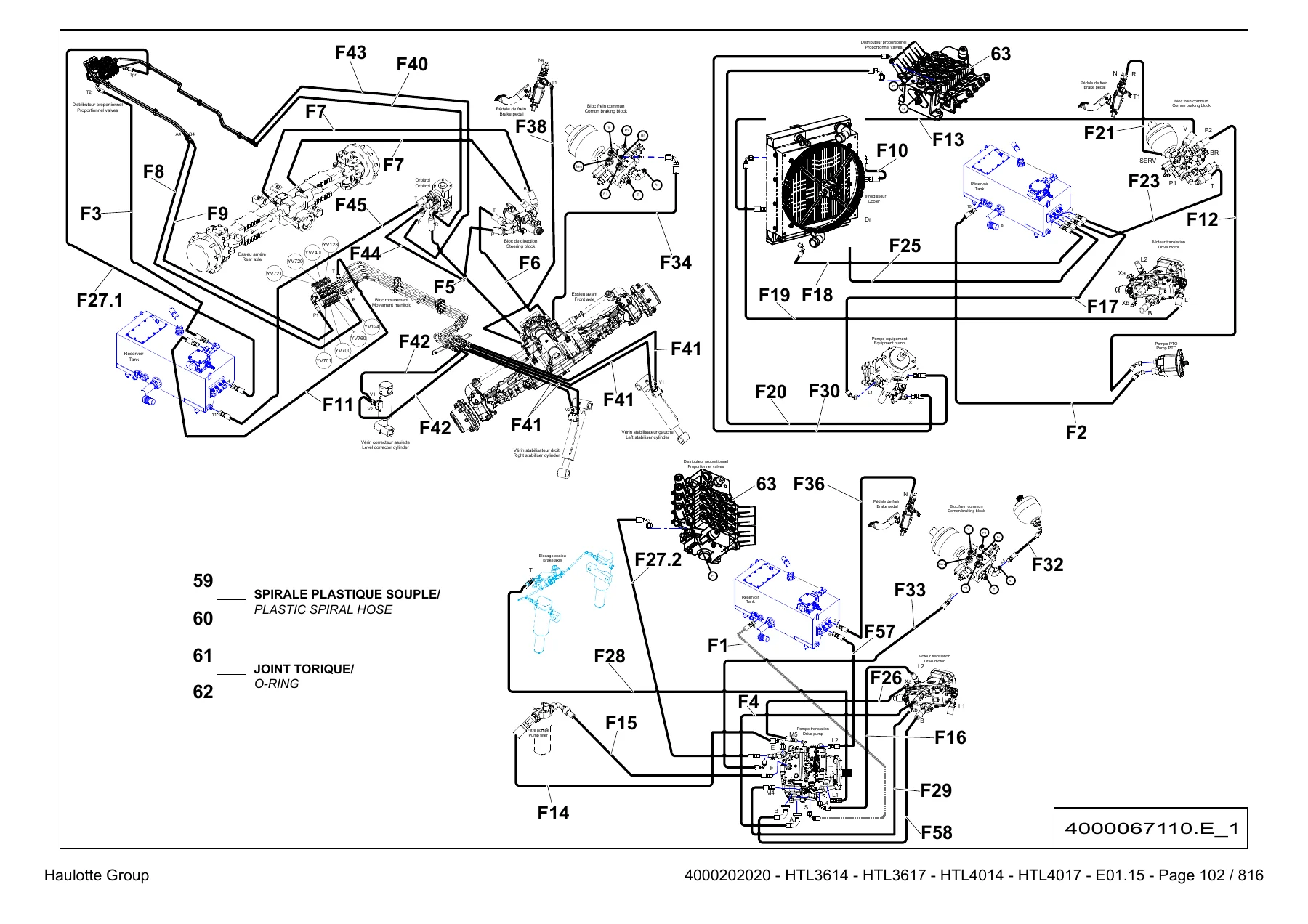

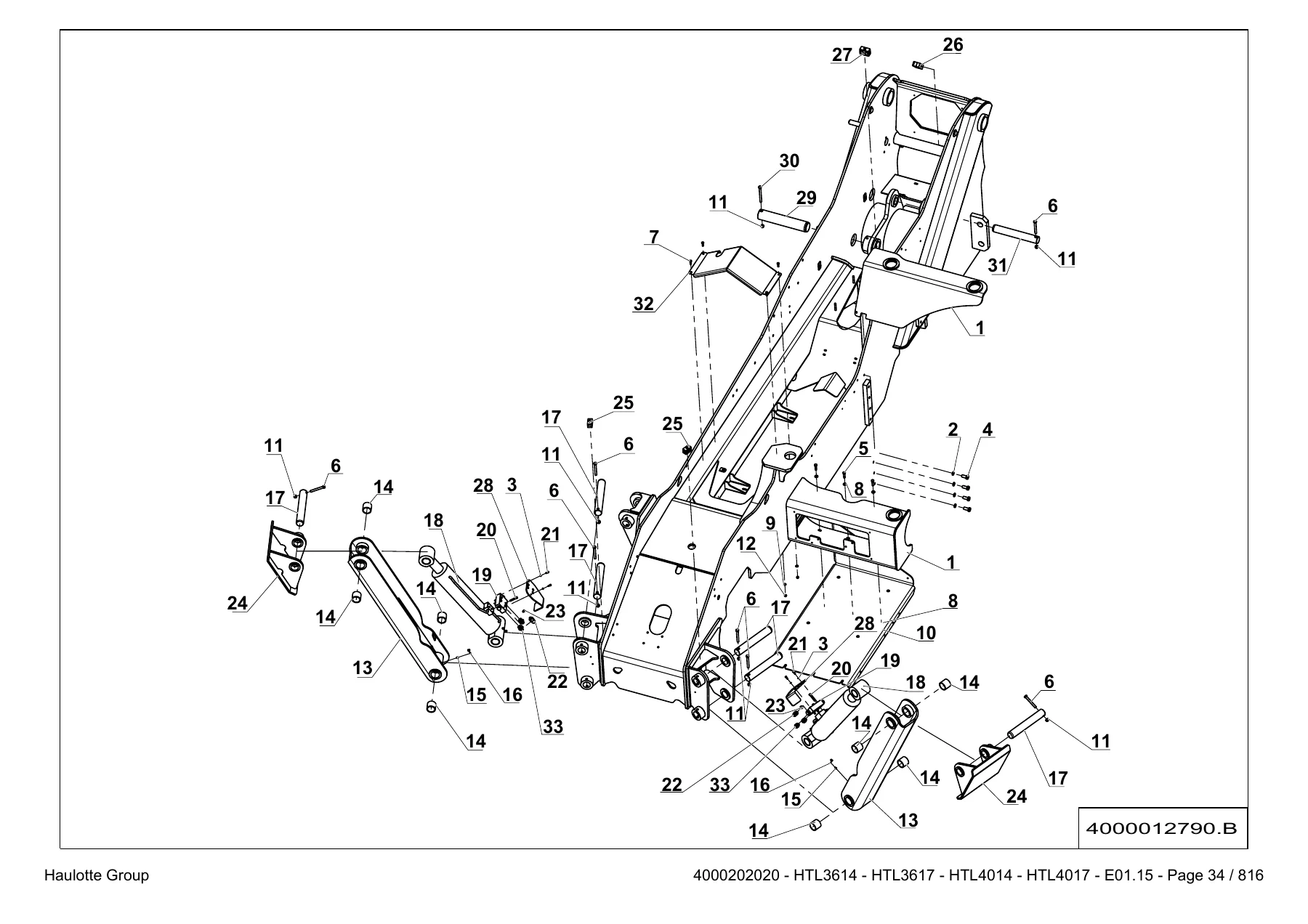

Under the hood, this catalogue is organised exactly the way a parts counter or workshop needs it. Each section opens with an exploded illustration where every component carries a reference number. That number maps directly to a table showing the Haulotte part number, the description in both French and English, the quantity required and any model-specific notes. When a group has variations between the HTL3614, HTL3617, HTL4014 and HTL4017, the catalogue splits into distinct sub-sections so you are never guessing which part belongs to which machine. The hydraulic sections are particularly thorough, with every hose, tube, fitting, valve and cylinder broken down individually. Electrical sections trace the full loom routing with connector and contact references. The boom group covers the telescopic sections, wear pads, chains, pulleys and all three compensation cylinders. The options and variants groups at the end cover everything from air conditioning and radio control to cold-weather packages and regional label sets, making this one of the most complete single references for these telehandlers.

Who This Catalogue Is For

This Haulotte parts catalogue is written for anyone who needs to identify and order spare parts for the HTL3614, HTL3617, HTL4014 or HTL4017. That includes fleet maintenance teams keeping telehandlers in service, independent workshops repairing these machines, parts departments at dealerships, and owners who prefer to source their own components. Because the catalogue covers all four models in one document, it is especially useful for mixed fleets where you might have an HTL3614 and an HTL4017 working on the same site. Instead of hunting through separate binders or calling a dealer for every part number, you can look up the assembly, find the reference number on the exploded view and have the exact Haulotte code in seconds.

Why the Correct Part Number Matters

Telehandlers are built to lift and place heavy loads at height, and every component in the hydraulic, braking, steering and boom systems is engineered to a specific specification. Fitting a part that looks similar but carries a different Haulotte number can introduce a failure point that may not show up until the machine is under load. This catalogue removes that risk by giving you the manufacturer’s own identification for every component. The quantity column also helps you order complete sets for a rebuild, such as all the wear pads for a boom section or every seal in a cylinder, rather than discovering halfway through the job that you are one part short. For scheduled maintenance, the consumables group lists the correct filters, oils and fluids by model, so you can keep service intervals on track without relying on guesswork.

How the Catalogue Is Organised

The document follows Haulotte’s own group structure, starting with the lower frame and working up through the cabin, engine, boom, accessories, electrics, variants, options, consumables and labels. Each group begins with a summary page listing the sub-assemblies it contains, so you can navigate quickly even in an 816-page file. Every exploded view is drawn as a clean line illustration with callouts, and the accompanying tables are laid out with one row per reference number. French and English descriptions run side by side, which is helpful if you are working from a French-language workshop manual or ordering from a French-speaking parts supplier. The “Up to / jusqu’à” column flags any part that changes at a specific machine break, so you can match the part to your serial number rather than assuming all units are identical.

IMAGES PREVIEW

Instant PDF Delivery

This Haulotte HTL3614 HTL3617 HTL4014 HTL4017 parts catalogue is delivered as a PDF download immediately after purchase. There is no shipping, no waiting for a disc or a printed binder, and no customs delay. You can open it on a workshop computer, a laptop, a tablet or a phone, and you can print the pages you need for a job without carrying the whole document around. The PDF format also means you can keep a copy on your network, share it with your team and search across the file for a part number or description when you know what you are looking for but not which group it sits in. For anyone maintaining or repairing these Haulotte telehandlers, having the parts catalogue on hand turns a difficult identification job into a straightforward one.
