Haulotte Star 6 & Star 13 Vertical Mast Lift Operator’s Manual – PDF Download

Description

Haulotte Star 6 & Star 13 Operator’s Manual

The Haulotte Star 6 and Star 13 are electric vertical mast aerial work platforms built to position personnel, tools and materials at elevated temporary workplaces. This is the complete operator’s manual that ships with the machine and remains the primary reference for safe operation, daily inspection, emergency lowering and the performance limits that govern the equipment. Every page of the original document is reproduced in this PDF, from the user responsibility chapter through the maintenance schedule and warranty terms.

File Details

• Manual type: Operator’s Manual
• Brand: HAULOTTE
• Models covered: STAR 6, STAR 13
• Language: English (original instructions also issued in French)
• Page count: 104
• File format: PDF

Chapters Covered

• User Responsibility
• Safety
• Safety Inquiries
• Incident Notification
• Compliance
• Familiarization
• Pre-Operation Inspection
• Operation Instructions
• General Specifications
• Maintenance
• Other Information

User Responsibility & Safety

This opening block sets out the legal and practical obligations of the owner, employer, trainer and operator before the machine is ever moved. The safety chapter then works through each hazard class in turn: misuse, falling, overturning and tip-over, electrocution, explosion and fire, crushing and collision, and uncontrolled movement. Minimum safe approach distances for live power lines are tabulated by voltage, and the Beaufort wind force scale is reproduced so operators can judge when outdoor use must stop.

Safety Inquiries & Incident Notification

Contact details for the HAULOTTE Product Safety department across Europe, Asia-Pacific and the Americas are listed here, together with the notification procedure that must be followed after any incident involving personal injury or major property damage.

Compliance

Covers product information policy, the change of ownership notification process, the owner information update form, and the manufacturer’s position on product modifications and specification changes.

Familiarization

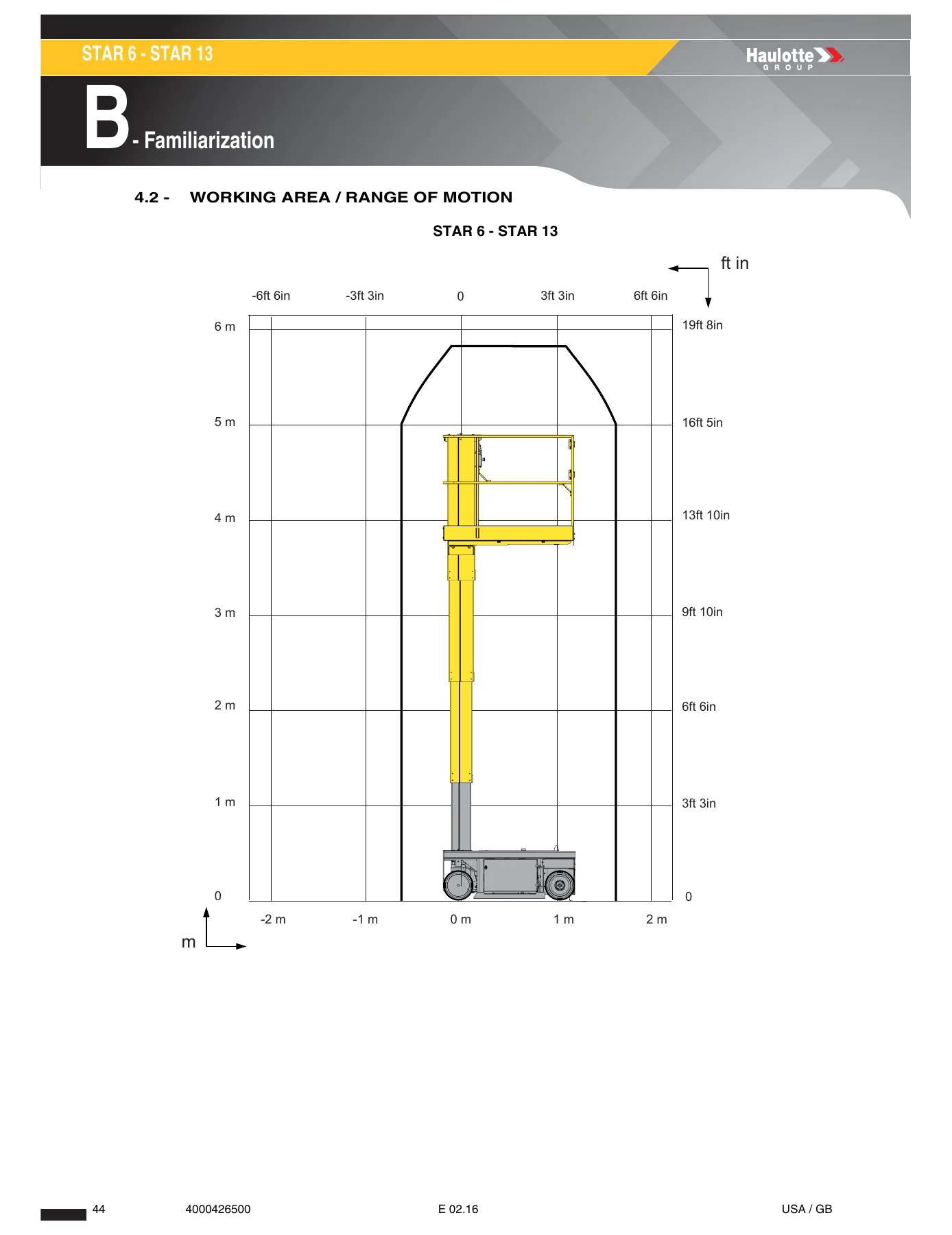

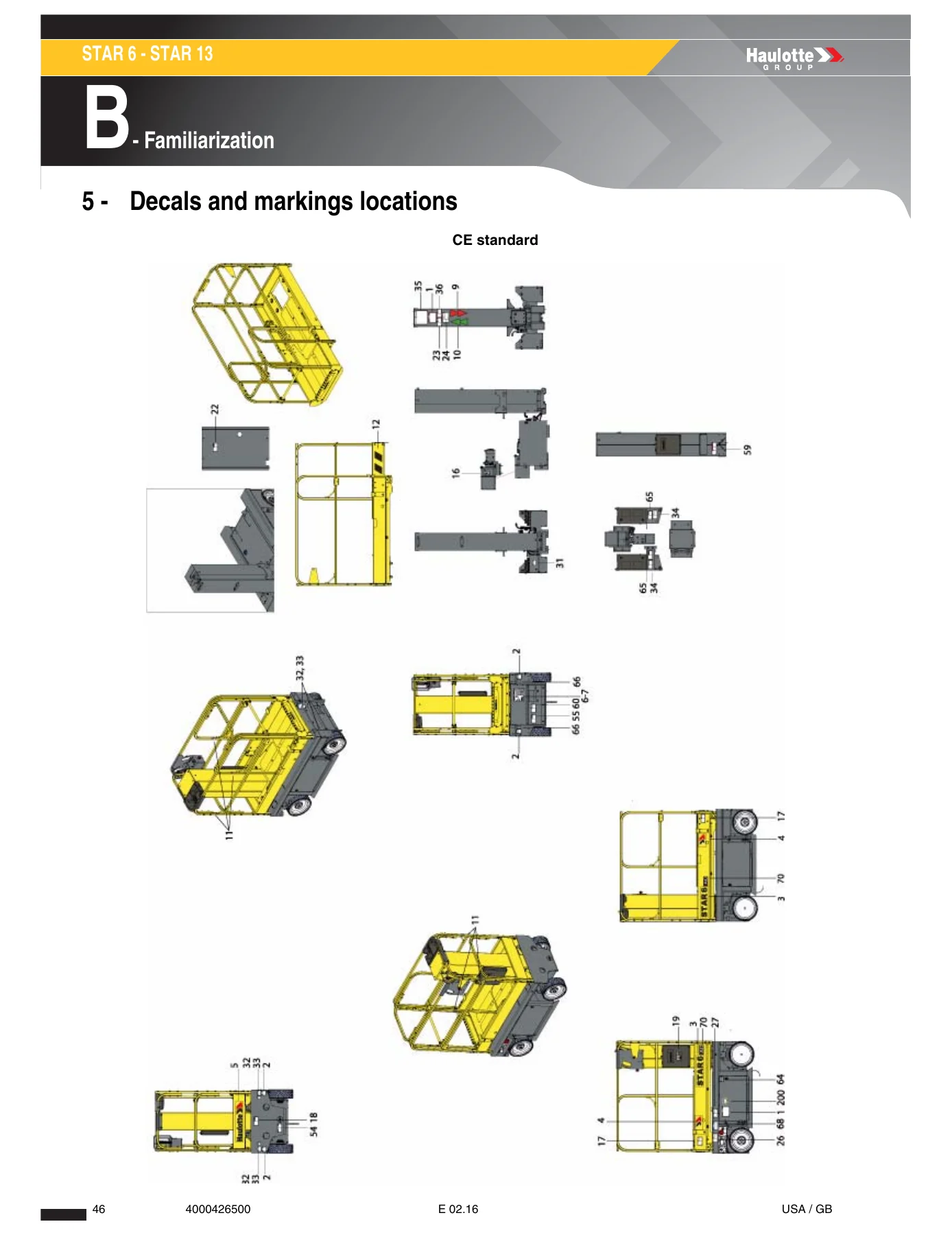

This is the walk-around chapter. It describes intended use, decal content and hazard severity levels, the symbol legend used throughout the manual, models description, primary machine components, the ground control box layout, the HAULOTTE Activ’Screen interface, the platform control box, performance specifications, the working area / range of motion envelope, and the decals and markings locations for the CE, AS, ANSI, CSA and Russia/Ukraine versions.

Pre-Operation Inspection

The daily routine is fully documented here: working area assessment, visual inspection, and the functional checks that must be performed at every shift change. Individual procedures cover the E-stop button check from both control boxes, activation of controls and the enable switch, the on-board fault detector and buzzer test, the slope warning device, travel speed limitation, electronic variable speed drive, machine braking, wheel motor brake release, the pothole protection system, and the on-board charger with its battery charge level indicators.

Operation Instructions

Step-by-step procedures for operating the Star 6 and Star 13 from the ground control box and from the platform control box. Drive and steer control, mast extension and retraction, additional controls, emergency procedures including power loss and exit from an elevated platform, transportation, putting the machine in transport position, unloading, towing with electric brake release, storage, loading and unloading by ramp, lifting operations with slings, forklift loading and unloading, cold weather recommendations and hydraulic oil selection, plus full battery care and charging instructions.

General Specifications

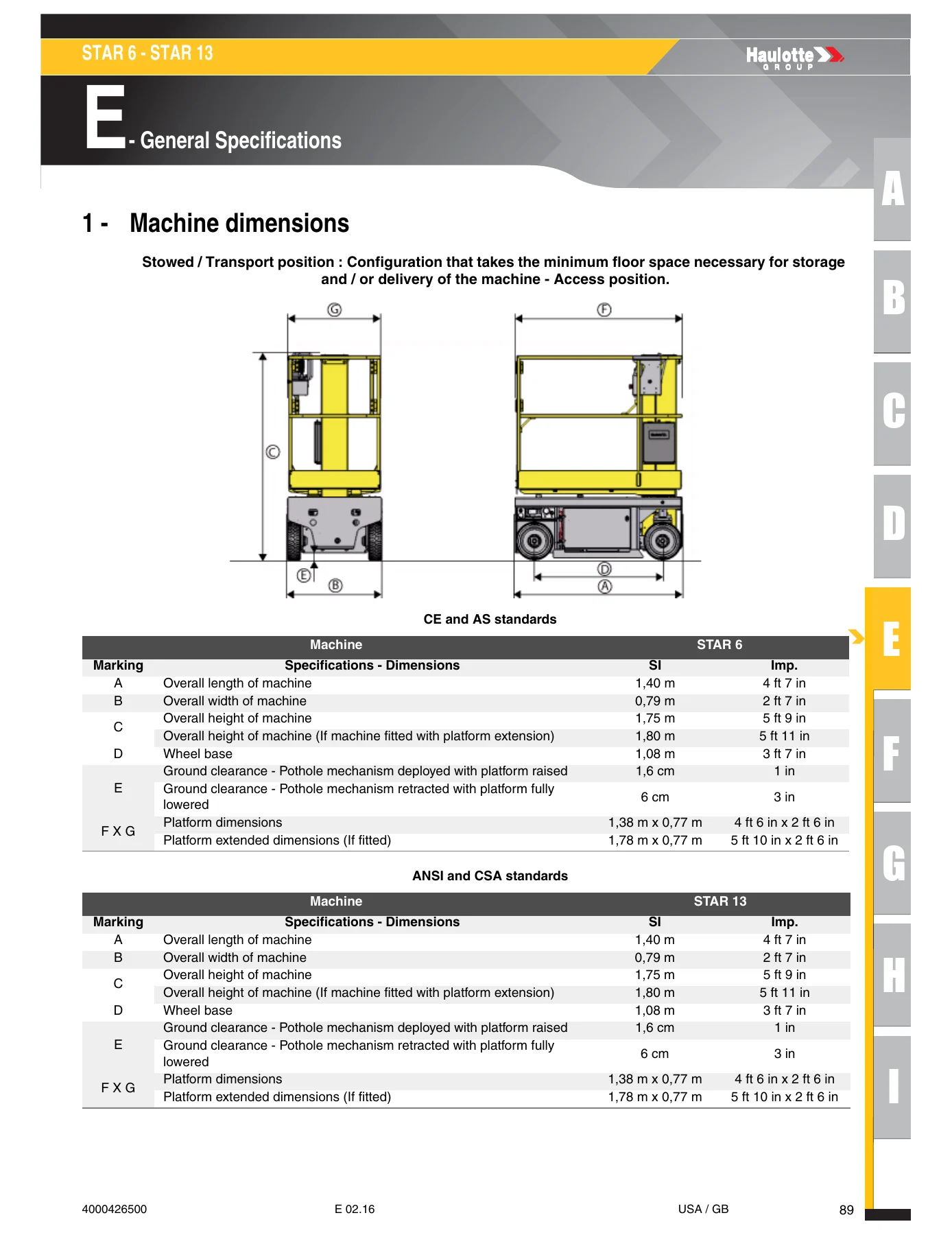

Machine dimensions in stowed and transport position, major component masses for both models (including platform extension variants), acoustics and vibration data, and wheel/tyre assembly specifications with inspection and replacement criteria.

Maintenance

General maintenance principles, the maintenance schedule, and the full inspection program covering daily, periodic, reinforced (5-year / 5000-hour) and major (10-year) inspections. The role and responsibility of each party in periodical maintenance is tabulated, and the chapter closes with guidance on repairs and adjustments that must be handled by HAULOTTE Services technicians using original spare parts.

Other Information

Warranty disclosure, after-sales service details, manufacturer’s warranty terms, warranty acceptance and period, procedure conditions, conditions of warranty, and contact information for every HAULOTTE subsidiary worldwide.

Why This Manual Matters

The Star 6 and Star 13 are compact but unforgiving machines. Rated capacity, wind speed limits, slope limits and minimum approach distances are not suggestions — they are the numbers that keep an operator alive. This manual puts every one of those values, and the procedures built around them, in a single document you can search on any device and print for the job site. Whether you are running a daily pre-shift inspection, recovering a machine with a dead battery, or training a new operator, the answers are here.

IMAGES PREVIEW

Instant PDF Delivery

Your download is available immediately after payment — no shipping, no waiting, no physical media. The PDF opens on any laptop, tablet or phone and can be printed as many times as you need. Keep a copy in the machine’s manual holder and another in the office, exactly as HAULOTTE requires. The Haulotte Star 6 & Star 13 operator’s manual is the document that keeps this equipment compliant, serviceable and safe.
