Hitachi Ex135ur Excavator Parts Manual
FILE DETAILS:
LANGUAGE:ENGLISH
PAGES:570
DOWNLOADABLE:YES
FILE TYPE:PDF
HITACHI EX135UR EXCAVATOR PARTS MANUAL – PDF DOWNLOAD:

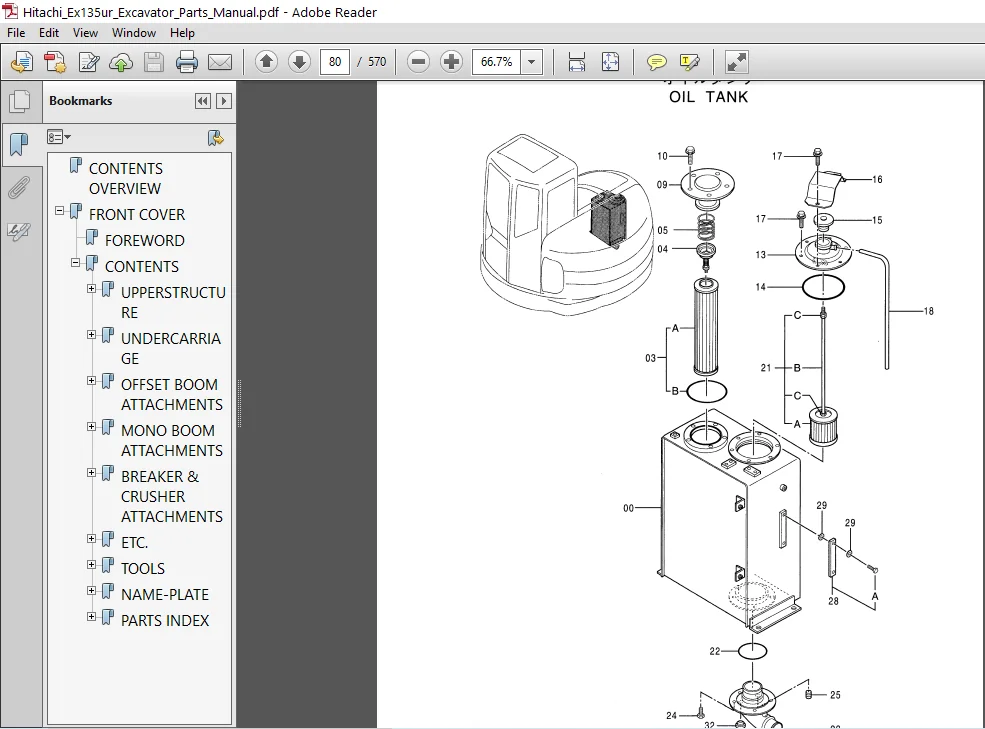

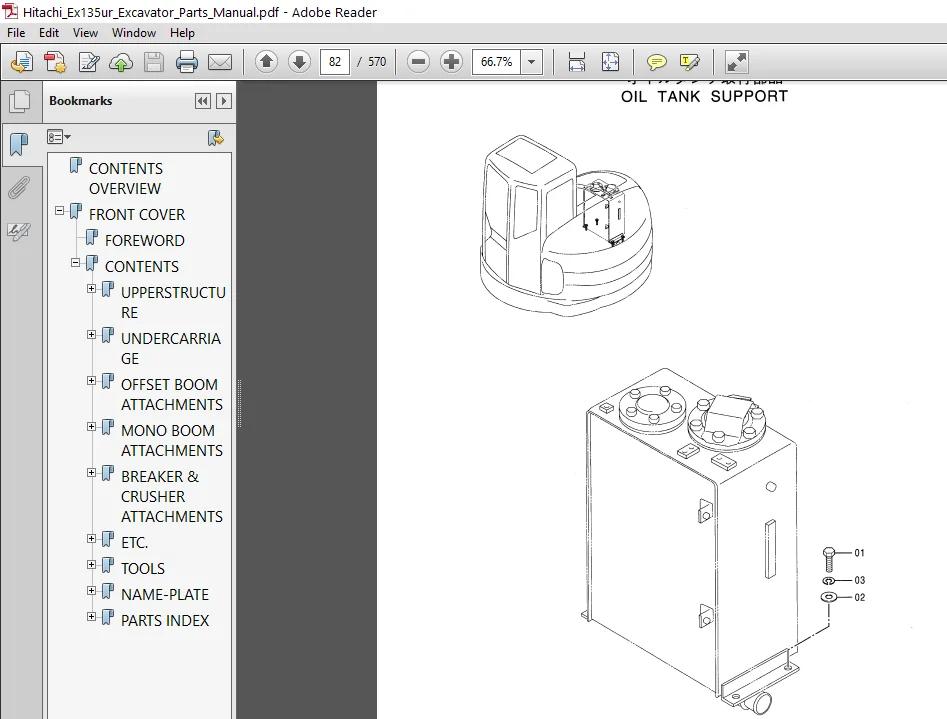

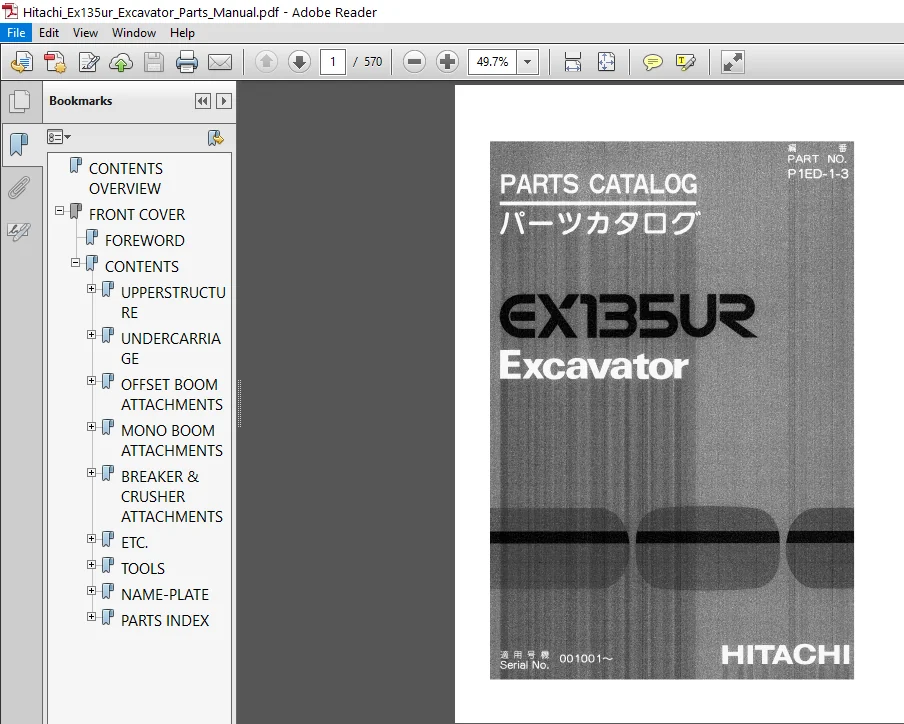

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Hitachi Ex135ur Excavator Parts Manual
- This parts catalog shows the components of EXIBSUR Hydraulic Excavator. The numerical parts No. index is provided at the end of this parts catalog. In the parts index, a part No. with ”*” mark shows a newly added part on the parts catalog.
- This parts catalog includes parts information for both standard and regional specification models. Please refer to the identification note given in [ ] after the Group Name, or Part Name to
distinguish between standard and regional parts information as shown below:
Group Name (or Part Name) plus [STD] : for Standard Specification Model
Group Name (or Part Name) plus [EU] : for European Union Specification Model
Group Name (or Part Name) plus no note : Applicable to all models
Example:
SEAT[EU]—*This part is for machines delivered to the European Union.
- This parts catalog contains the most recent information available at the time of printing, and the contents of the list are based on information in effect at that time and are subject to change without notice.
- The references in the parts catalog of “LEFT”, “RIGHT”, ”FRONT” and ”REAR” are identified as follows. The driver’s seat is positioned “LEFT” side. and the opposite side is “RIGHT”. The front-end attachments is at the ”FRONT”. The counterweight is attached at the ”REAR”. For the undercarriage, the travel motor is at the “REAR”, and the opposite is ”FRONT”.
- For the engine parts, please refer to the parts catalog of ISUZU diesel engine 4861 issued separately.
TABLE OF CONTENTS:
Hitachi Ex135ur Excavator Parts Manual
CONTENTS OVERVIEW................................................ 0
FRONT COVER...................................................... 1
FOREWORD..................................................... 7
CONTENTS..................................................... 11
UPPERSTRUCTURE........................................... 35
FRAME................................................ 36
CENTER JOINT SUPPORT................................. 38
COUNTERWEIGHT........................................ 40
ENGINE............................................... 42
FAN ............................................... 44
ENGINE SUPPORT....................................... 46
RADIATOR ....................................... 48
RADIATOR SUPORT...................................... 50
RESERVE TANK [STD]................................... 52
RESERVE TANK [EU].................................... 54
AIR CLEANER.......................................... 56
MUFFLER.............................................. 58
FUEL TANK ......................................... 60
FUEL TANK SUPPORT.................................... 62
FUEL PIPING ......................................... 64
AUTO VACUUM FUEL DEVICE [EU]......................... 66
PUMP DEVICE (WITH BLADE)............................. 68
PUMP DEVICE (WITHOUT BLADE).......................... 70
PUMP DEVICE SUPPORT.................................. 72
SWING DEVICE......................................... 74
PUMP DEVICE SUPPORT.................................. 78
OIL TANK ......................................... 80
OIL TANK SUPPORT..................................... 82
CONTROL VALVE........................................ 84
CONTROL VALVE SUPPORT................................ 86
SUCTION PIPING (WITH BLADE).......................... 88
SUCTION PIPING (WITHOUT BLADE)....................... 90
DELIVERY PIPING...................................... 92
RETURN PIPING ....................................... 94
DRAIN PIPING (WITH BLADE)............................ 96
DRAIN PIPING (WITHOUT BLADE)......................... 98
MAIN PIPING (1) (OFFSET BOOM)........................100
MAIN PIPING (1) (MONO BOOM)..........................102
MAIN PIPING (2)......................................104
MAIN PIPING (3)......................................106
MAIN PIPING (4)......................................108
MAIN PIPING (5) (WITH BLADE).........................110
MAIN PIPING (5) (WITHOUT BLADE)......................112
ENGINE CONTROL LEVER.................................114
ENGINE CONTROL PEDAL.................................116
ENGINE CONTROL MOTOR.................................118
ENGINE CONTROL CABLE.................................120
CONTROL LEVER (FRONT & SWING)........................122
CONTROL LEVER (TRAVEL)...............................124
CONTROL LEVER (BLADE)................................126
BLADE CABLE..........................................128
CONTROL PEDAL (OFFSET)...............................130
LOCK LEVER...........................................132
PILOT VALVE (FRONT & SWING)..........................134
PILOT VALVE (TRAVEL).................................136
PILOT VALVE (OFFSET).................................138
PILOT VALVE (BLADE)..................................140
SOLENOID VALVE.......................................142
PILOT PIPING (1-1) <OFFSET BOOM>.....................144
PILOT PIPING (1-1) <MONO BOOM>.......................146
PILOT PIPING (1-2) <WITH BLADE>......................148
PILOT PIPING (1-2) <WITHOUT BLADE>...................150
PILOT PIPING (2-1) ..................................152
PILOT PIPING (2-2) ..................................154
PILOT PIPING (3-1) <OFFSET BOOM>.....................156
PILOT PIPING (3-1) <MONO BOOM : WITH BLADE>..........158
PILOT PIPING (3-1) <MONO BOOM : WITHOUT BLADE>.......160
PILOT PIPING (3-2) <WITH BLADE>......................162
PILOT PIPING (3-2) <WITHOUT BLADE>...................164
PILOT PIPING (3-3) <OFFSET BOOM>.....................166
PILOT PIPING (3-3) <MONO BOOM>.......................168
PILOT PIPING (3-4) ..................................170
PILOT PIPING (4-1) <OFFSET BOOM> ....................172
PILOT PIPING (4-1) <MONO BOOM : WITH BLADE>..........174
PILOT PIPING (4-1) <MONO BOOM : WITHOUT BLADE>.......176
PILOT PIPING (4-2) <WITH BLADE>......................178
PILOT PIPING (4-2) <WITHOUT BLADE> ................180
PILOT PIPING (4-3)...................................182
PILOT PIPING (4-4)...................................184
PILOT PIPING (5) <OFFSET BOOM>.......................186
PILOT PIPING (5) <MONO BOOM : WITH BLADE>............188
PILOT PIPING (5) <MONO BOOM : WITHOUT BLADE>.........190
PILOT PIPING (6).....................................192
PILOT PIPING (6).....................................194
PILOT PIPING (7).....................................196
PILOT PIPING (8-1)...................................198
PILOT PIPING (8-2)...................................200
PILOT PIPING (9).....................................202
CONSOLE (R)..........................................204
CONSOLE (L)..........................................206
RADIO FRAME..........................................208
AM RADIO ...........................................210
AM/FM RADIO ........................................212
GAUGE PANEL..........................................214
CONTROLLER...........................................216
MONITOR SUPPORT <OFFSET BOOM>........................218
ELECTRIC PARTS (1) <OFFSET BOOM>.....................220
ELECTRIC PARTS (1) <MONO BOOM>.......................222
ELECTRIC PARTS (2) [STD].............................224
ELECTRIC PARTS (2) [EU]..............................226
ELECTRIC PARTS (3)...................................228
ELECTRIC PARTS (4) ..................................230
ELECTRIC PARTS (5) <OFFSET BOOM>.....................232
CAB HARNESS..........................................234
LIGHT HARNESS........................................236
HORN ..............................................238
HORN [EU]............................................240
COLLISION PREVENTION SYSTEM LINK.....................242
AIR CONDITIONER (1)..................................244
AIR CONDITIONER (2)..................................246
AIR CONDITIONER (3)..................................248
CAR HEATER (2000 CAL) [STD]..........................250
CAR HEATER (3000 CAL) [STD]..........................252
HEATER UNIT [EU].....................................254
CAR HEATER PARTS.....................................256
CAR HEATER PIPING ...................................258
CAB GROUP (1)........................................260
CAB GROUP (2) [STD]..................................262
CAB GROUP (2) [EU]...................................264
CAB ASS'Y............................................266
CAB (1) [STD]........................................268
CAB (1) [EU].........................................272
CAB (2)..............................................276
CAB (3)..............................................278
CAB (4)..............................................280
CAB (5) [STD]........................................282
CAB (5) [EU].........................................284
CAB (6)..............................................286
ASHTRAY..............................................288
WINDOW WASHER (OPTION)...............................290
GREASE-GUN HOLDER (OPTION)...........................292
UNDER MIRROR [EU]....................................294
REAR COVER [STD].....................................296
REAR COVER [EU]......................................298
FLOOR PARTS..........................................300
FLOOR MAT............................................302
SEAT [STD]...........................................304
SEAT [EU]............................................306
SEAT STAND [STD].....................................308
SEAT STAND [EU]......................................310
COVER (1)............................................312
COVER (2) [STD]......................................314
COVER (2) [EU].......................................316
COVER (3) [STD]......................................318
COVER (3) [EU].......................................320
COVER (4) [STD]......................................322
COVER (4) [EU].......................................324
COVER (5) [STD]......................................326
COVER (5) [EU].......................................328
COVER (6) [STD]......................................330
COVER (6) [EU].......................................332
COVER (7) [STD]......................................334
COVER (7) [EU].......................................336
COVER (8)............................................338
STEP.................................................340
STAY [EU]............................................342
UNDERCARRIAGE............................................345
TRACK FRAME..........................................346
STEP [EU]............................................348
TOOL BOX (OPTION)....................................350
SWING BEARING........................................352
SWING BEARING SUPPORT................................354
GREASE-BATH COVER....................................356
TRAVEL DEVICE........................................358
TRAVEL DEVICE SUPPORT................................360
FRONT IDLER (RUBBER CRAWLER).........................362
FRONT IDLER (STEEL CRAWLER)..........................364
ADJUSTER (RUBBER CRAWLER)............................366
ADJUSTER (STEEL CRAWLER).............................368
UPPER ROLLER.........................................370
UPPER ROLLER.........................................372
LOWER ROLLER (RUBBER CRAWLER)........................374
LOWER ROLLER (STEEL CRAWLER).........................376
LOWER ROLLER SUPPORT.................................378
RUBBER CRAWLER.......................................380
TRACK-LINK 500G......................................382
TRACK-LINK 500G (SINGLE GROUSER).....................386
TRACK-LINK 500G (LUBRICATED TYPE)....................390
TRACK-LINK 500GP (RUBBER PAD)........................392
TRACK-LINK 510F......................................396
PAD CRAWLER 500......................................400
PAD CRAWLER B500 (SEPARATE-TYPE).....................404
CENTER JOINT.........................................406
CENTER JOINT SUPPORT.................................408
TRAVEL PIPING .......................................410
TRAVEL MOTOR COVER...................................412
BLADE................................................414
BLADE PIPING.........................................416
OFFSET BOOM ATTACHMENTS..................................419
OFFSET BOOM..........................................420
OFFSET BOOM..........................................424
STD. ARM 2.21M <OFFSET BOOM>.........................428
LONG ARM 2.51M <OFFSET BOOM>.........................430
LINK A (WITH HOOK)...................................432
FRONT PIPING (1) <OFFSET BOOM>.......................434
FRONT PIPING (1) <OFFSET BOOM>.......................438
FRONT PIPING (2) <OFFSET BOOM : STD. ARM>............440
FRONT PIPING (2) <OFFSET BOOM : LONG ARM>............442
BOOM CYLINDER........................................444
ARM CYLINDER <OFFSET BOOM>...........................446
BUCKET CYLINDER <OFFSET BOOM>........................448
FRONT PIPING COVER <OFFSET BOOM>.....................450
FRONT PIPING COVER <OFFSET BOOM>.....................452
BOOM CYLINDER GUARD..................................454
LUBRICATE PIPING <OFFSET BOOM>.......................456
BUCKET 0.19 <JIS 94>.................................458
BUCKET 0.3 <JIS 94>..................................460
BUCKET 0.4 <JIS 94>..................................462
BUCKET 0.45 <JIS 94>.................................464
BUCKET 0.5 <JIS 94>..................................466
BUCKET 0.59 <JIS 94>.................................468
MONO BOOM ATTACHMENTS....................................471
MONO BOOM ...........................................472
STD. ARM 2.26M <MONO BOOM>...........................474
LONG ARM 2.81M <MONO BOOM>...........................478
LINK A (WITH HOOK)...................................432
FRONT PIPING <MONO BOOM>.............................482
BOOM CYLINDER........................................444
ARM CYLINDER <MONO BOOM>.............................484
BUCKET CYLINDER <MONO BOOM>..........................486
BOOM CYLINDER GUARD..................................454
LUBRICATE PIPING <MONO BOOM>.........................488
BUCKET 0.19 <JIS 94>.................................458
BUCKET 0.3 <JIS 94>..................................460
BUCKET 0.4 <JIS 94>..................................462
BUCKET 0.45 <JIS 94>.................................464
BUCKET 0.5 <JIS 94>..................................466
BUCKET 0.7 <JIS 94>..................................468
ONE-POINT RIPPER <MONO BOOM>.........................490
SLOPE -FINISHING BLADE <MONO BOOM>...................492
CLAMSHELL BUCKET (1) <MONO BOOM>.....................494
CLAMSHELL BUCKET (2) <MONO BOOM>.....................496
CLAMSHELL BUCKET (3) <MONO BOOM>.....................498
CLAMSHELL PIPING <MONO BOOM>.........................500
BREAKER & CRUSHER ATTACHMENTS............................503
CONTROL PEDAL (BREAKER & CRUSHER) <MONO BOOM>........504
PILOT PIPING (BREAKER & CRUSHER) <MONO BOOM>.........506
MAIN PIPING (BREAKER & CRUSHER) <MONO BOOM>..........508
BOOM PIPING (BREAKER & CRUSHER) <MONO BOOM>..........510
ARM PIPING (BREAKER & CRUSHER) <MONO BOOM>...........512
OKD COMMON PIPING (BREAKER & CRUSHER) <MONO BOOM>....514
OKD BREAKER PIPNG(BREAKER) <MONO BOOM>...............516
ETC......................................................519
MULTI LEVER..........................................520
MULTI LEVER PIPING (1)...............................522
MULTI LEVER PIPING (2)...............................524
MULTI LEVER PIPING (3)...............................526
MULTI LEVER PIPING (4)...............................528
MULTI LEVER PIPING (5)...............................530
MULTI LEVER PIPING (6) ............................532
TOOLS....................................................535
TOOLS ..............................................536
NAME-PLATE...............................................539
NAME-PLATE (JAPANESE) <OFFSET BOOM>..................540
NAME-PLATE (JAPANESE) <MONO BOOM>....................544
PARTS INDEX..............................................549
PARTS INDEX..........................................550
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
1 review for Hitachi Ex135ur Excavator Parts Manual – PDF DOWNLOAD
Add a review
Eli Bjorn –
Easy and very useful
