Hitachi EX200-5 EX210-5 Series Equipment Components Parts Catalog – Pump Motor Valve Cylinder PDF

Description

Hitachi EX200-5 & EX210-5 Series Equipment Components Parts Catalog

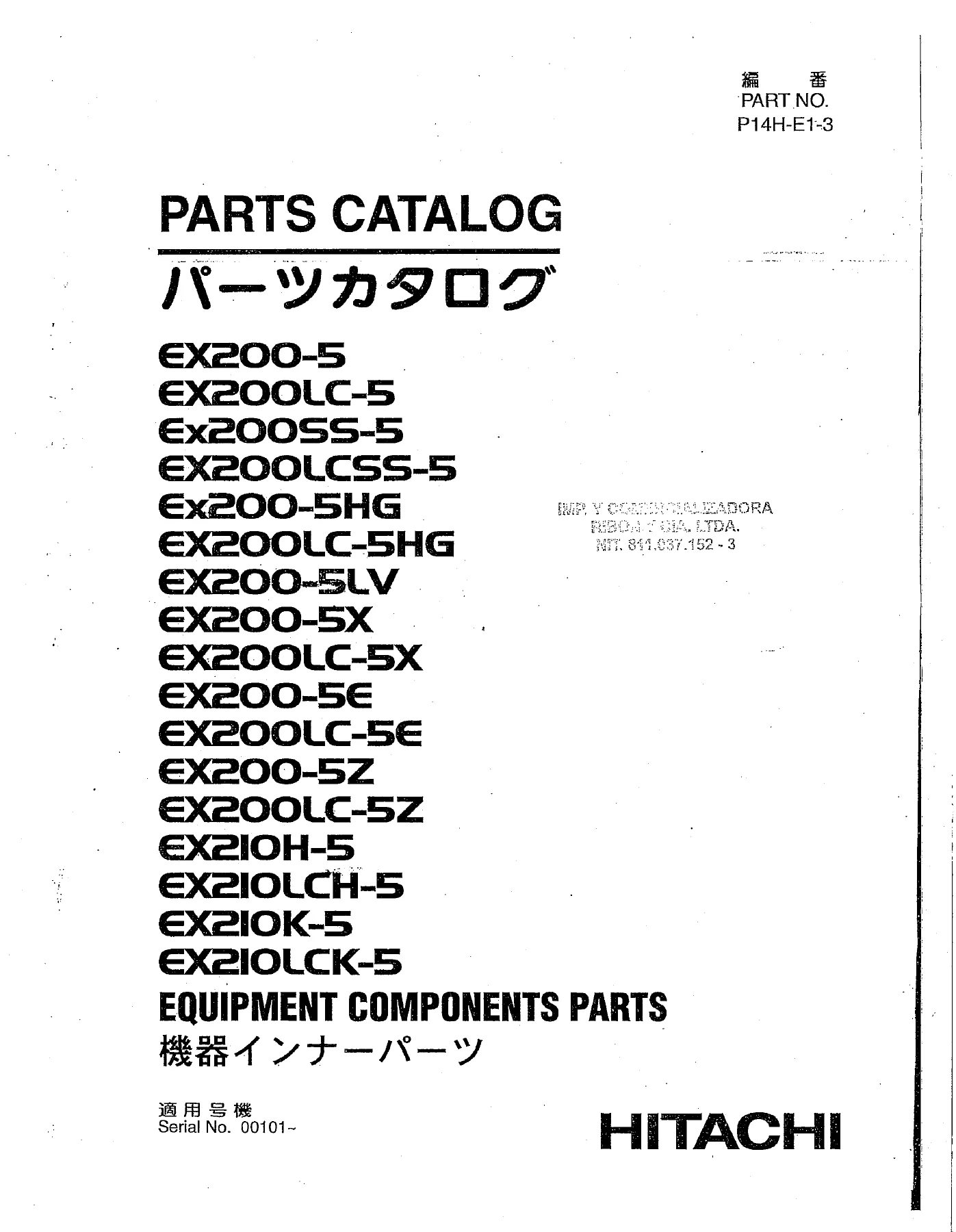

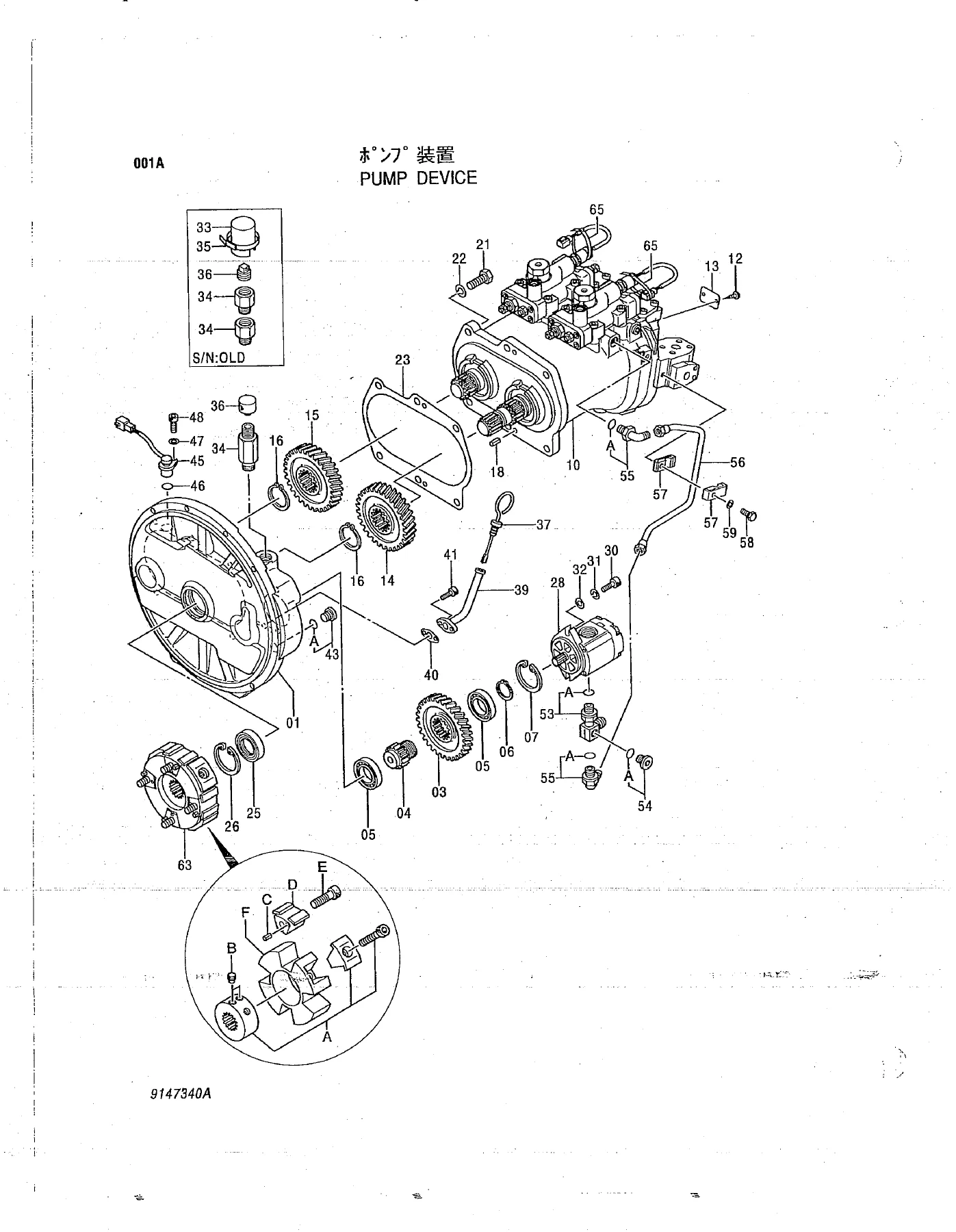

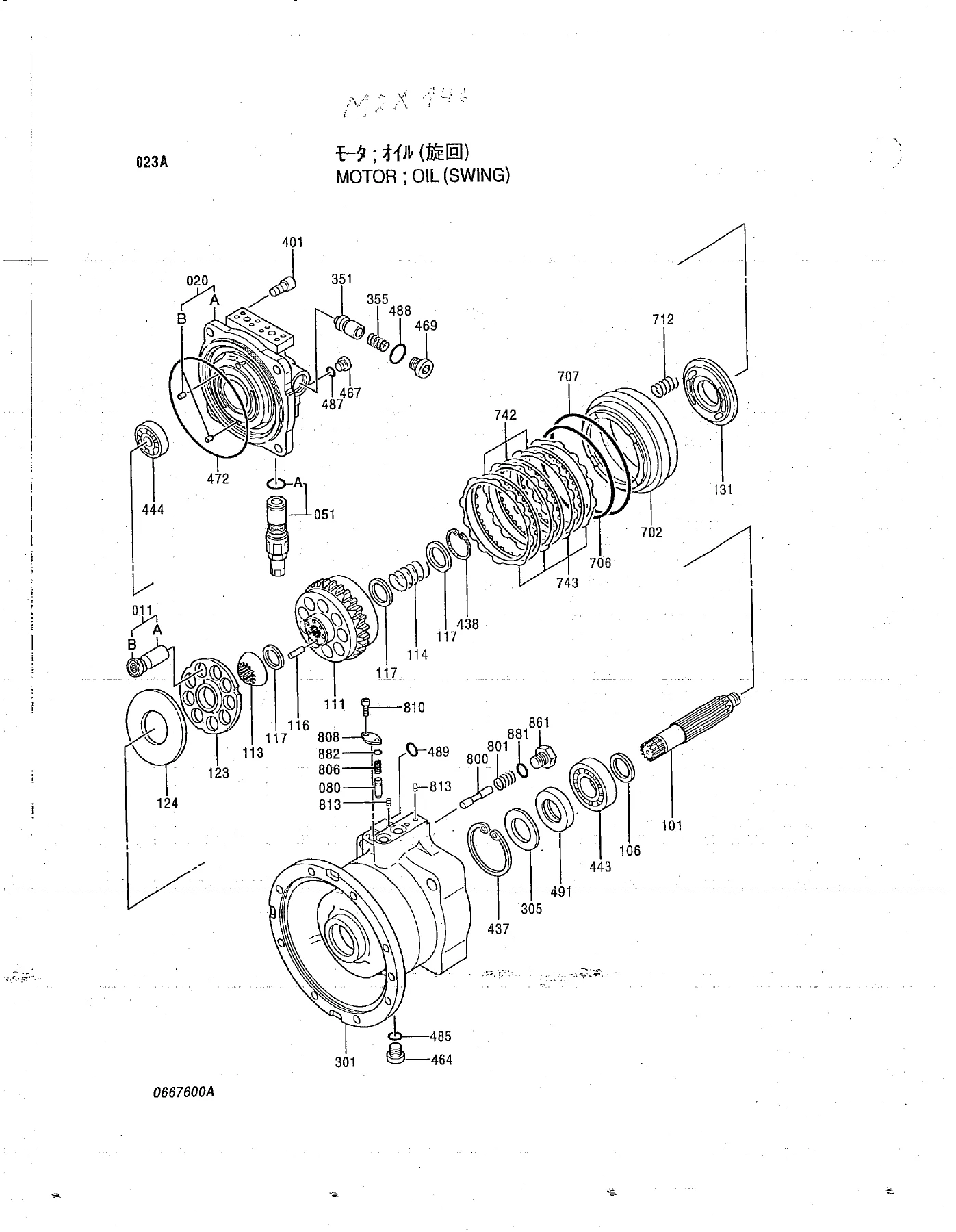

This Hitachi EX200-5 / EX210-5 Series Equipment Components Parts Catalog is the inner-components reference for the hydraulic systems used across the EX200-5 and EX210-5 family of excavators. Published under document number P14H-E1-3, it covers the precision hydraulic parts that sit inside the machine’s major assemblies — pumps, motors, control valves and cylinders — with exploded-view illustrations, itemized part numbers, quantities, and service codes on every page.

The catalog is laid out in both Japanese and English, so part names, item codes and machine references appear bilingually throughout. Whether you are resealing a boom cylinder, rebuilding a travel motor, or sourcing a replacement regulator, the exploded diagrams and part tables here are the reference to work from.

File Details

• Manual type: Equipment Components Parts Catalog (機器インナーパーツ)
• Brand: Hitachi
• Series: EX200-5 / EX210-5
• Document number: P14H-E1-3
• Language: Japanese / English (bilingual)
• File format: PDF
• Approximate page count: 236
• Applicable serial range: 00101-

Chapters Covered

• Pump (ポンプ)
  • Pump Device
  • Pump Device
  • Pump Device
  • Pump; Gear
• Motor; Oil (モータ;オイル)
  • Motor; Oil (Swing)
  • Motor; Oil (Travel)
  • Motor; Oil (Travel)
  • Motor; Oil (Travel)
  • Valve; Brake
  • Valve; Relief
  • Piston; Servo
• Valve (バルブ)
  • Valve; Control — split into (1/5), (2/5), (3/5), (4/5), (5/5)
  • Valve; Control
  • Valve; Control
  • Valve; Control
  • Valve; Pilot (Front & Swing)
  • Valve; Pilot (Travel)
  • Valve; Pilot
  • Valve; FC (Flow Control)
  • Valve; Solenoid
  • Valve; Relief
  • Valve; Slow-Return
  • Valve; Lock
  • Valve; Holding
  • Valve; Hose-Rupture
  • Valve; Rotary
  • Valve (福反防止弁 / anti-dumping)
• Cylinder (シリンダ)
  • Cylinder; Boom (R)
  • Cylinder; Boom (L)
  • Cylinder; Arm
  • Cylinder; Bucket
  • Cylinder; Bucket
  • Cylinder; Bucket
  • Cylinder; Bucket
  • Cylinder; Bucket (River Maintenance)
  • Cylinder; Clamshell
• Parts Index (索引)

In other words, the catalog gives you complete exploded views and part breakdowns for every major hydraulic assembly on the EX200-5 and EX210-5 machines — the pump head and pump unit, the swing and travel motors with their brake and relief valves, the servo piston, the five-section main control valve, the pilot valves for front/swing and travel, the flow-control, solenoid, relief, slow-return, lock, holding, hose-rupture and rotary valves, and all four boom/arm/bucket cylinders plus the clamshell option. Each assembly is broken down one level at a time into its individual components, so a technician can identify the exact seal, spool, spring, plate, or bushing that needs replacing without buying a complete assembly.

Models Covered

The catalog applies to the following Hitachi hydraulic excavator models:

• EX200-5
• EX200LC-5
• EX200SS-5
• EX200LCSS-5
• EX200-5HG
• EX200LC-5HG
• EX200-5LV
• EX200-5X
• EX200LC-5X
• EX200-5E
• EX200LC-5E
• EX200-5Z
• EX200LC-5Z
• EX210H-5
• EX210LCH-5
• EX210K-5
• EX210LCK-5

Serial Ranges Referenced

Parts applicability is keyed to machine serial numbers throughout the catalog. Ranges shown include the baseline 00101- series, group ranges such as 200, SS, HG, LV, X, H: 000101-, K: 001001-088463, SS: 000101-000112, HG: 070001-070039, E: 050001-050095, LV, X, Z: 080001-, and later cut-ins such as 200, SS, HG, LV, X, H: 083345-, K: 083378- and K: 088464-. Cross-reference these against your own machine’s serial plate before ordering.

Service Codes Explained

Each item line carries a service code in the S.C column. The catalog defines them as follows:

• W — On-site machining is required to install the part; consult Hitachi before ordering.
• D — Cannot be replaced individually; replace the assembly that contains it.
• K — Part is included in a service kit.
• R — Quantity used varies by machine (typically adjustment shims).
• S — Not factory-installed; supplied for repair or service use only.
• OP — Optional part; not fitted to the standard machine.
• OS — Oversize part.

How to Order the Right Part

The catalog’s own ordering guide lists exactly what to have ready before placing a part order: the machine model (taken from the nameplate on the right-front main frame, cab side), the machine serial number (e.g. 14H-00101), the part number itself, the part name, the quantity required, and a delivery address. Because the exploded diagrams show each item tagged with its item number, part number, part name, quantity and service code, matching what is on your machine to what is in the book is straightforward even for assemblies you have never opened before.

What This Catalog Enables

Working from the correct parts catalog matters most when a hydraulic repair goes wrong the first time. A mistaken seal number, an incorrect spring, or an assembly that was never meant to be broken down individually can leave a machine down for a second round of parts. This Hitachi EX200-5 / EX210-5 Series Equipment Components Parts Catalog removes that guesswork for the entire hydraulic side of the machine: pump, travel and swing motors, brake and relief valves, servo piston, main control valve (all five sections), pilot valves, flow-control, solenoid, lock, holding, hose-rupture, slow-return and rotary valves, and the full cylinder range. It also flags which items require local machining, which can only be bought as part of an assembly, and which are supplied in a service kit — so you can plan the job before you start.

IMAGES PREVIEW

Delivered instantly as a downloadable PDF after payment, with no shipping and no waiting. Open it on a laptop in the workshop, on a tablet on the machine, or print the diagram you need for the job at hand.
