Hitachi Ex200-5 Excavator Operational Principle+Troubleshooting+Workshop Manual – PDF DOWNLOAD

Description

Hitachi Ex200-5 Excavator Operational Principle+Troubleshooting+Workshop Manual

FILE DETAILS:

Hitachi Ex200-5 Excavator Operational Principle+Troubleshooting+Workshop Manual

This Listing includes all of the manuals mentioned below:

1. Hitachi Ex200-5 Excavator Operational Principle Technical Manual
2. Hitachi Ex200-5 Excavator Troubleshooting Technical Manual
3. Hitachi Ex200-5 Excavator Circuit Diagram & Harness

DESCRIPTION:

Hitachi Ex200-5 Excavator Operational Principle+Troubleshooting+Workshop Manual

INTRODUCTION:

TO THE READER:
• This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine.
• Be sure to thoroughly read this manual for correct product information and service procedures.
• If you have any questions or comments, at if you found any errors regarding the contents of this manual, please contact using “Service Manual Revision Request Form” at the end of this manual.

ADDITIONAL REFERENCES:

• Please refer to the materials listed below in addition to this manual.
• The Operator’s Manual
• The Parts Catalog
• The Engine Manual
• Parts Catalog of the Engine
• Hitachi Training Material

MANUAL COMPOSITION:
• This manual consists of three portions: the Technical Manual (Operational Principle), the Technical Manual (Troubleshooting) and the Workshop Manual.
• Information included in the Technical Manual (Operational Principle): technical information needed for redelivery and delivery, operation and activation of all devices and systems.
• Information included in the Technical Manual (Troubleshooting): technical information needed for operational performance tests, and troubleshooting procedures.
• Information included in the Workshop Manual: technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal/installation and assemble/ disassemble procedures.

TABLE OF CONTENTS:

Hitachi Ex200-5 Excavator Operational Principle+Troubleshooting+Workshop Manual

• Hitachi Ex200-5 Excavator Operational Principle Technical Manual

SECTION 01- GENERAL
Group 01 Specifications
Group 02 Component Layout
SECTION 02- UPPERSTFIUCTUFIE
Group 01 Pump Device
Group 02 Swing Device ‘
Group 06 Control Valve
Group 04 Pilot Valve
Group 05 Others
SECTION 08- UNDERCARRIAGE
Group 01 Travel Device
Group 02 Others
SECTION 04- SYSTEM
Group 01 Electrical Circuit
Group 02 Hydraqu Circuit
Group 08 Central System

• Hitachi Ex200-5 Excavator Troubleshooting Technical Manual

SECTION 05- Operational Performance Test
Group 01 Introduction
Group 02 Engine Test
Group 03 Excavator Test
Group 04 Hydraulic Component Test
Group 05 Standard

SECTION 06- Troubleshooting
Group 01 Diagnosing Procedure
Group 02 Component Layout
Group 08 Troubleshooting A
Group 04 Troubleshooting 8
Group 05 Troubleshooting C
Group 06 Electrical System Inspection
Group 07 Harness Check

HITACHI EX200-5 EXCAVATOR OPERATIONAL PRINCIPLE+TROUBLESHOOTING+WORKSHOP MANUAL – PDF DOWNLOAD:

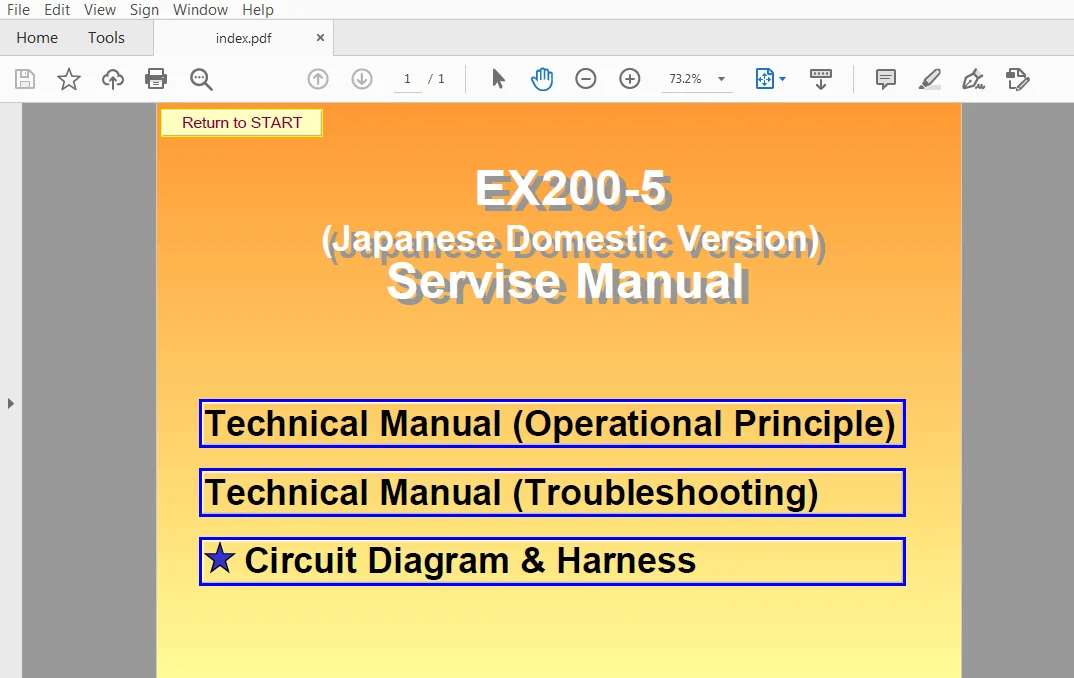

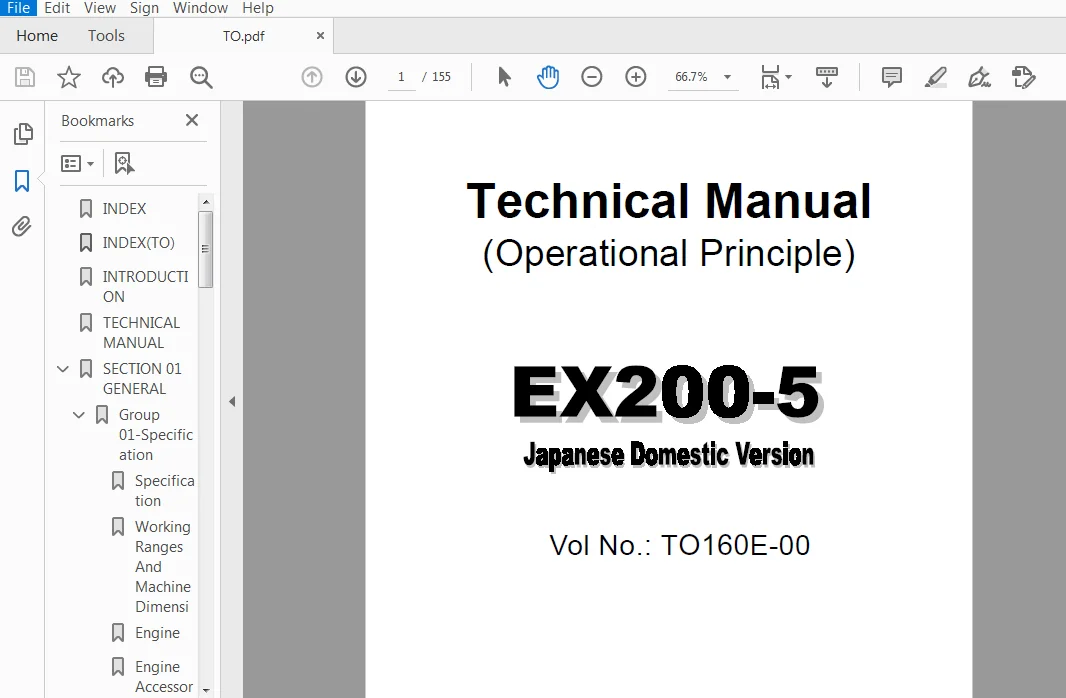

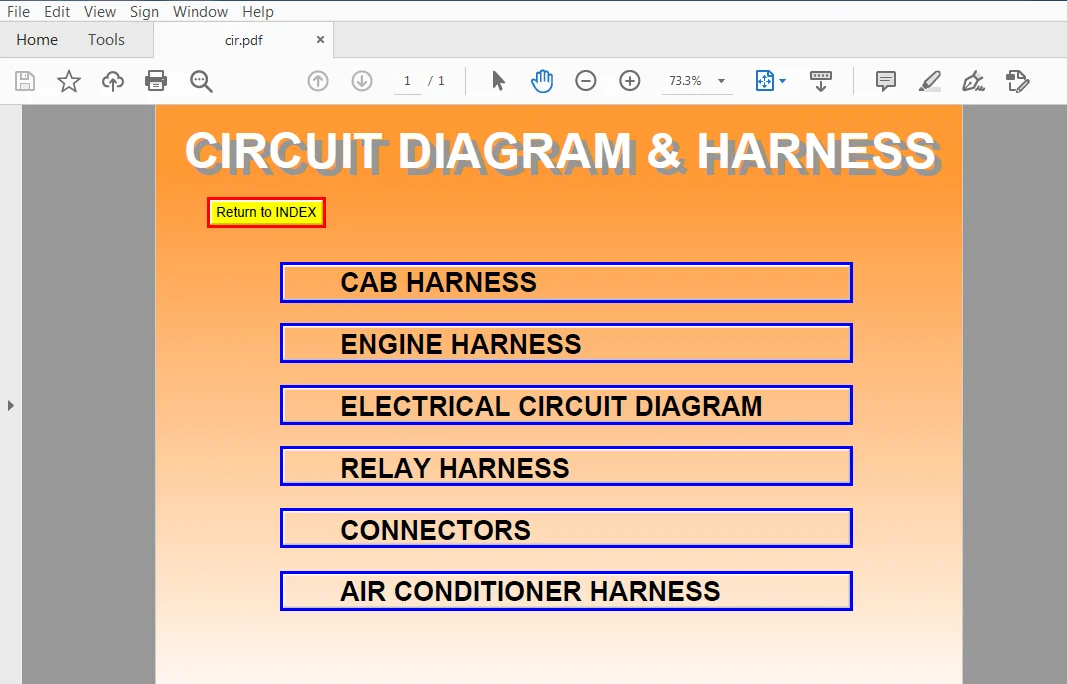

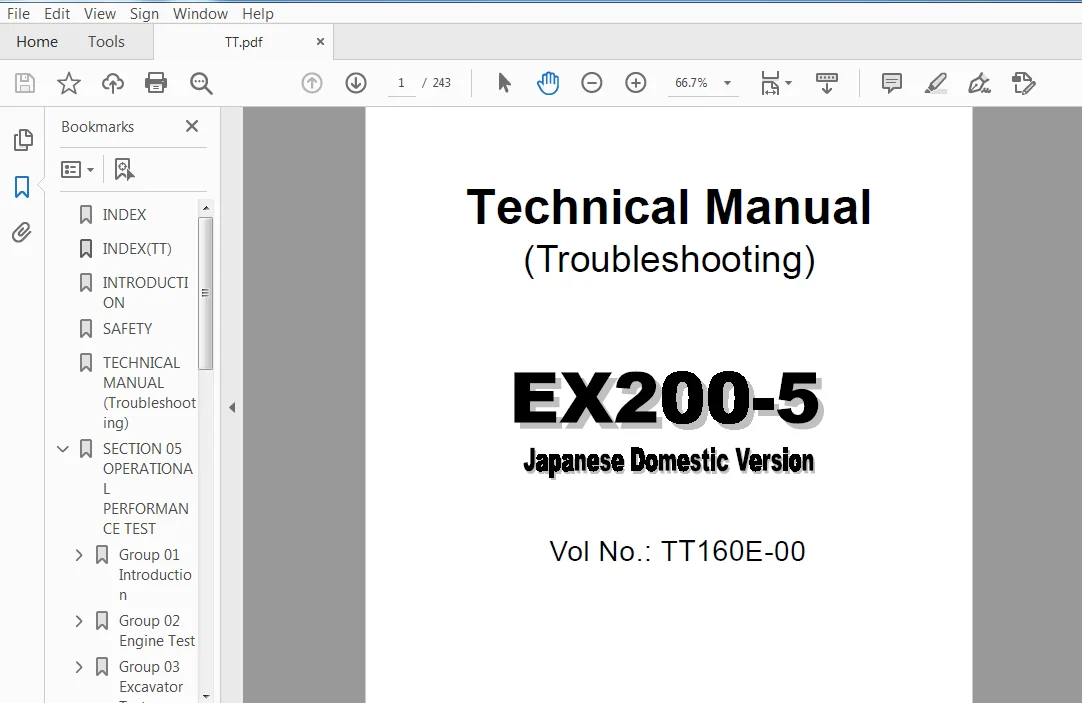

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
