Hitachi Ex3500-3 Excavator Service Repair Manual Instant – PDF Download

Description

Hitachi Ex3500-3 Excavator Service Repair Manual Instant

FILE DETAILS:

LANGUAGE:ENGLISH
PAGES:800+
DOWNLOADABLE:YES
FILE TYPE:PDF
HITACHI EX3500-3 EXCAVATOR SERVICE REPAIR MANUAL INSTANT – PDF DOWNLOAD:

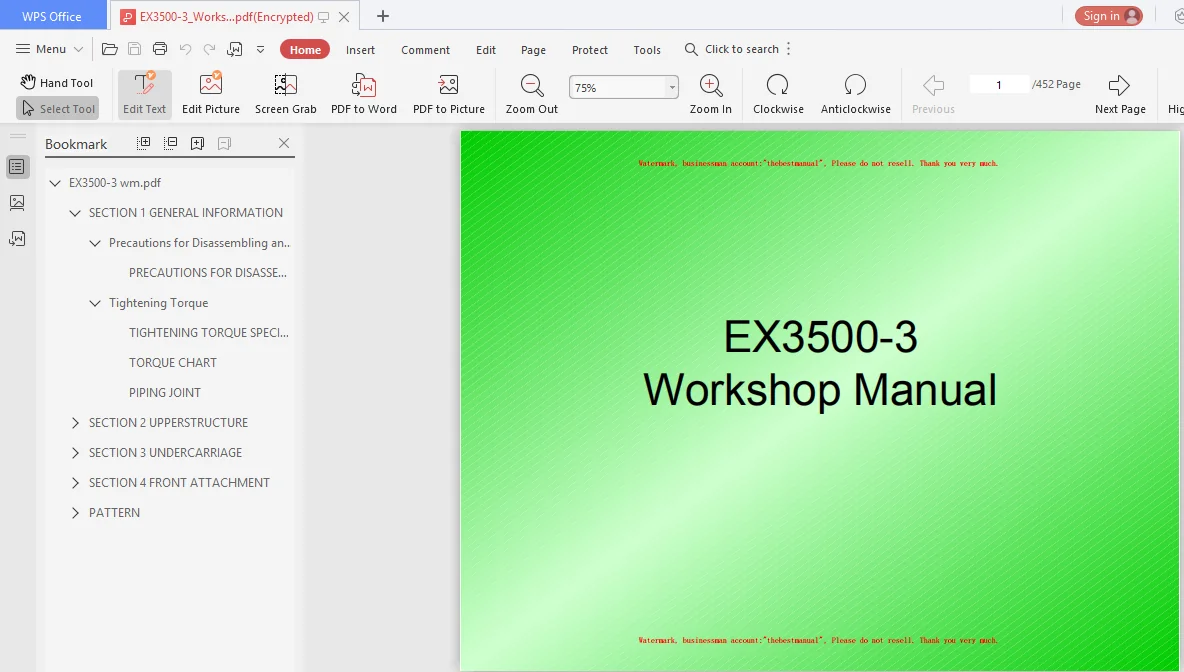

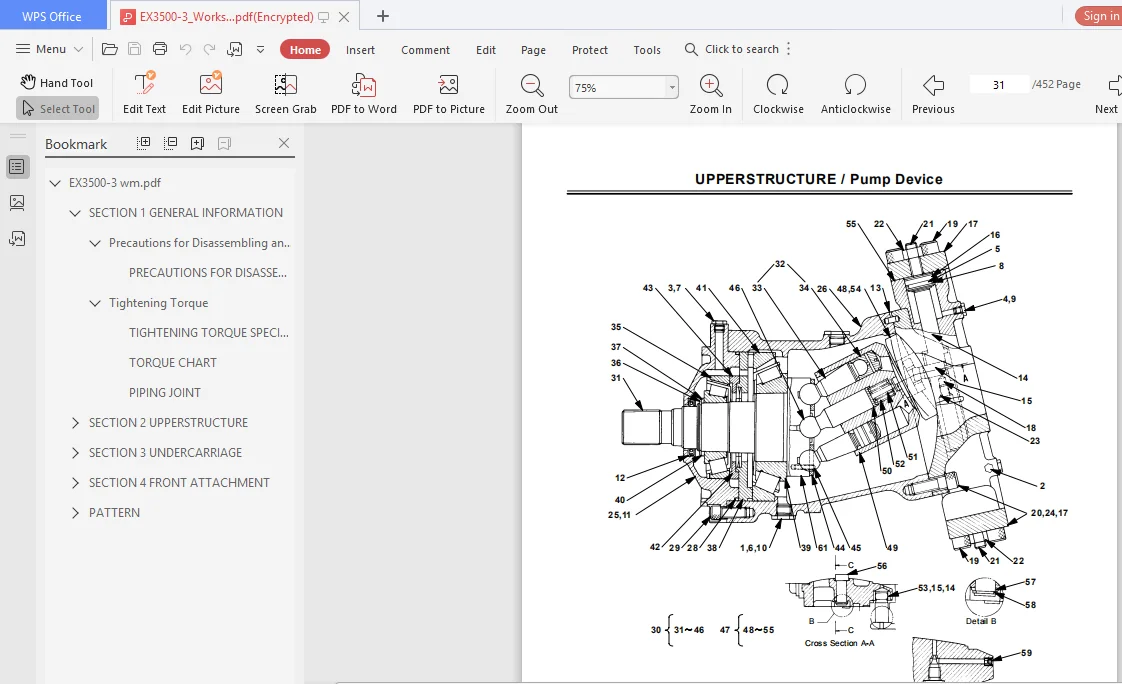

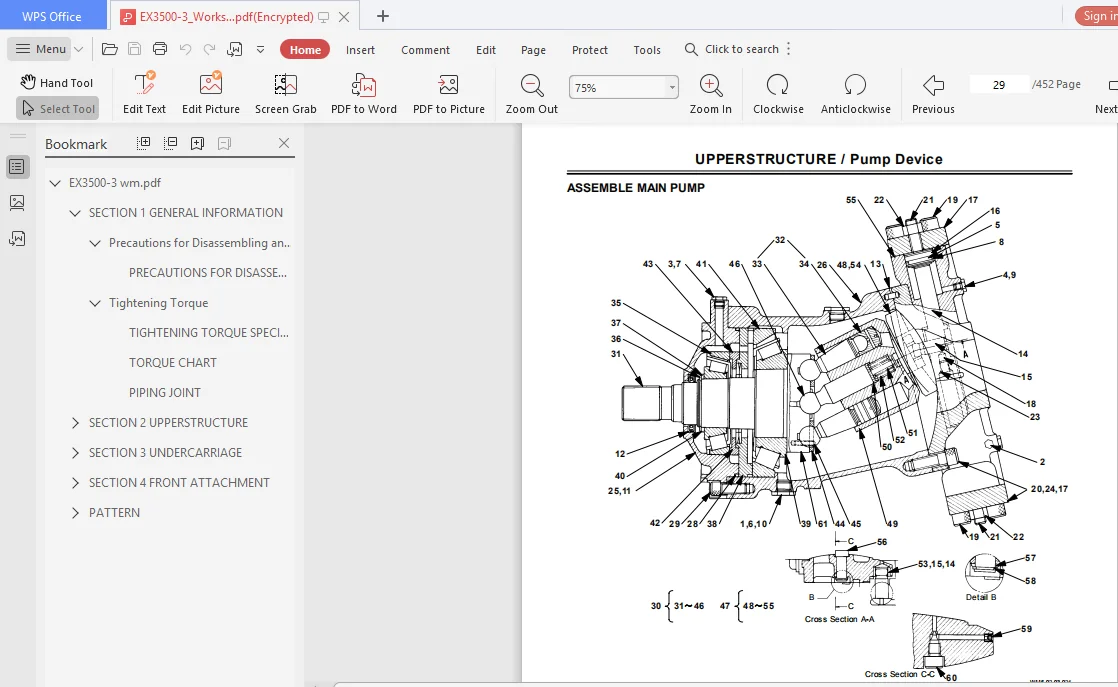

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Hitachi Ex3500-3 Excavator Service Repair Manual Instant

• PRACTICE SAFE MAINTENANCE:

  To avoid accidents:

  •  Understand service procedures before doing work.
  •  Keep work area clean and dry. I- Do not spray water or steam inside cab.
  •  Never lubricate or service the machine while it is moving.
  •  Keep hands, feet and clothing away from power- driven parts.
  • Before servicing the machine:

  1) Park the machine on a level surface.
  2) Lower the bucket to the ground.
  3) Tum the auto-idle switch off.
  4) Run the engine at slow idle speed without load for 5 minutes.
  5) Turn the key switch to OFF to stop engine.
  6) Refieve the pressure in the hydraulic system by moving the control levers several times.
  7) Remove the key from the switch.
  8) Attach a “Do Not Operate” tag on the control lever.
  9) Pull the pilot control shut—off lever to the LOCK position.
  10) Allow the engine to cool.

  • – If a maintenance procedure must be performed with the engine running, do not leave machine unattended.
  • – If the machine must be raised, maintain a 90 to 110 angle between the boom and arm. Securely support any machine elements that must be raised for service work.
  • – Never work under a machine raised by the boom.
  • – Inspect certain parts periodically and repair or replace as necessary. Refer to the section discussing that part in the “MAINTENANCE“ chapter in the operator’s manual.
  • – Keep all parts in good condition and properly installed.
  • – Fix damage immecfiately. Replace wom or broken parts. Remove any buildup of grease, oil, or debris.
  • – Disconnect battery ground cable (—) Mfore making adjustments to electrical systems or Mfore welding on the machine. – Illuminate your work area adequately but safely.
  • – Use a portable safety light for working inside or under the machine. – Make sure that the bulb is enclosed by a wire cage. The hot filament of an accidentally broken bulb can ignite spflled fuel or ofl.
