Hitachi EX3500-3 Excavator Technical Manual – Loading Shovel & Backhoe PDF

Description

Hitachi EX3500-3 Excavator Technical Manual – Loading Shovel & Backhoe

This Hitachi EX3500-3 Excavator Technical Manual delivers comprehensive technical documentation for the EX3500-3 in both Loading Shovel and Backhoe configurations. Whether you are diagnosing a hydraulic fault, overhauling the Cummins KT38C-925 engine, or verifying machine performance against factory standards, this manual provides the specifications, circuit diagrams, and diagnostic procedures needed to work accurately and efficiently on this 331-ton-class excavator.

File Details

• Manual Type: Technical Manual (Operational Principle, Troubleshooting, and Circuit Diagram)
• Brand: Hitachi
• Model: EX3500-3 Excavator
• Front Attachment Types: Loading Shovel, Backhoe
• Language: English
• File Format: PDF
• Page Count: 403
• Document Number: KM-145E (Manual No.), TC145E-00 (Vol. No.)
• Serial Number Coverage: 301 and up, with specific ranges for 301-319, 320 and up, 320-323, 324 and up, 301-311, and 312 and up

Chapters Covered

• Safety: Safety alert symbols, signal words (DANGER, WARNING, CAUTION, IMPORTANT, NOTE), protective clothing requirements, noise protection, daily machine inspection, handholds and steps, operator seat adjustment, seat belt use, safe machine movement and operation, starting aids, jump starting procedures, keeping riders off, signals for multiple machines, travel direction confirmation, safe driving on grades, rollaway prevention, back-over and swing accident avoidance, tipping prevention, power line safety, object handling, flying debris protection, safe parking, fluid handling and fire prevention, burn prevention, high-pressure fluid hazards, rubber hose replacement, battery explosion prevention, air conditioning service safety, asbestos dust avoidance, chemical product handling, and waste disposal

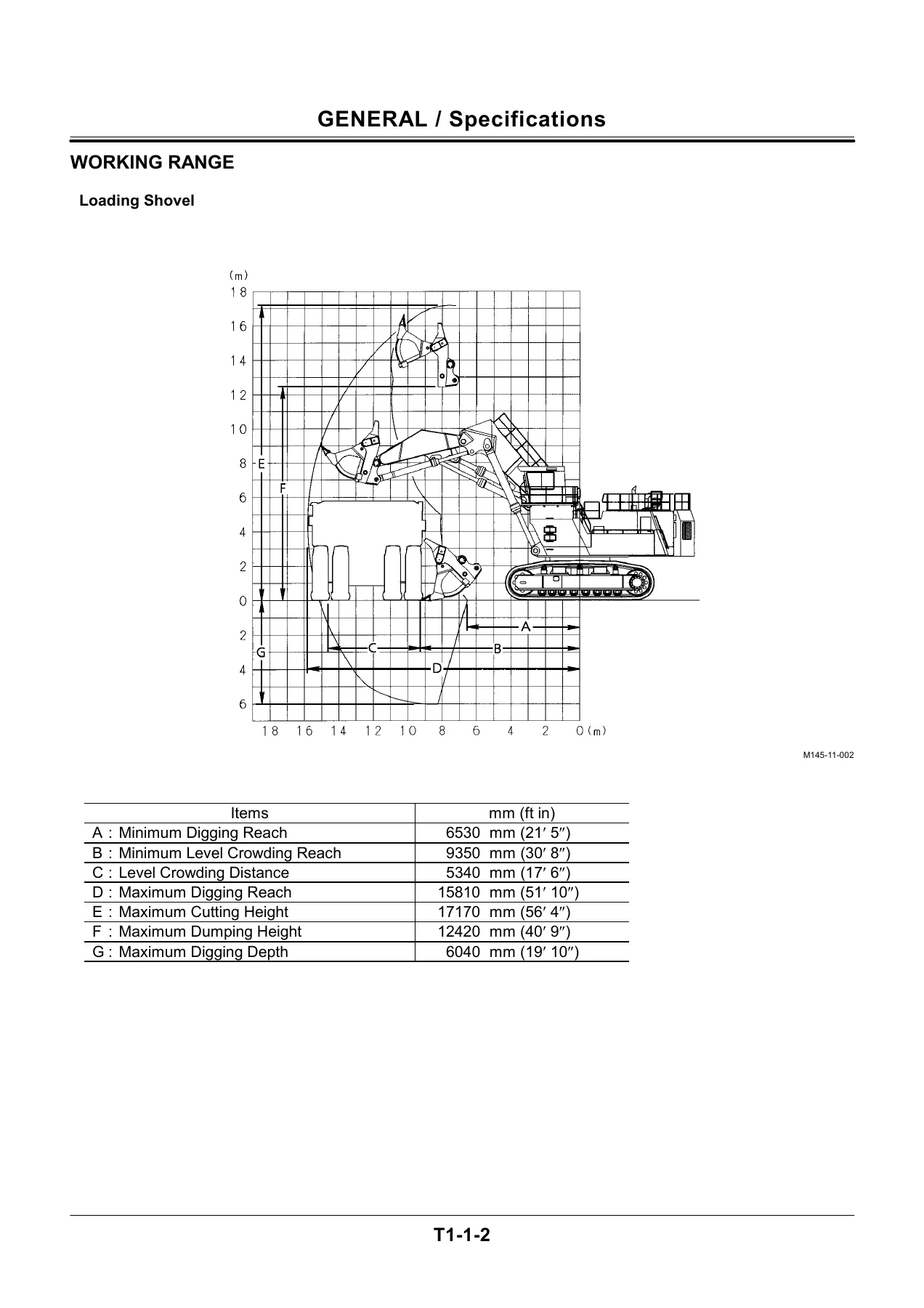

• Specifications: Base machine dimensions (overall width, cab height, rear end swing radius, ground clearance, counterweight clearance, undercarriage length and width, track shoe width), working range for Loading Shovel and Backhoe (minimum digging reach, minimum level crowding reach, level crowding distance, maximum digging reach, maximum cutting height, maximum dumping height, maximum digging depth), operating weight, bucket capacity, ground pressure, swing speed, travel speed, gradeability, and engine rated output
• Component Layout: Hydraulic component layout, air component layout, electrical component layout, control valve arrangement, swing device location, and pilot piping layout
• Component Specifications: Engine (Cummins KT38C-925), engine filters (fuel, oil, bypass, water), hydraulic devices (main pump LPV370, swing pump, main control valve KVS-1000, swing control valve KVS-600, swing motor MX750CC, travel motor MB750BOV, travel brake valve VBR-12ST, hydraulic oil tanks, check valves, center joint, boom cylinder, arm cylinder, level cylinder, bucket cylinder, dump cylinder, adjuster cylinder, reducing valves, relief valves, accumulators, gear pumps, pilot pumps, pilot valves, parking/travel speed change valve, travel cut-off valve, shuttle valves, solenoid valves, EHC valve, lift cylinder, quick valve, flow regulator), air components (air compressor, wet air tank, dry air tank, safety valve, air filter, drain valve, solenoid valve, reducing valve, check valve, air governor, auto drain valve, quick exhaust valve, changeover valve, air dryer, oil mist separator)

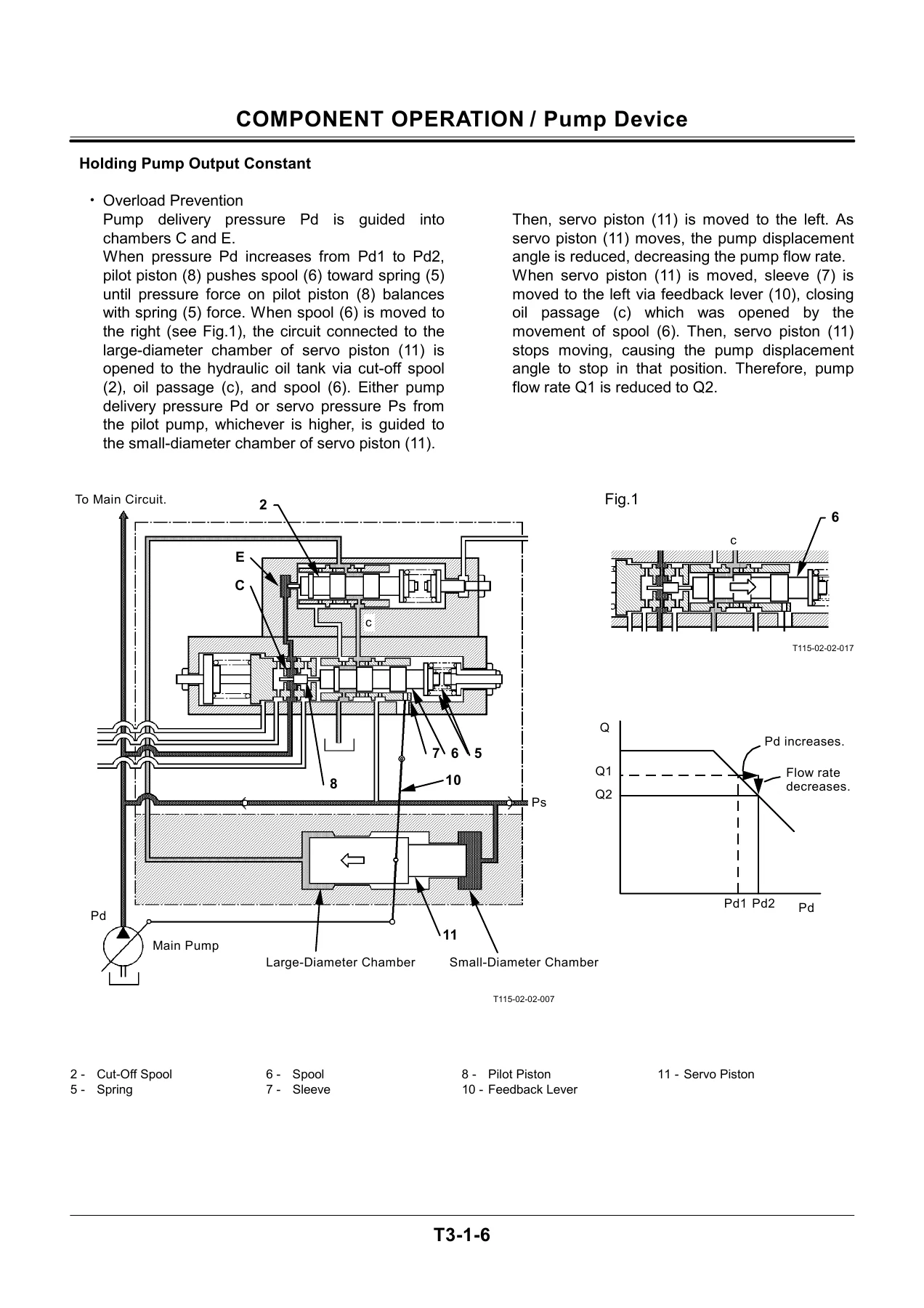

• Component Operation: Pump device (main pump operation, regulator R1424 and R1129 including overload prevention, flow rate restoration, pump output decrease and increase, RMS control, pump flow rate control, pump output reduction pressure control, pilot pump operation), swing device (swing motor principles, valve unit with lock valve, relief valve, make-up valve, swing reduction gear), control valve (hydraulic circuit, main relief valve, overload relief valve, make-up valve), pilot valve (construction, function, operation including neutral, control lever stroke, full stroke operation), travel device (travel motor principles, travel speed selector for slow and fast speed modes, travel brake valve with counterbalance valve, circuit protection, parking brake, travel reduction gear), others (oil mist separator, air drier, hydraulic oil tank, grease pump for serial number ranges, swing bearing, track adjuster with accumulator, center joint)
• Operational Performance Test: Introduction, preparation for performance tests, engine test (engine speed measurement), excavator test (travel speed, track revolution speed, mistrack check, travel motor leakage, swing speed, swing function drift, maximum swingable slant angle, swing bearing play, hydraulic cylinder cycle time for boom, arm, bucket and dump cylinders, cylinder drift, control lever operating force, control lever stroke), component test (pilot primary pressure, pilot secondary pressure, main relief pressure, overload relief pressure, pump servo pilot pressure, travel speed drain pressure, travel motor control pressure, return oil pressure, main pump flow rate measurement), operational performance standard with specifications for all tested parameters
• Troubleshooting: Diagnosing procedure, component layout, troubleshooting A (fault codes 11, 12, 21, 22, 31, 32 for engine control unit indicator, CENTRY engine system indicator fault codes), troubleshooting B (engine PRELUB system, auto-idle control, engine speed control, ether starting aid, all actuator operation systems, front attachment, swing, travel, air conditioner, auto-greasing system), troubleshooting C (monitor panel gauges and indicators for engine oil pressure, coolant temperature, air pressure, fuel level, engine oil level, pump transmission oil level, coolant level, swing transmission oil level, engine oil pressure indicator, hydraulic oil level indicator, engine overheat indicator, hydraulic oil overheat indicator, pump transmission oil pressure indicator, side monitor indicator, pump contamination indicator, hydraulic oil filter contamination indicator, pilot filter contamination indicator, air cleaner restriction indicator, engine stop indicator, ladder position indicator, auto-lubrication indicator, stop valve indicator, PRELUB indicator, fast-filling panel indicator, engine control unit indicator, CENTRY engine system indicator, level check switch, indicator light check switch, hour meter, buzzer), electrical system inspection procedure (battery voltage check, fuse continuity check, slow blow fuse inspection, alternator check, voltage check, continuity check, 5 volt circuit)
• Electrical Circuit Diagrams: Complete electrical circuit diagrams for serial number ranges 301-319, 320 and up, 301-311, and 312 and up, including connector layouts and harness color codes
• Hydraulic Circuit Diagrams: Main circuit diagrams and pilot circuit diagrams for both Loading Shovel and Backhoe configurations across serial number ranges 301-319, 320-323, and 324 and up

This Hitachi EX3500-3 Excavator Technical Manual goes well beyond a basic service guide. It documents the hydraulic system down to individual valve and regulator operation, provides complete electrical schematics for multiple serial number ranges, and includes structured troubleshooting flowcharts covering virtually every system on the machine. The component operation section explains the inner workings of the main pump regulator, swing motor, travel motor, control valves, and pilot valves, giving technicians the understanding needed to diagnose complex hydraulic faults rather than simply replacing parts. The operational performance test section supplies the standard values needed to evaluate whether systems are within specification, while the troubleshooting chapters provide step-by-step diagnostic procedures for engine, hydraulic, electrical, and air conditioning issues.

What This Manual Enables

With this Hitachi EX3500-3 technical manual on hand, you can perform engine speed adjustments and diagnostics, test hydraulic pump flow rates and relief pressures, troubleshoot swing and travel system faults, diagnose electrical issues using complete circuit diagrams, service the air conditioning system, maintain the auto-lubrication system, and verify machine performance against factory standards. The manual covers both Loading Shovel and Backhoe front attachments, making it suitable for the full range of EX3500-3 configurations. The serial number-specific coverage is particularly valuable because the manual includes separate circuit diagrams and procedural notes for different serial number ranges, ensuring you are looking at the correct information for your specific machine rather than a generic diagram that might not match your excavator’s configuration.

Why This Manual Matters

The EX3500-3 is a 331,000 kg (729,700 lb) excavator powered by a Cummins KT38C-925 engine producing 609 kW (829 PS) at 1800 min-1. Working on a machine of this scale without the correct specifications and procedures is risky and inefficient. This manual gives you the exact relief pressures, flow rates, cylinder dimensions, torque values, and diagnostic procedures that Hitachi specified for this machine. Whether you are a seasoned heavy equipment technician or a fleet maintenance manager, having the technical manual for the EX3500-3 ensures that every repair, adjustment, and diagnostic step is performed to standard, reducing downtime and preventing costly errors.
