Hitachi Zaxis 140W-3 170W-3 190W-3 210W-3 220W-3 Electrical Circuit Diagram Manual – PDF DOWNLOAD
Original price was: $79.95.$11.95Current price is: $11.95.
Hitachi Zaxis 140W-3 170W-3 190W-3 210W-3 220W-3 Electrical Circuit Diagram Manual
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Hitachi Zaxis 140W-3 170W-3 190W-3 210W-3 220W-3 Electrical Circuit Diagram Manual
FILE DETAILS:
Hitachi Zaxis 140W-3 170W-3 190W-3 210W-3 220W-3 Electrical Circuit Diagram Manual
Language : English
Pages : 20
Downloadable : YES
Format : PDF
Size : 15.4 MB
TABLE OF CONTENTS:
Hitachi Zaxis 140W-3 170W-3 190W-3 210W-3 220W-3 Electrical Circuit Diagram Manual
- ELECTRICAL CIRCUIT DIAGRAM (STANDARD)
- ELECTRICAL CIRCUIT DIAGRAM (OPTIONAL)
- CONNECTORS
- CAB HARNESS
- ENGINE HARNESS
- FLOOR HARNESS
- MONITOR HARNESS
- CHASSIS HARNESS
- LEFT CONSOLE HARNESS
- AUXILIARY/ POSITIONING SELECT HARNESS
- BLADE / OUTRIGGER HARNESS
- LICENSE PLATE HARNESS
- POSITIONING HARNESS
- PRESSURE SENSOR (POSITIONING) HARNESS
- SWING PARKING BRAKE RELEASE HARNESS
- HYDRAULIC CIRCUIT DIAGRAM (2-PIECE BOOM, FULLY OPTIONAL)
- HYDRAULIC CIRCUIT DIAGRAM (MONOBLOCK BOOM, FULLY OPTIONAL)
HITACHI ZAXIS 140W-3 170W-3 190W-3 210W-3 220W-3 ELECTRICAL CIRCUIT DIAGRAM MANUAL – PDF DOWNLOAD:

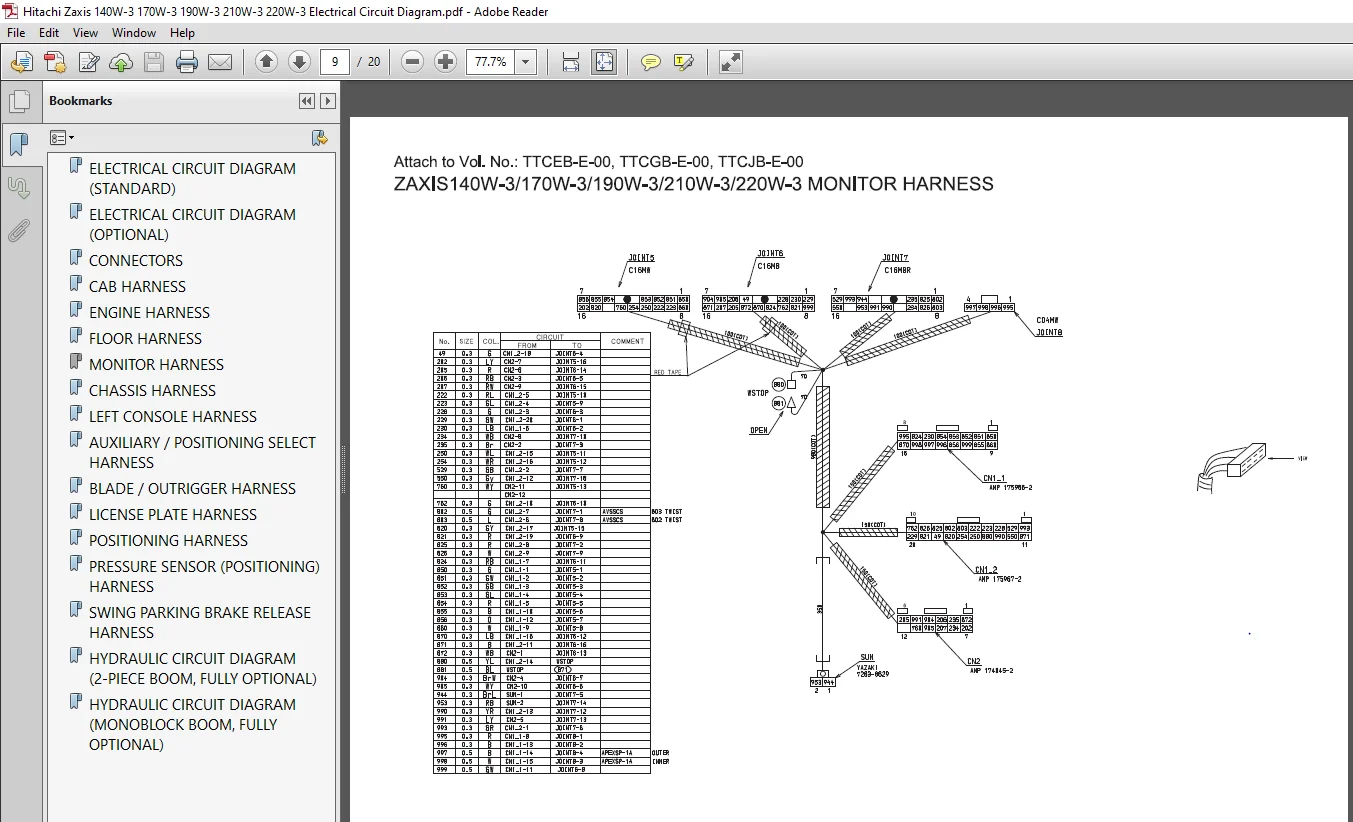

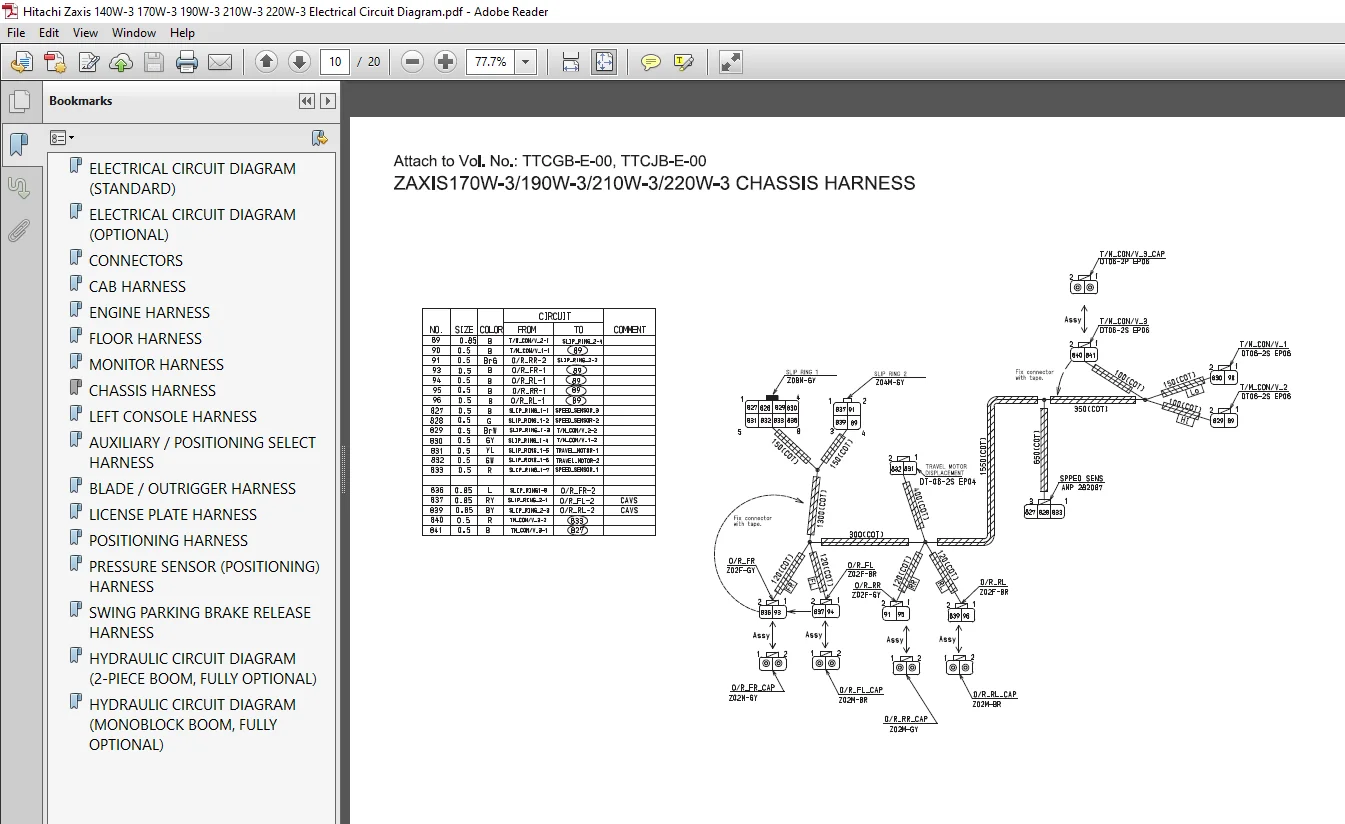

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
