Hitachi ZAXIS 140W-3, 170W-3, 190W-3, 210W-3 Wheeled Excavator Operator’s Manual – EMCGB-EN1-4

Description

This Hitachi ZAXIS 140W-3, 170W-3, 190W-3, 210W-3 Wheeled Excavator Operator’s Manual is the manufacturer-issued original instruction document EMCGB-EN1-4 for the four W-series wheeled excavators. It is the same manual supplied with the machine at delivery, converted to a single PDF that covers safety, controls, driving, excavating, maintenance and specifications for ZX140W-3 (serial 002001 and up), ZX170W-3 (serial 003001 and up), ZX190W-3 (serial 002001 and up) and ZX210W-3 (serial 002001 and up), including the F Type machines.

File Details

• Manual type: Operator’s Manual (Original Instruction)
• Brand: Hitachi Construction Machinery
• Models covered: ZX140W-3, ZX170W-3, ZX190W-3, ZX210W-3 (including F Type)
• Document number: EMCGB-EN1-4
• Language: English
• Format: PDF
• Page count: 477 pages

Chapters Covered

• Safety – signal words, protective clothing, cab precautions, handrails, seat belts, operating near power lines, jumping, welding, battery safety, chemical handling, disposal of waste, and the full safety sign chart for Europe / Asia / Middle East machines

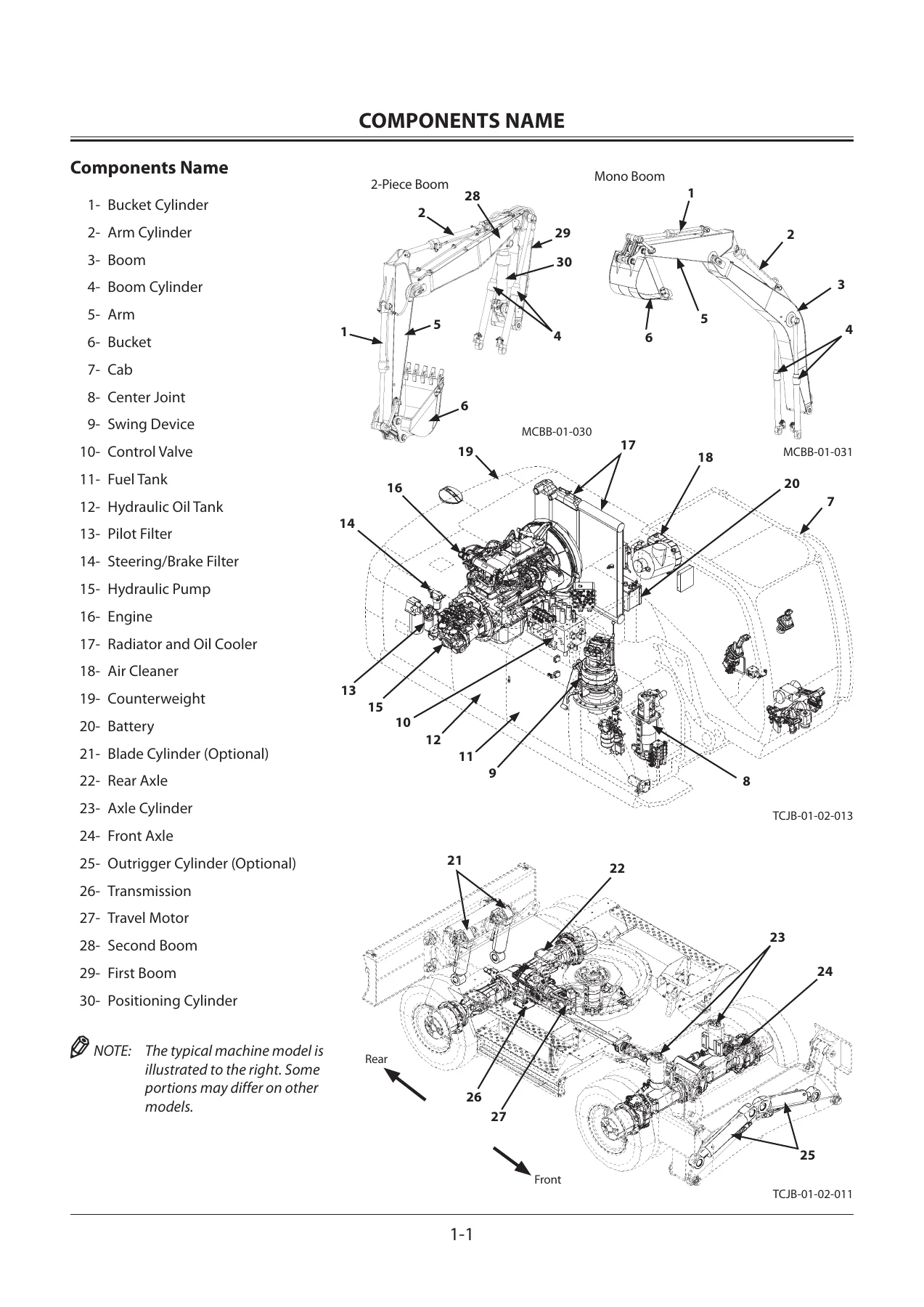

• Components Name – boom, arm, bucket, cab, swing device, control valve, tanks, pump, engine, radiator, counterweight, battery, axles, transmission, travel motors and 2-piece boom layout
• Operator’s Station – steering column console, accelerator and brake pedals, forward/reverse travel switch, combination switch, brake switch, working brake, hazard switch, engine control dial, travel mode switch, engine speed control mode, power mode switch, work light, wiper, auto-idle, key switch, control levers, cab light, fire extinguisher fitting
• Multifunction Monitor – basic screen, menu, alarms, clock setting, work mode selection, attachment adjustment, operating status, maintenance setting, mail, meter display control, password, back monitor, language, meter combination, unit setting, fuse boxes
• Air Conditioner, Radio and Cab – auto air conditioner operation, heater, AM/FM radio, digital clock, cab door release, upper/lower front windows, door windows, overhead window, emergency exit and seat adjustment
• Break-in – first 50 hours, first 100 hours, observe engine operation closely, every 8 hours or daily
• Operating Engine – daily inspection points, starting in ordinary and cold weather, booster batteries, stopping the engine
• Driving Machine – traveling, engine speed control, travel mode switch, stopping and restarting, slopes, water and soft terrain, extraction from soft ground, parking, emergency parking, travel alarm
• Operating Machine – ISO and Hitachi lever patterns, pilot control shut-off, steering wheel column, warming-up, auto-idle, work modes, power boost, power mode, parking/stopping on a slope, raising machine front, differential gear advice, excavation, face shovel, grading, emergency boom lowering procedures, overnight storage
• Attachments – attachment pedal for breaker and crusher, pipings, secondary relief pressure, pressure measurement, breaker and crusher precautions, allowable attachment weights, commercial attachment models
• Transporting – transporting by road, loading and unloading on a trailer, ramp/loading dock, towing, machine lifting procedures
• Maintenance – full maintenance guide table with intervals, greasing, engine, transmission, brake, tire, hydraulic, fuel, air cleaner, cooling, electrical and miscellaneous sections

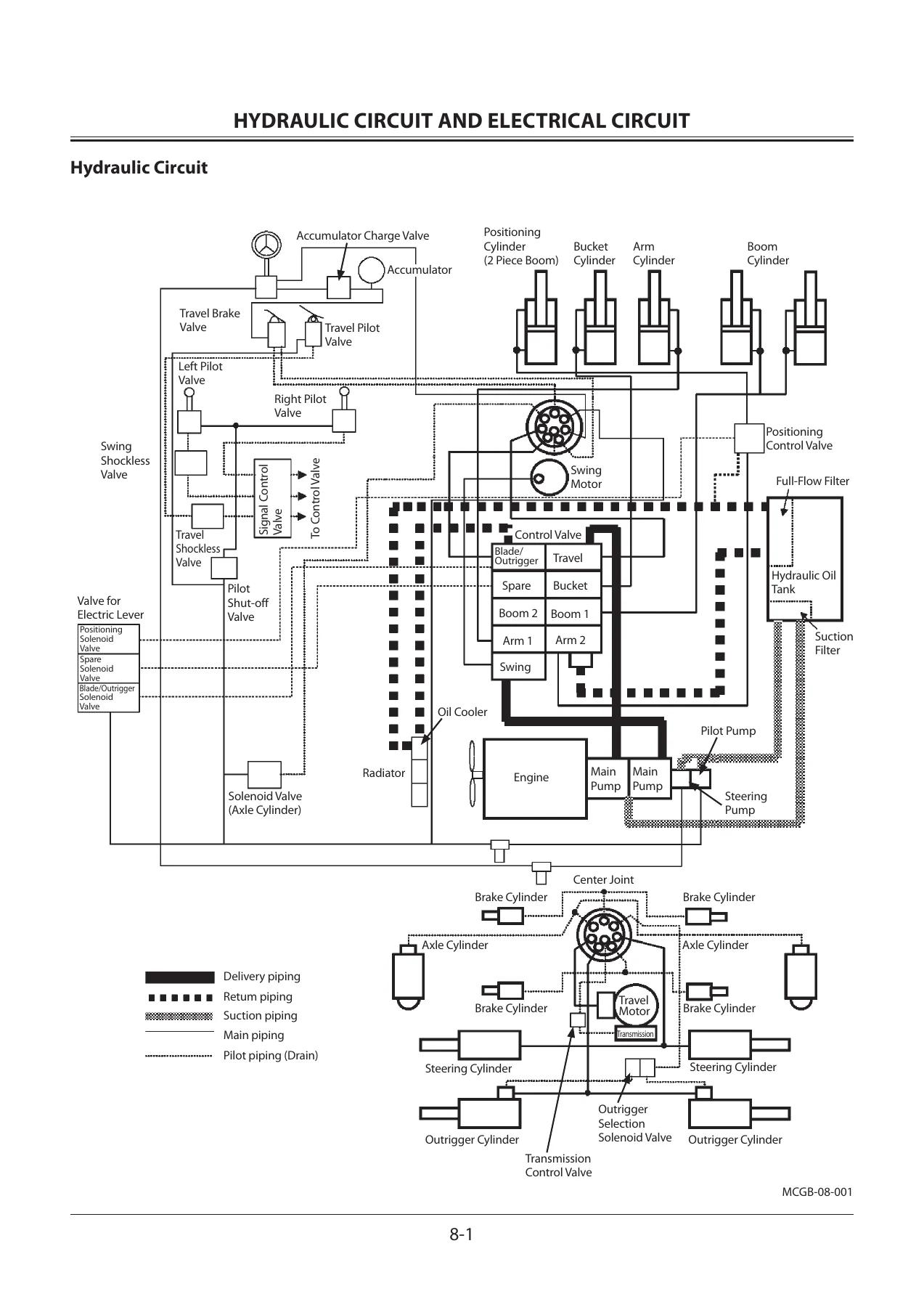

• Hydraulic Circuit and Electrical Circuit – hydraulic schematic and electrical diagram
• Maintenance Under Special Environmental Conditions – muddy soil, ocean, dusty atmosphere, rocky ground, freezing weather, falling stones
• Storage – storing the machine and removing from storage
• Troubleshooting – engine, engine auxiliaries, engine hard to start, control lever, hydraulic system, travel, swing, engine speed, blade/outrigger, positioning
• Specifications – dimensions, working ranges, sound and vibration for all four models and combinations
• Optional Attachments and Devices – blade and outrigger, 2-piece boom, lifting hook, lifting capacity charts
• Index

This Hitachi ZAXIS wheeled excavator operator’s manual is written for the person who actually runs and maintains these machines, not just for the buyer in the cab. It opens with a full safety chapter covering the practical hazards on a W-series wheeled excavator: how to get on and off safely using the handrails and steps, how to fasten and adjust the seat belt, how to keep the pilot control shut-off lever in the correct position, how far to keep the machine from power lines, what to do in a lightning storm, how to bleed high-pressure fluids safely, how to store attachments and how to prevent fires in the engine bay. Every safety sign fitted to the machine is illustrated with its location and part number.

The operator’s station and multifunction monitor chapters tell you what every switch, dial and lever does, including the travel mode switch, the engine speed control mode (pedal, dial or creeper), power mode (E, P, H/P), auto-idle, the work light, wiper/washer, and the full menu structure of the multifunction monitor with password setup and mail function. Driving chapters cover starting in ordinary and cold weather, using booster batteries, stopping and restarting, slope travel, travel in water and soft ground, extraction from soft ground, and correct parking on grades with wheel chocks and bucket teeth thrust into the ground. Working chapters explain the ISO and Hitachi lever patterns, the warming-up routine before the hydraulic oil is up to temperature, safe excavation and grading technique, face shovel conversion and the correct boom-and-arm angle for raising the machine front. Emergency procedures for lowering the boom when the engine stalls are given for both the ZX140W-3/170W-3/190W-3 and the ZX210W-3.

The maintenance section is the strongest part of the book for a working owner. It is organised as a Maintenance Guide Table showing exactly what is greased, checked, cleaned, or replaced at 8, 50, 100, 250, 500, 1000 and 2000-hour intervals for the ZX140W-3, ZX170W-3, ZX190W-3 and ZX210W-3, with the correct oil, grease and coolant brand names and capacities shown where the manual lists them. Individual procedures cover the front joint pins, swing bearing, swing internal gear, front axle, propel shaft, equalizer pin, engine oil and filter, pump transmission, swing reduction gear, transmission, front and rear axles, hub reduction devices, travel brakes, brake accumulator, brake lining, tires and wheel-nut torque, hydraulic oil and full-flow filter, pilot and steering/brake oil filter, air breather element, hoses, fuel system including the fuel main filter and pre-filter, air cleaner, cooling system, batteries, fuses and bucket teeth.

Rounding out the manual are the full hydraulic circuit schematic and electrical diagram, the special environmental condition maintenance list for muddy, coastal, dusty, rocky and freezing environments, storage procedures, a structured troubleshooting section that walks through common faults in the engine, hydraulics, travel, swing, blade and outrigger, and the complete specification tables including dimensions, working ranges, sound and vibration levels for each model and boom configuration.

If you own or work on a ZX140W-3, ZX170W-3, ZX190W-3 or ZX210W-3 wheeled excavator, this operator’s manual gives you the correct starting and stopping procedure, the correct parking procedure, the correct warming-up procedure, the correct maintenance intervals, the correct greasing points, the correct brake and axle-lock sequence and the correct emergency procedures. Running a wheeled excavator with guessed settings is expensive – an incorrect axle-lock sequence, a missed brake accumulator check, or a hot shutdown on a turbocharged engine can shorten component life significantly. Having the EMCGB-EN1-4 manual on hand means you follow the manufacturer’s own instructions rather than a forum post or a remembered version from another model.

IMAGES PREVIEW

This is a downloadable PDF file – no shipping, no waiting for a parcel. Once payment is complete you get the link immediately, and the file can be opened on a laptop, tablet or phone, printed page for page if you prefer paper in the cab, and kept on any device for as long as you own the machine. It is the ideal reference for owners, operators, fleet managers and mechanics who need the correct Hitachi procedures and specifications in front of them rather than relying on memory.
