Hitachi ZW180-5A & ZW220-5A Wheel Loader Operator Manual – PDF Download

Description

Hitachi ZW180-5A & ZW220-5A Wheel Loader Operator Manual

This is the full operator’s manual for the Hitachi ZW180-5A and ZW220-5A wheel loaders. It is the document that ships with the machine and is intended to be kept with the loader for its entire working life. Everything a wheel loader operator, fleet supervisor or maintenance planner needs to run the ZW180-5A or ZW220-5A correctly is contained here: control layout, daily and periodic service schedules, safe driving and loading technique, fluid and filter requirements, torque values, and the factory specifications for both models.

The document is written for machines operating within the standard envelope of -20°C to 40°C (-4°F to 104°F) at altitudes from 0 m to 2000 m (0 ft to 6600 ft), and it states plainly that any use outside those conditions should be discussed with a Hitachi dealer first. Fuel quality requirements are also specified – diesel meeting JIS K-2204, EN-590, ASTM D-975, GOST R52368 or GB252 with an ISO4406-1999 cleanliness class of 18/16/13.

File Details

• Manual type: Operator’s Manual (operation, maintenance and safety)
• Brand: Hitachi Construction Machinery
• Models covered: ZW180-5A, ZW220-5A
• Engine: CUMMINS QSB6.7
• Language: English
• Format: PDF
• Approximate page count: 398 pages
• Measurement system: Metric with imperial conversions shown

Chapters Covered

The manual is organised into the following top-level groups:

• Safety – signal words, protective clothing, cab precautions, handrails and steps, seat belt use, rollaway prevention, tipping avoidance, power line clearance, high-pressure fluid hazards, fire prevention, battery safety, welding and grinding precautions, waste disposal, communication terminal precautions, safety sign locations

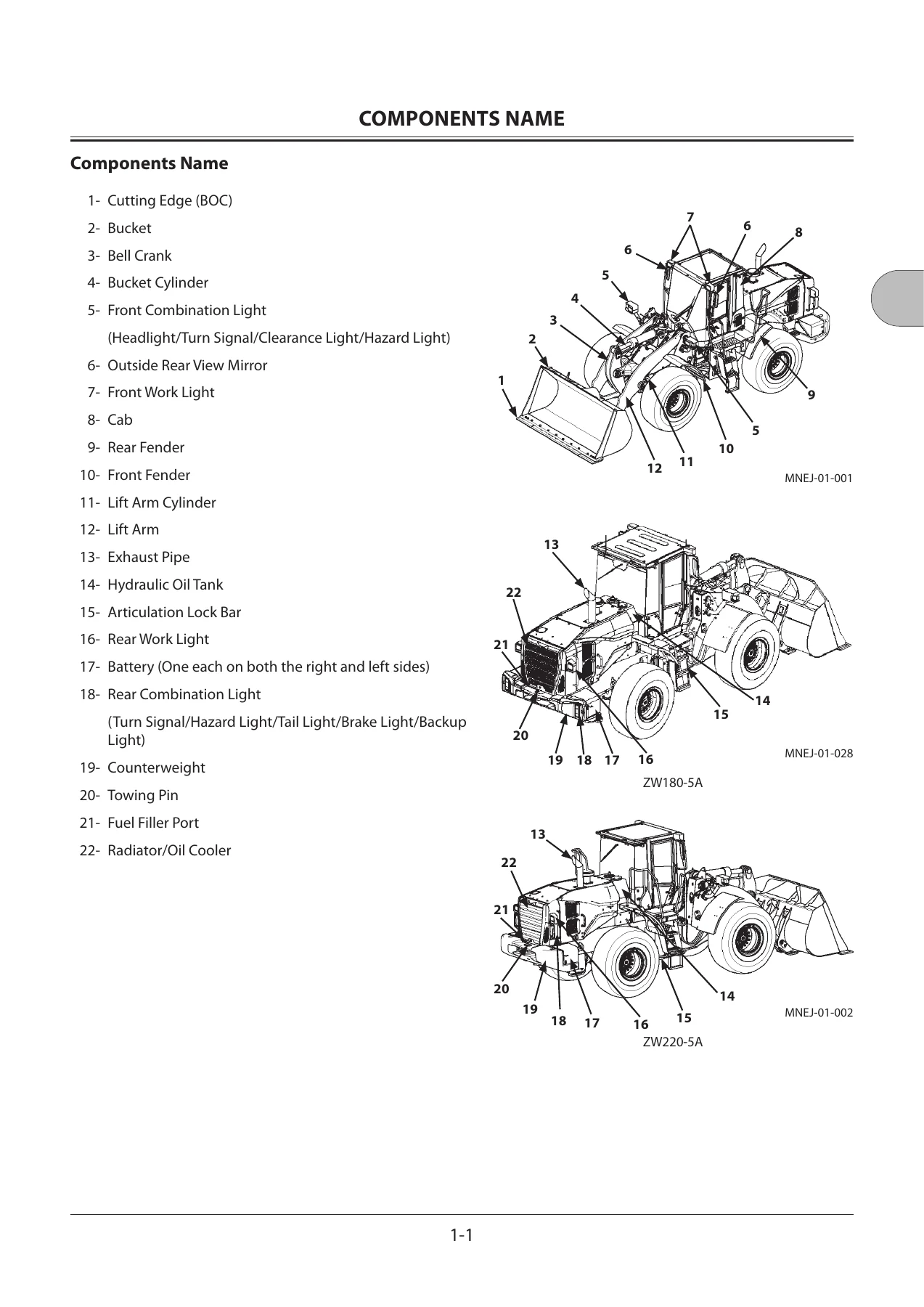

• Components Name – full machine layout with callouts, getting on and off the machine, cab features, front console, right console (fingertip control and multi-function joystick variants)
• Operator’s Station – monitor panel, all warning and indicator lamps, gauges, machine information display, hour meters for oil and filter intervals, clock setting, switches, steering wheel, pedals, levers, travel mode selector, auto air conditioner, seat adjustment, cab fittings, radio, doors and windows, battery disconnect switch, towing pin, tool box, vandal-proof devices, seat belt
• Break-in – break-in operation for a new machine over the first 100 hours
• Operating Engine – daily inspection, check before starting, starting procedure, cold weather starting, checks after starting, booster batteries, warming up, stopping the engine
• Driving Machine – starting to move, power mode, shift change delay, parking brake, drive speed change, forward/reverse change, steering, emergency steering, stopping and restarting, slope precautions, parking, emergency evacuation
• Operating Machine – control levers, lever lock, clutch cut, ride control, lift arm kickout, bucket auto leveler, excavation, grading, loading, dozing, scooping, snow removal, lifting the machine, after-operation precautions
• Transporting – road transport, trailer transport, loading and unloading, fastening for transport, self-travel in urgent situations, towing method, releasing the parking brake manually, lifting the machine

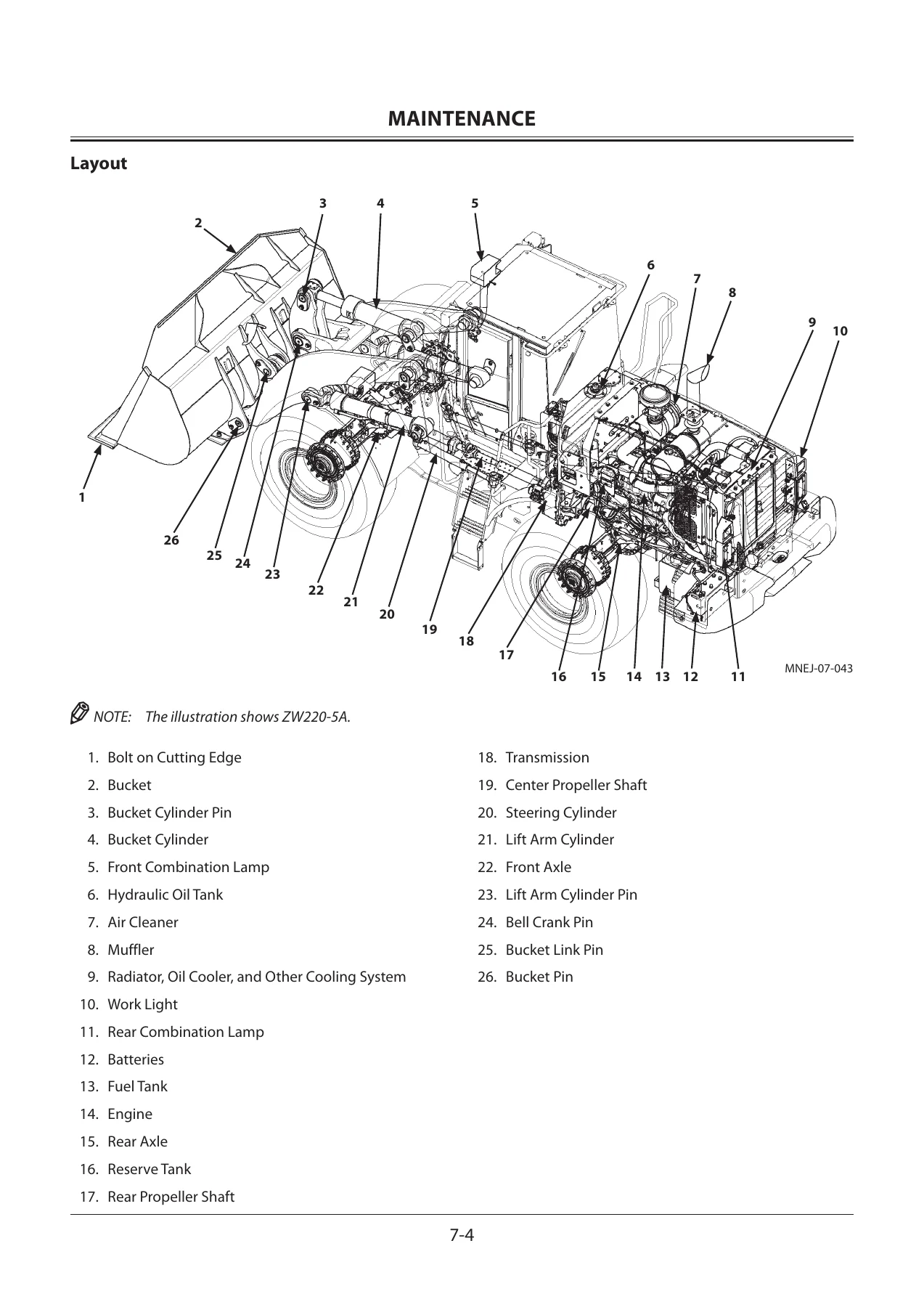

• Maintenance – maintenance and inspection procedures, layout, lock frames, access covers and rear grille, maintenance guide, periodic replacement of parts, oil and grease recommendations, greasing points, engine, power train, hydraulic system, fuel system, air cleaner, cooling system, electrical system, brake system, tyres, air conditioner, miscellaneous checks and torque tables
• Maintenance Under Special Environmental Conditions – muddy or snowy conditions, coastal or chemical environments, dusty atmosphere, rocky ground, freezing weather, handling waste paper
• Storage – long-term storage preparation and removal from storage
• Troubleshooting – engine auxiliaries, control levers, hydraulic system, drive function, steering system, accelerator pedal, parking brake, service brake, transmission, propeller shaft, front and rear axles
• Specifications – dimensions, capacities, weights and travel speeds for both models
• Optional Attachments – hydraulic type quick coupler, log grapple, rear view camera monitor
• Index – full alphabetical index

Taken as a whole, this manual is a complete operating system for the ZW180-5A and ZW220-5A. It does not stop at a list of controls: it explains the logic behind each warning lamp, the reasoning behind the daily walk-around, the correct sequence for a cold start, and the safe technique for every major task a wheel loader performs. The maintenance section is unusually detailed for an operator’s manual, with greasing intervals separated by component, fluid capacities per model, filter part positions, and a full tightening torque chart for the major structural and driveline fasteners.

Operating Guidance

The operating chapters cover the full working cycle. Excavation, loading accumulated soil, digging and loading level ground, grading, load-and-carry, V-shape and I-shape truck loading, dozing, scooping and snow removal are each dealt with in their own section with the specific precautions that apply. Slope work is treated thoroughly: bucket height for travel, which direction to face the bucket, when to avoid steering, and what to do if the machine starts to slide.

The manual also documents the transmission and control features that change how the machine behaves – auto shift modes AUTO 1 and AUTO 2, the manual mode, the 1st speed fixed switch, the down shift switch, power mode, ride control, and the clutch cut position switch. For the ZW180-5A and ZW220-5A operator, knowing how these interact is the difference between a productive machine and a worn one.

Maintenance and Servicing Content

Service intervals are listed both as a maintenance guide table and as individual procedures. The manual covers engine oil and filter changes, transmission oil and filter changes, axle oil changes for front and rear, hydraulic oil changes and tank cleaning, suction filter cleaning, pilot oil filter replacement, hydraulic tank oil filter replacement, air breather element replacement, fuel main filter and pre-filter replacement, fuel solenoid pump strainer cleaning, air cleaner outer and inner element service, coolant changing, radiator and cooler cleaning, battery electrolyte checks, brake system checks, tyre pressure and wheel nut torque, and air conditioner filter service.

Torque values are given for front and rear axle support mounting bolts, wheel rim nuts, propeller shaft bolts, transmission and engine mounting bolts, counterweight bolts, centre pin locks, loader front pin locks, radiator and cooler mounting bolts, cab cushion bolts, and bucket tooth and cutting edge bolts. A general tightening torque chart by bolt diameter is also included for fasteners not individually listed.

Safety and Emergency Content

The safety group at the front of the manual is comprehensive, covering rollaway prevention, tipping, backing and turning, articulation pinch points, high-pressure fluid injection, fire prevention, battery explosion risk, exhaust fumes, asbestos and silicon dust, and correct waste disposal. Emergency procedures are included for fire evacuation, emergency exit through the rear window with the evacuation hammer, and emergency steering operation where the option is fitted. The manual also carries the full set of safety sign locations with the part number for each decal.

Optional Equipment Covered

Three optional attachment sections are included: the hydraulic type quick coupler with removal and installation procedure and hydraulic hose connection guidance, the log grapple with working position, carrying position, picking up and truck loading techniques, and the rear view camera monitor with full setting and adjustment instructions.

Who This Manual Is For

The Hitachi ZW180-5A & ZW220-5A Wheel Loader Operator Manual suits machine operators who want to run the loader correctly rather than by habit, fleet and site supervisors responsible for safety compliance, maintenance planners building service schedules, and workshops that need the correct fluid capacities and torque figures on hand. Because both models are covered in one document, a mixed fleet of ZW180-5A and ZW220-5A machines can be serviced from a single reference.

Why the Correct Document Matters

Wheel loaders are worked hard. Wrong fluid, extended service intervals, an incorrectly adjusted parking brake or an ignored warning lamp all shorten component life, and on a machine of this size the repair bill reflects it. This manual gives the specified intervals, the correct capacities for each model, the exact procedures, and the reasoning behind the safety precautions so that decisions are made on Hitachi’s terms rather than guesswork. The troubleshooting chapter provides a structured path from symptom to cause for the engine auxiliaries, hydraulics, transmission, brakes, steering and axles.

IMAGES PREVIEW

Instant PDF Delivery

The manual is delivered as an instant PDF download as soon as payment clears. There is no shipping, no waiting for a printed binder, and no risk of a lost paper copy. The file opens on any device – desktop, laptop, tablet or phone – and can be printed in full or in part, so the pages you need in the workshop can sit next to the machine while the master copy stays clean. Keep it on a phone in the cab for quick reference to warning lamp meanings, or print the maintenance schedule and greasing pages for the service bay.
